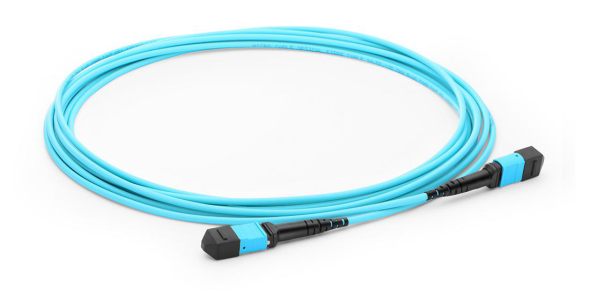

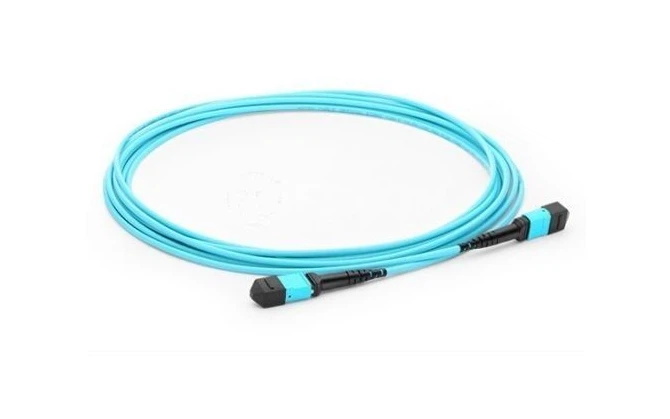

The MTP® Trunk Cable offers a cost-effective solution to labor-intensive field termination, catering to the high-density fiber patching needs of space-saving data centers aiming to streamline cable management. It's important to mention that the US Conec MTP connectors adhere fully to MPO standards, delivering superior performance compared to generic MPO connectors.
Description:
Connector A
MTP® Female(Pinless)
Connector B
MTP® Female(Pinless)
Fiber Mode
OM3 50/125μm
Wavelength
850/1300nm
Polish Type
UPC to UPC
Mini Bend Radius
30mm
Insertion Loss
0.35dB Max(0.15dB Typ.)
Return Loss
≥20dB
Jacket OD
3.0mm
Cable Jacket
Plenum(OFNP)
Installation Tensile Load
100N
Long-term Tensile Load
50N
Storage Temperature
-40℃~ 85℃
Operation Temperature
-10℃~ 70℃
Feature:
►Precision low-loss factory polished connector with integral splice and fiber clamp;
►Simple and fast connector termination, with no adhesives or field polishing required;
►Provisions for visual light source verification to achieve optimal splice transmission;
►Fibers supported: OM1, OM2, OM3, OM4, SM;
►Wide operating temperature range for thermally stable optical performance.
Application:
►Intra-building backbone and horizontal fiber interconnections;
►Inter-building OSP entrance terminations;
►Data Center and WAN main cross-connect terminations;
►Quick deployment remote data links;
►Fiber to the Subscriber (FTTX);
►Low reflection angle polish single-mode applications.

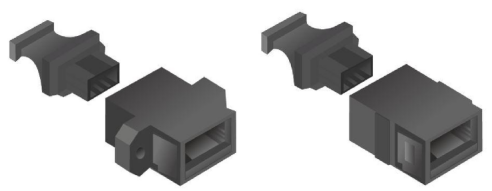

MPO/MTP Fiber Adapter
|
Lower Insertion Loss & Higher Performance |
||
|

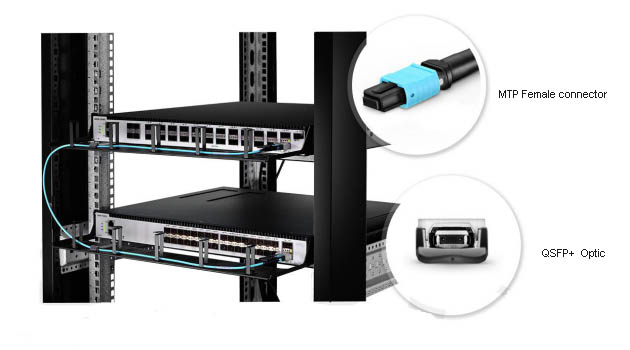

8fibers used when mated with 40G QSFP+ transceivers |
0.35dB Low IL and stable signal transmission ensuring your network safety |
High quality MTP connectors tested and guaranteed by 3D interferomete |
Package:
Welcome to buy the 12f mtp® 40g om3 50/125μm multimode trunk cable, polarity b plenum ofnp female to female with our factory.
As one of the leading manufacturers and providers from China, we welcome the customized orders. Consult the price and the quotation
with us to sales@sopofiber.cn.
