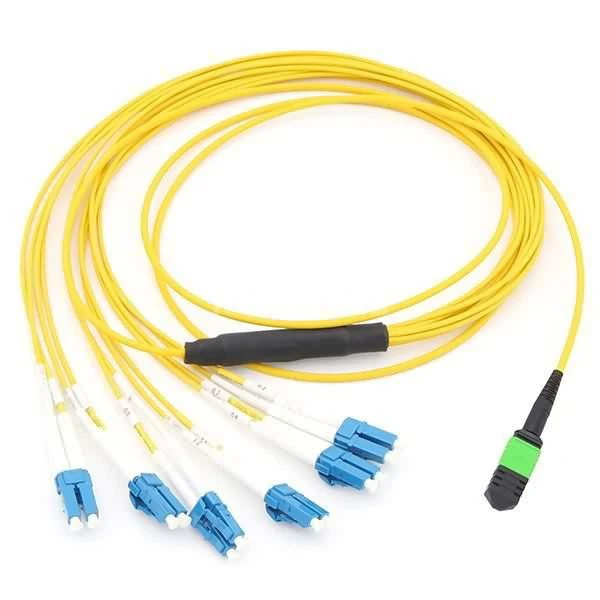

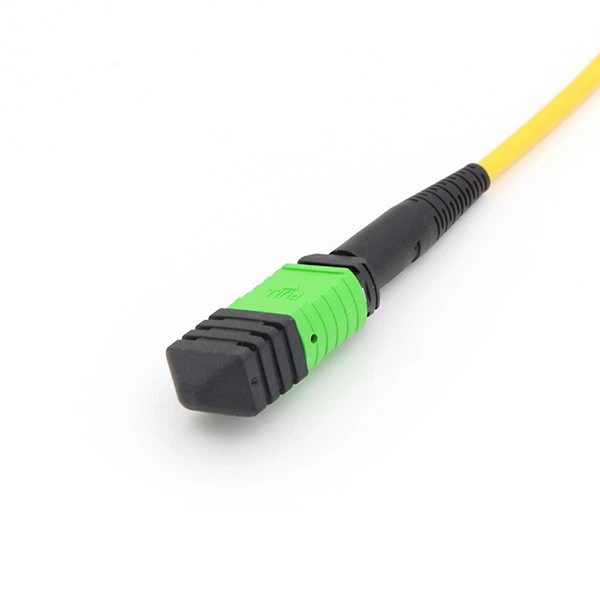

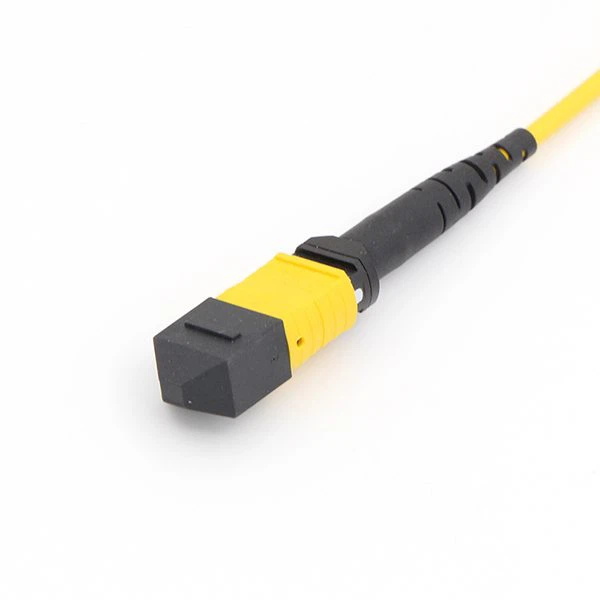

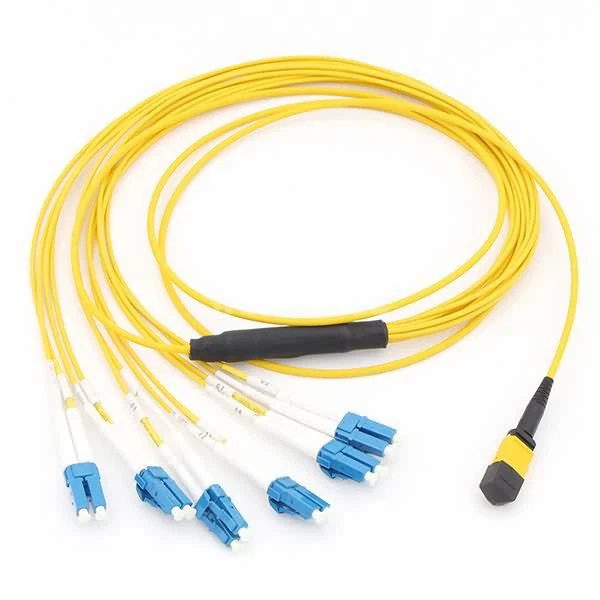

MTP APC to LC Singlemode 12-Fiber Fanout Breakout Fiber Optic Cable Assembly

MTP®-LC cables feature bend-insensitive design and come pre-terminated with an MTP® connector on one end, branching out to 6 LC connectors (Duplex or Uniboot) on the other. Uniboot patch cords enable up to 50% reduction in cabling volume, facilitating easier maintenance and operability. On-site polarity reversal enhances flexibility and operability. FOCC's MTP® to LC Fan Out Cables offer a versatile solution for connecting fiber optic equipment to MTP® Trunk Cables. Utilizing the superior MTP® Elite connector (without pins) from US Conec ensures high performance and durability. Each fan-out cable is crafted with mini-breakout cable, ensuring the fiber remains a single piece in the assembly. For fan-out cables with 12 cores or more, the MTP® section is presented on a 900um segment, while the LC connectors are staggered to manage connectivity. Customers specify the overall length when ordering.

Features:
► MTP Elite® connectors;
► 12, 24, 72, 96 & 144 Core cable assemblies available;

► LSOH Cable Jacket.

Applications:
► OM3, OM4 & OS2 Categories available;
► Custom length;
► APC Single-mode connector as standard;
► Storage Area Networks (SAN);
► Data Centers;
► Communications rooms.

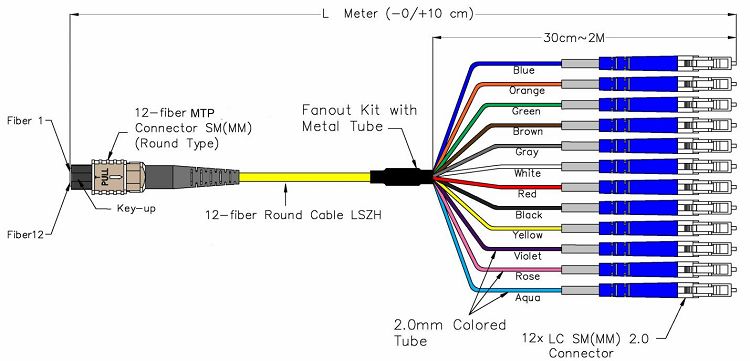

Technical Drawing:

Specifications:

Model & Parameter	Multi-mode Low Loss	Single-mode Low Loss
Max. Insertion Loss	0.1 dB – LC 0.3 dB – MTP 0.4 dB – Total end-to-end loss (Up to 5 meters long)
Return Loss	>-35 dB	>-60 dB (8° Angle Polish)
Loss Variation (Durability)	≤ 0.2 dB 500 cycles (per EIA-455-21A)	≤ 0.3 dB 500 cycles (per EIA-455-21A)
Fiber Attenuation	< 3 dB/km @850nm	< 0.35 dB/km @1310/1550 nm
Cable Outer Diameter	MTP Cable: 3 mm LC Legs: 2 mm
Bending Radius limit	MTP Cable: 15 mm LC Legs: 10 mm
Operating Temperature	0℃ ~ +70℃
Cable Retention	100N
LC Connector Retention	60N
MTP® Connector Retention	45N
Cable Crush Resistance	45 N/cm

The basic division of MTP® connectors:

Type and Color Code Connectors	Insertion Loss (IL)	Optical Return Loss (RL)	Operating Temperature
Single-mode MTP® Elite® Connector	0.10 dB Typical (All Fibers) 0.35 dB Max (Single Fiber)1	> 60 dB (8°AnglePolished)2	-40℃ to 75℃
Single-mode MTP® Standard Connector	0.25 dB Typical (All Fibers) 0.75 dB Max (Single Fiber)1	> 60 dB (8°Angle Polished)2	-40℃ to 75℃
Multimode MTP® Standard Connector	0.25 dB Typical (All Fibers) 0.75 dB Max (Single Fiber)1,3	> 20 dB (0°Flat Polished)2,3	-40℃ to 75℃
1 IL test according to IEC 61300-3-4; 2 RL test according to IEC 61300-3-6; 3 Tested with proposed encircled flux launch condition on 50μm fiber & 850nm per IEC 61280-4-1.

More MTP® / MPO Fanout Family:

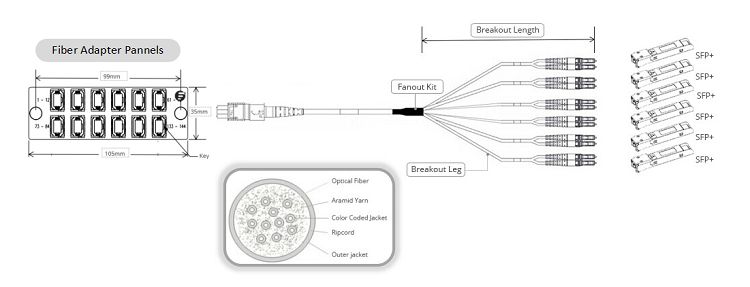

Typical applications and wire map:

● Ordering Information:

► Example 1:
FSF1 2GF9UU0 01 50 00 05 0L
12 Fibers, OM4, Female MTP to 12 LC Legs Paired in 6 LC Duplex connectors, UPC polished, 1.5 M Total Length, zero Fanout on MTP side, 50 cm

fanout on LC side, Direct polarity.

► Example 2:
FSF1 2GFUUU001 50 00 05 0L
12 Fibers, OM4, Female MTP to 6 LC Uniboot Legs (12 fibers, 6 LC Duplex connectors), UPC polished, 1.5 M Total Length, zero Fanout on MTP side,

50 cm fanout on LC side, Direct polarity.

Fiber Count	12 Fibers
Fiber Type	SM G657A2 B.I; OM3 B.I; OM4 B.I
Connector Type Side 1	MTP® FEMALE; MTP® MALE
Connector Type Side 2	MTP® Female; MTP® Male; LC Uniboot; LC Duplex
Polish Type Side 1	UPC; APC
Polish Type Side 2	UPC; APC
Cable Length	XXX.X [m]
Fanout Side 1	XXX [cm]
Fanout Side 2	XXX [cm]
Polarity	Direct(Low Loss); Crossed(Low Loss)
