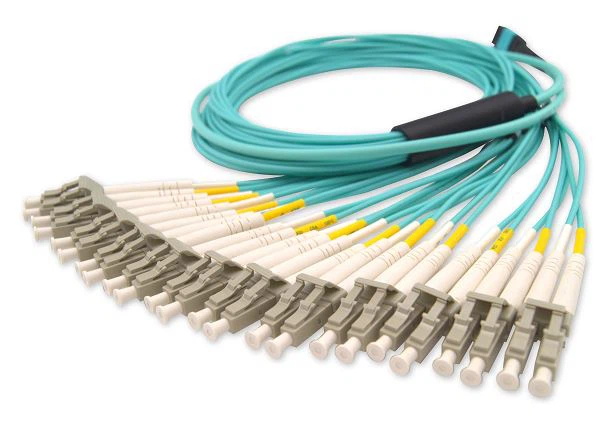

MPO/MTP to LC Fan Out Cables interface multifiber MPO/MTP connectors with discrete single-fiber connectors (mainly LC/SC). These assemblies are commonly employed to directly link MTP/MPO cassettes, panels, or backbone trunk assemblies with active equipment ports, thus conserving valuable data center rack space and simplifying fiber management. Substituting traditional MTP/MPO module Fan-Out Assemblies reduces the number of interconnections, enhancing the power budget and lowering costs.
Description:

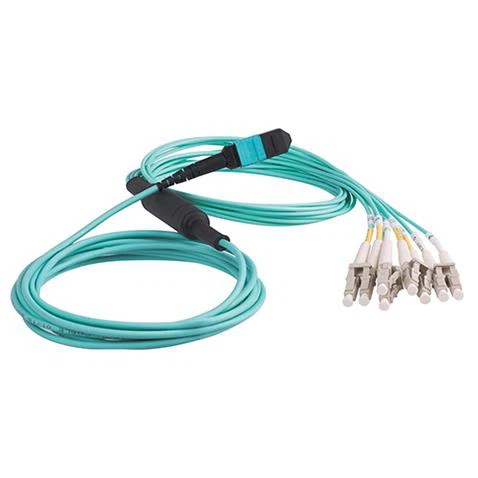

MTP cables are your best choice for high density fiber networks. It's specifically designed for fast ethernet, fiber channel,
data center and gigabit ethernet applications. This 8/12/24 Fiber harness cable is used for connecting (12) SFP+ into a
MTP adapter panel and MTP trunk. This LSZH cable is designed and tested to conform to IEC-60332-1 and IEC-61034.
Specification:
|
Connector A |
MTP |
Connector B |
LC UPC Duplex |
|
Fiber Mode |
SM/MM |
Wavelength |
1310/1550nm |
|
MTP Connector IL |
0.5dB Max (0.15dB Typ.） |
LC Connector IL |
≤0.3dB |
|
MTP Connector RL |
SM≥55dB,MM≥20dB |
LC Connector RL |
SM≥55dB,MM≥35dB |
|
Jacket OD |
3.0mm |
fan-out Diameter |
2.0mm |
|
Installation Tensile Load |
100 N |
Long-Term Tensile Load |
50 N |
|
Storage Temperature |
-40°C to +85°C |
Operating Temperature |
-10°C to +70°C |
|
Cable Jacket |
LSZH |
Fiber Count |
8/12Fibers |

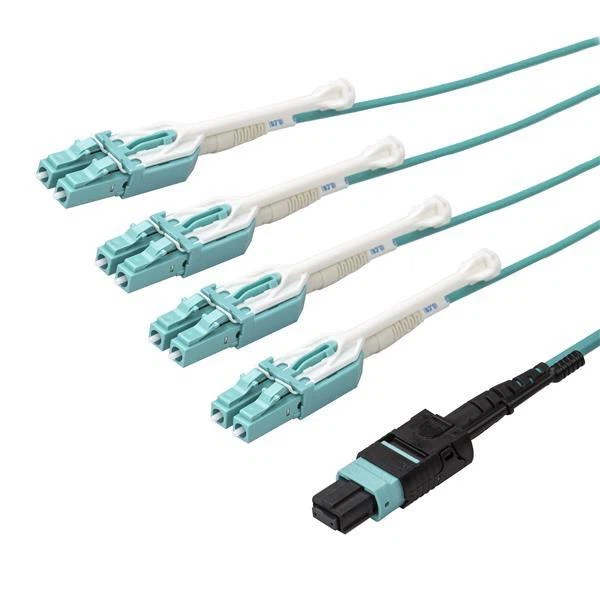

1. Low Insertion Loss LC Connector,the tightly tolerance ceramic ferrules ensuring consistent low loss.

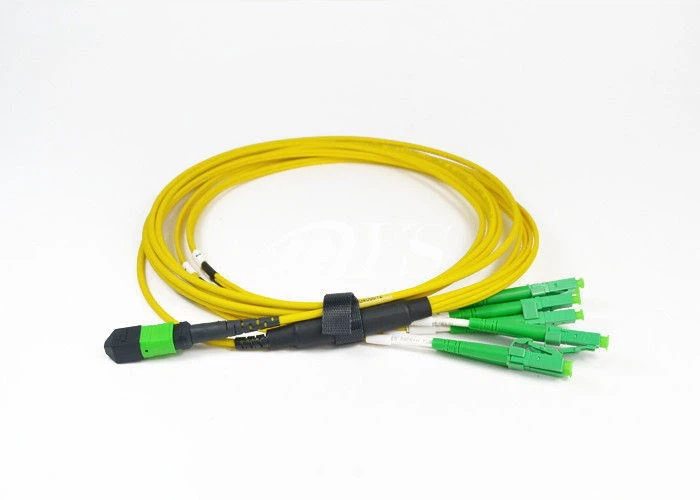

2. Heat Shrink Tube divides the cable into four 2.0mm OD. fan outs, providing protections.

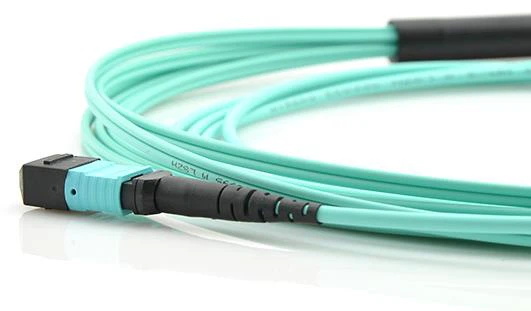

3. Multi-fiber Termination Push-on,the same size as a LC connector, the elite MTP connector can accommodate 24 fibers, providing 24 times the density.
Feature:

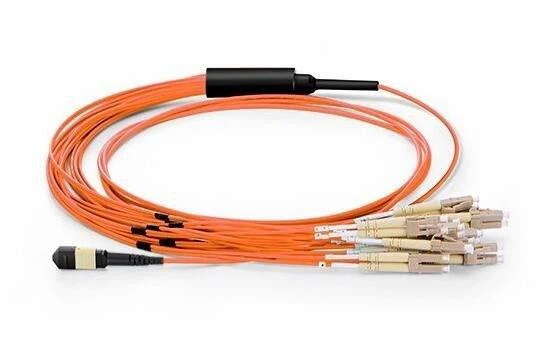

8-12 core fiber available
Cross Connection : AB/BA
Paralled Connection : AB/AB
Small volume, easy management
Insertion Loss : Low IL & Standard IL available
Can customize connection method as QSFP requirements
|
Low Insert Loss US Conec MTP connector 0.35dB ultra low IL |
Bend Insensitive Fiber Corning SMF-28 ultra optical fiber 10.0mm minimum bend radius |
Test Assured Program Insertion loss and return loss testing End-face inspection 3D interferometer test |
Application:
· Data center
· Telecom network
· CATV
· FTTH
· End equipment
· Data communication network
· Test equipment
· 10G Data Center System
Lower Insertion Loss & Higher Performance
|
High-quality cable with 3D interferometer tested MTP connector |
Elite MTP connector ensures stable signal transmission. |

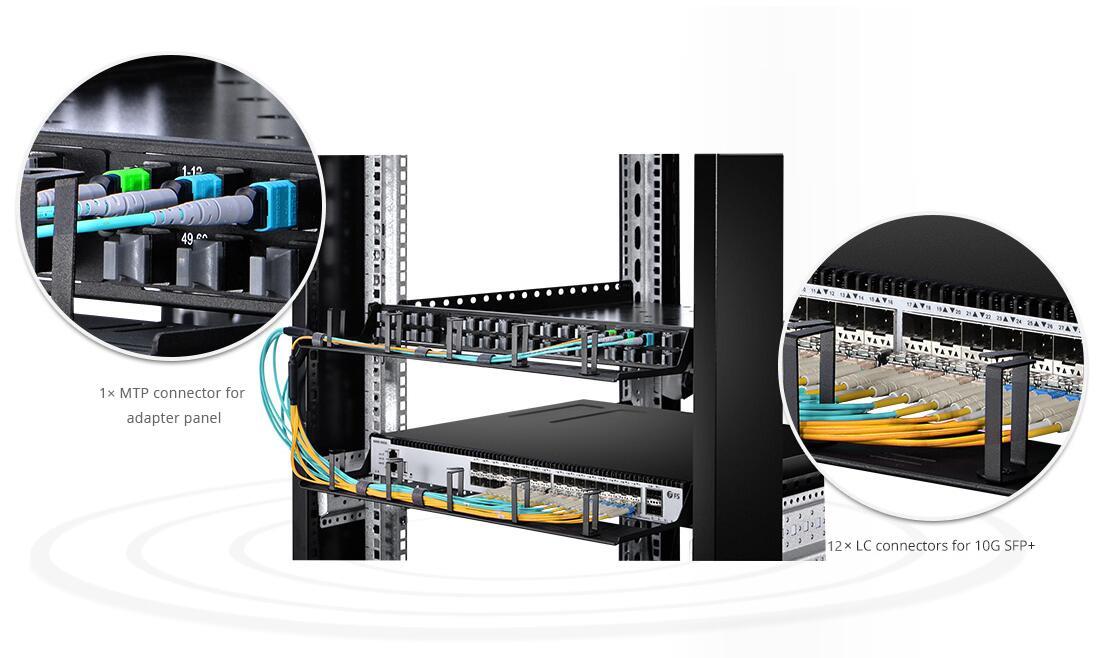

Typically used for connecting (12)10G SFP+ into a module for port replication |
