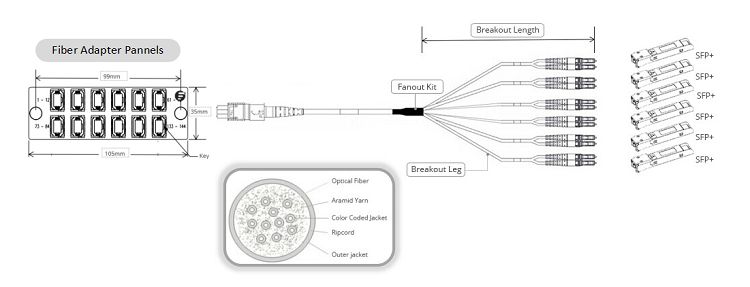

MTP cables are your best choice for high density fiber networks. It's specifically designed for fast ethernet, fiber channel, data center and gigabit ethernet applications. This 24 Fiber harness cable is used for connecting (12) SFP+ into a MTP adapter panel and MTP trunk. This OFNR cable is designed and tested to conform to IEC-60332-1 and IEC-61034.

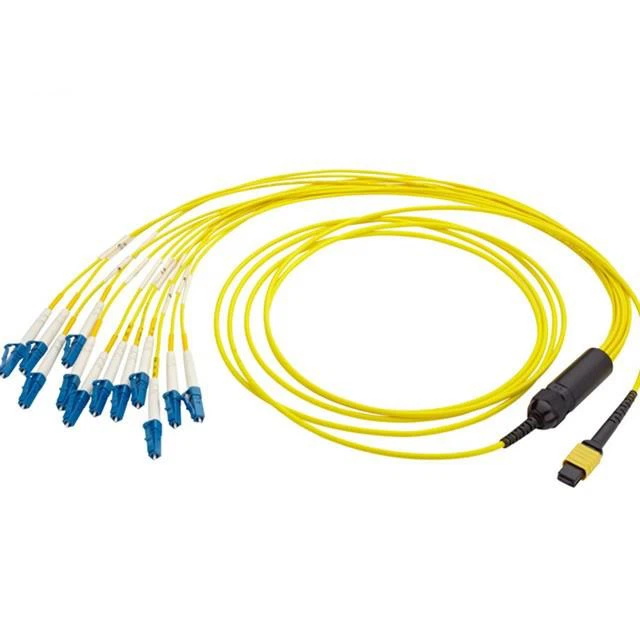

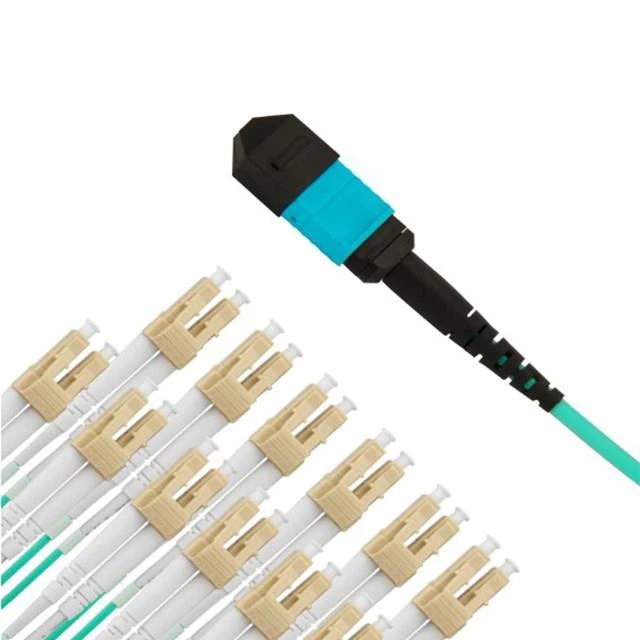

OFNR,Low Insertion Loss,3.5mm MPO Male To 12 LC Duplex 24 Fibers OS2 9/125 Singlemode patch cord
General Connector Specification:
|
Parameter |
Single-mode |
Multi-mode |
|||
|
Basic |
Fiber connector |
FC, SC, LC, ST, MU, MTRJ, MPO |
|||
|
Ferrule End-face |
PC |
UPC |
APC |
UPC |
|
|
Insertion Loss |
≤0.2dB |
≤0.2dB |
≤0.3dB |
≤0.3bB |
|
|
Return Loss |
≥50dB |
≥55dB |
≥60dB |
≥35dB |
|
|
Ceramic Ferrule Specification |
125.5um concentricity deviations: |
127um concentricity deviations: <=3um |
|||
|
Suitable Fiber |
9/125um |
50/125um,62.5/125um |
|||
|
End-face Geometry |
Radius of Curvature |
7~25mm |
5~12mm |
N/A |
|
|
Fiber Protrusion |
≤50nm |
≤100nm |
N/A |
||
|
Fiber Under Cut |
≤100nm |
≤100nm |
N/A |
||
|
Apex offset |
≤50um |
||||
|
Mechanical |
Exchangeability |
≤0.2dB |
|||
|
Salt Spray |
≤0.1dB |
||||
|
Drop |
≤0.2dB(1.5M, 5 drops) |
||||
|
Vibration |
IL ≤0.2dB(550Hz, 1.5mm) |
||||
|
Repeatability |
≤ 0.1dB(1000 times) |
||||
|
Durability |
> 1000 times |
||||
|
Operating Temperature |
-40℃ ~ +85℃ |
||||

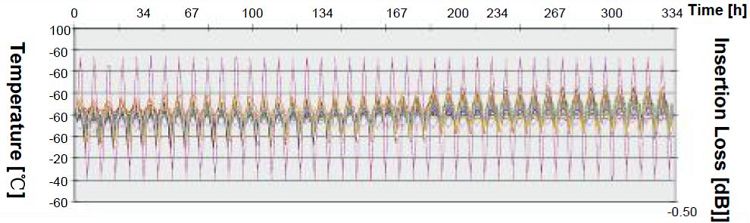

The basic division of MTP® connectors:
|
Type and Color Code Connectors |
Insertion Loss (IL) |
Return Loss (RL) |
Operating |
|
Single-mode MTP® Elite® Connector |
0.10 dB Typical (All Fibers) 0.35dB Maximum (Single Fiber)1 |
> 60 dB (8°Angle Polished)2 |
-40℃ to 75℃ |
|
Single-mode MTP® Standard Connector |
0.25 dB Typical (All Fibers) 0.75dB Maximum (Single Fiber)1 |
> 60 dB (8°Angle Polished)2 |
-40℃ to 75℃ |
|
Multimode MTP® Standard Connector |
0.25 dB Typical (All Fibers) 0.75dB Maximum (Single Fiber)1,3 |
> 20 dB (0°Flat Polished)2,3 |
-40℃ to 75℃ |
|
1 IL test according to IEC 61300-3-4; |
|||
Products Scheme & Interconnect Solutions:

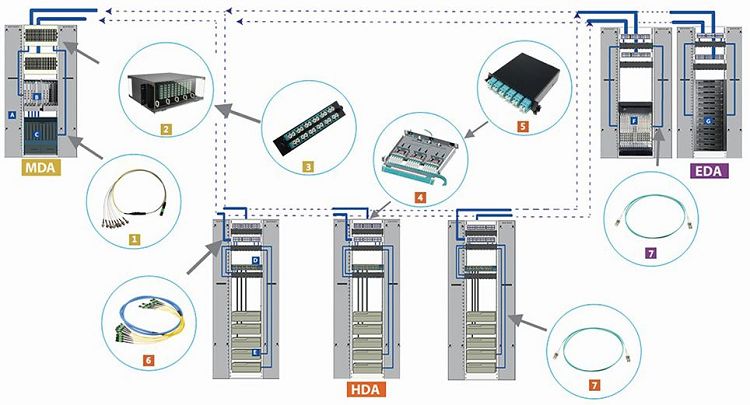

High Density MTP® / MPO Cabling System In Dada Center:
Ordering Guide:
► 1 ea for individual static-free bag with test report;
► Connector Customized Inquired;
► Fanout / Breakout Cable Customized Length;
|
Product Description |
MTP/F/PC - LC/UPC/DX - OM3 - 12B - B2.0 - 1.5M/0.6M - LSZH - Aqua - A 1 2 3 4 5 6 7 8 9
|
|
1 - Connector A |
MTP/F/PC: MTP Female,PC polish; MTP/F/APC: MTP Female,APC polish; |
|
2 - Connector B |
LC/UPC/DX;LC/APC/DX;LC/UPC/SX;LC/APC/SX;LCP/UPC;LCP/APC; |
|
3 - Fiber Mode |
OM1, OM2, OM3, OM4, OS2, G657A1 |
|
4 - Fiber Count&Type |
12R: 12F Ribbon; 12BR: 12F Bare Ribbon; 12B: 12F Mini Round Cable |
|
5 - Breakout Type |
B2.0: 2.0 fan-out with splitter kit. |
|
6 - Length |
1.5M/0.6M: Cable total length1.5M, fan-out length 0.6M, etc. |
|
7 - Cable Jacket Materials |
LSZH/OFNP/OFNR |
|
8 - Cable Jacket Color |
Aqua (OM3,OM4) Orange (OM1,OM2), Yellow (SM). |
|
9 - Polarity |
A: Type A; B: Type B; C: Type C. |
