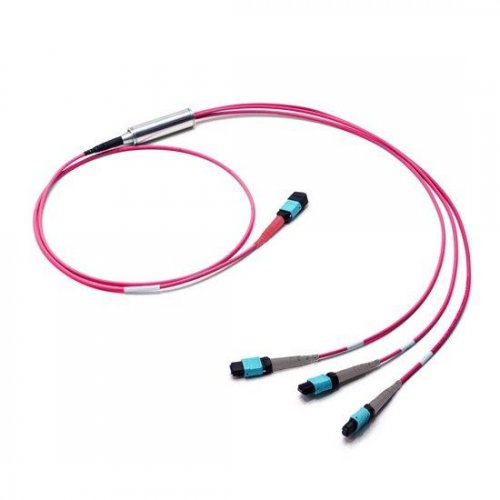

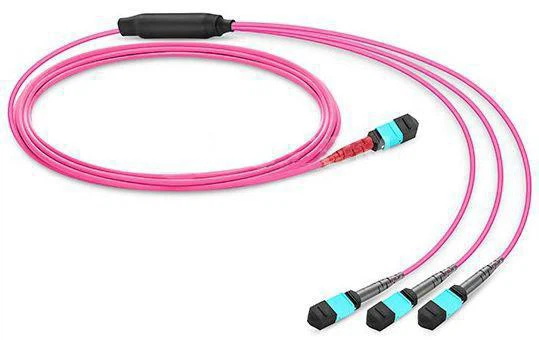

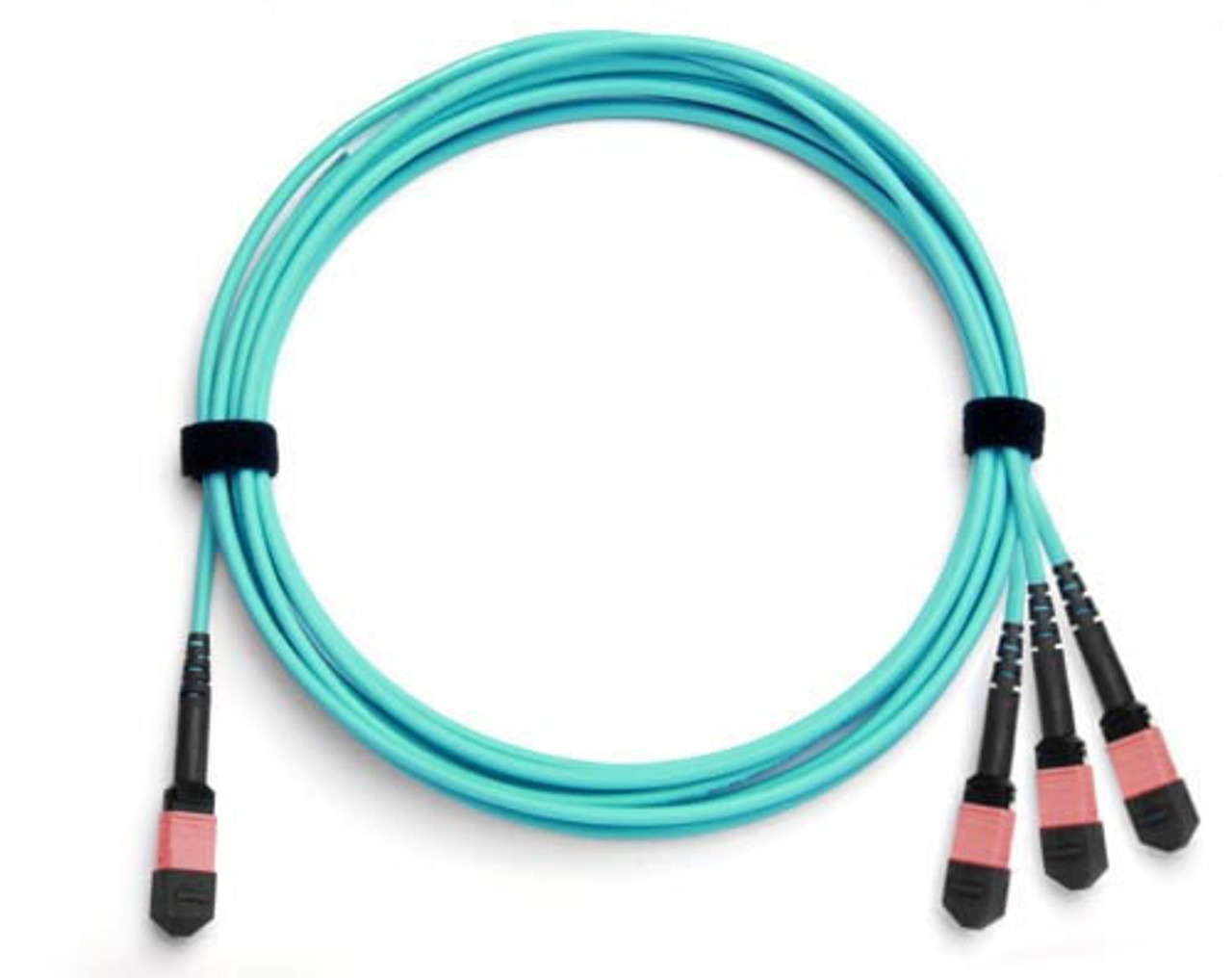

MTP Female to 3x MTP Female 24 Fibers

OM4 50/125 Multimode Conversion Breakout Cable

FEATURES

1.LSZH Bunch.

2.Designed for 3x 40G QSFP+ SR4 and 120G CXP SR12 optics direct connection and allows 100% backbone fiber utilization

in 40/100G transmission.

3.MTP conversion cable is designed to provide a more flexible multi-fiber cabling system based on MTP products. It can largely increase

the capacity of the existing 12-fiber and 24-fiber MTP network. Unlike MTP Breakout cable, MTP conversion cables are terminated with

MTP connectors on both ends, can provide more possibilities for the existing 24-fiber cabling system.

4.The 40G/100G MTP conversion cables eliminate the wasted fibers in current 40G transmissions and upcoming 100G transmission.

Compared to purchase and install separate conversion cassettes, using MTP conversion cables is a more cost-effective and lower-loss option.

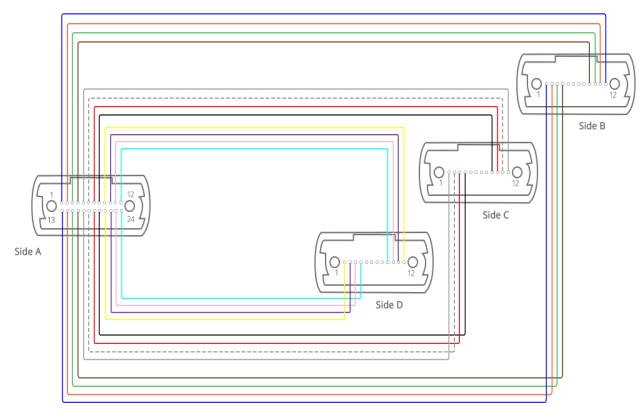

                                                                     24 Strands MTP(Female) to 3x8 Strand MTP(Female)

                                                                             Interconnect Conversion Breakout Cable

Technical Information:

Quality Certification

Quality and standards are the foundation of FOCC. We are dedicated to providing customers with the outstanding, standards-compliant products and services.

FOCC has passed quality system verification of ISO9001, established an internationally standardized quality assurance system and strictly implemented standardized

management and control in the course of design, development, production, installation and service.

Range of application

                                                  Designed for High Rate Fiber Transmission

Eliminate the unused fibers allowing 100% backbone fiber utilization and saves about 60% space of existing MTP-24 trunk cables for 120G to 3x 40G optics direct

connection and high-density cabling system.

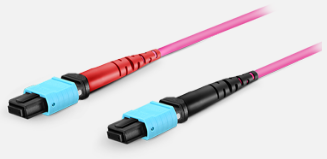

 US Conec MTP Connector

•        The MTP connector is made by US Conec designed for low loss and standard loss SM and MM applications.

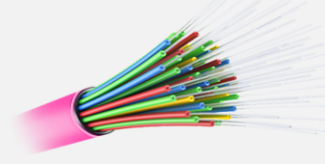

Corning ClearCurve OM4 Fiber

•        Corning ClearCurve multimode fiber is designed to withstand tight bends and challenging cabling routes with substantially less signal loss than conventional multimode fiber.

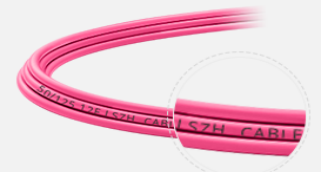

Low-smoke-zero-halogen Rated

•       Jacketed with compounds that emit limited smoke and no halogen when exposed to high heat sources. This LSZH cable is designed and tested to conform to IEC-60332-1 and IEC-61034.

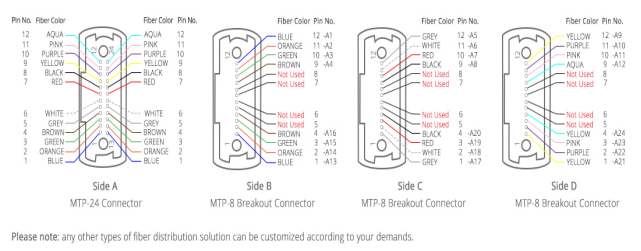

Wide Applications of MTP Conversion Cable

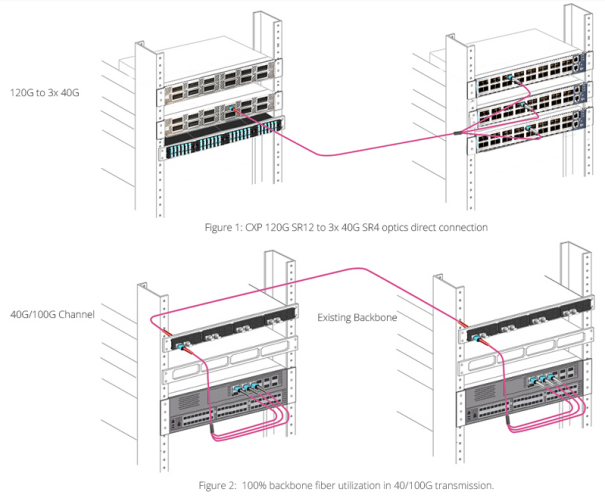

•      The following fiber distribution diagram shows the application of CXP 120G SR12 and 2x 40G QSFP+ SR4 optics direct connection.

Packing & Labeling:

                                                                                Eco-Friendly Packaging & Labeling

This easy to take and well-protected fiber optical cable package has been labeled and marked by FOCC as default. Customized label or package solution are available on request.
