12 Fiber Singlemode MTP Female Push Pull Tab Connector, boasting low insertion loss, offers a cost-effective alternative to labor-intensive field termination. It is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. Fully compliant with MPO standards,the MTP connectors deliver superior performance compared to generic MPO connectors.
With the advent of 5G, the establishment of connections between data centers, fiber sensing, and the integration of new fiber technologies
will become crucial for networks handling ultra-large capacities, ultra-high speeds, and ultra-long distances, all essential aspects of 5G technology.
MPO/MTP will play a pivotal role in this landscape.
We offer MTP and MPO OM4 fiber optic patch cables in various configurations, including female to female, male to male, and male to female.
The male version features MTP pins and is available in 8, 12, and 24 fiber array configurations. Our terminations utilize USConec MTP fiber optic connectors
to ensure optimal performance. A wide range of customization options and combinations are available for all multi-fiber optic cables.
The MTP Elite connector features angled polishing to reduce back reflection and minimize insertion loss. Jacket options include round 3mm jackets, flat-jacketed ribbon cables,
or bare ribbon MTP cables, with choices of plenum or riser-rated jackets. The most commonly used MTP/MPO fiber cables include MTP/MPO trunk cables and MTP/MPO harness cables.
PRODUCT DESCRIPTION
12 Fiber Singlemode MTP Female Push Pull Tab Connector with Low Insertion Loss, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber
patching in data centers which need space saving and reduce cable management troubles. The MTP connectors are fully compliant with the MPO standards, achieving higher performance
levels when compared to generic MPO connectors.
It has Single Mode/ Multimode OM3/ Multimode OM4.
FEATURES:
Type B, Elite, Plenum (OFNP), Yellow
0.35dB insertion loss 3.0mm, suitable for 40G LR4 PSM, 40G QSFP PLR4 direct connection and high density data center.
The MTP Trunk Cable is designed for 40G QSFP+ PLR4 optics direct connection and high-density data center applications; The FOCC MTP connectors are fully compliant with the MPO standards.

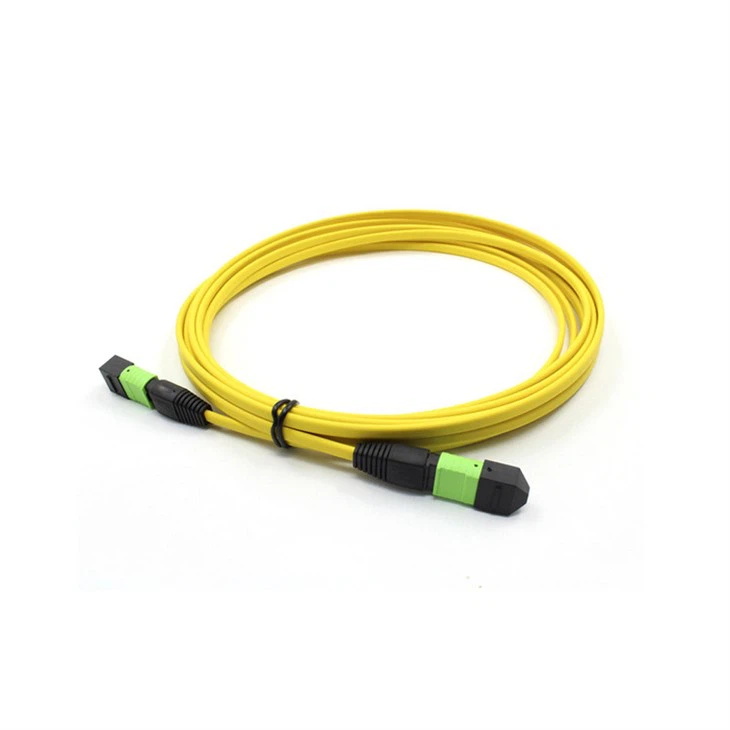

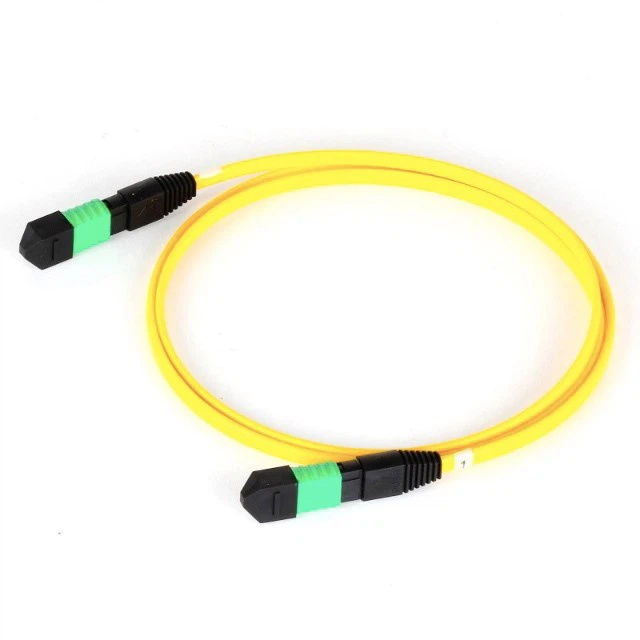

MTP Female to MTP OS2 9/125 Single Mode Trunk Cable
1.The unique fiber channel is used for end connection to meet the 40G/100G Ethernet, and the support of high bandwidth application is the minimum physical space.
2.High density solutions, with a strong MPO/MTP product design and process capability, we can provide customers with various customized products and solutions.
3.All cable are strictly tested before leaving the factory to ensure that the end face is not infected. The insertion loss and the return loss are all in conformity with the International Telecommunication Standards.
Technical Information:
Connector A
MTP Female (pinless)
Connector B
MTP Female (pinless)
Fiber Mode
OS2 9/125μm SM
Wavelength
1310/1550nm
Polish Type
APC to APC
Mini Bend Radius
10mm
Insertion Loss
0.35dB Max (0.15dB Typ.)
Return Loss
≥60dB
Jacket OD
3.0mm
Cable Jacket
Plenum (OFNP)
Installation Tensile Load
100 N
Long-Term Tensile Load
50 N
Storage Temperature
-40°C to +85°C
Operating Temperature
-10°C to +70°C
Cable Jacket Color
Yellow
Connector Color
Green; Black
Cable Jacket Material
PVC
Cable Jacket Rating
OFNP
Clad Diameter (microns)
125
Core Diameter (microns)
9
Number of Fibers
12
Cable Length (m)
7.01
Minimum Bend Radius
20MM (Dynamic); 10MM (Static)
Shipping Dimensions (hwd / cm)
1.27 x 17.78 x 22.86
Shipping Weight (kg)
0.14
Operating Temperature Range
-4 to 140 °F (-20 to 60 °C)
Storage Temperature Range
-4 to 140 °F (-20 to 60 °C)
Operating Humidity Range
5% to 85% RH, Non-Condensing
Storage Humidity Range
35% to 65% RH, Non-Condensing
PHYSICAL:
ENVIRONMENTAL:
Network Compatibility
40 Gbps; 100 Gbps; 400 Gbps
Attenuation @ 1310NM
0.36dB/Km
Attenuation @ 1550NM
0.22dB/Km
Insertion Loss
≤0.70dB
Side A - Connector 1
12-STRAND MTP/MPO (FEMALE)
Side B - Connector 1
12-STRAND MTP/MPO (FEMALE)
Endface Polish
APC
COMMUNICATIONS:
CONNECTIONS:

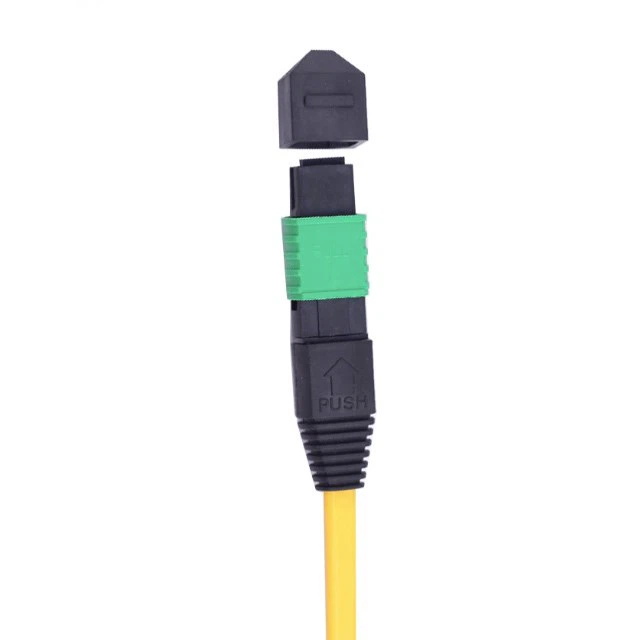

Compact design
Compact joint design, 1 MPO/MTP connector can hold 12 cores, easy to plug and disassemble.
Plenum Rated Outer Jacket
The cable jacket is plenum rated, ideal choice for certain building regulations which require specialized material to minimize
damage in the event of a fire.

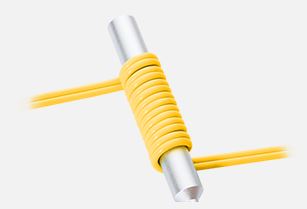

BIF show a great deal of resilience in situations where fibers are fixed to surfaces using clamping, tie-wrapping or stapling.
