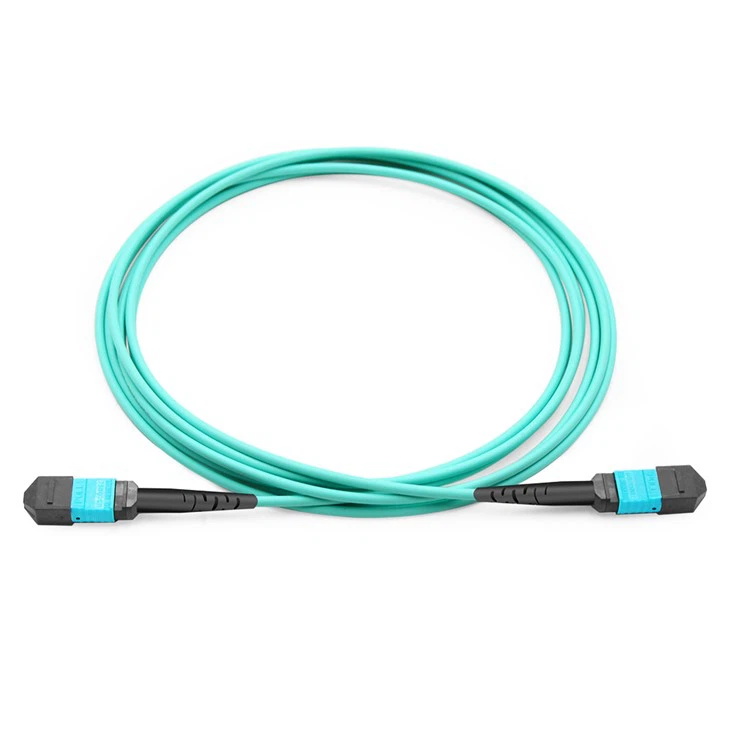

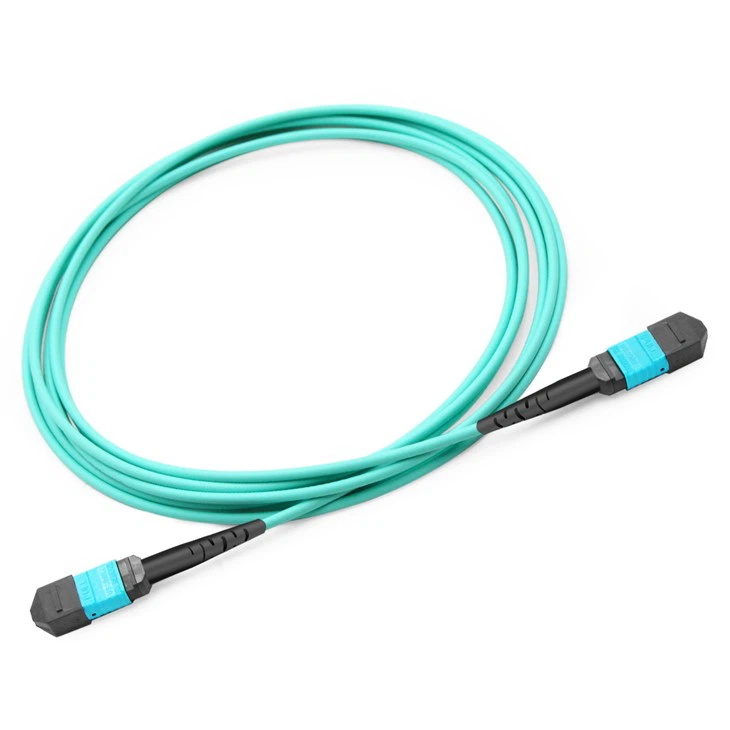

The 12 fiber MTP® Multimode patch cables are designed for data center solutions supporting the topologies as specified in the datacenter standards EN50173-5, ISO/IEC 24764 and TIA-942. The 12 fiber MPO patch cables support data center applications such as 10-40-100 Gigabit Ethernet, 4-8-16G Fibre Channel or InfiniBand. 12 fiber MPO female/female A (or C) wired patch cables are used to connect 12 fiber MPO cassettes. 12 fiber MPO female/female B wired patch cables are used as direct connect cables between 40/100GbE stransceivers. MPO male/female patch patch cables enable a channel to be built with MPO female/female trunks and MPO coupler modules. When the MPO cable is connected with MPO, one of the MPO connectors must have pins. The 12 fiber MPO patch cables use 3.2mm round, indoor rated cable.
● Features:
► Pre-terminated Standard MPO/MTP® patch cable;
► OM3 Corning bend insensitive fiber glass in an LSZH round cable jacket;
► The best solution covers all fiber optic cabling needs in all areas of Data Center.
● General Connector Specification:
● The basic division of MTP® connectors:
|
Type and Color |
Insertion |
Optical |
Operating |
|
Single-mode MTP® Elite® Connector |
0.10 dB Typical (All Fibers) 0.35 dB Max (Single Fiber)1 |
> 60 dB (8°Angle Polished)2 |
-40℃ to 75℃ |
|
Single-mode MTP® Standard Connector |
0.25 dB Typical (All Fibers) 0.75 dB Max (Single Fiber)1 |
> 60 dB (8°Angle Polished)2 |
-40℃ to 75℃ |
|
Multimode MTP® Standard Connector |
0.25 dB Typical (All Fibers) 0.75 dB Max (Single Fiber)1,3 |
> 20 dB (0°Flat Polished)2,3 |
-40℃ to 75℃ |
|
1 IL test according to IEC 61300-3-4; |
|||
|
Cable Type |
Single-mode MTP® Elite® |
Single-mode MTP® Standard |
Multimode MTP® Elite® |
Multimode MTP® Standard |
|
Bare Ribbon |
Mustard Color |
Green Color |
Aqua Color |
Beige Color |
|
Flat ribbon Cordage |
||||
|
Cable Ø 2.0mm |
||||
|
Cable Ø 3.0mm |
||||
|
Cable Ø 3.6mm |
||||
|
Cable Ø 4.5mm |
||||
|
Cable Ø 5.0mm |
||||
|
Cable Ø 5.5mm |

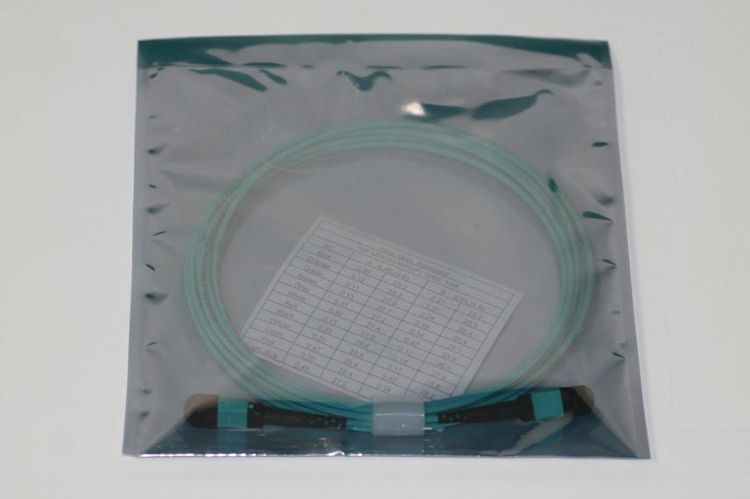

● Quality Static-free Bag With Testing Result:

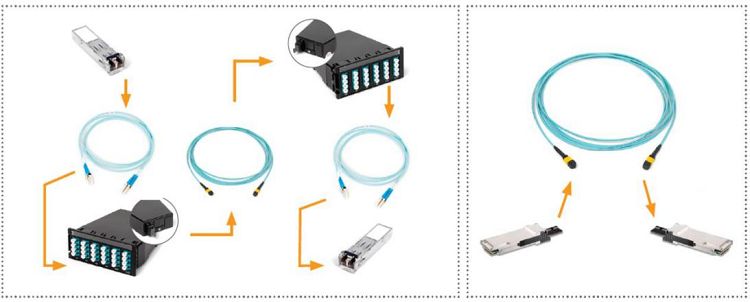

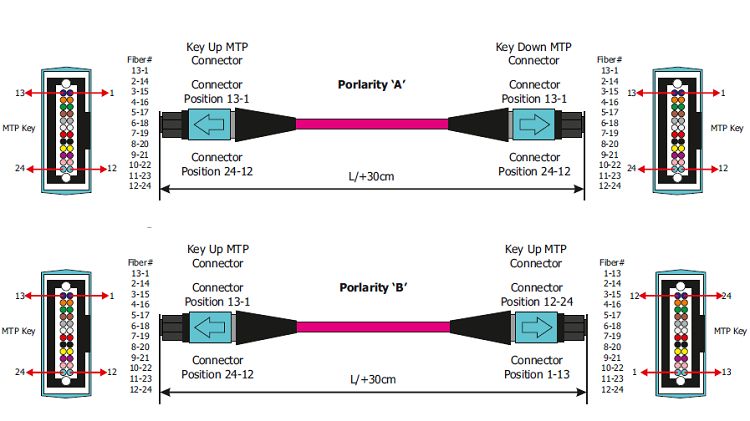

● Typical applications and wire map:

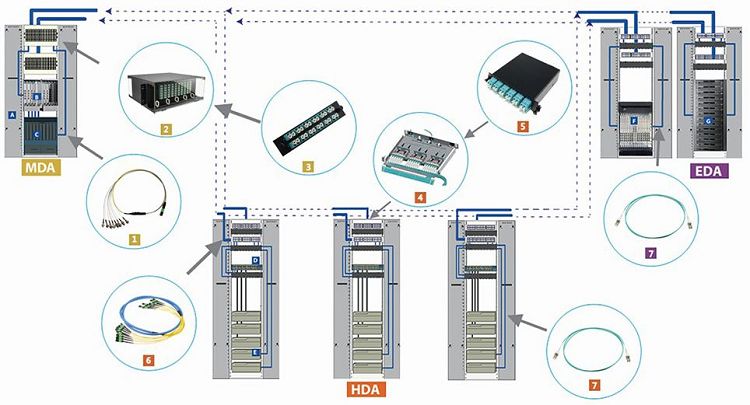

● High Density MTP®/MPO Cabling System In Dada Center:
● Ordering Information:
► 1 ea for individual static-free bag with test report;
► Connector Customized Inquired;
► Cable Customized Length;
|
Product Description |
Lengths |
Wire map |
|
12 fiber MPO/MTP female –female, OM3 |
0-80 meter |
straight A wire |
|
12 fiber MPO/MTP male-female, OM3 |
0-80 meter |
straight A wire |
|
12 fiber MPO/MTP male-male, OM3 |
0-80 meter |
straight A wire |
|
12 fiber MPO/MTP female –female, OM3 |
0-80 meter |
straight B wire |
|
12 fiber MPO/MTP male-female, OM3 |
0-80 meter |
straight B wire |
|
12 fiber MPO/MTP female –female, OM3 |
0-80 meter |
pair flipped C wire |
|
12 fiber MPO/MTP male-male, OM3 |
0-80 meter |
pair flipped C wire |
