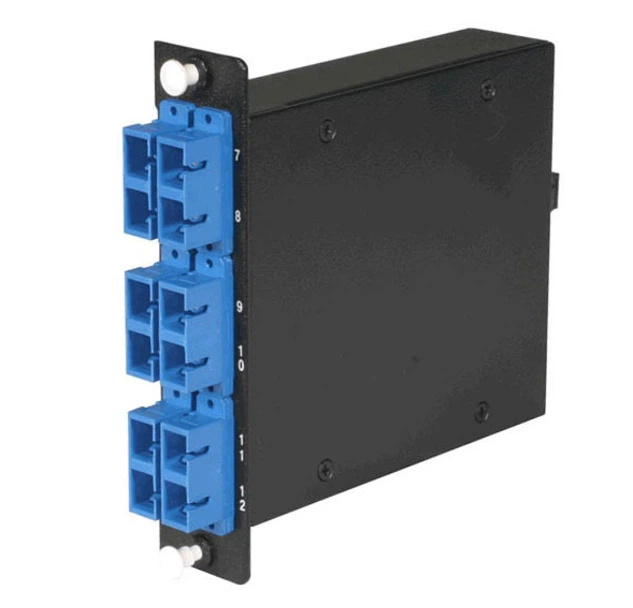

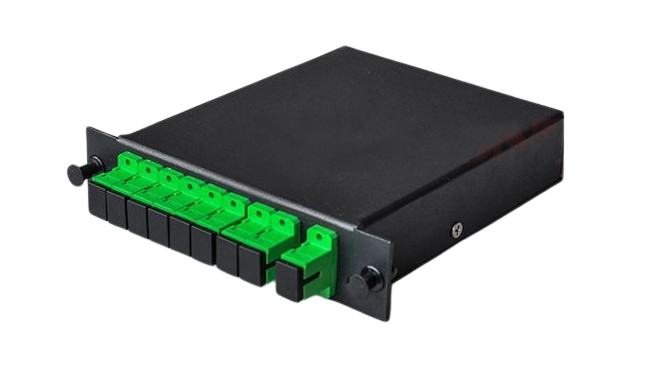

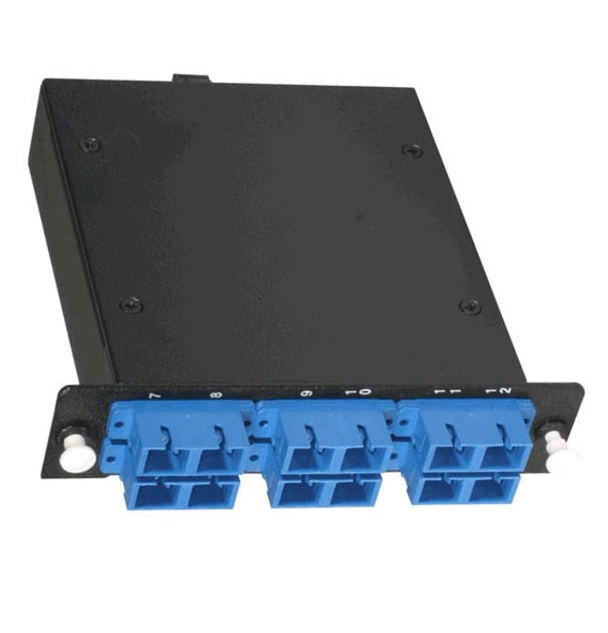

12 Fibers MPO/MTP to SC Plug and Play Singlemode Module Cassette


MPO/MTP® Cassette are pre-terminated, pre-tested, and come with 12- or 24-fiber MPO/MTP connectors on the back that break out to single or array connectors on the front. Cassettes are custom-built to your configuration needs and modules are custom-built to to meet your specific application needs. Select from a variety of connectors including LC, SC, and MU for OM1, OM2, OM3, OM4, and OS2 deployment.

Feature:
Factory terminated & tested with guaranteed quality;
High density to dramatically save space;
Optimize network performance;
The best solution covers all fiber optic cabling needs in all areas of Data Center.




 Specification:
MPO/MTP® Cassettes with LC or SC connectors have optimized optical performances: a maximum Insertion Loss of 1.3dB per cassette and a minimum

Return Loss of 20dB (MM), 55dB (Single mode) per cassette. Each cassette is small in size. On the back side of the cassette are one or two 12-fiber MPO

adapters. On the front side of the cassette may be 12 SC simplex ports or 6, 12 LC Duplex ports.



Mechanical Technical:




General Connector Specification:


Parameter

Single-mode

Multi-mode

Basic

Fiber connector

FC, SC, LC, ST, MU, MTRJ, MPO

Ferrule End-face

PC

UPC

APC

UPC

Insertion Loss

≤0.2dB

≤0.2dB

≤0.3dB

≤0.3bB

Return Loss

≥50dB

≥55dB

≥60dB

≥35dB

Ceramic Ferrule Specification

125.5um concentricity deviations:
 <=1um

127um concentricity deviations:

<=3um

Suitable Fiber

9/125um

50/125um,62.5/125um

End-face Geometry

Radius of Curvature

7~25mm

5~12mm

N/A

Fiber Protrusion

≤50nm

≤100nm

N/A

Fiber Under Cut

≤100nm

≤100nm

N/A

Apex offset

≤50um

Mechanical

Exchangeability

≤0.2dB

Salt Spray

≤0.1dB

Drop

≤0.2dB(1.5M, 5 drops)

Vibration

IL ≤0.2dB(550Hz, 1.5mm)

Repeatability

≤ 0.1dB(1000 times)

Durability

> 1000 times

Operating Temperature

-40℃ ~ +85℃



The basic division of MTP® connectors:


Type and Color
 Code Connectors

Insertion
Loss (IL)

Optical
 Return Loss (RL)

Operating
 Temperature

Single-mode MTP® Elite® Connector

0.10 dB Typical (All Fibers) 0.35 dB Max

(Single Fiber)1

> 60 dB (8°AnglePolished)2

-40℃ to 75℃

Single-mode MTP® Standard Connector

0.25 dB Typical (All Fibers) 0.75 dB Max

(Single Fiber)1

> 60 dB (8°Angle Polished)2

-40℃ to 75℃

Multimode MTP® Standard Connector

0.25 dB Typical (All Fibers) 0.75 dB Max

(Single Fiber)1,3

> 20 dB (0°Flat Polished)2,3

-40℃ to 75℃

1 IL test according to IEC 61300-3-4;
2 RL test according to IEC 61300-3-6;
3 Tested with proposed encircled flux launch condition on 50μm fiber & 850nm per IEC 61280-4-1.



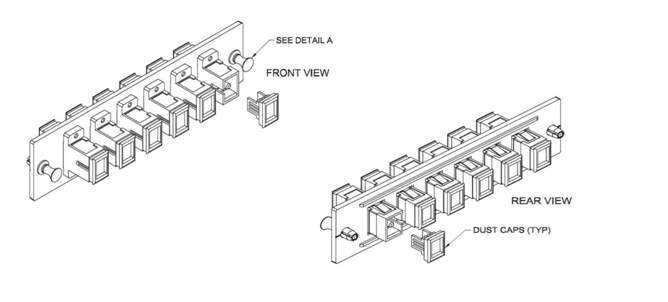

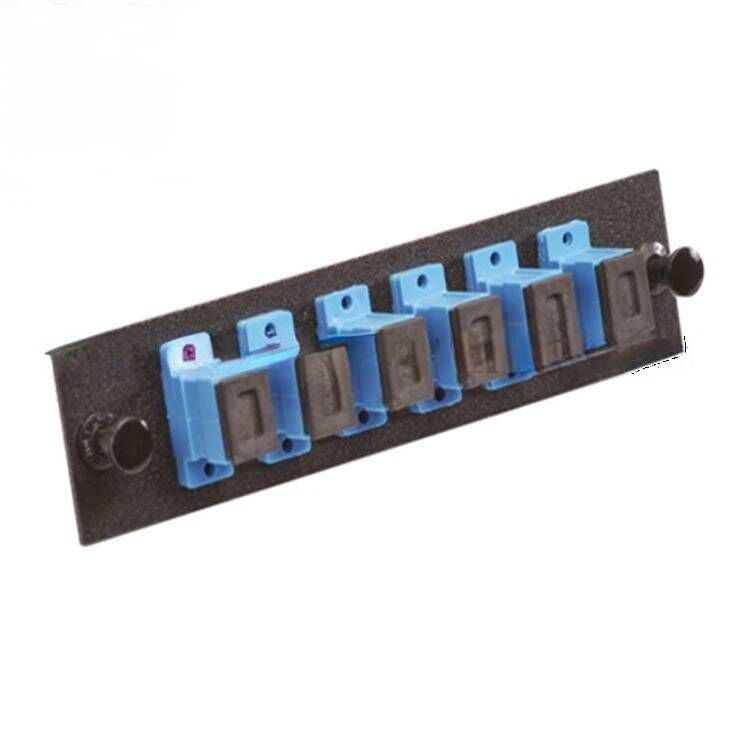

Products Overview:



Packing Information:

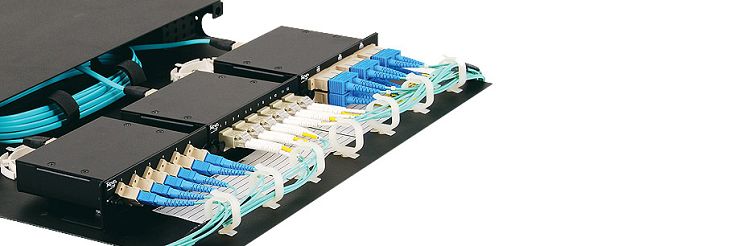

High Density MTP®/MPO Cabling System In Dada Center:






Ordering Guide:


► 1 ea for individual static-free bag with test report;
► Connector Customized Inquired;
► Fanout / breakout Cable Customized Length;



Product Description

MTP/F/PC - LC/UPC/DX - OM3 - 12B - B2.0 - 1.5M/0.6M - LSZH - Aqua - A

     1        2          3    4    5    6          7     8   9

1 - Connector A

MTP/F/PC: MTP Female,PC polish; MTP/F/APC: MTP Female,APC polish;
MTP/M/PC: MTP Male,PC polish; MTP/M/APC: MTP Male,APC polish;

2 - Connector B

LC/UPC/DX;LC/APC/DX;LC/UPC/SX;LC/APC/SX;LCP/UPC;LCP/APC;
SC/UPC/DX;SC/APC/DX;SC/UPC/SX;SC/APC/SX;FC/UPC;FC/APC;ST/UPC

3 - Fiber Mode

OM1, OM2, OM3, OM4, OS2, G657A1

4 - Fiber Count&Type

12R: 12F Ribbon; 12BR: 12F Bare Ribbon; 12B: 12F Mini Round Cable

5 - Breakout Type

B2.0: 2.0 fan-out with splitter kit.

6 - Length

1.5M/0.6M: Cable total length1.5M, fan-out length 0.6M, etc.

7 - Cable Jacket Materials

LSZH,OFNP,OFNR,PVC

8 - Cable Jacket Color

Aqua (OM3,OM4) Orange (OM1,OM2), Yellow (SM).

9 - Polarity

A: Type A; B: Type B; C: Type C.
