12C and 24C Singlemode Multimode MTP MPO-LC/SC/FC/ST

MPO/MTP is the high density of optical fiber pre-connect system which is generally use in three areas.the data center application with high density environment the optical fiber to the building the internal connector application in fiber equipment such as Splitter,40G/100G SFP and SFP.

Description:

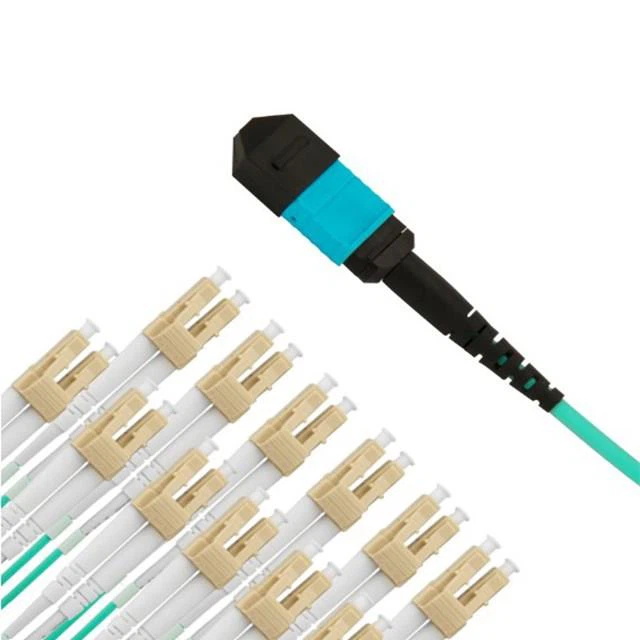

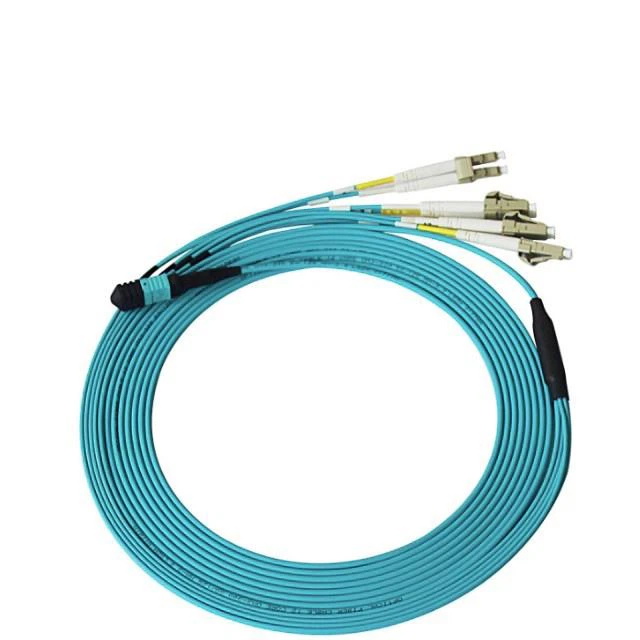

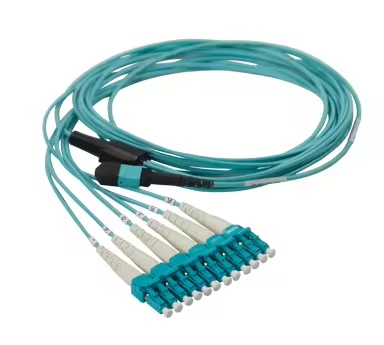

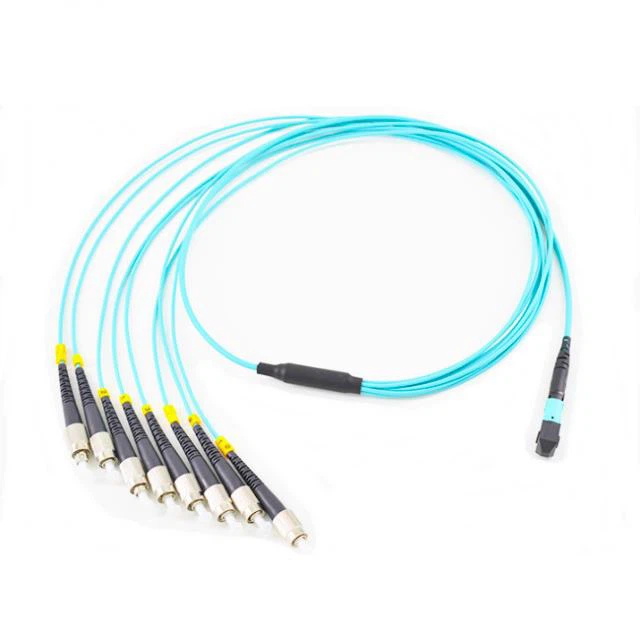

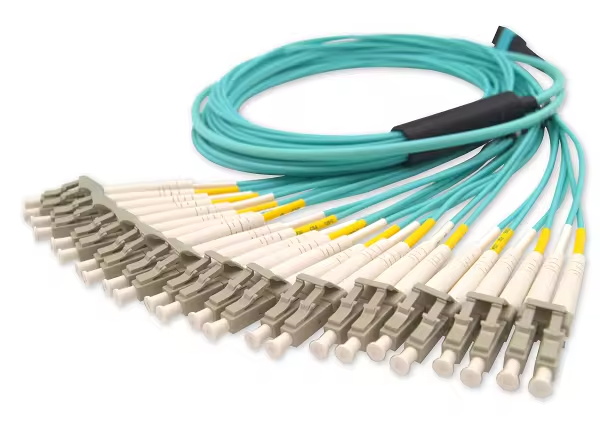

◆MPO-LC/SC/FC/ST Fiber Cables assemblies are terminated with MPO and LC/SC/FC/ST connector on both end.
◆MPO cables are best choice for high density fiber networks.
◆It’s specifically designed for fast ethernet, fiber channel, data center and gigabit ethernet applications.

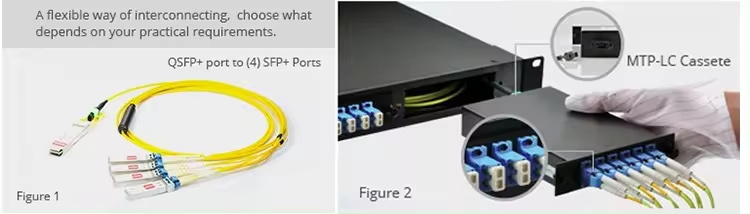

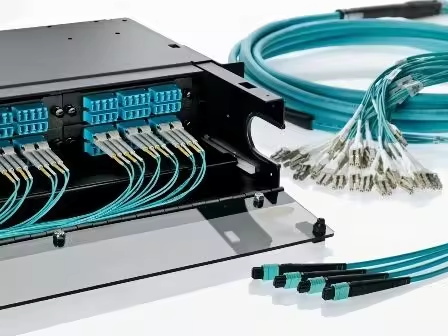

◆The harness cable is used for connecting 10G SFP+ into a MPO adapter panel and MPO trunk.

Features:

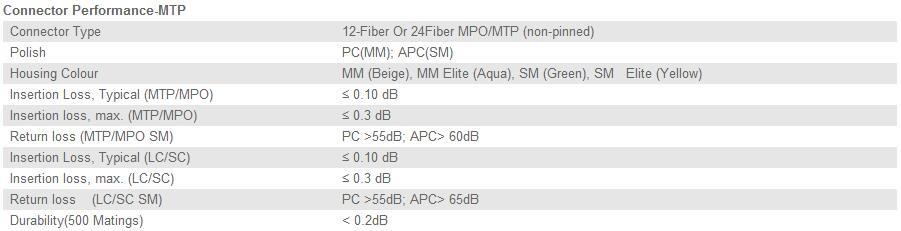

◆ High Performance in IL & RL
◆ 4,8,12,16,24 fiber connector terminations and assemblies
◆ Designed for low loss and standard loss SM and MM applications
◆ Economical solution for mass-termination of fiber
◆ Suitable for MPO/MTP application
◆ Ruggedized round cable, oval cable and bare ribbon options available
◆ Color coded housings available to differentiate fiber type, polish type and/or connector grade
◆ Fanout connector can be SC,FC,LC,ST,E2000 etd
◆ LC can be simplex,duplex,uniboot, unibody

Associated Standards：

◆ Meets IEC Standard 61754-7& JIS C5982
◆ Structured cabling per TIA-568-C
◆ Parallel Optics
- Optical Internetworking Forum (OIF) Compliant
- Infiniband Compliant
◆ Infiniband
- 10G Fiber Channel Compliant
- 40G and 100G IEEE 802.3
- QSFP
