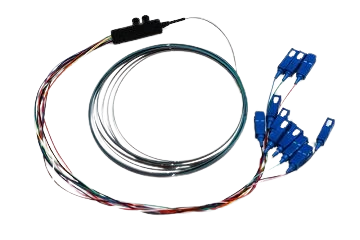

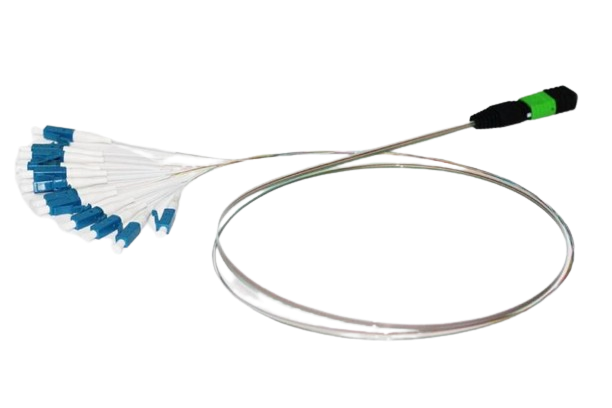

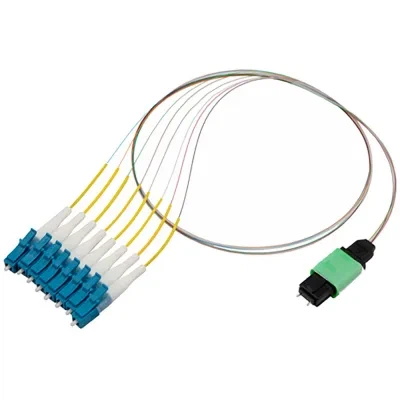

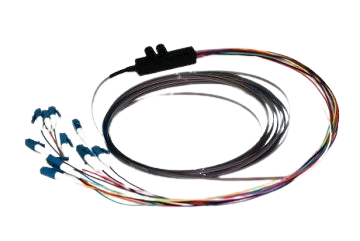

Fiber Optic MPO APC Bare Ribbon Fanout Pigtail with Flat Fanout Kit Cable

SOPO's end-to-end optical fiber solutions' product line now includes MPO pigtails and fan out kits that are designed to enable high quality, fast, and easy termination of ribbon fibers or loose tube fibers that have been converted to ribbon. Available with most standard connectors, the kits can be attached to any type of fiber using standard industry fusion splicing equipment. MPO pigtails are bare fiber or jacketed. Fanned out individual fibers are protected with 900 micron furcation, enabling them to be handled the same way as cabled fibers. The ribbon MPO pigtails for 40G/100G interface and the ribbon fanout kits for 1G/10G transmission are ideal data center solutions when paired with our high fiber count, riser or plenum, indoor ribbon cable. 12 connectors can be terminated by 1 mass fusion splice for the most efficient multi-connector field termination.

Features:
► 12F/8F MPO Ribbon Pigtail Facilitates Quick & Easy Termination of Ribbon Fibers for 1G/10G/40G/100G Solutions;
► 12F/8F Ribbon Breakout to Single Fiber Connectors for Quick & Easy Termination of Ribbon Fibers for 1G/10G Solutions;
► Customized Lengths Available That Can be Used in Virtually Any Termination Hardware;
► Capability of Terminating Any Fiber Optic Cable, Including Legacy Cables;
► Available in All Fiber Types.

Applications:
► OM3, OM4 & OS2 Categories available;
► Custom length;
► APC Single-mode connector as standard;
► Storage Area Networks (SAN);
► Data Centers.

Specifications:

Model & Parameter	Multi-mode Low Loss	Single-mode Low Loss
Max. Insertion Loss	0.1 dB – LC 0.3 dB – MTP 0.4 dB – Total end-to-end loss (Up to 5 meters long)
Return Loss	>-35 dB	>-60 dB (8° Angle Polish)
Loss Variation (Durability)	≤ 0.2 dB 500 cycles (per EIA-455-21A)	≤ 0.3 dB 500 cycles (per EIA-455-21A)
Fiber Attenuation	< 3 dB/km @850nm	< 0.35 dB/km @1310/1550 nm
Cable Outer Diameter	MTP Cable: 3 mm LC Legs: 2 mm
Bending Radius limit	MTP Cable: 15 mm LC Legs: 10 mm
Operating Temperature	0℃ ~ +70℃
Cable Retention	100N
LC Connector Retention	60N
MTP® Connector Retention	45N
Cable Crush Resistance	45 N/cm

The basic division of MTP® connectors:

Type and Color Code Connectors	Insertion Loss (IL)	Optical Return Loss (RL)	Operating Temperature
Single-mode MTP® Elite® Connector	0.10 dB Typical (All Fibers) 0.35 dB Max (Single Fiber)1	> 60 dB (8°AnglePolished)2	-40℃ to 75℃
Single-mode MTP® Standard Connector	0.25 dB Typical (All Fibers) 0.75 dB Max (Single Fiber)1	> 60 dB (8°Angle Polished)2	-40℃ to 75℃
Multimode MTP® Standard Connector	0.25 dB Typical (All Fibers) 0.75 dB Max (Single Fiber)1,3	> 20 dB (0°Flat Polished)2,3	-40℃ to 75℃
1 IL test according to IEC 61300-3-4; 2 RL test according to IEC 61300-3-6; 3 Tested with proposed encircled flux launch condition on 50μm fiber & 850nm per IEC 61280-4-1.

More Bare MTP® / MPO Fanout Family:

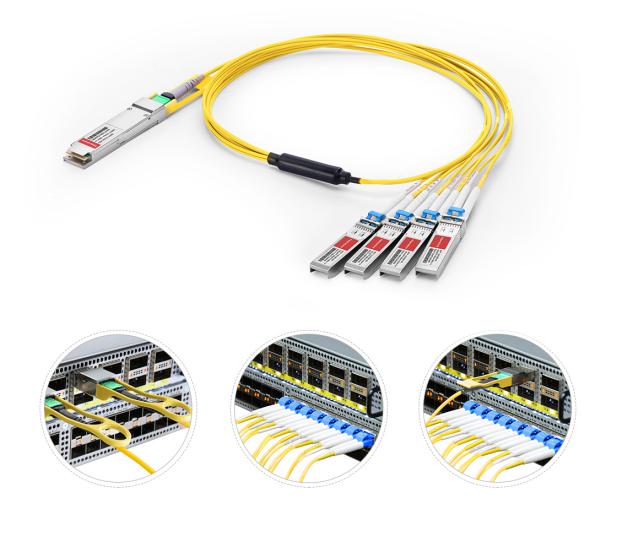

Typical applications and wire map:

Ordering Information:

Description	Fiber type	Tubing length	Media Type
LC To Open 12F Bare Ribbon Break Out Kit	OM3	3m (10ft)	900μm & Ribbon
LC To Open 12F Bare Ribbon Break Out Kit	SM	3m (10ft)
SC To Open 12F Bare Ribbon Break Out Kit	OM3	3m (10ft)
SC To Open 12F Bare Ribbon Break Out Kit	SM	3m (10ft)
SC UPC To Open 12F Bare Ribbon Break Out Kit	SM	3m (10ft)
MPO to Open 12F Bare Ribbon Pigtail 3M	OM3	3m (10ft)
MPO to Open 8F Bare Ribbon Pigtail 3M	OM3	3m (10ft)
