MTP/MPO Cassette Modules provide secure transition between MTP/MPO and LC or SC discrete connectors. They are used to interconnect MTP/MPO backbones with LC or SC patching. Modular system allows for rapid deployment of high density data centre infrastructure as well as improved troubleshooting and reconfiguration during moves, adds and changes. Cassettes can be mounted in 1U or 3U 19” multislot chassis. MTP/MPO Cassettes contain factory controlled and tested MTP/MPO-LC fanouts to deliver optical performance and reliability. Low loss MTP/MPO Elite and LC or SC Premium versions are offered featuring low insertion loss for demanding power budget high speed networks.

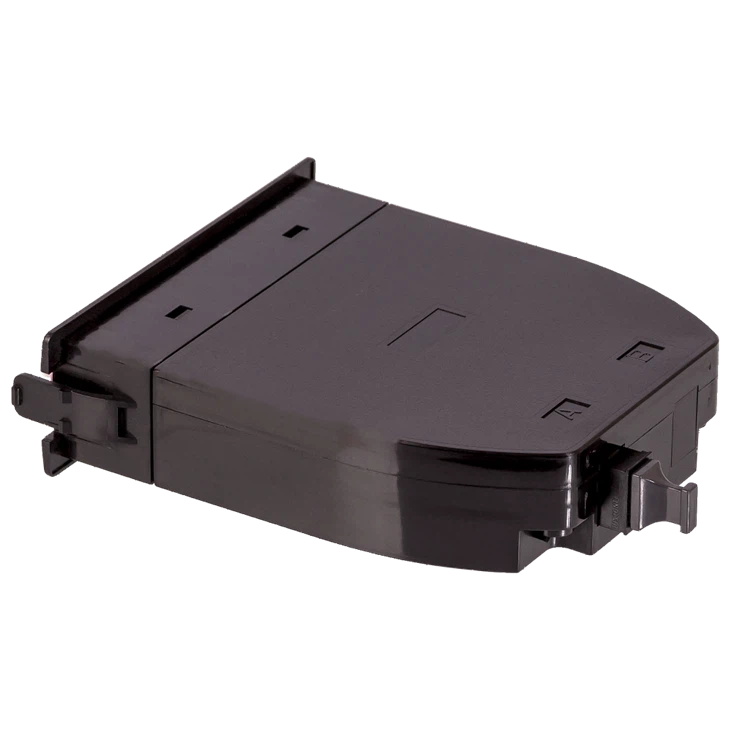

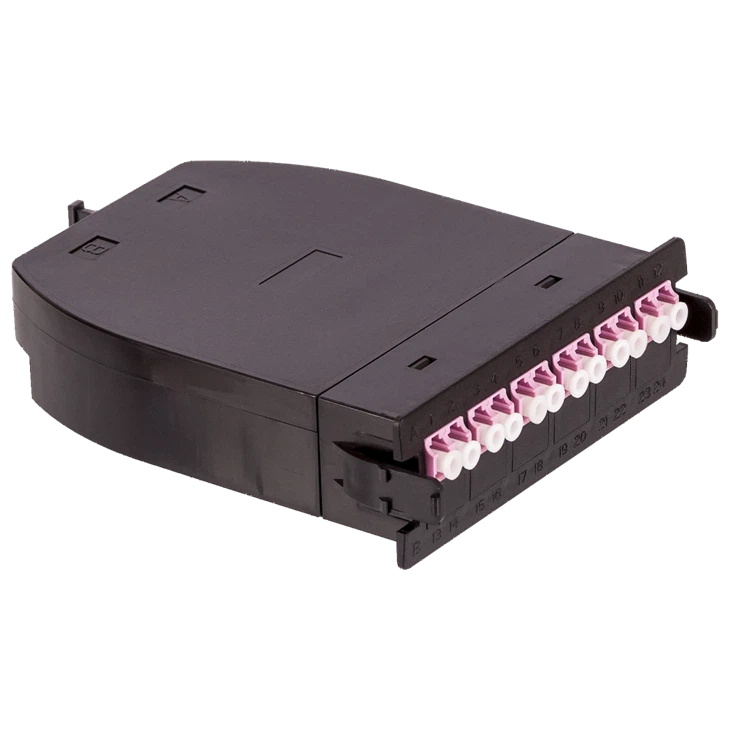

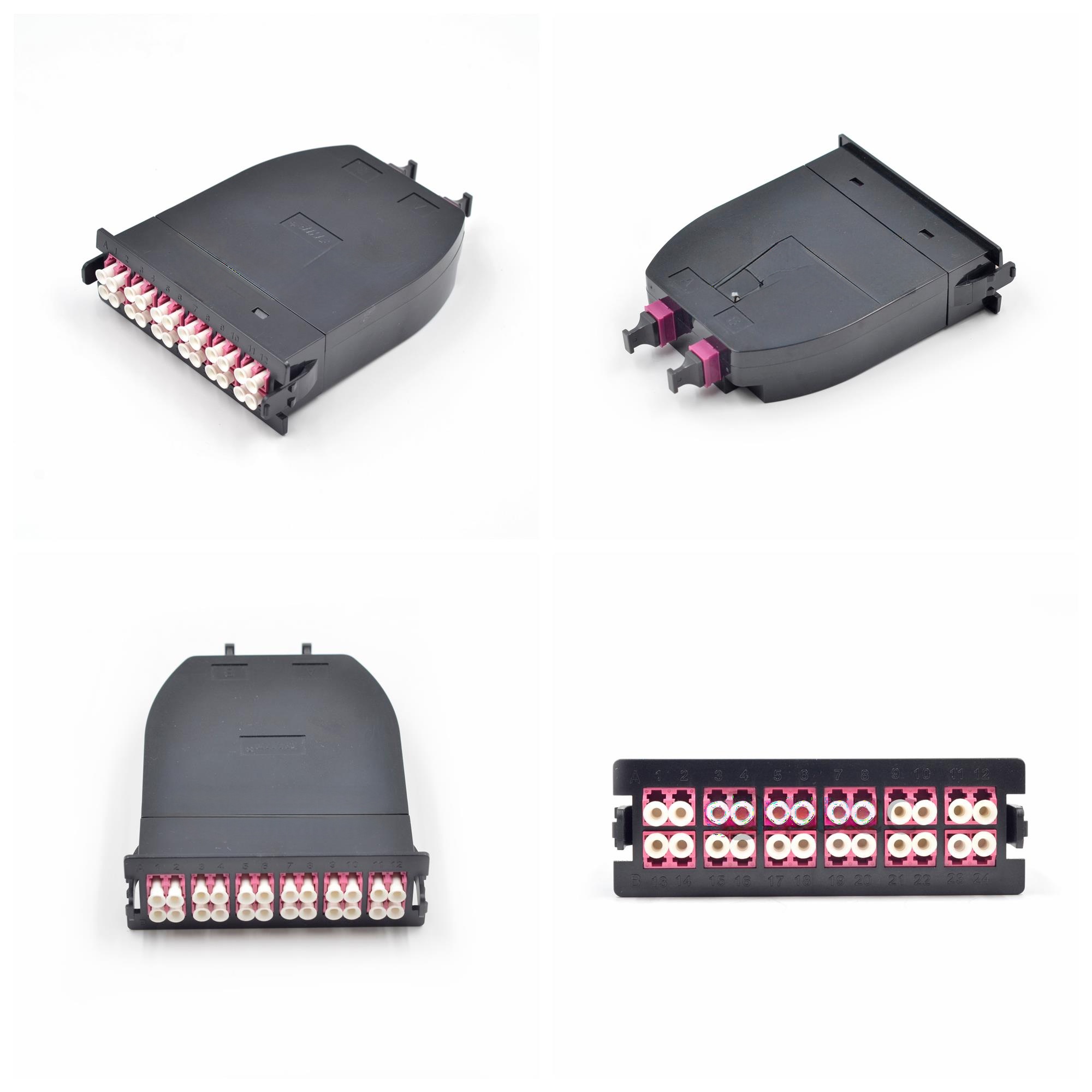

MTP-12 MPO/MTP Cassette with OM4 24F LC Duplex

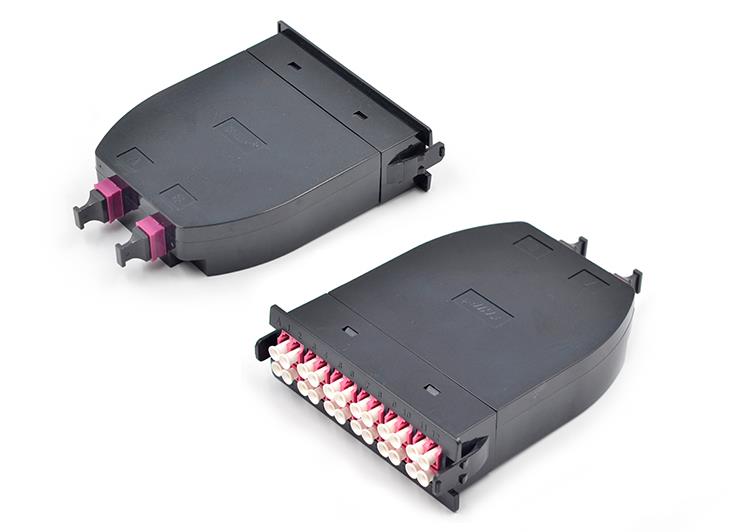

24 Fibers MTP to LC Duplex MPO/MTP Fiber Optic Cassette
Specification:
|
Fiber Count |
24 |
Fiber Mode |
OM4 50/125μm |
|
Front Connector Type |
12 LC UPC Duplex |
Rear Connector Type |
2 MTP UPC Male |
|
MTP Adapter |
Key up to Key up |
Dimension(HxWxD) |
27x100x120mm |
|
Insertion Loss |
MTP≤0.35dB, LC≤0.2dB |
Return Loss |
MTP≥20dB, LC≥30dB |
|
Operating Temperature |
0°C to 70°C (32°F to 158°F) |
Storage and Shipping Temperature |
-40°C to +75°C (-40°F to 167°F) |

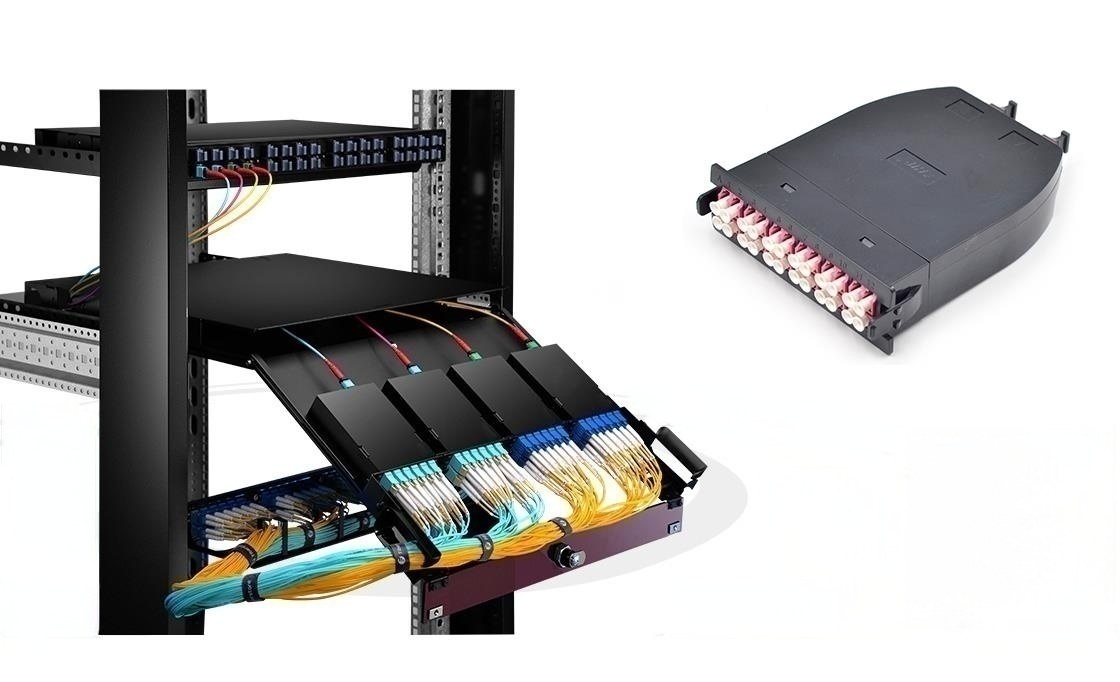

Rapid Deployment and Tool-less Installation
For additional flexibility, you can mount the cassettes in our FHD series rack or wall mount enclosures, and this scalable designs can grow with your network system.

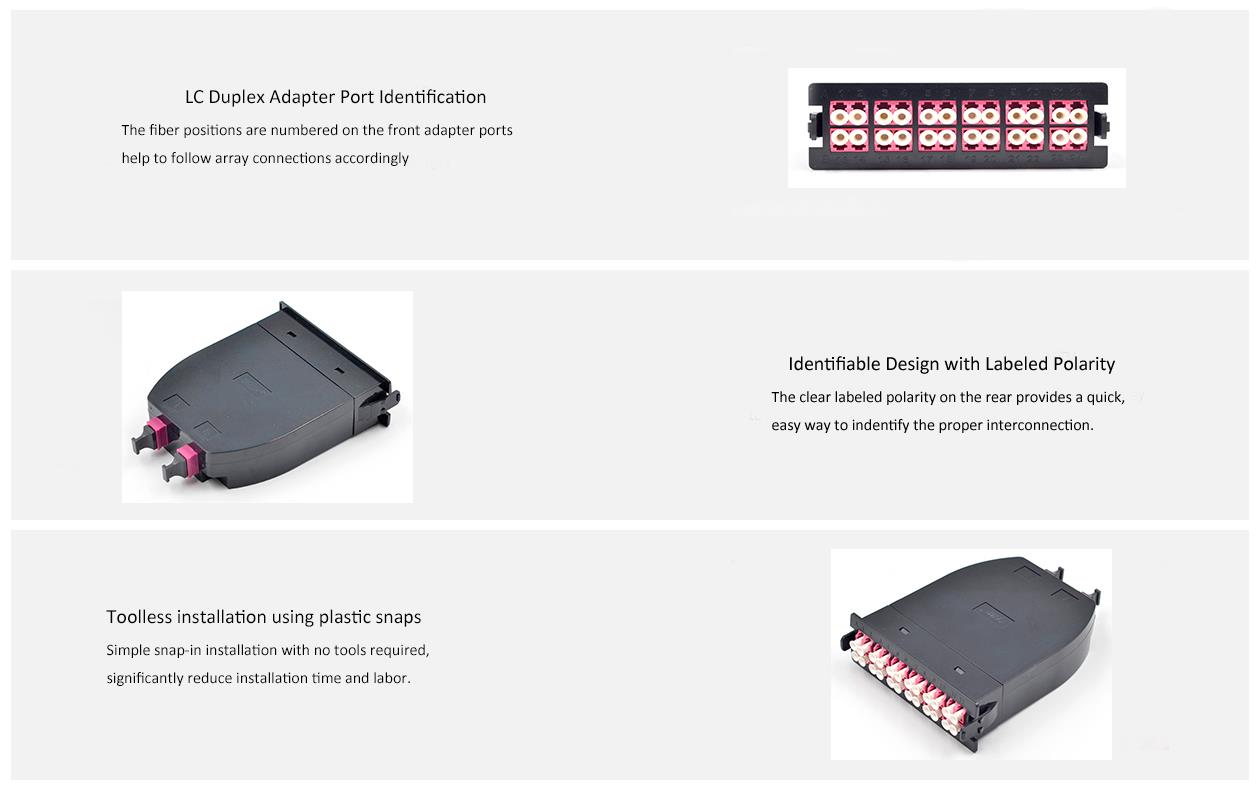

Small Form Factor for Maximum Density
² High density pre-terminated fiber optic system.
² Aluminum alloy shell protect the inner fibers effectively.
² Improved reconfiguration during moves, adds and changes.

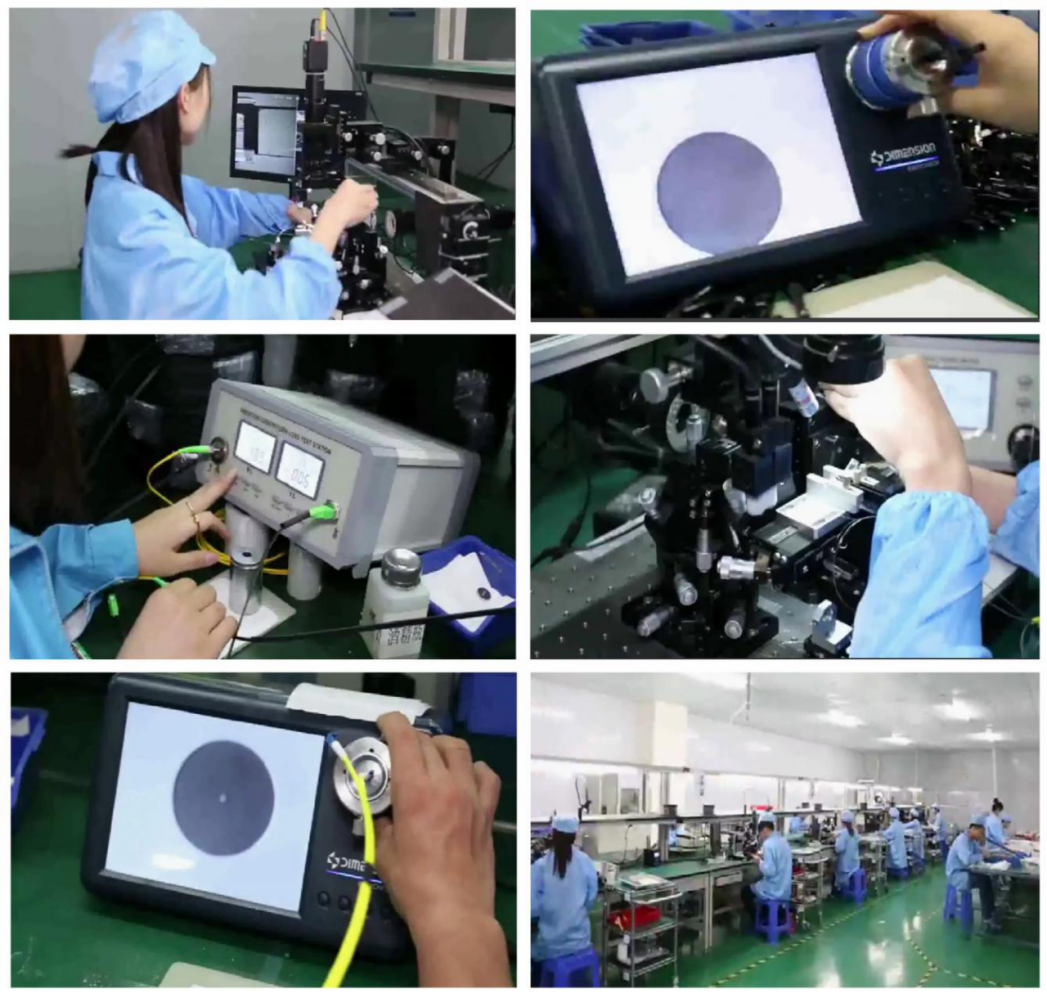

Product Quality Control
SOPO pays attention to the performance value of each product. Each product we provide is professionally designed and well-tested to ensure
its excellent performance. In the test center, whether it is a professional tester or an advanced testing equipment, we strictly control every detail
and strive to provide customers with the best quality products.
Quality Control:
² Spot check the raw material incoming inspection before production;
² Fully check after every individual process finished;
² Fully check production half done;
² Fully check the finished products before packing;
² Spot check before shipping;
Questions & Answers
Q:Is it easy to install?
A: Certainly, this cassette is designed with plug-style lock, without any tools, you can quickly remove and easily install.
Q:What type is the MTP/MPO connector at the back? Male of Female?
A: Male default. MTP male connector can be connected with MTP female cable
