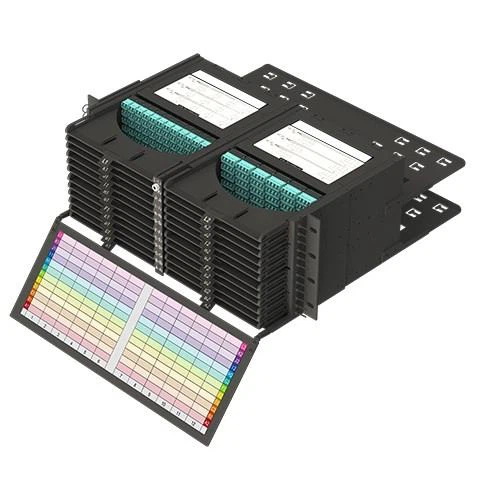

SOPO 4U Rack Mount HD Fiber Enclosure supports maximum 576 fibers. It is mainly installed in server cabinet with capability of housing 24pcs high-density easy-plug MTP/MPO to LC fiber modules or cassettes developed by SOPO. This solution contributes to greater network availability that especially ideal for connection and cable management of Data Center MDA, IDA, HDA and other optical fiber backbones. It can be pre-terminated with MPO/MTP switching modules or MPO/MTP adapter front panels to achieve interconnect and cross-connect of backbone cables and active devices.
Description:
SOPO 4U Rack Mount HD Fiber Enclosure supports maximum 576 fibers. It is mainly installed in server cabinet with capability of housing
24pcs high-density easy-plug MTP/MPO to LC fiber modules or cassettes developed by SOPO. This solution contributes to greater network
availability that especially ideal for connection and cable management of Data Center MDA, IDA, HDA and other optical fiber backbones.

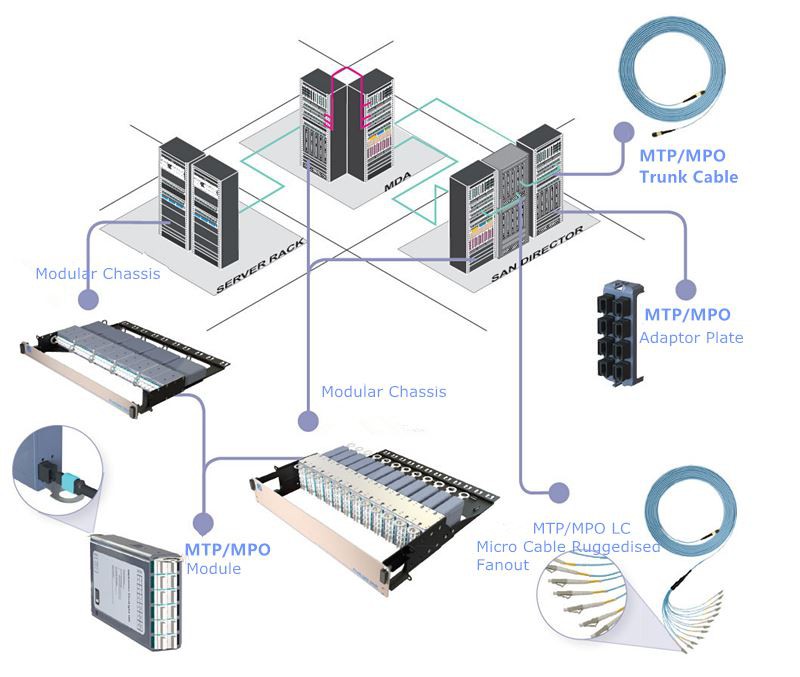

40G and 100G networks become the trend in today’s cyberspace. Many applications are pursuing high bandwidth throughput, therefore using
high-density patching is inevitable. MTP/MPO system solves your trouble with a wide range of MTP/MPO assemblies. It is a technique enabling
multi-fiber connections to be used for data transmission. The high fiber count creates the endless possibilities of high-density patching.
The easy installation of MTP/MPO assemblies also saves lots of operating time.
Features:
19“Rack Mount to be Convenient and Flexible
The 4U high-density fiber enclosure loaded with cassettes of SOPO is completely set in accordance with EIA standards, which is applicable to
all cabinets conforming to the said standards.

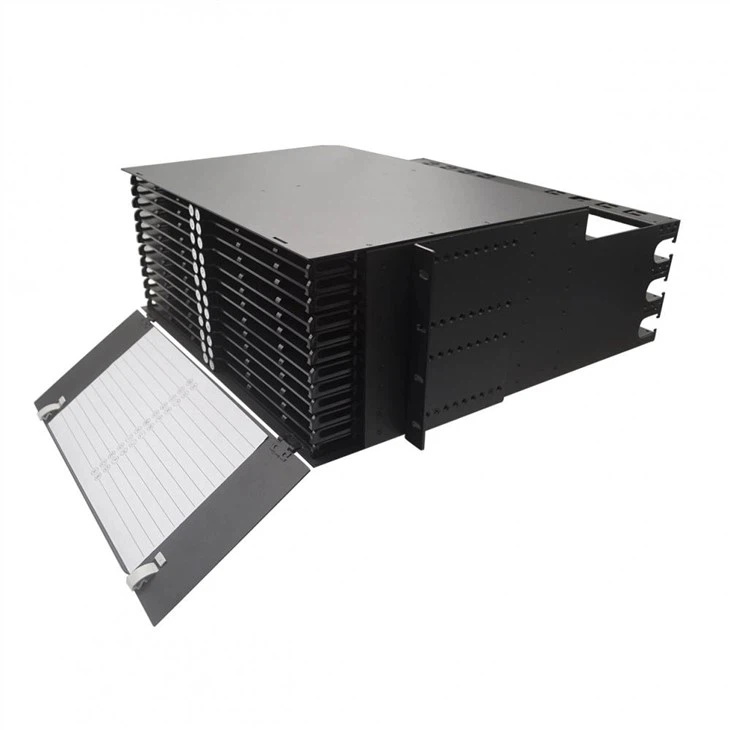

1. Layered and Shiftable Drawers with Rivet Buckle Lockable Design.
2. The drawers are stacking installed while each layer can be pushed in or pulled out independently, which also help separate cables to avoid twining.
There is independent locking buckle equipped on each module to avoid sliding.
Each layer can be pushed in or pulled out independently. And there is independent locking buckle equipped on each module.
Specification:
|
Items |
4U HD fiber enclosure with cassettes |
|

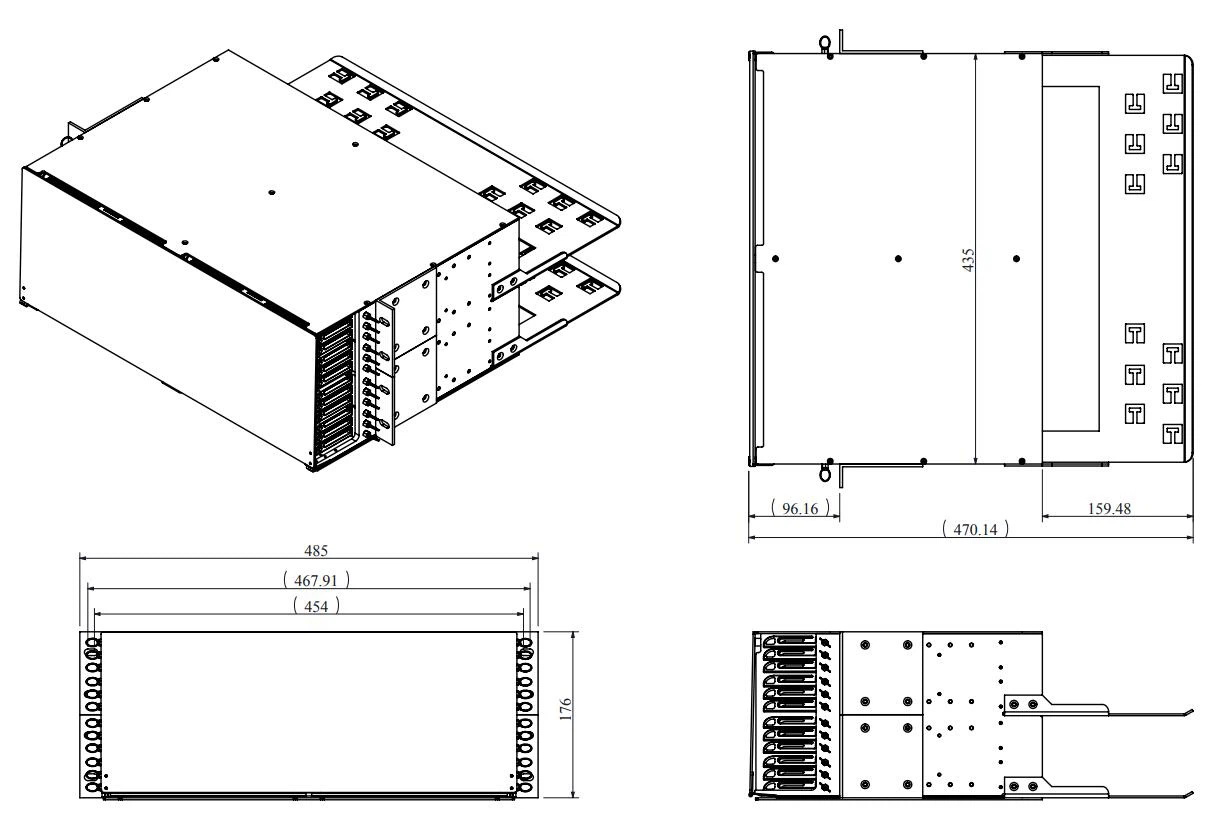

Size |
485*470*176mm |
|
Weight(with cassette) |
11.5 kg |
|
Capacity |
LC 576 cores/SC 288 cores |
|
Operation Temperature |
-25℃～+70℃ |
|
Patch Cord Type |
MPO/MTP-LC/SC Patch cord |

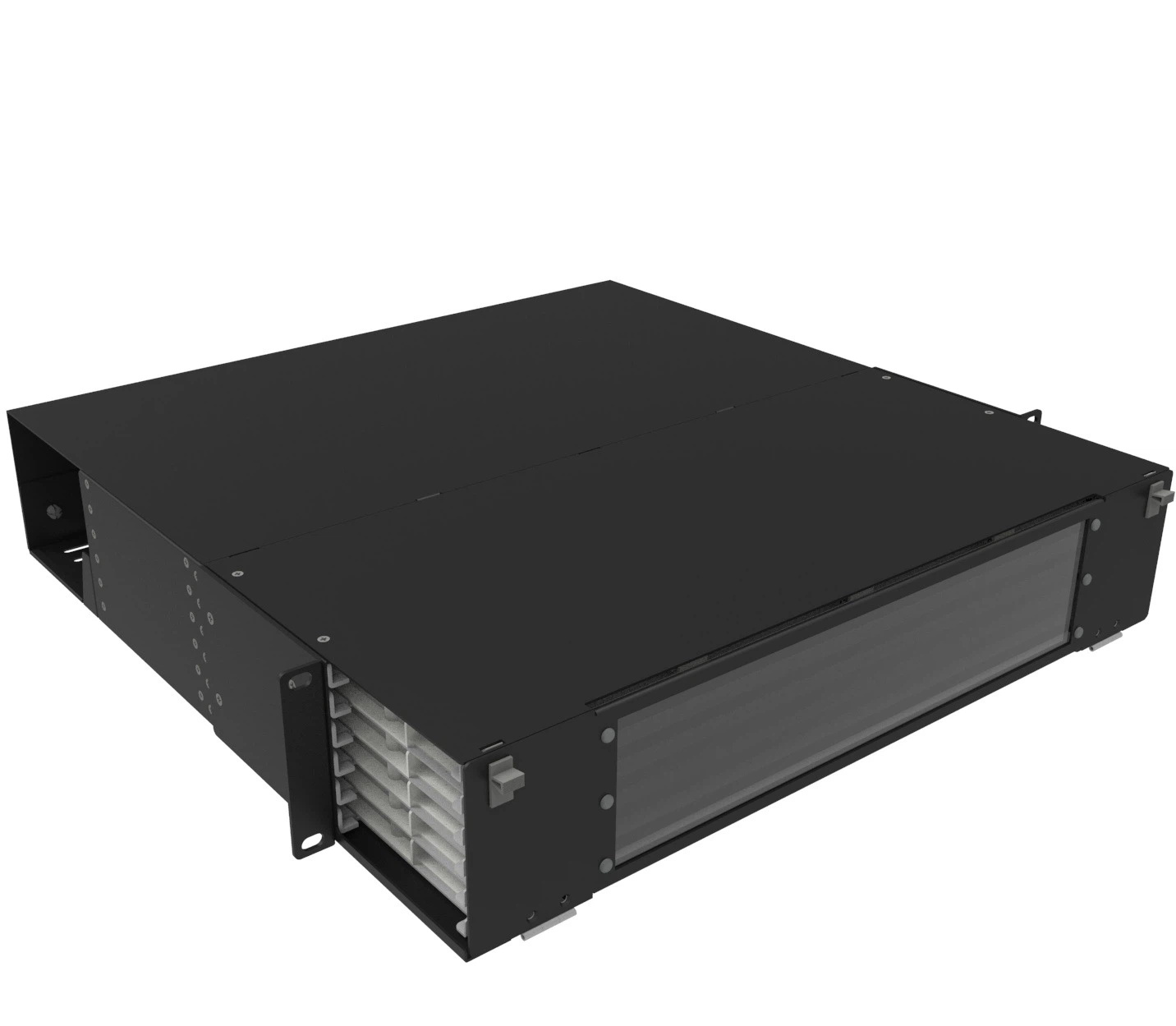

SOPO series enclosures are available in 1U, 2U and 4U heights and are designed to provide high-density, low dB loss connections and the recessed
sliding tilt down drawer allows easy access to the internal connections. The RSD Series is extremely versatile accommodating LC, SC, MTRJ, MTP or
ST couplers and is ideal for structured cabling environments, open racks in telecom closets or any areas where the front acrylic glass protection is needed.
• 1U configuration for up to 72 duplex LC Ports.

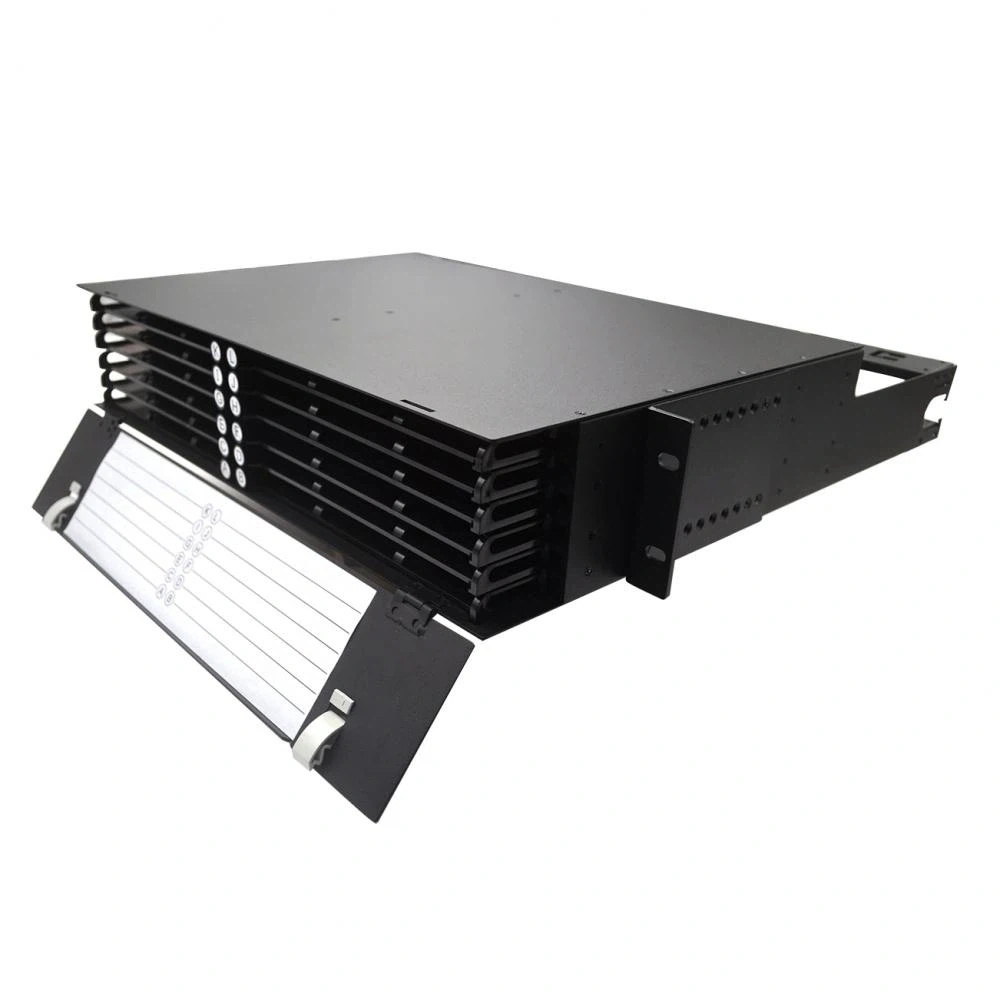

• 2U configuration for up to 144 duplex LC Ports.
• 4U configuration for up to 216 duplex LC Ports.
Application:
Data Center SAN (Storage Area Network)
Data Center Co-Location
Enterprise/Campus
Telecom Central Office
