In the fast-paced world of hyperscale data centers, where information is exchanged at lightning speed, every component plays a critical role in ensuring seamless connectivity. Among these components, ultra-high density patch panels stand out as indispensable tools for meeting the intricate demands of fiber optic termination and patching. As the backbone of connectivity infrastructure, these patch panels offer unparalleled efficiency, scalability, and reliability, making them essential for the operation of hyperscale data centers.
Product specification:

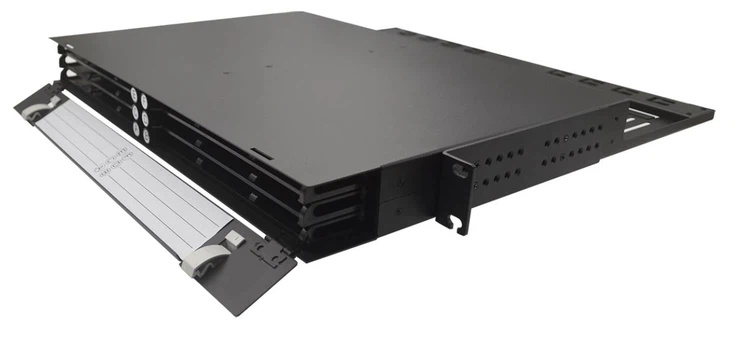

Model No.: MPO PATCH PANEL
Brand: OEM
Product Name: 1U ODF
Dimension: 435x470x44mm
Weight(contain Cassette): 3.7 kgs

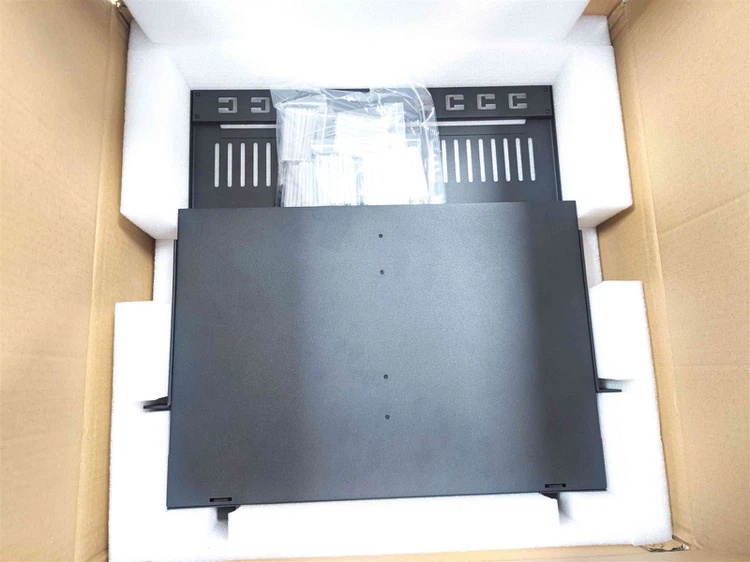

Packing Box: 539x366x94mm
Cassette QTY: 6 pcs
Capacity: MDC 288F /LC 144 F/ SC 72 F
Operating Temperature: -20℃～+60℃
Applications: MPO HD solutions/PLC splitters/Splicing Connection

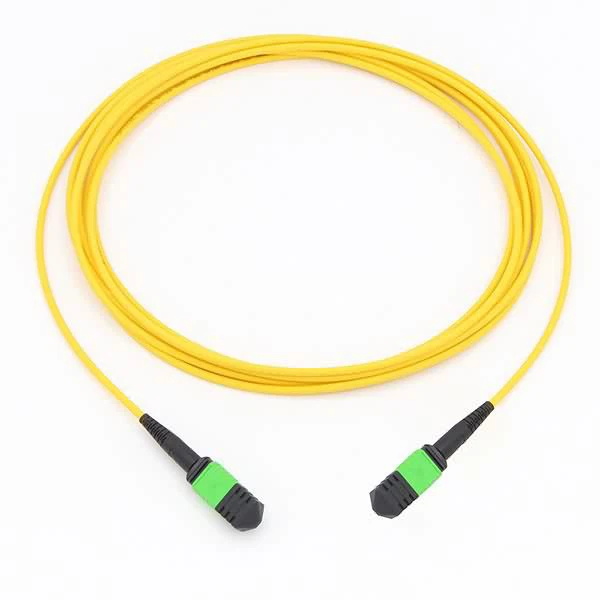

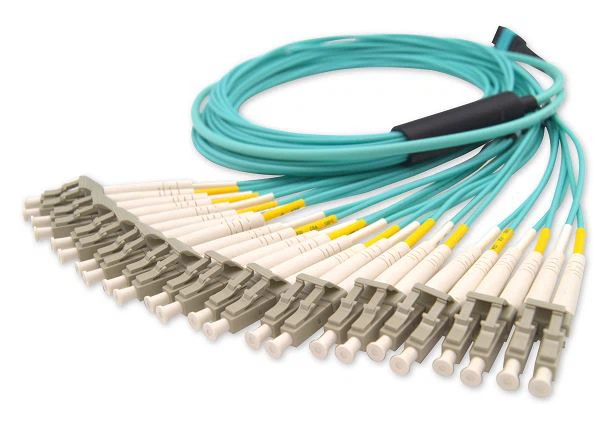

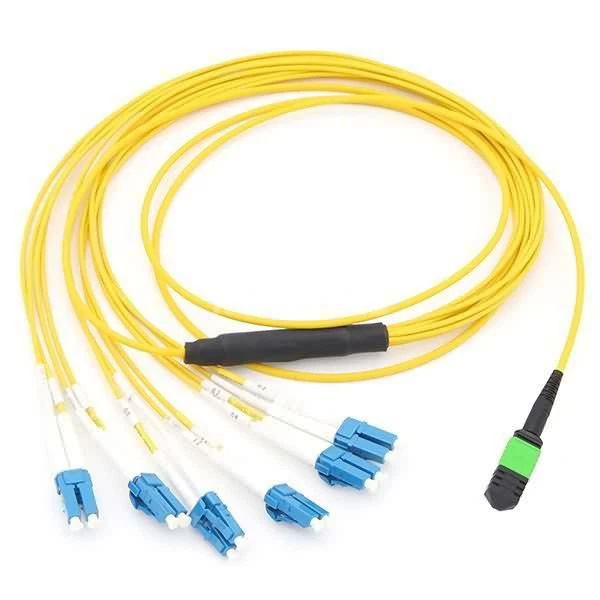

Patch Cord Category: MPO/MTP-MDC/LC/SC Fan out or MDC/LC/SC trunk patch cord
Features and Benefits:
Lightweight design
Wear resistance and high durability

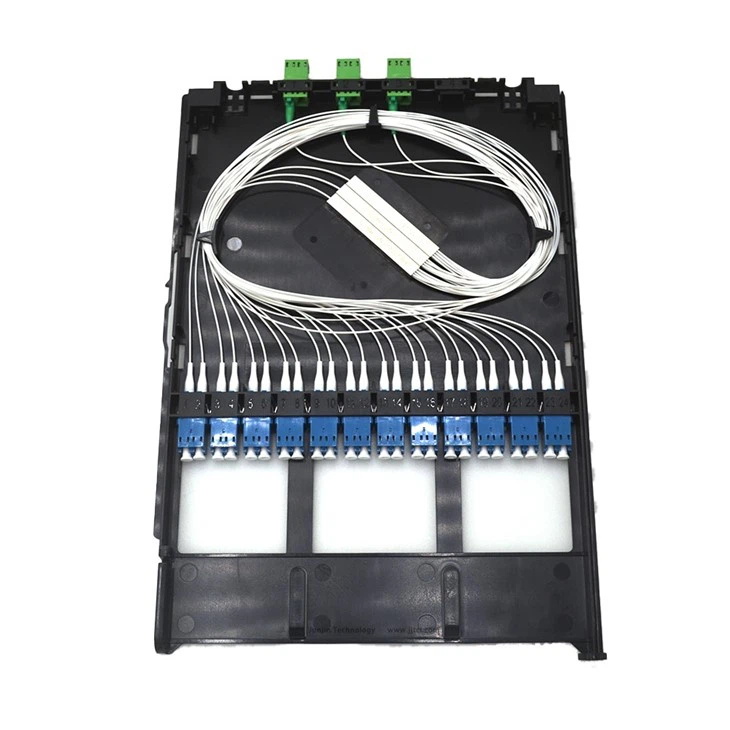

Using ultra-high-density cassette tape
Flexible capacity design
Add fiber optic connections as needed
Plug and play quick installation
Compatible with 8F&12F solutions
Easily secure up to 6 modules MPO-LC or splicing boxes up to 144F per 1RU
Cassette slide slot for easy installation and maintenance

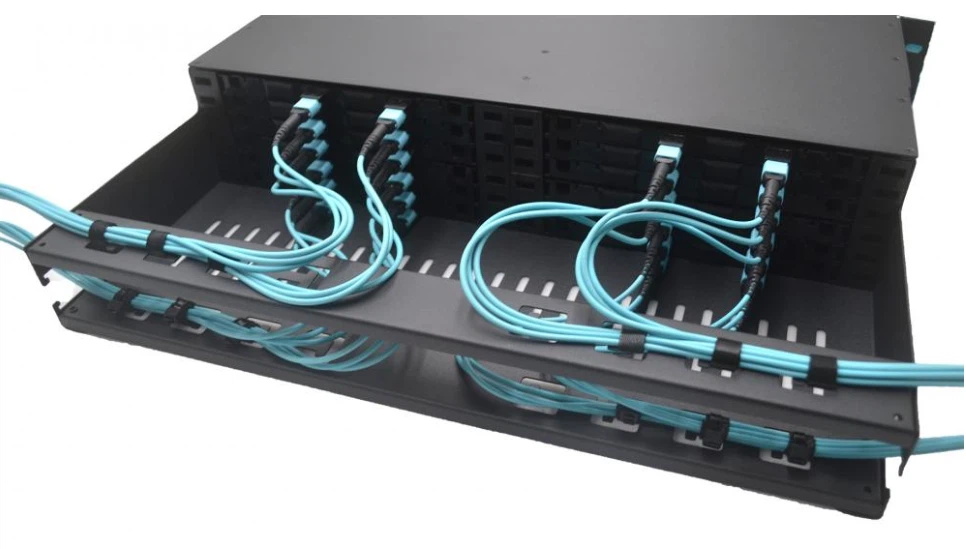

Rear cable support and management rack
Jumper management and protection
Pocket labels allow for independent printing and label replacement
Specification：
|
Item |
1U ODF |
2U ODF |
4U ODF |
|
Dimension |
435x470x44mm |
435x470x88mm |
435x470x176mm |
|
Weight(contain cassette) |
3.7 kgs |
6.4 kgs |
11.2kgs |
|
Packing Box Size |
539x366x94mm |
539x366x139mm |
539x336x226mm |
|
Cassette QTY |
6 pcs |
12 pcs |
24 pcs |
|
Capacity |
MDC 288F/LC 144F/ SC 72F |
MDC 576F /LC 288F/ SC 144F |
MDC 1152F /LC 576F/ SC 288F |
|
Operating Temperature |
-20℃～+60℃ |
||
|
Applications |
MPO HD solutions/PLC splitters/Splicing Connection |
||
|
Patch cord Category |
MPO/MTP-MDC/LC/SC Fan out or MDC/LC/SC trunk patch cord |
||
SOPO ultra-high density module box can support various configurations and can be ordered as a single product. We are manufacturer that
can provide customized services based on customer’ needs. If have any requirements,you are available to contact us for purchasing. Also if you have
questions, you are available for consulting us at any time. solving problems for customers is our honor & purpose.
