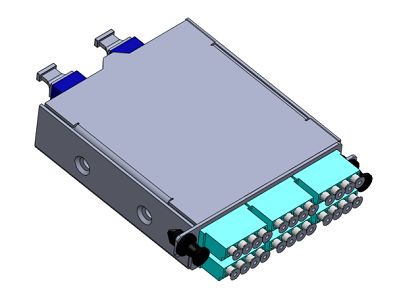

10G 24F MTP to 12 X Duplex LC Fanout OM3 Fiber Cable LGX Module Cassette

MPO/MTP® Cassette is a high density pre-terminated fiber optic system designed for data centers, storage area networks and local area networks. This innovative system can reduce installation time and space, makes application simple : mount the cassette, pull or place the cables and plug the cables into cassette. Whether the distance between devices are a few feet or hundreds of meters, the data rates are 100 Mb/s, 1 Gb/s or even 10 Gb/s, the MPO/MTP® optical fiber solution is an excellent choice. MPO/MTP® Cassettes are available in 12 or 24 fibers, multi-mode ( 50/125, 50/125 OM3, 62.5/125) or single mode versions and connectorized with SC, LC.

Features:
► Factory terminated & tested with guaranteed quality;
► High density to dramatically save space;
► Optimize network performance;
► The best solution covers all fiber optic cabling needs in all areas of Data Center.

Specification:
MPO/MTP® Cassettes with LC or SC connectors have optimized optical performances: a maximum Insertion Loss of 1.3 dB per cassette and a minimum Return Loss of 20 dB (MM),

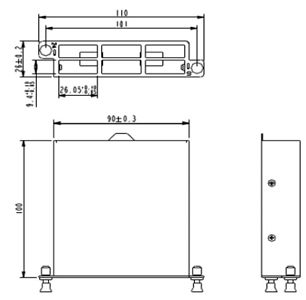

55dB (Single mode) per cassette. Each cassette is small in size. On the back side of the cassette are one or two 12-fiber MPO adapters. On the front side of the cassette may be

12 SC simplex ports or 6, 12 LC Duplex ports.

General Connector Specification:

Parameter		Single-mode			Multi-mode
Basic	Fiber connector	FC, SC, LC, ST, MU, MTRJ, MPO
	Ferrule End-face	PC	UPC	APC	UPC
	Insertion Loss	≤0.2dB	≤0.2dB	≤0.3dB	≤0.3bB
	Return Loss	≥50dB	≥55dB	≥60dB	≥35dB
	Ceramic Ferrule Specification	125.5um concentricity deviations: <=1um			127um concentricity deviations: <=3um
	Suitable Fiber	9/125um			50/125um,62.5/125um
End-face Geometry	Radius of Curvature	7~25mm		5~12mm	N/A
	Fiber Protrusion	≤50nm		≤100nm	N/A
	Fiber Under Cut	≤100nm		≤100nm	N/A
	Apex offset	≤50um
Mechanical	Exchangeability	≤0.2dB
	Salt Spray	≤0.1dB
	Drop	≤0.2dB(1.5M, 5 drops)
	Vibration	IL ≤0.2dB(550Hz, 1.5mm)
	Repeatability	≤ 0.1dB(1000 times)
	Durability	> 1000 times
	Operating Temperature	-40℃ ~ +85℃

The basic division of MTP® connectors:

Type and Color Code Connectors	Insertion Loss (IL)	Optical Return Loss (RL)	Operating Temperature
Single-mode MTP® Elite® Connector	0.10 dB Typical (All Fibers) 0.35 dB Max (Single Fiber)1	> 60 dB (8°AnglePolished)2	-40℃ to 75℃
Single-mode MTP® Standard Connector	0.25 dB Typical (All Fibers) 0.75 dB Max (Single Fiber)1	> 60 dB (8°Angle Polished)2	-40℃ to 75℃
Multimode MTP® Standard Connector	0.25 dB Typical (All Fibers) 0.75 dB Max (Single Fiber)1,3	> 20 dB (0°Flat Polished)2,3	-40℃ to 75℃
1 IL test according to IEC 61300-3-4; 2 RL test according to IEC 61300-3-6; 3 Tested with proposed encircled flux launch condition on 50μm fiber & 850nm per IEC 61280-4-1.

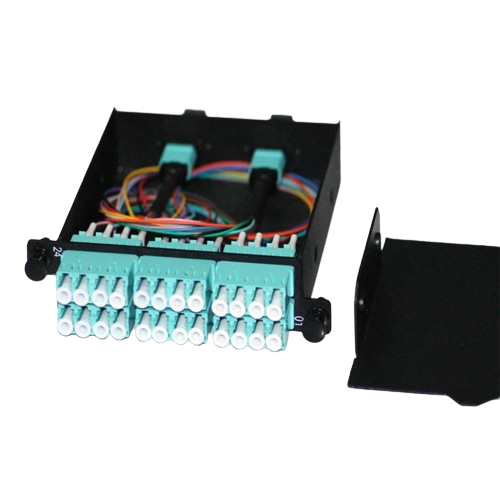

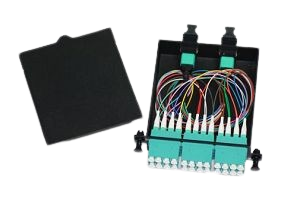

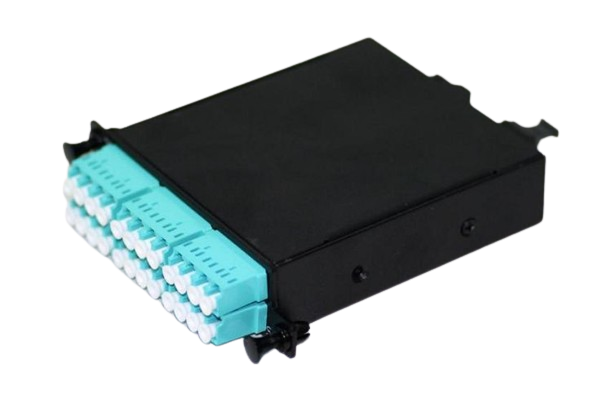

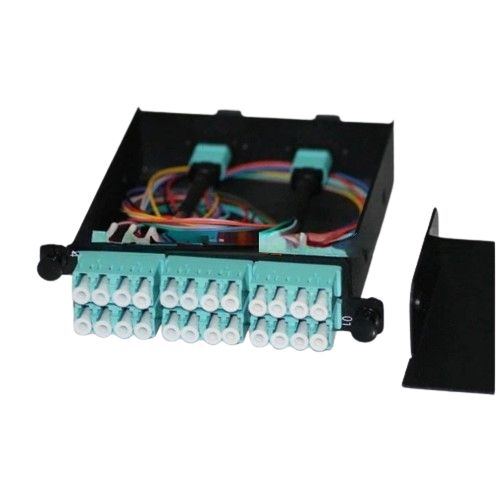

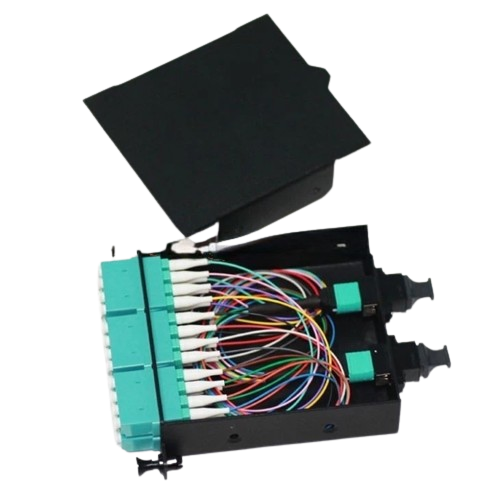

Products Overview:

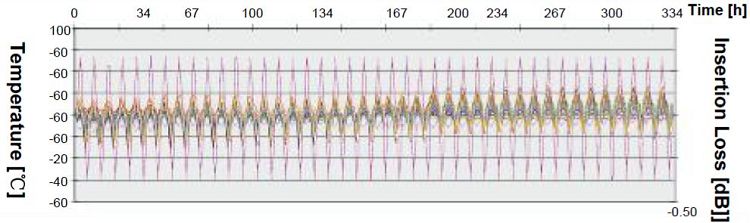

MPO/MTP® Temperature Cycling at 1550 nm:

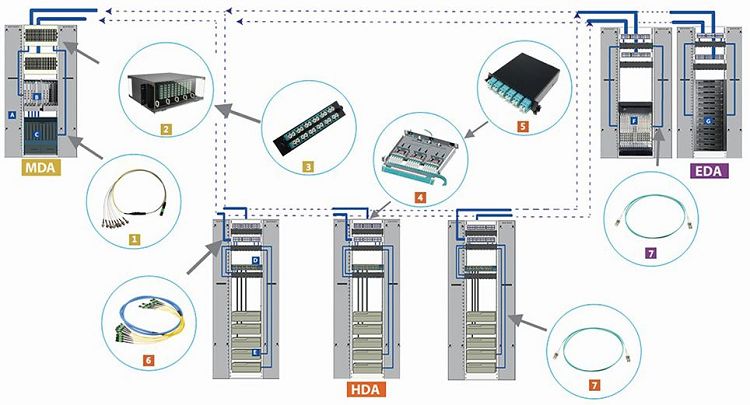

High Density MTP®/MPO Cabling System In Dada Center:

Ordering Guide:
► 1 ea for individual static-free bag with test report;
► Connector Customized Inquired;
► Fanout / breakout Cable Customized Length;

Product Description	MTP/F/PC - LC/UPC/DX - OM3 - 12B - B2.0 - 1.5M/0.6M - LSZH - Aqua - A 1 2 3 4 5 6 7 8 9
1 - Connector A	MTP/F/PC: MTP Female,PC polish; MTP/F/APC: MTP Female,APC polish; MTP/M/PC: MTP Male,PC polish; MTP/M/APC: MTP Male,APC polish;
2 - Connector B	LC/UPC/DX;LC/APC/DX;LC/UPC/SX;LC/APC/SX;LCP/UPC;LCP/APC; SC/UPC/DX;SC/APC/DX;SC/UPC/SX;SC/APC/SX;FC/UPC;FC/APC;ST/UPC
3 - Fiber Mode	OM1, OM2, OM3, OM4, OS2, G657A1
4 - Fiber Count&Type	12R: 12F Ribbon; 12BR: 12F Bare Ribbon; 12B: 12F Mini Round Cable
5 - Breakout Type	B2.0: 2.0 fan-out with splitter kit.
6 - Length	1.5M/0.6M: Cable total length1.5M, fan-out length 0.6M, etc.
7 - Cable Jacket Materials	LSZH,OFNP,OFNR,PVC
8 - Cable Jacket Color	Aqua (OM3,OM4) Orange (OM1,OM2), Yellow (SM).
9 - Polarity	A: Type A; B: Type B; C: Type C.
