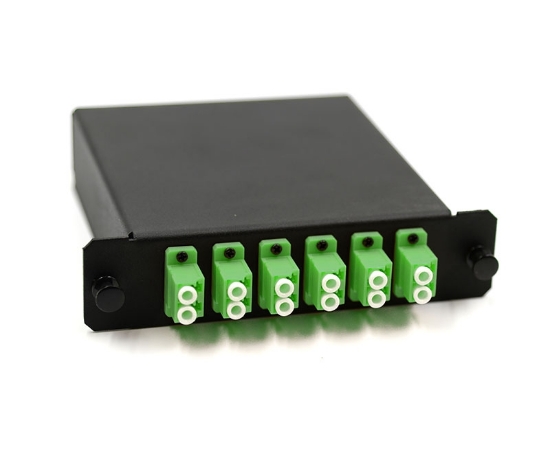

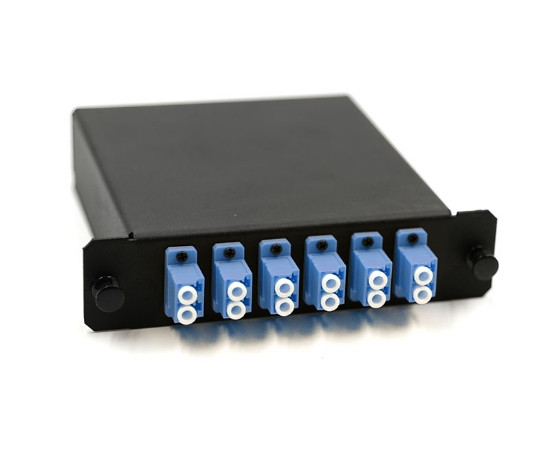

SOPO provides LGX Type Cassette (product name LGX-2M12P02-B), with fixed design, t he upper cover plate can be removed, and the bottom board can be replaced according t o the number of cores and the model of the mounting adapter.The highest support of 24 core fiber, effectively save the wiring space for customers, reduce the wiring cost.
Description:
12F/24F MPO/MTP CASSETTE
The MPO/MTP module Cassettes are mainly used to divide the 12 or 24 fibers MPO/MTP connector of the pre-assembled terminal end to the simplex or duplex
standard connector. By using the simplex or duplex patch cords, the output of the modules can be directly connected with the equipment, frame or the client end.
Features:
• High-density modular design, up to 96 fiber in 1U for efficient utilization.
• Pre-terminated cassette for improved reliability and quick deployment.
• High performance connectors to achieve a low loss optical budget.
• Plug-N-play modules allow fast installation of multiple fiber links.
• Offered in a wide range of performance and polarity configurations.
• The corning fiber compoliant to Telcordia, EIA/TIA and IEC standards

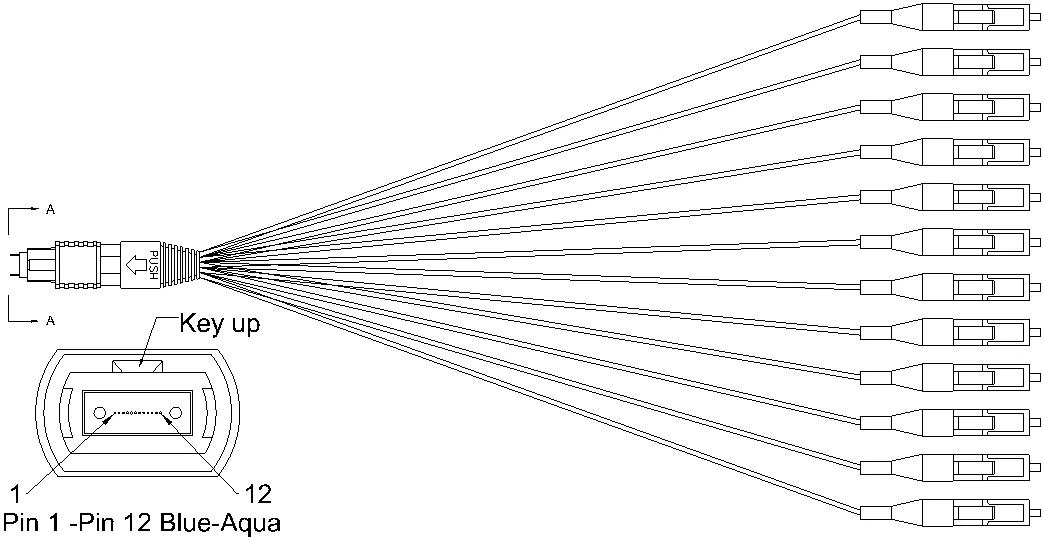

MPO/MTP(Male)-12LCXP Patch Cord Engineering Drawing
Specification:
|
Product name |
12F/24F MPO/MTP CASSETTE |
|
Fibers |
Max 12 - SC, Max 24 - LC, |
|
Material |
Plastic/Metal |
|
Fiber Mode |
Single Mode/Multimode |
|
Durability (dB) |
≤0.2 (500 times mating) |
|
Tensile Strength (kgf) |
10 |
|
Working Temperature (℃) |
-20 ~ +70 |
I. Product Constructions
Fiber Count 12 Fibers and 24 Fibers
Fiber Mode
Multimode: OM3 50/125μm OM4 50/125μm
Single mode: OS2 9/125μm
Front Connector Multimode: LC/SC Duplex with UPC polish
Single mode: LC/SC Duplex with UPC/APC polish
Rear Connector Multimode: MPO adapter(s) with male ferrules (pins) and UPC polish
Single mode: MPO adapter(s) with male ferrules (pins) and APC polish

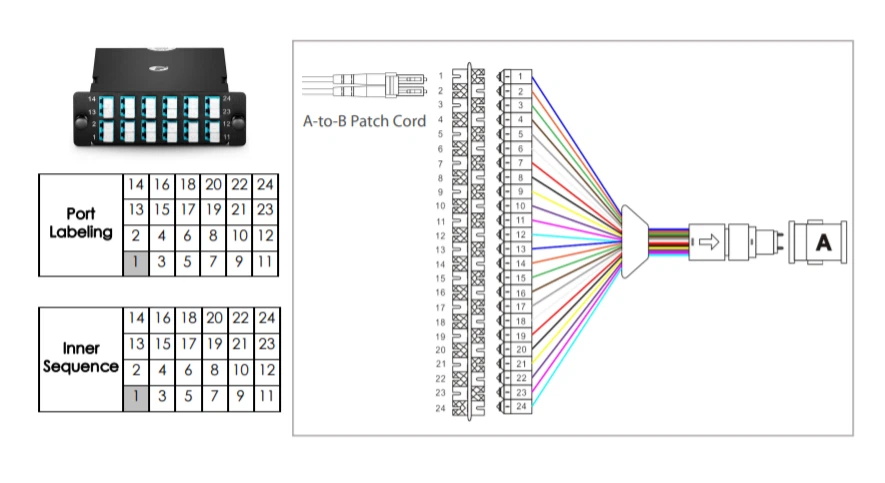

Polarity Type Type A/AF/B1/B2 Material Aluminium (AL5052)
Dimensions (HxWxD) 1.38''x4.29''x4.64'' (35x109x118mm)
II. Performance Properties
Rear Connector MPO
Insertion Loss
Multimode: Stand IL 0.6dB max.
Ultra low IL 0.35dB max.
Single mode: Stand IL 0.75dB max.
Ultra low IL 0.35dB max.
Return Loss Multimode: ≥20dB
Single mode: ≥60dB
