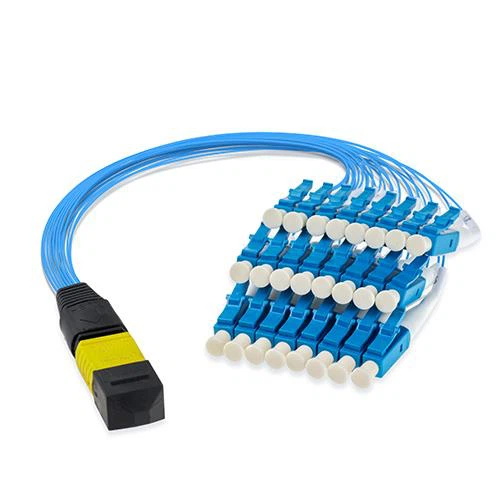

MPO/MTP to LC Internal Fan Out Cable interface multifiber MPO/MTP with discrete single fiber (LC/SC mainly) connectors. Assemblies are typically used to directly interconnect MTP/MPO cassettes, panels or backbone trunk assemblies with the active equipment ports, saving costly data centre rack space and easing fibre management. Replacing traditional MTP/MPO module Fan-Out Assemblies reduce amount of interconnection improving power budget cost.
1. Low Insertion Loss LC Connector,the tightly tolerance ceramic ferrules ensuring consistent low loss.
2. Multi-fiber Termination Push-on,the same size as a LC connector, the elite MTP connector can accommodate 24 fibers, providing 24 times the density.

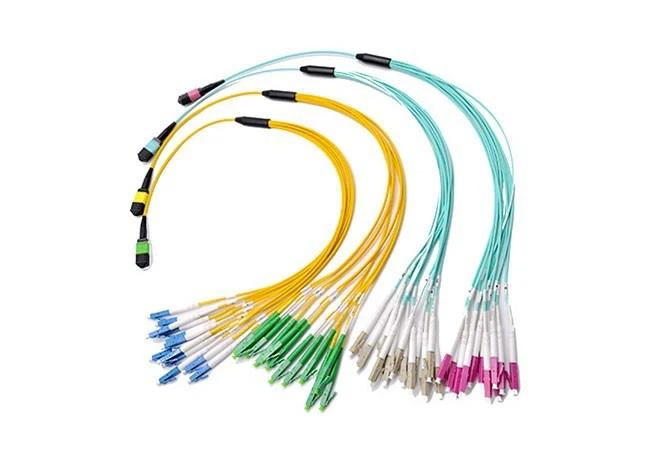

MPO/MTP module fan-out optical fiber jumper is an innovative optical fiber connection product, suitable for data center networks, 10G/40G/100G networks,
parallel interconnections, micro modules, active optical cables and other occasions. The feature of this product is that it can choose between 8-core and 12-core
optical fibers, and can be cross-connected and paralleled at the same time, which is very flexible and practical.
The product is very compact and easy to manage, and is especially suitable for scenarios that require a large number of optical fiber connections. At the same time,
the insertion loss of the MPO/MTP module fan-out optical fiber patch cord is very low, which can minimize the loss of signal transmission, while also meeting the various
requirements of QSFP to ensure signal stability and reliability.
In practical applications, MPO/MTP module fan-out optical fiber jumpers have a wide range of applications. Because it can support 10G, 40G, and 100G networks, it can
often be seen in the construction of large data centers. At the same time, due to its small size and excellent connection performance, it is also widely used in micro
equipment, active optical cables and other scenarios.
The MPO/MTP module fan-out optical fiber jumper is a very practical product that has excellent performance in terms of connection performance, flexibility and management
convenience. When building modern networks and equipment, choosing this product will be an extremely wise choice.

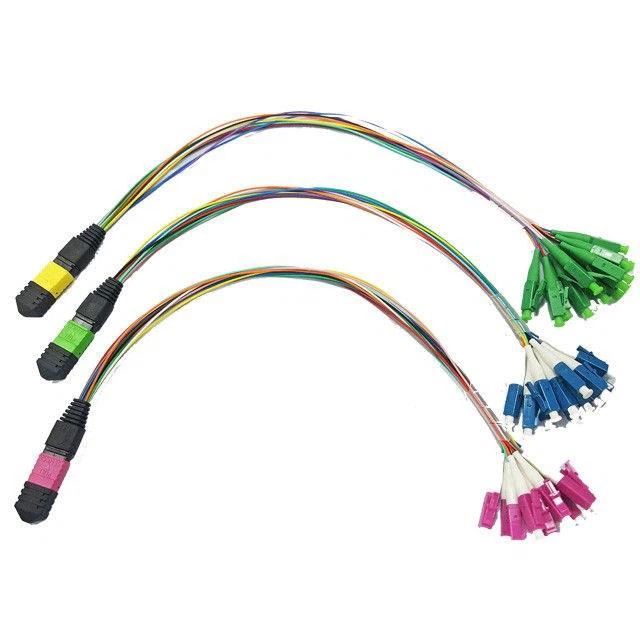

Feature:
8-12 core fiber available
Cross Connection : AB/BA
Paralled Connection : AB/AB
Small volume, easy management
Insertion Loss : Low IL & Standard IL available
Can customize connection method as QSFP requirements
|
Low Insert Loss US Conec MTP connector 0.35dB ultra low IL |
Bend Insensitive Fiber Corning SMF-28 ultra optical fiber 10.0mm minimum bend radius |
Test Assured Program Insertion loss and return loss testing End-face inspection 3D interferometer test |
Specification:
Items
SC/LC
MTP/MPO
(Std)
MTP/MPO
(Elite)
Insertion Loss
SM
MM
SM
MM
SM
MM
UPC
APC
PC
12F,24F
12F,
24F
12F
24F
12F,
24F
≤0.3dB
≤0.7dB
≤0.35dB
≤0.5dB
≤0.35dB
Return Loss
≥50dB
≥60dB
≥30dB
≥55dB
≥20dB
≥55dB
≥20dB
Durability
500times
Operation temperature
-25℃～+70℃
Fiber Type
OS2/OM1/OM2/OM3/OM4
Application:
Data Center Networks
10G/ 40G/ 100G Networks
Parallel interconnection
Miniature modules
Active Optical Cable
Lower Insertion Loss & Higher Performance
Lower Insertion Loss & Higher Performance
|
High-quality cable with 3D interferometer tested MTP connector |
Elite MTP connector ensures stable signal transmission. |

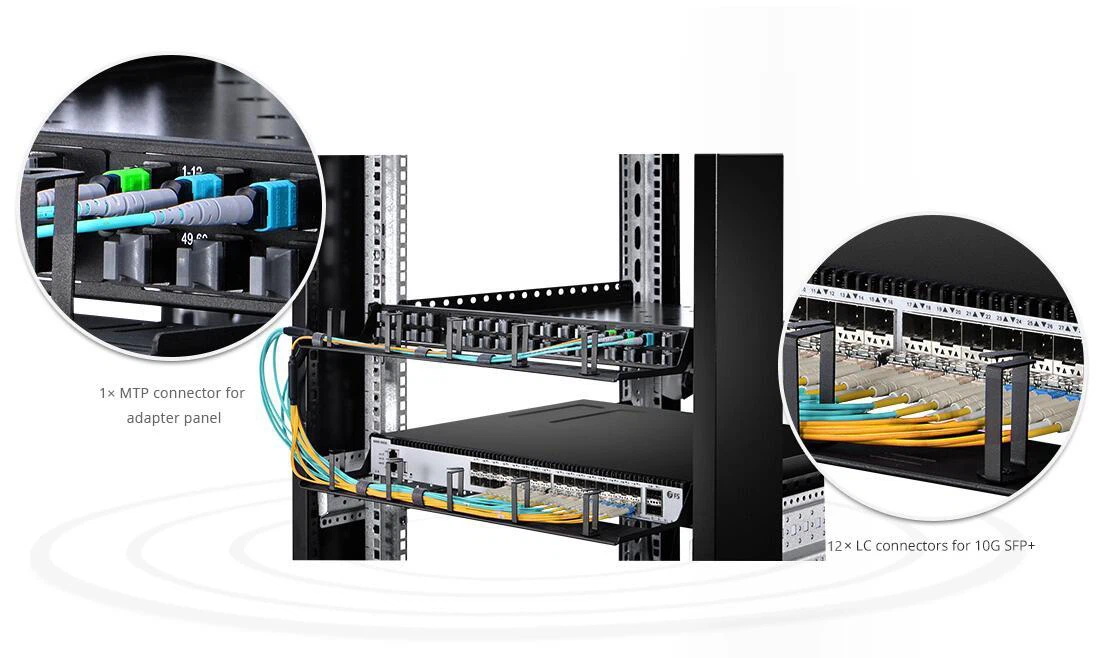

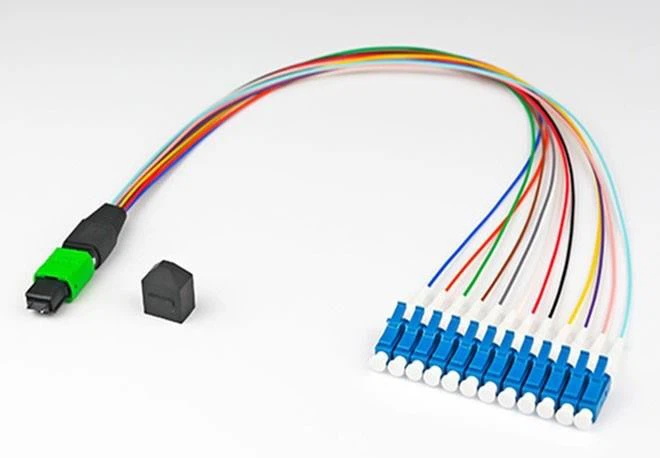

Typically used for connecting (12)10G SFP+ into a module for port replication |
Cable Mechanical Specifications:
|
|
FIBER |
ADVENTUM |
MINI-CORE |
|||
|
OFNP |
OFNR |
OFNP |
OFNR |
LSZH |
||
|
Minimum Bend Radius (Installation) |
8 |
9.9 cm |
9.7 cm |
6.0 cm |
6.0 cm |
6.0 cm |
|
12 |
9.9 cm |
9.7 cm |
6.0 cm |
6.0 cm |
6.0 cm |
|
|
Minimum Bend Radius (Long Term) |
8 |
6.6 cm |
6.5 cm |
3.0 cm |
3.0 cm |
3.0 cm |
|
12 |
6.6 cm |
6.5 cm |
3.0 cm |
3.0 cm |
3.0 cm |
|
|
Maximum Tensile (Installation) |
8 |
1335N |
1335N |
150N |
150N |
150N |
|
12 |
1335N |
1335N |
150N |
150N |
150N |
|
|
Maximum Tensile (Long Term) |
8 |
400N |
400N |
80N |
80N |
80N |
|
12 |
400N |
400N |
80N |
80N |
80N |
|
