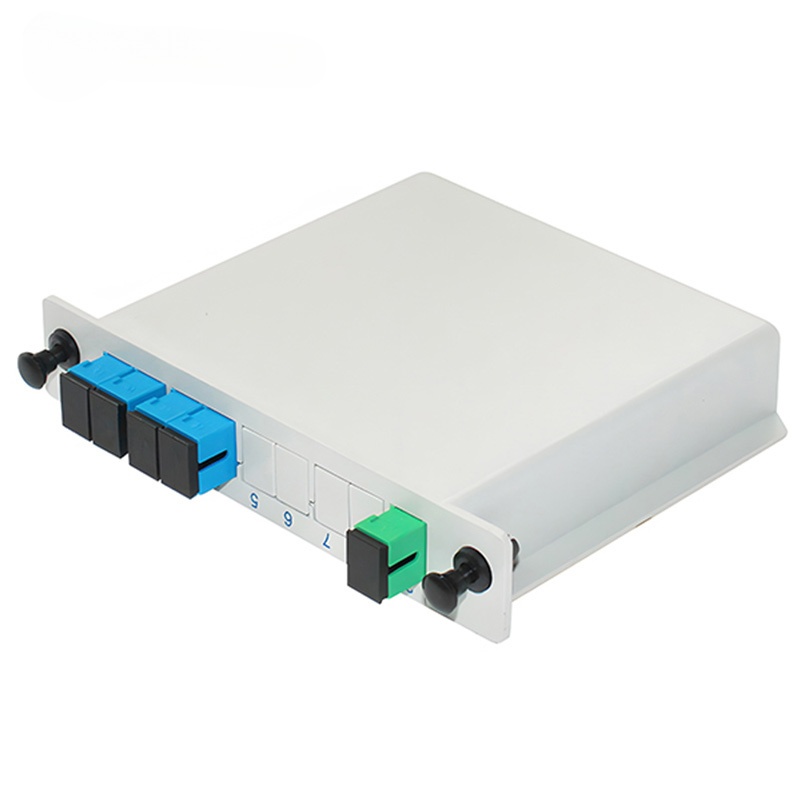

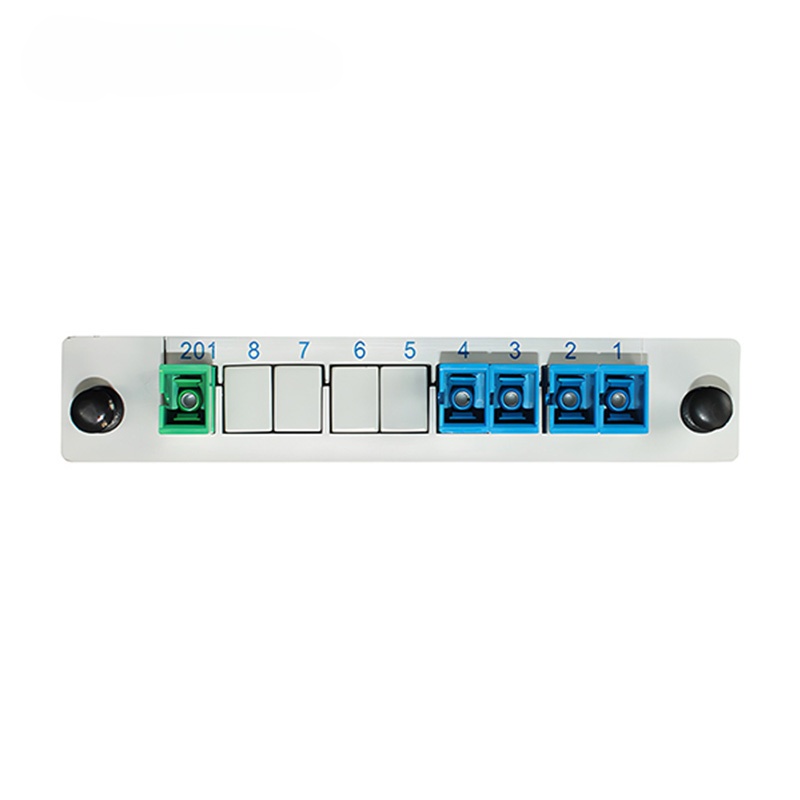

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricted using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets. LGX Splitter For LGX chassis use.
Features:
Wavelength insensitive
Low insertion loss
Low polarization dependence
Environmentally stable
Excellent uniformity
Applications:
EPON/GPON
FTTX Passive Optical Networks
CATV, LAN,WAN
Test Instrument
Specification：
|
Parameter |
Unit |
Value |
|
Type |
|
1x4 |
|
Package Style |
|
LGX Box |
|
Length*Width*Height |
mm |
128*100*20 |
|
Working Wavelength |
nm |
1310-1550nm |
|
Insertion Loss |
dB |
≤7.4 |
|
Uniformity |
dB |
≤0.6 |
|
PDL |
dB |
≤0.3 |
|
Wavelength Dependent Loss |
dB |
≤0.6 |
|
Return Loss |
dB |
≥50 |
|
Directivity |
dB |
≥55 |
|
Operating Temp. |
℃ |
-40℃~ +85℃ |
