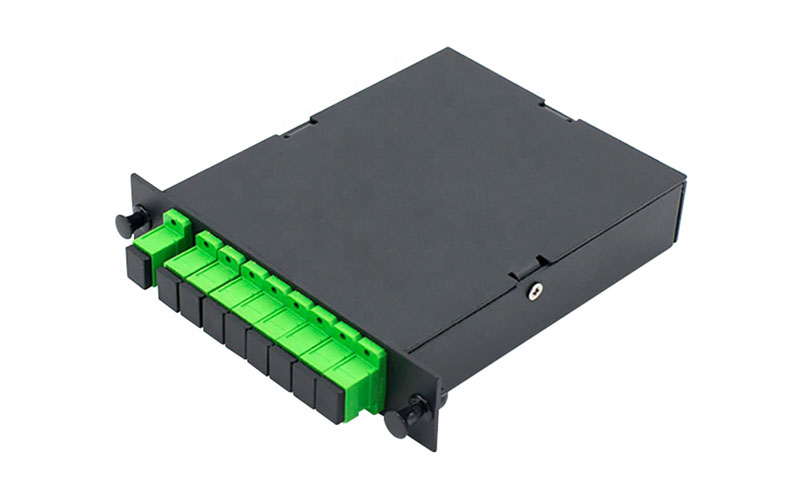

This insert splitter can be directly installed in the built-in boxes, such as splitter box, fiber optic cable transfer box, ODF frame, etc., which can be used with the guide fiber device.
Low Insertion loss and Low PDL
Uniform power splitting
High reliability
Excellent environmental stability
Compact size and various package
FTTx Systems
Digital, hybrid and AM-Video systems
LAN,WAN and Metro Networks
CATV systems
Other applications in fiber optic systems
SPECIFICATIONS:
|
|
Operating Wavelength(nm) |
1260~1650 |
||||||
|
|
Fiber Type |
G657A1 or as customers’ order |
||||||
|
|
Port Configuration |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
1×128 |
|
|
Insertion Loss (dB) |
3.8/4.0 |
7.1/7.3 |
10.2/10.5 |
13.5/13.7 |
16.5/16.9 |
20.5/21.0 |
23.8/24.2 |
|
|
Loss Uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2 |
2.5 |
|
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.2 |
0.25 |
0.3 |
0.35 |
0.4 |
|
|
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
0.5 |
|
|
Temperature Dependent Loss (-40~85 ) (dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
|
|
Return Loss (dB) |
55/50 |
||||||
|
|
Operating Temperature |
45 |
||||||
|
|
Directivity (dB) |
≥ 55 |
||||||
|
|
Storage Temperature |
-40~+85 |
||||||
|
|
|
|
|
|
|
|
|
|
|
|
Operating Wavelength(nm) |
1260~1650 |
||||||
|
|
Fiber Type |
G657A1 or as customers’ order |
||||||
|
|
Port Configuration |
2×2 |
2×4 |
2×8 |
2×16 |
2×32 |
2×64 |
2×128 |
|
|
Insertion Loss (dB) |
4 |
7.6 |
11 |
14.4 |
17.5 |
21 |
24.5 |
|
|
Loss Uniformity (dB) |
0.6 |
1 |
1.2 |
1.5 |
1.8 |
2.2 |
2.5 |
|
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.3 |
0.3 |
0.35 |
0.4 |
0.4 |
|
|
Wavelength Dependent Loss(dB) |
0.3 |
0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
|
Temperature Dependent Loss (-40~85 ) (dB) |
0.4 |
0.4 |
0.4 |
0.5 |
0.5 |
0.5 |
0.5 |
|
|
Return Loss (dB) |
55/50 |
||||||
|
|
Operating Temperature |
-40~+85 |
||||||
|
|
Directivity (dB) |
≥ 55 |
||||||
|
|
Storage Temperature |
-40~+85 |
||||||
