PLC splitter is an optical power equalization product based on quartz substrate material and planar optical waveguide technology. It is mainly used for optical signal coupling and distribution in passive optical network(PON) systems.It is one of the most important passive components in optical networks.TAKFLY is able to provide PLC optical splitter in Multiple modes such as 1xN, 2xN, etc. To meet the diversified demand of customers.

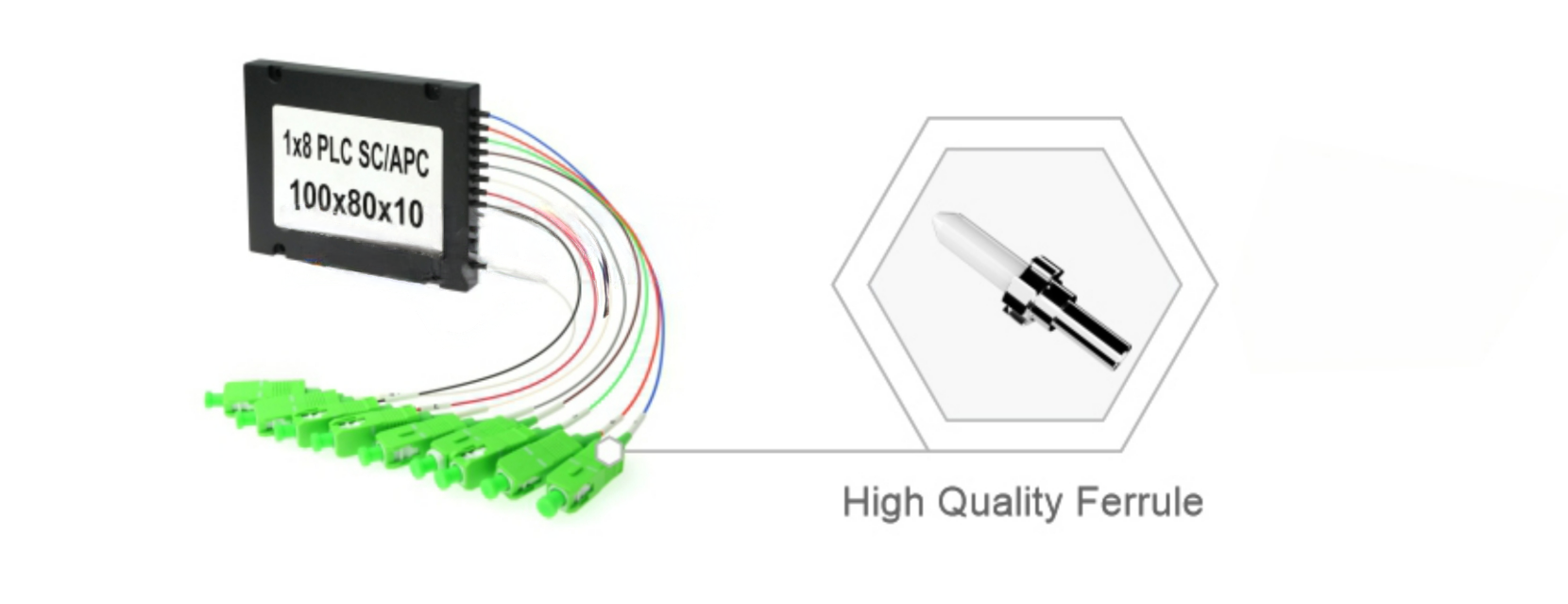

Selected High Quality Ferrule
Available with high quality ferrule, professional polishing technology, precise matching for optical endface to achieve more stable transmission and efficient connection.
SOPO’s PLC optical splitter Mini steel tube has excellent performance parameters
The PLC optical splitter is insensitive to wavelength and has full-band signal transmission from 1260 to 1650 nm.

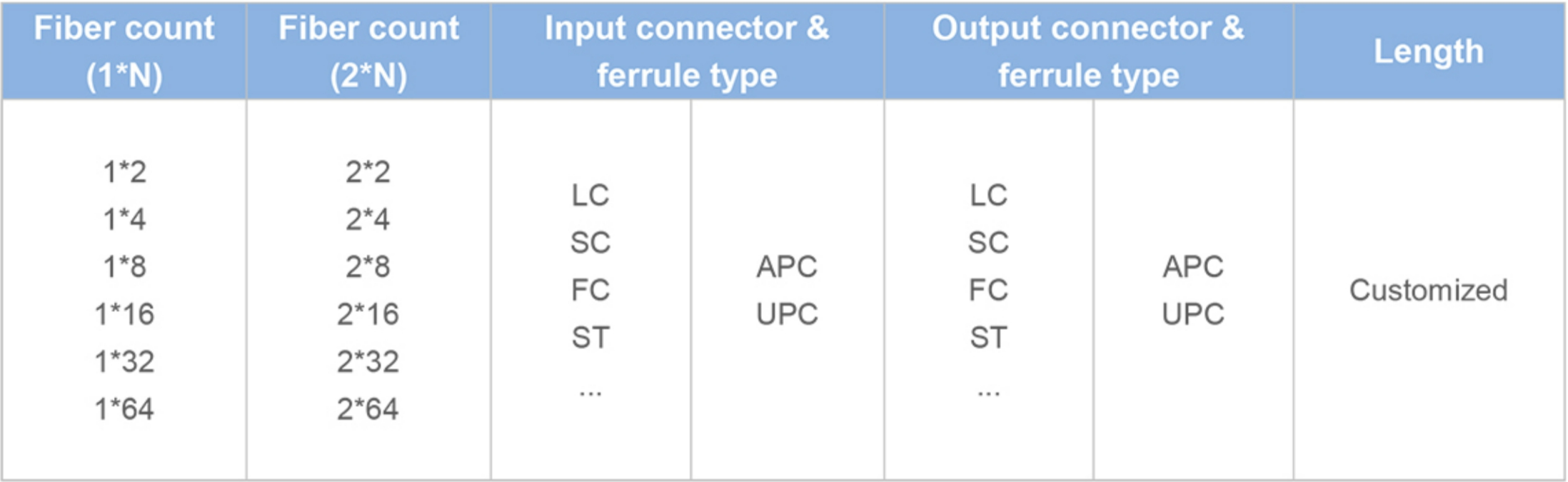

SOPO can provide a full range of PLC optical splitter, can be customized.

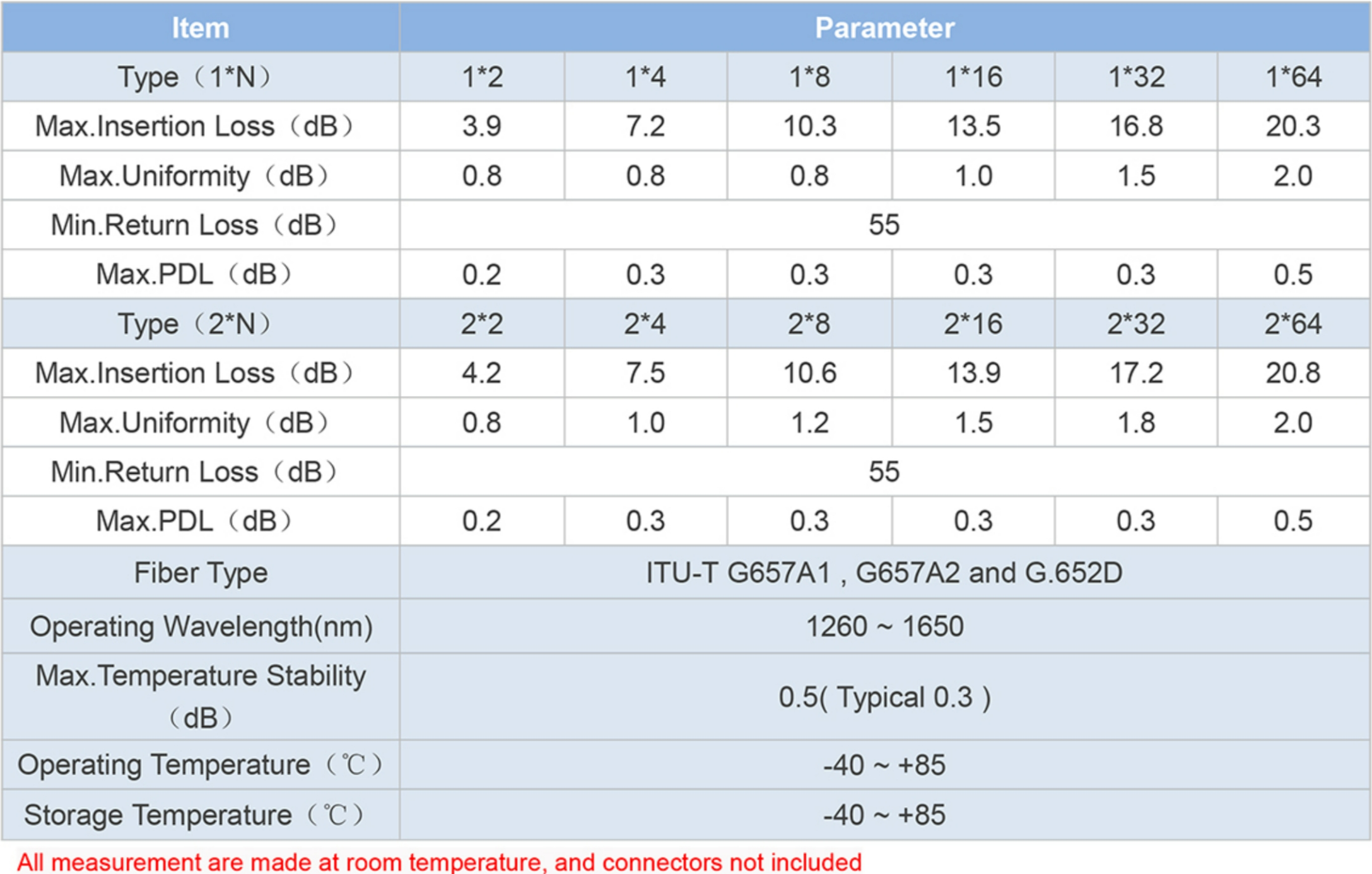

Parameter:
Application:
PLC optical splitter lt has the advantages of insensitivity to wavelength, high stability and uniform splitting. It is one of the most important passive devices in optical networks.
Widely used in MAN(metropolitan area network), LAN(local area network), FTTX, etc.
