Planar Lightwave Circuit splitters, which base on the more recent Planar Lightwave Circuit technology, offer a better solution for applications where larger split configurations are required. They support wavelengths from 1260 to 1650 nm, a wide range appropriate for wavelength adjudication. Besides, the temperature range (-40 to 85 ℃)is workable for PLC splitters, allowing for their utilization in extreme climate..

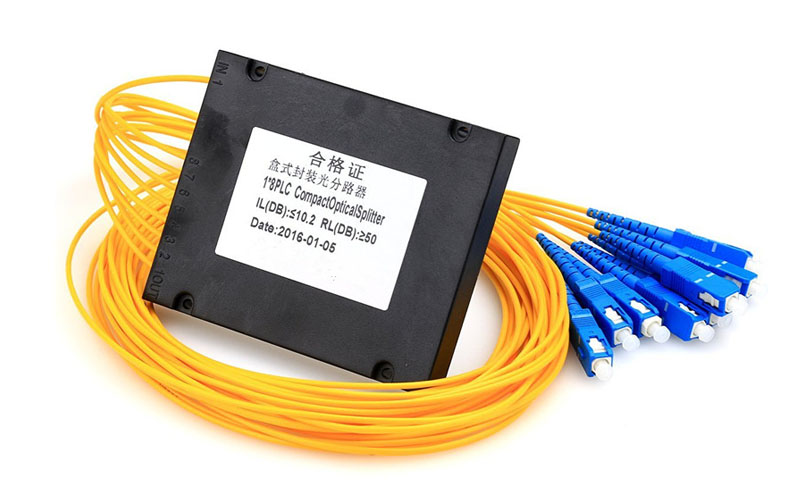

ABS Box Type Optical PLC Spliter SC 1x2 1x4 1x8 1x16 1x32 1x64 2x2 2x4 2x8
Features:
1) Low Insertion loss
2) Low PDL
3) Compact Design
4) Good channel-to-channel uniformity
5) Wide Operating Wavelength: 1260-1650nm
6) Wide Operating Temperature: -40°C - 85°C
7) High Reliability and Stability
Application :
1) FTTX Systems
2) PON Networks
3) CATV Links
4) Optical Signal Distribution
5) Local Areal Networks (LAN)
6) Fiber Communication Systems
Specification:
Parameters
1×2
1×4
1×8
1×16
1×32
1×64
Operating Wavelength (nm)
1260~1650
Fiber Type
SMF-28e or customer specified
Insertion Loss (dB)(S/P Grade)
4.0/3.8
7.3/7.0
10.5/10.2
13.7/13.5
16.9/16.5
21.0/20.5
Loss Uniformity (dB)
0.4
0.6
0.8
1.2
1.5
2.5
Return Loss (dB) (S/P Grade)
50/55
50/55
50/55
50/55
50/55
50/55
Polarization Dependent Loss(dB)
0.2
0.2
0.3
0.3
0.3
0.4
Directivity (dB)
55
55
55
55
55
55
Wavelength Dependent Loss(dB)
0.3
0.3
0.3
0.5
0.5
0.5
Temperature Stability(-40~85 °C)(dB)
0.5
0.5
0.5
0.5
0.5
0.5
Operating Temperature (°C)
-40~85
Storage Temperature (°C)
-40~85
Packaging Dimension (mm) (L×W×H)
40×4×4
40×4×4
40×4×4
40×4×4
50×7×4
60×12×4
Notes: 1.Specified without connectors.
2.Add an additional 0.2dB loss per connector
