Planar waveguide light optical distributor (PLC Splitter), is a kind of planar waveguide integrated optical device, it can be 1260nm ~ 1650nm such a wide range of wavelengths of light power reservation in realization, the distribution of wavelength range covers EPON technology used 1310nm, 1490nm and 1550nm three wavelengths. Especially suitable for EPON Ethernet passive optical network access technology FTTP fiber network system, broadband passive optical optical distributor (POS) use.

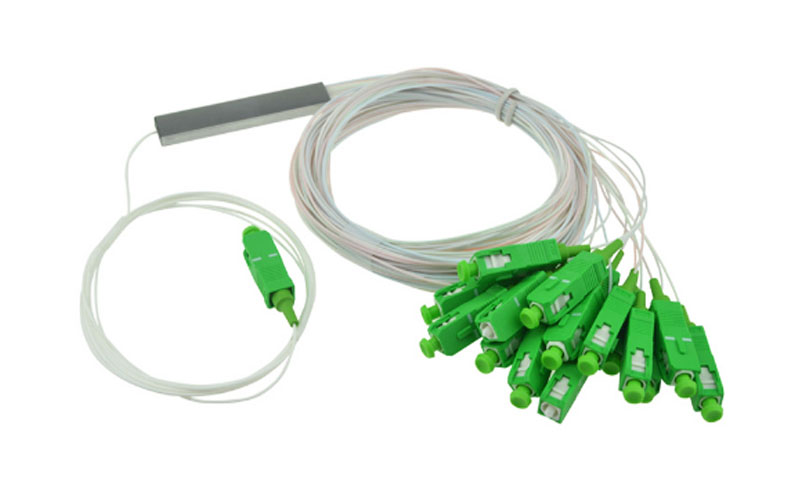

1x16 SC UPC Mini Tube Fiber Optical PLC Splitter
Features:
1) Low Insertion loss
2) Low PDL
3) Compact Design
4) Good channel-to-channel uniformity
5) Wide Operating Wavelength: 1260-1650nm
6) Wide Operating Temperature: -40°C - 85°C
7) High Reliability and Stability
Application :
1) FTTX Systems
2) PON Networks
3) CATV Links
4) Optical Signal Distribution
5) Local Areal Networks (LAN)
6) Fiber Communication Systems
|
Specification: |
|
|
|
|
|
|
|
Parameters |
1×2 |
1×4 |
1×8 |
1×16 |
1×32 |
1×64 |
|
Operating Wavelength (nm) |
1260~1650 |
|||||
|
Fiber Type |
SMF-28e or customer specified |
|||||
|
Insertion Loss (dB)(S/P Grade) |
4.0/3.8 |
7.3/7.0 |
10.5/10.2 |
13.7/13.5 |
16.9/16.5 |
21.0/20.5 |
|
Loss Uniformity (dB) |
0.4 |
0.6 |
0.8 |
1.2 |
1.5 |
2.5 |
|
Return Loss (dB) (S/P Grade) |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
50/55 |
|
Polarization Dependent Loss(dB) |
0.2 |
0.2 |
0.3 |
0.3 |
0.3 |
0.4 |
|
Directivity (dB) |
55 |
55 |
55 |
55 |
55 |
55 |
|
Wavelength Dependent Loss(dB) |
0.3 |
0.3 |
0.3 |
0.5 |
0.5 |
0.5 |
|
Temperature Stability(-40~85 °C)(dB) |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
0.5 |
|
Operating Temperature (°C) |
-40~85 |
|||||
|
Storage Temperature (°C) |
-40~85 |
|||||
|
Packaging Dimension (mm) (L×W×H) |
40×4×4 |
40×4×4 |
40×4×4 |
40×4×4 |
50×7×4 |
60×12×4 |
|
Notes: 1.Specified without connectors. |
|
|
|
|
|
|
|
2.Add an additional 0.2dB loss per connector |
|
|
|
|
|
|
