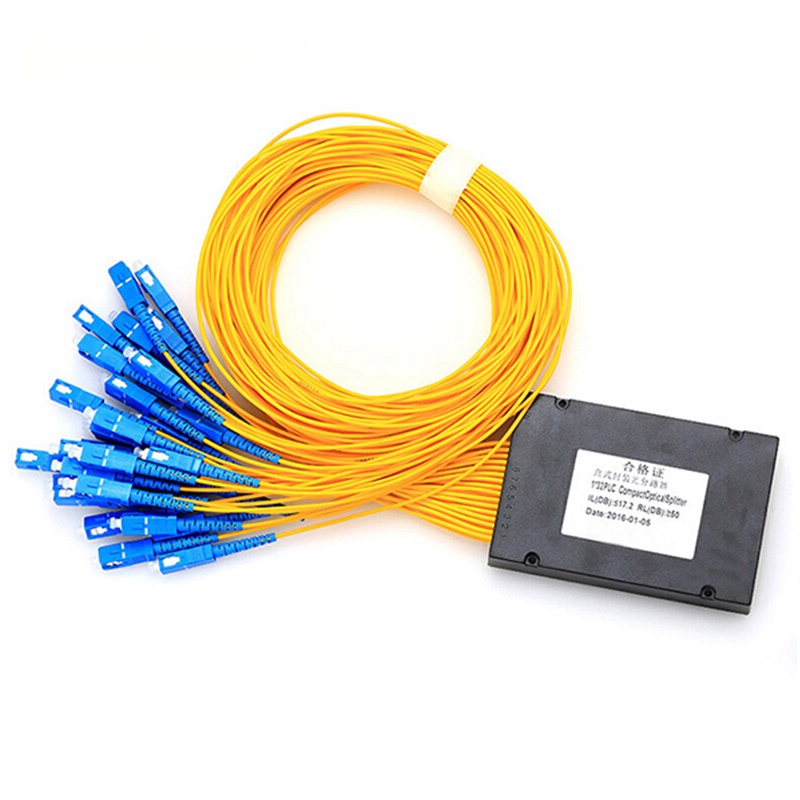

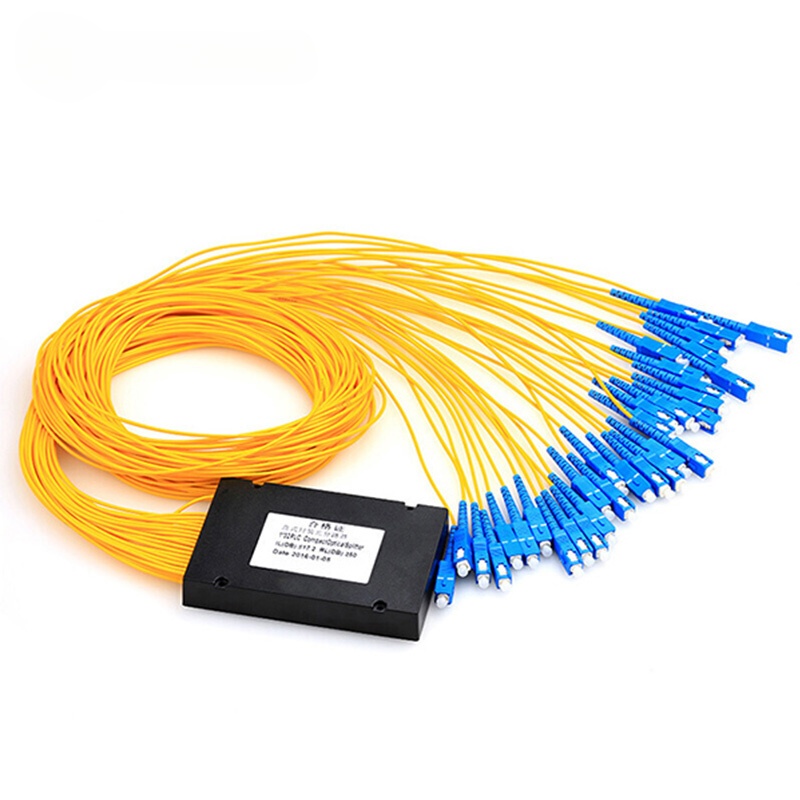

Planar lightwave circuit (PLC) splitter is a type of optical power management device that is fabricted using silica optical waveguide technology to distribute optical signals from Central Office (CO) to multiple premise locations. It's mainly used for various connection and distribution products(outdoor fiber distribution box) or network cabinets. ABS Cassette Splitter (Or Module cassette) for patch panel use.
Features:
Wavelength insensitive
Low insertion loss
Low polarization dependence
Environmentally stable
Excellent uniformity
Applications:
EPON/GPON
FTTX Passive Optical Networks
CATV, LAN,WAN
Test Instrument
Specification:
Parameter
Unit
Value
Type
1x8
Package Style
ABS Module
Length*Width*Height (mm)
mm
100 x 80 x 10
Working Wavelength
nm
1310-1550nm
Standard Insertion Loss
dB
≤10.6
Uniformity
dB
≤0.8
PDL
dB
≤0.3
Wavelength Dependent Loss
dB
≤0.8
Return Loss
dB
≥50
Directivity
dB
≥55
Operating Temp.
℃
-40℃~ +85℃
