FEATURES:

Communication Equipment fiber optic SC/UPC Fast Connector

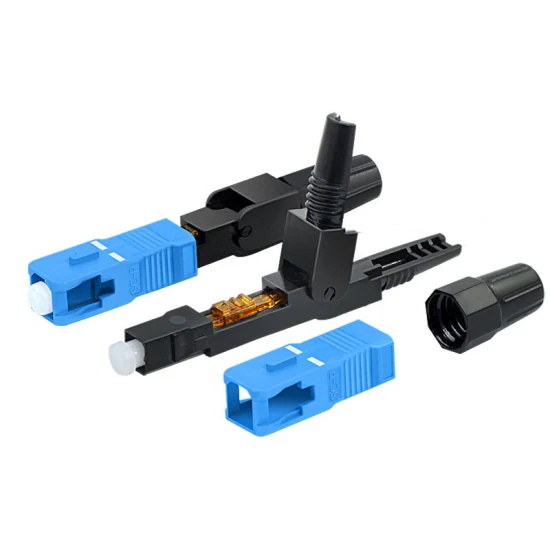

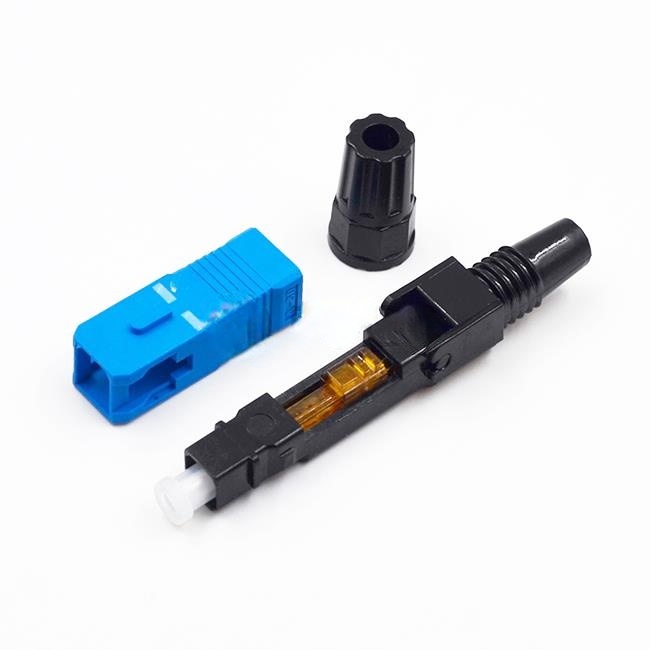

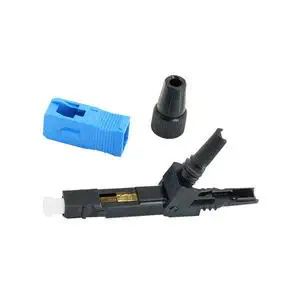

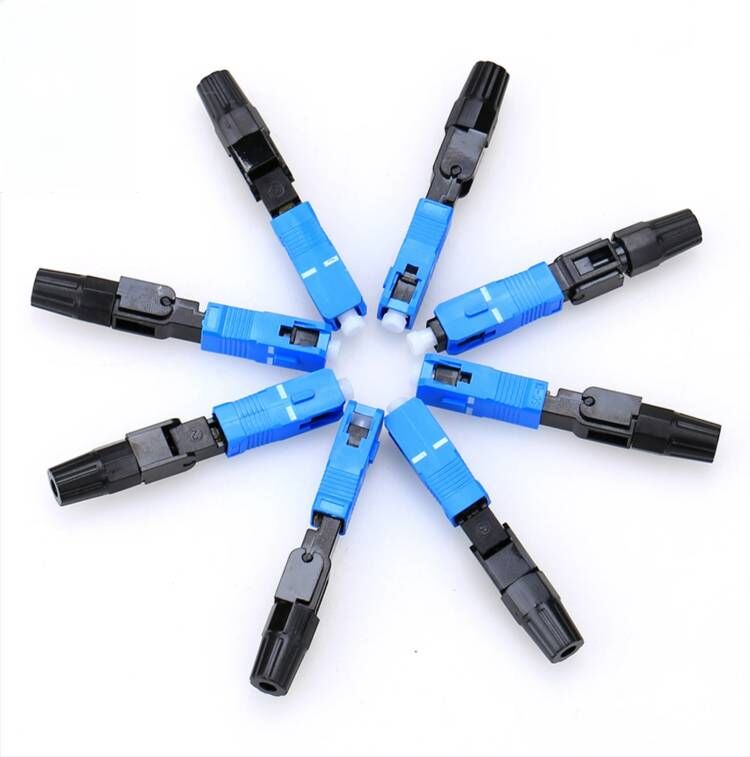

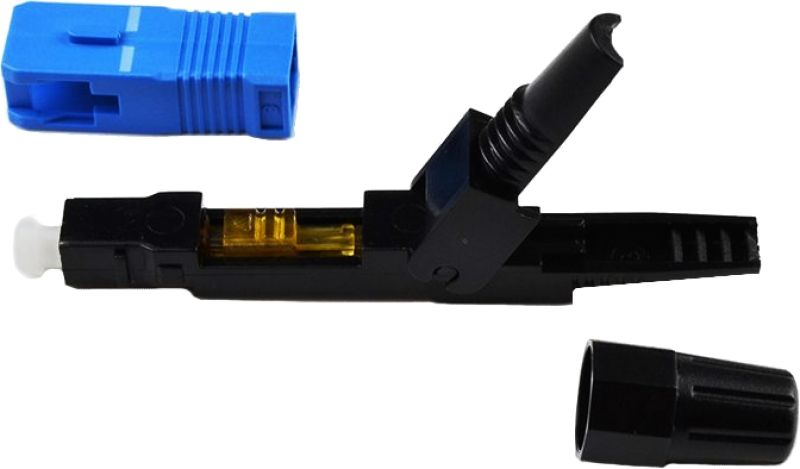

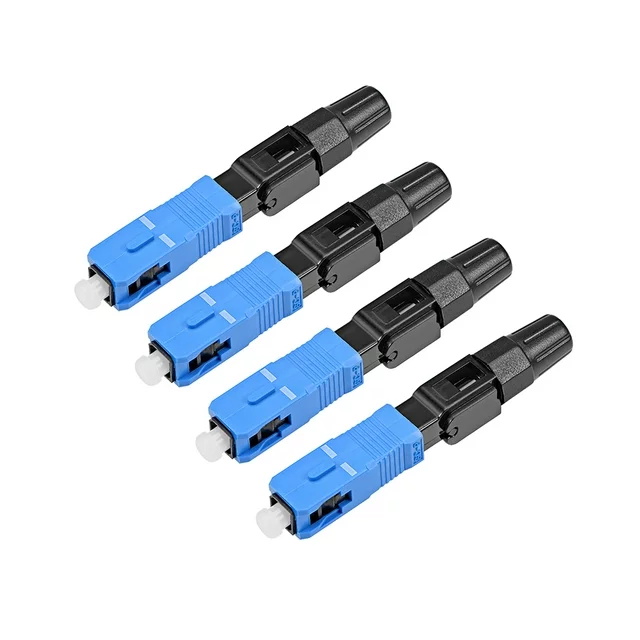

High Quality SC/UPC Singlemode Fast Connector

Fiber Optic Fast Connector make fiber terminations quick, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology.

SC/UPC Singlemode Fast Connector is designed to simple the connection without fusion splicing machine. This connector is quick assembly which requires only normal fiber preparation tools: cable stripping tool and fiber cleaver. The connector adopts Fiber Pre-Embedded Tech with superior ceramic ferrule and aluminum alloy V-groove. Also, transparent design of the side cover which allows visual inspection.

Features & Applications

Ø No epoxy and polishing required

Ø No expensive tools required

Ø Quick and easy fiber termination

Ø Precision mechanical alignment insures low insertion loss

Ø Superior optical performance

Ø Streamlined component design, convenient operation

Ø Pre-installed, on-site assembly without end face grinding and consideration

Ø Uses proven, molded v-groove technologies

Ø Allow optical continuity to be verified by use of visual fault locator (VFL)

Ø Fiber optic communication system and telecommunication networks

Ø Fiber optic data transmission

Ø CATV

Ø Optical access

Technical specification

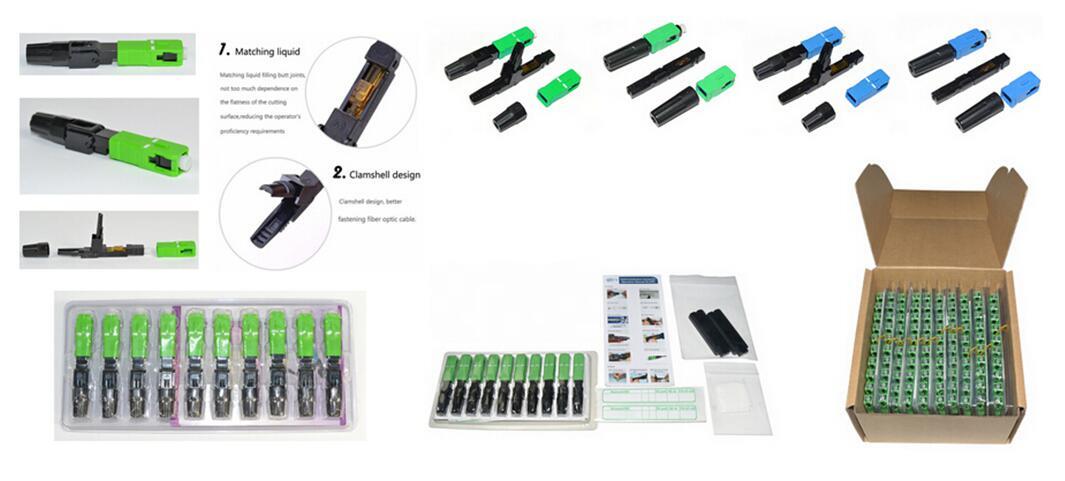

Structure Example

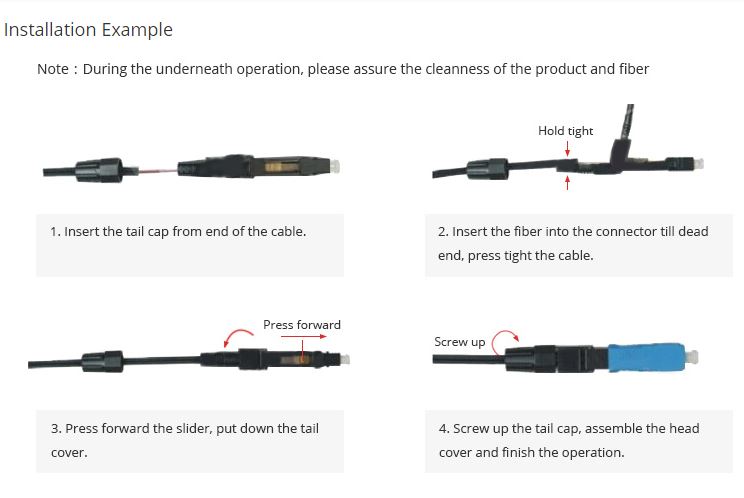

Installation Procedure:

Always make sure the fast connectors and optic fiber are clean and clear of any debris.

Packing:
