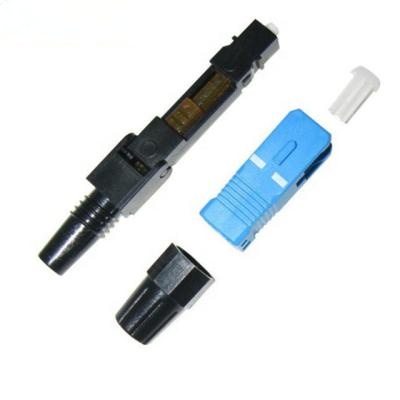

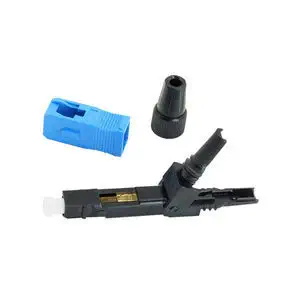

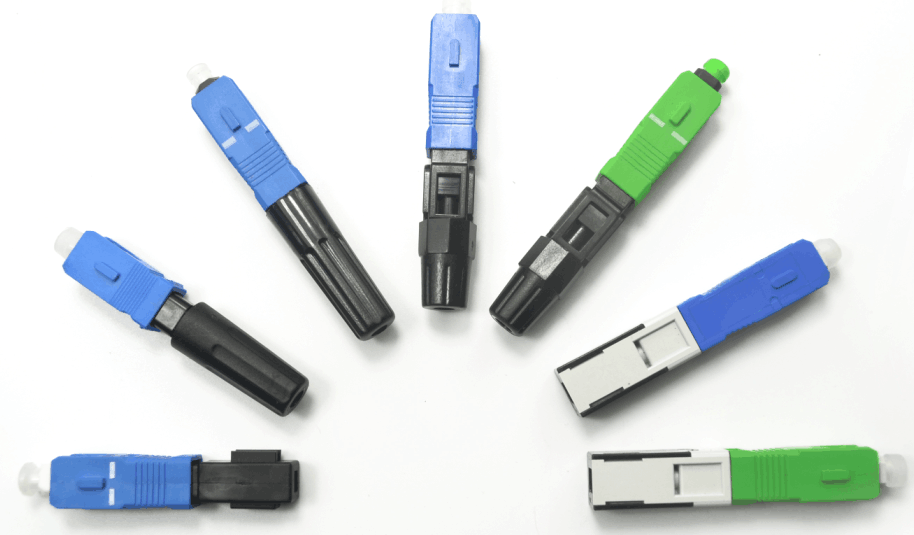

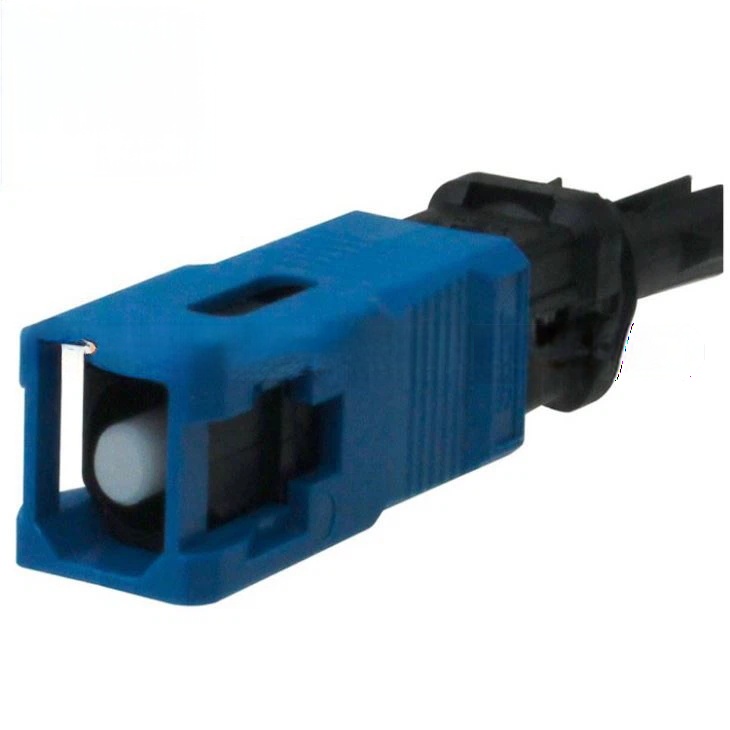

Field Assembly Connector also called Fiber Optic Fast Connector, is a perfect solution for filed working and FTTH connection. It is widely used for where need to quick connection, providing a quick assembly and stable performance. When engineers work in field for installation, maintenance, repair of optical fiber, or FTTH indoor terminate.Opelink’s Field Assembly Connector series are now available in SC, LC, or FC variants, catering for 250um to 900um, and 2.0mm, 3.0mm diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with SPC or APC ferrules. high-quality and cost-effective,welcome to inquire.

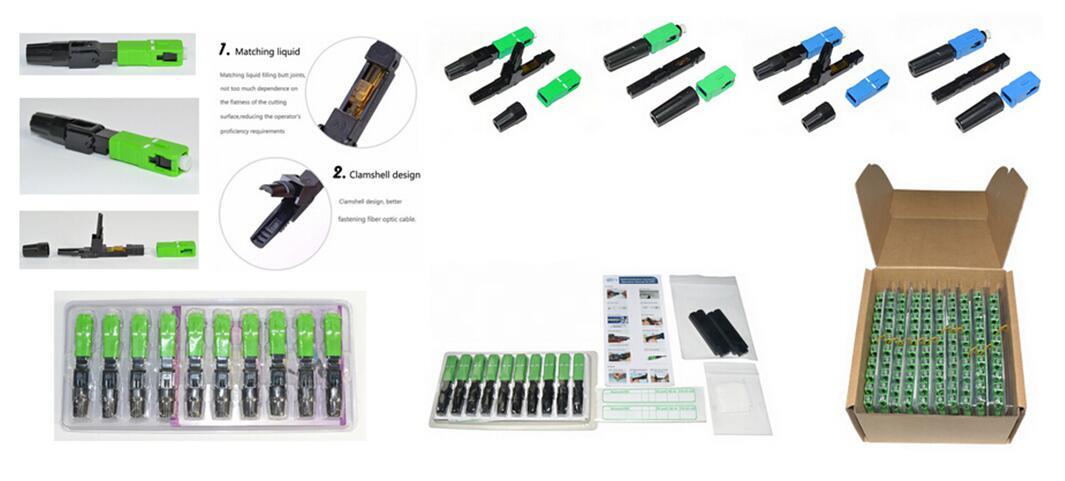

● Features:

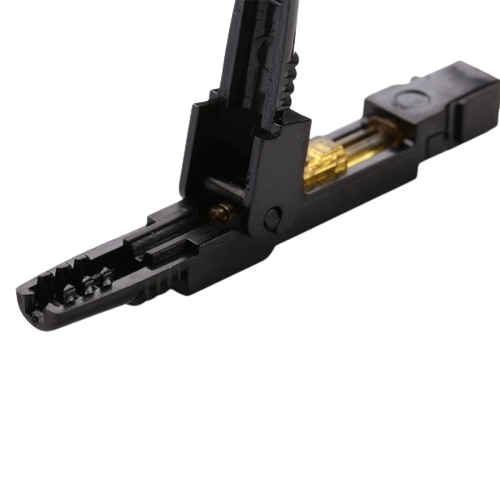

►Fiber aligned in v-groove through the ceramic ferrule
►Low-volatile reliable matching liquid preserved by side cover
►Unique bell-shaped boot maintains the mini fiber bend radius
►Precision mechanical alignment insures low insertion loss
►Pre-installed, on-site assembly without end face grinding and consideration
►Easy and fast installation, 30 seconds to learn install, 90 seconds to operate in the field
►No need of polishing or adhesive, ceramic ferrule with embedded fiber stub is pre-polished
● Application:
►Optical fiber access of mobile base station.
►For FTTH Drop Cable field termination.
►For emergency fiber path repair.
►FTTH, LAN and other fiber optic system.
►Used to open the FTTH fiber terminal end.
►Fiber Optic Distribution Frame, Patch Panel, ONU
►In the box, cabinet, such as wiring into the box.
►Maintenance or emergency restoration of fiber network
►The construction of the fiber end user access and maintenance.
● Specifications:
|
Parameter |
SM(9/125), MM(50/125, 62.5/125) |
|
Fiber cable type |
3.0x2.1mm flat, 2.0mm, 3.0mm round Drop Cable |
|
Insertion Loss |
≤ 0.3dB(pc), ≤ 0.2dB(APC) |
|
Return Loss |
≥ 50dB(PC), ≥ 55dB(APC) |
|
Fastening Strength of Bare Fiber |
≥ 5N |
|
Tighten Strength of Coating |
≥ 10N |
|
Tensile Strength Test |
≥ 30N |
|
Tensile strength (20 N) |
IL≤ 0.2dB |
|
Operation Time |
≤ 90 seconds |
|
Success Rate |
≥ 98% |
|
Humidity (+25+65 93 R.H.100 hours) |
≤ 0.2dB |
|
Mechanical Durability (500 times) |
IL ≤ 0.3dB |
|
Drop Test (4meters concrete floor, once each direction, three times in total) |
IL ≤ 0.3dB |
|
Reused Times |
Above 5 times |
|
Operating Temperature |
-40° C~70° C |
|
Storage Temperature |
-40° C ~ +85° C(Circular Temperature: sustain 100 hours≤0.2dB) |
Standard Compliance:
► TIA-568-C.3 performance requirements;
► Telcordia GR-326 end face geometry;
► Telcordia GR-326 service life tests;
► IEC61754-20 and TIA-604-10 intermateability.

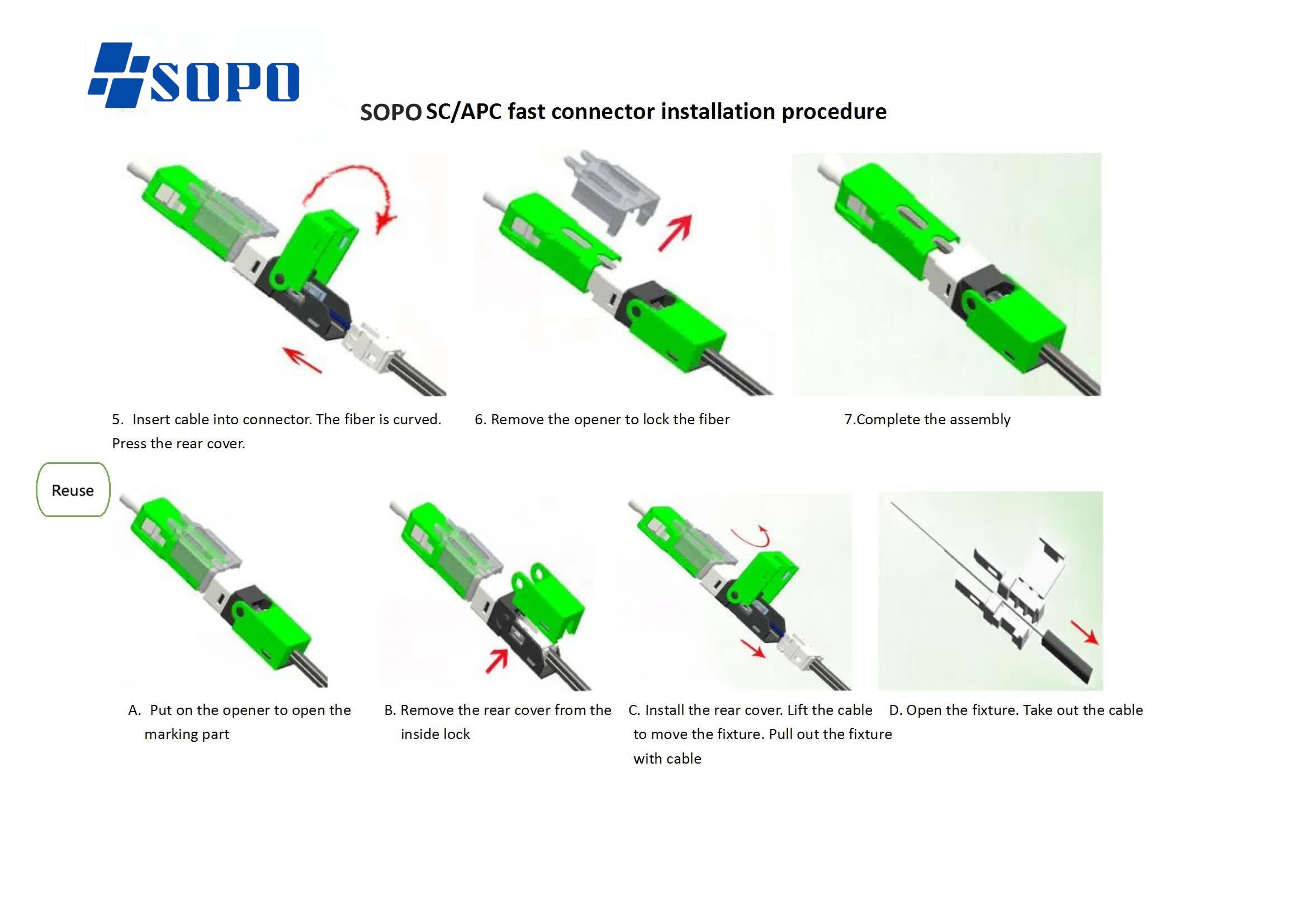

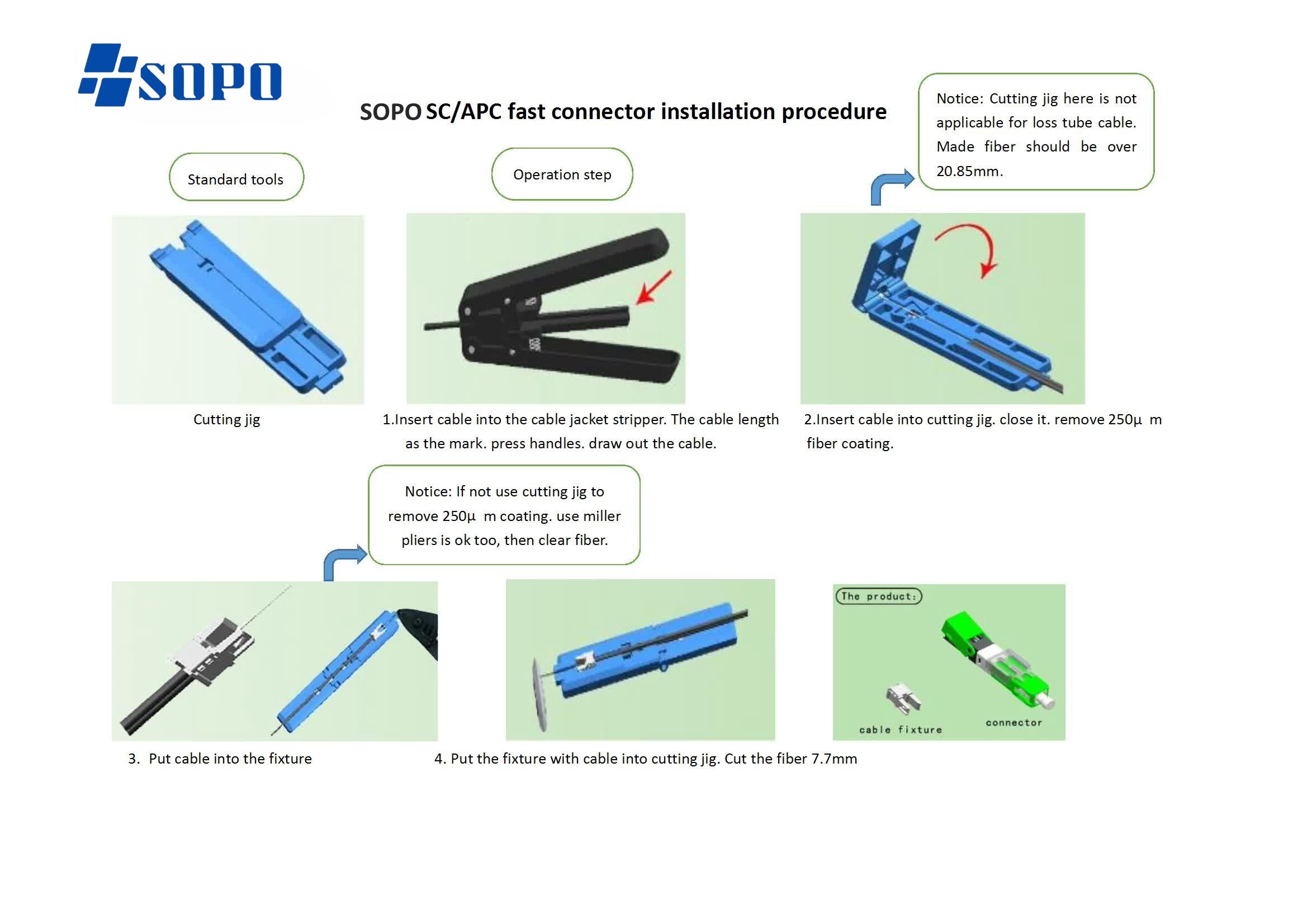

Installation Procedure:
