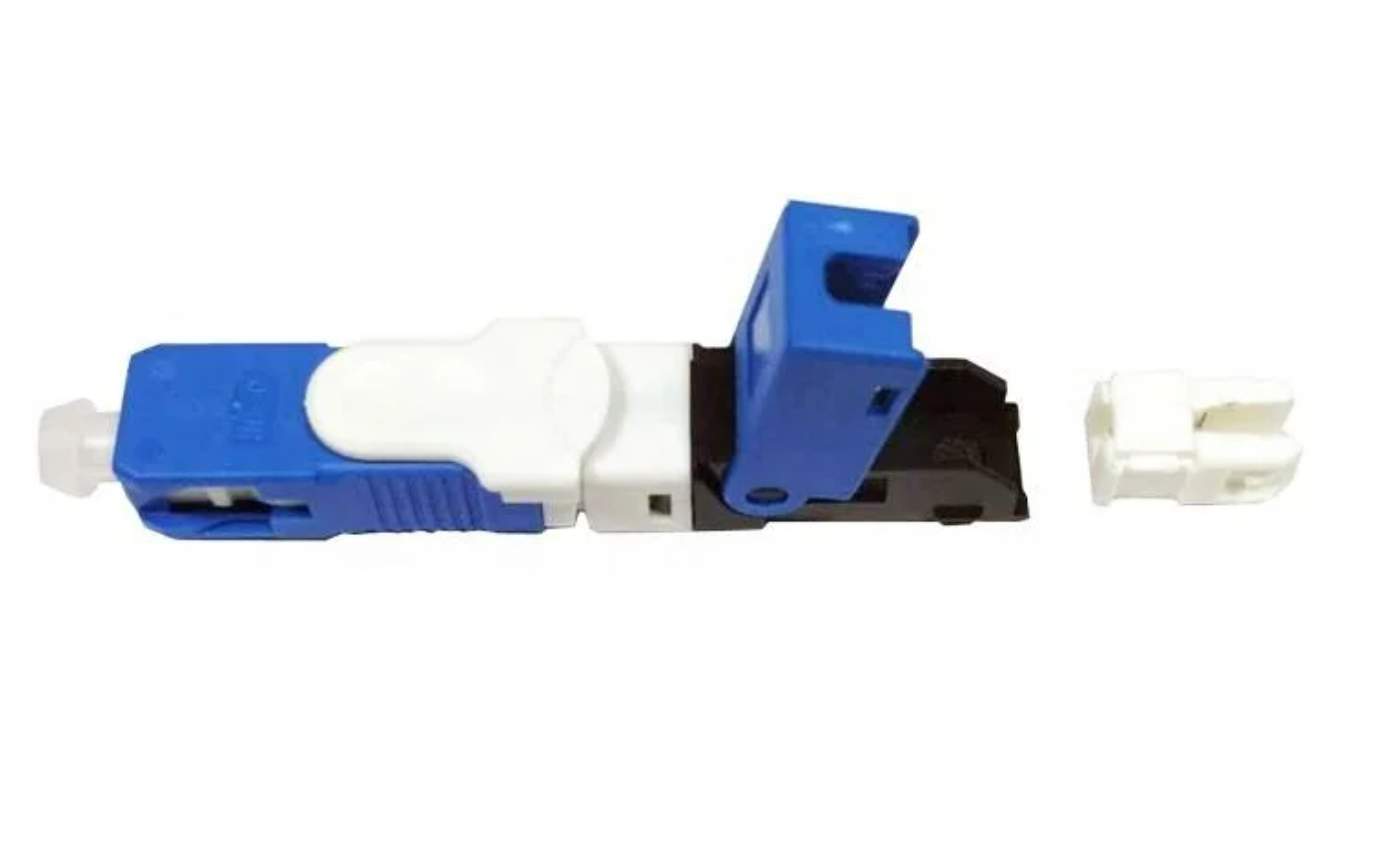

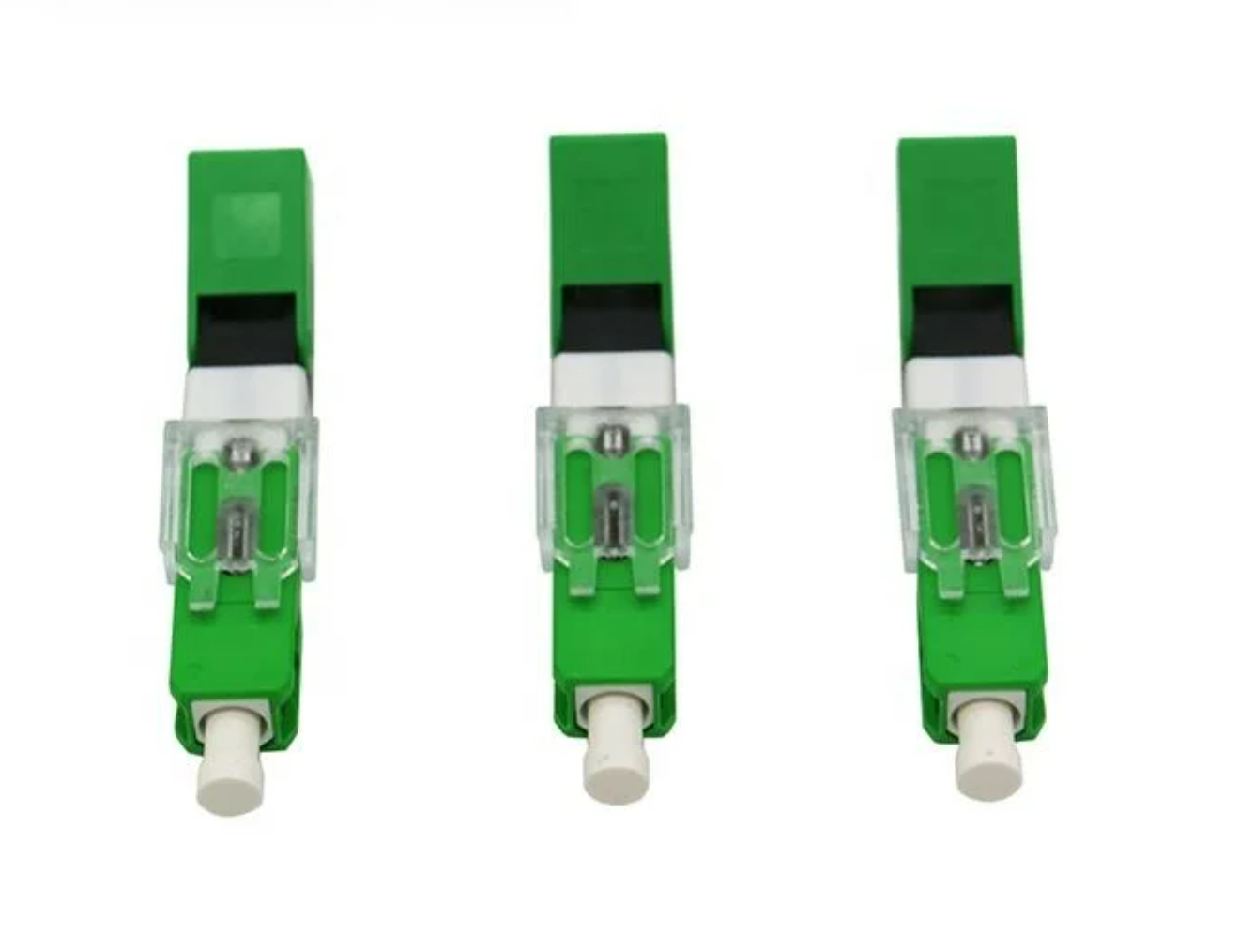

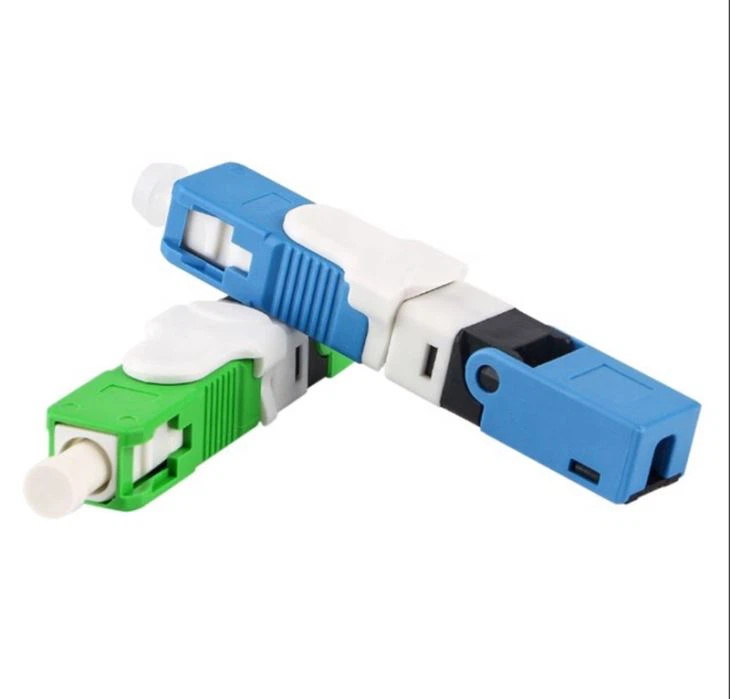

This Fast connectors make fiber terminations fast, easy and reliable. These fiber optic connectors offer terminations without any hassles and require no epoxy, no polishing, no splicing, no heating and can achieve similar excellent transmission parameters as standard polishing and splicing technology. Assembly of the quickly assembly fiber connector requires only normal fiber preparation tools, no electrical power supply is needed.
Features:
1. FTTH project usable
2. Field installable
3. Insert loss less than 0.3dB Max 0.5dB
4. Metal V-shape cavity work well in high and low temperature
5. Installation less than 1 minutes
6. Reliable and superior optical performance
7. Cable Tensile test complies with Telcordia GR-326-CORE
Applications:
Fiber Optic Communication System and Telecommunication networks
Fiber Optic Data Transmission
CATV network
Optical Access Network
Fiber to the Subscriber (FTTX) applications
Optical Cable Interconnection
Maintenance or emergency restoration of fiber networks
Repair/Replacement requirements
Fiber Optic Equipment
|
Product Dimensions |
||||
|
Model |
External |
Housing |
Cap |
Fiber Diameter |
|
A |
57mm*9mm |
24.9mm |
16.5mm |
3.0*2.0mm drop cable; 3.0mm; 2.0mm |
|
B |
55mm*9mm |
24.9mm |
23.5mm |
|
|
BS |
50mm*9mm |
20mm |
23.5mm |
|
|
C |
60mm*9mm |
24.9mm |
16.5mm |
|
|
E |
50mm*9mm |
20mm |
23.5mm |
|
|
F* |
83mm*9mm |
24.9mm |
23.5mm |
3.0*2.0mm drop cable; 3.0mm; 2.0mm; 0.9mm |
|
Technical Specifications |
|||||
|
Model |
Insertion Loss |
Return Loss |
Fiber Retention |
||
|
APC |
UPC |
APC |
UPC |
||
|
A |
Avg ≤ 0.25dB; |
Min.＞55dB |
Min.＞45dB |
＜30N (＜0.2dB with impressed pressure) |
|
|
B |
|||||
|
BS |
|||||
|
C |
Min.＞50dB |
Min.＞40dB |
|||
|
E |
Min.＞55dB |
Min.＞45dB |
|||
|
F* |
≤ 0.2dB |
≤ 0.2dB |
≥ 60dB |
≥ 50dB |
60N |

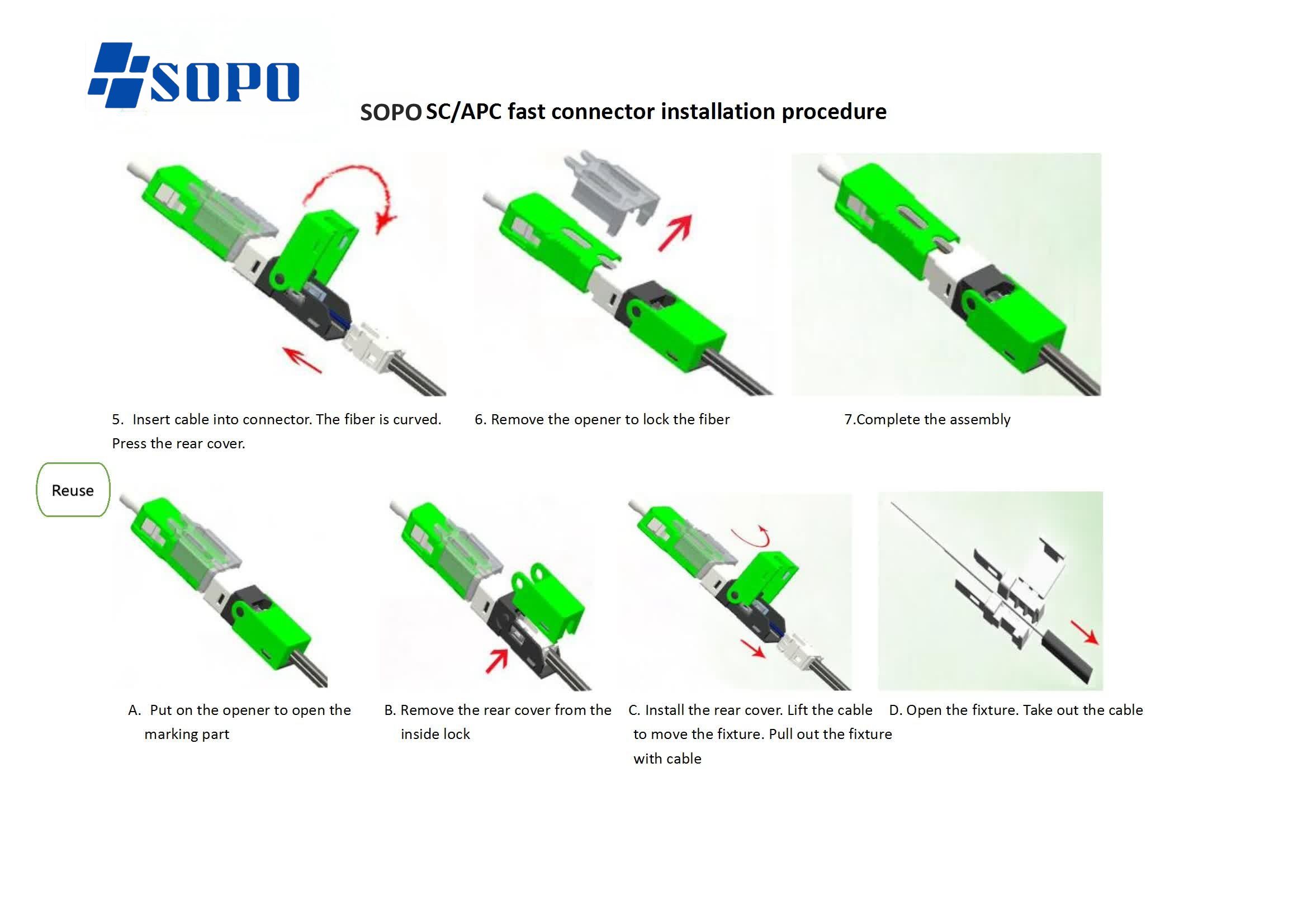

Installation Procedure:

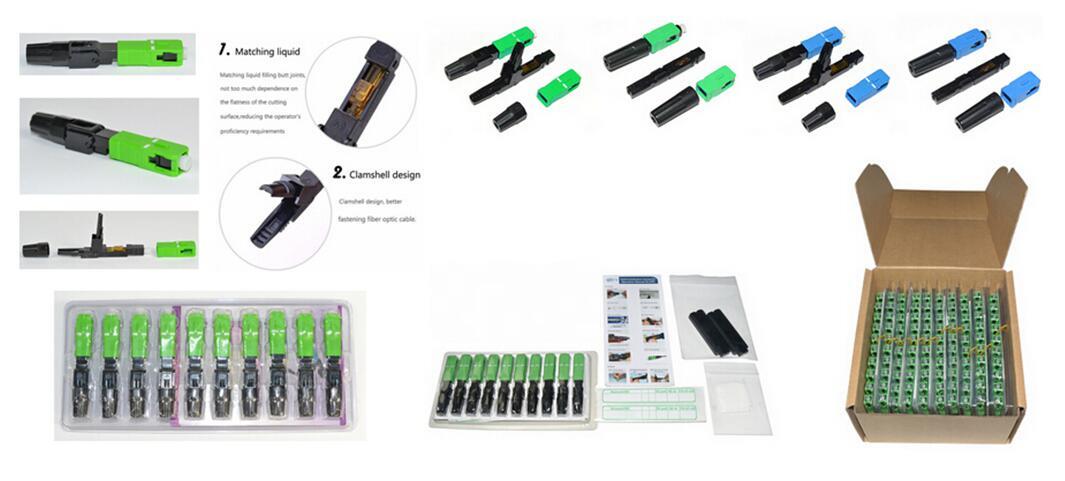

Packing:
