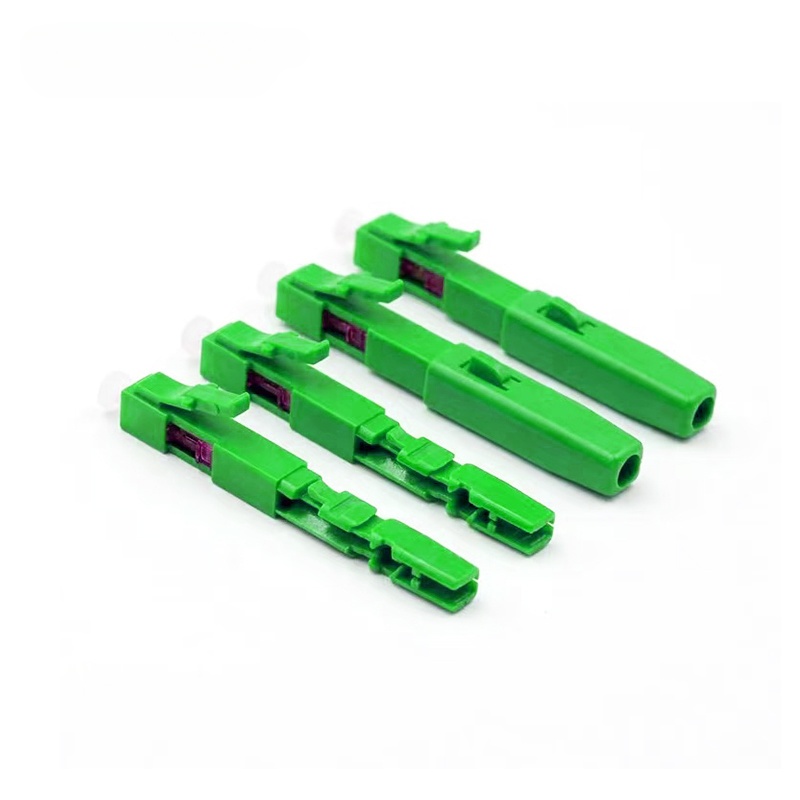

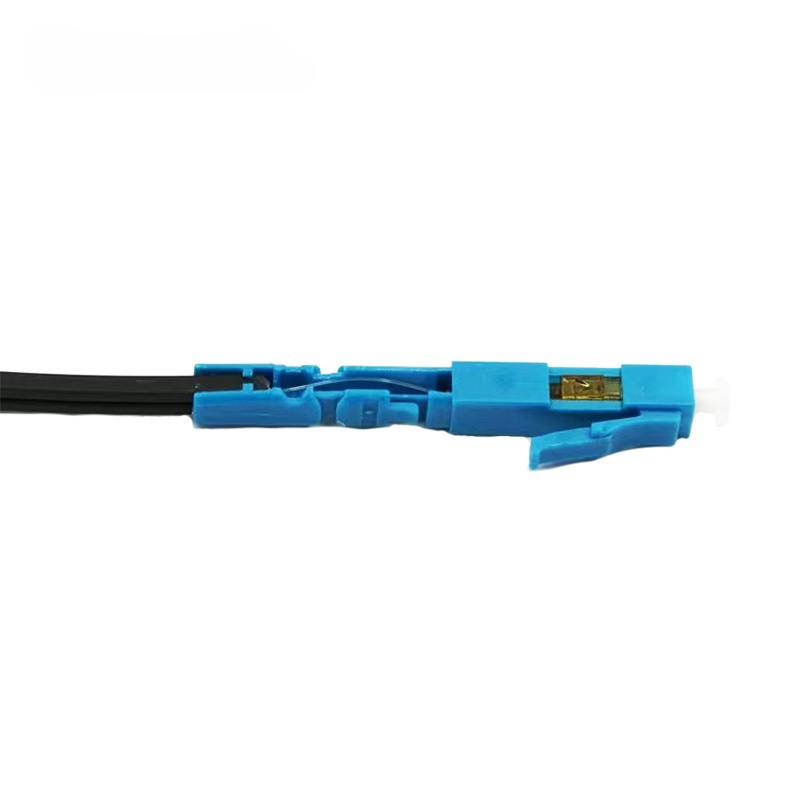

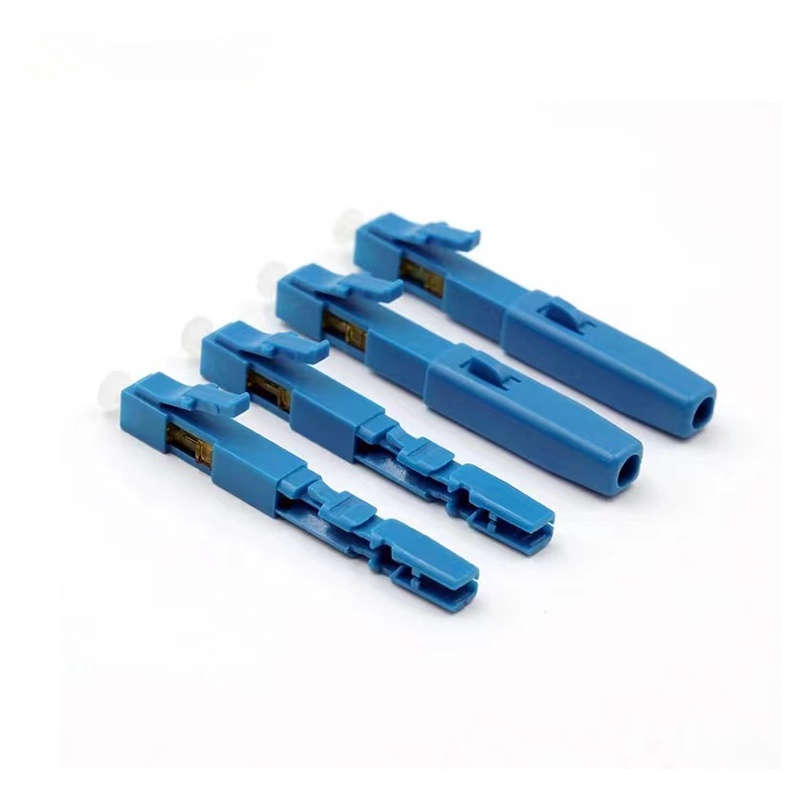

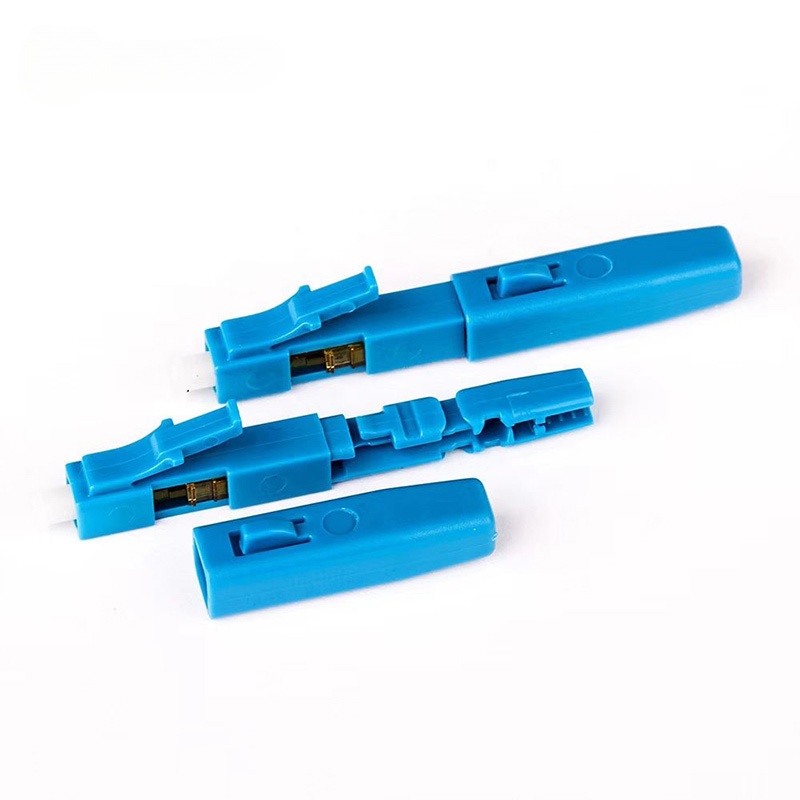

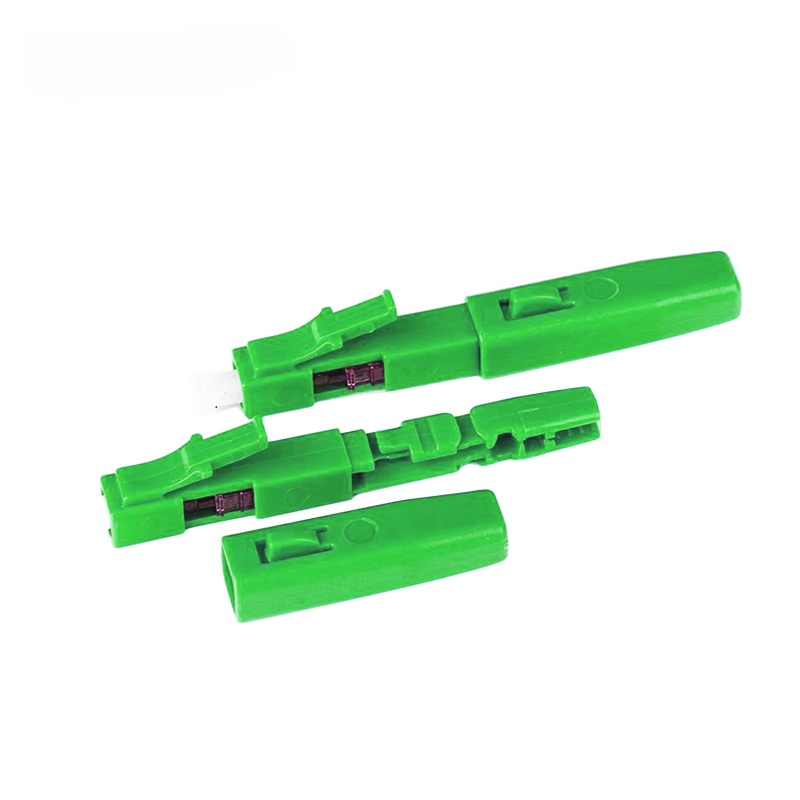

LC Fast Connector is uniquely designed for a quick, easy and reliable field installation. This pre-polished, pre-assembled connector eliminates the need for epoxy, hand polishing and crimping at site, thus minimize the chances of operator errors and maintains higher process yield. Featured with only 3 components, it can provides efficient field installation in less than 1 minutes.
Features & applications:
Durable, reliable and superior optical performance
No Epoxy, no special assembly tools
No polishing required
Termination can be repeated up to 5-10 times
Polished connector incorporating a mechanical splice
Superior optical performance
Streamlined component design, convenient operation
Pre-installed, on-site assembly without end face grinding and consideration
Fiber optic communication system and telecommunication networks
Fiber optic data transmission
CATV
Optical access
Specification:
|
Parameter |
Unit |
Value |
|
Insertion Loss |
dB |
AVG≤0.3dB， MAX<0.5dB |
|
Return Loss |
dB |
APC≥55， UPC≥50dB |
|
Repeatable Assembly |
|
5 times |
|
Tensile Strength |
N |
F>70N for drop cable |
|
Durability |
|
500 times △ IL：0.2dB |
|
Working Temp. |
℃ |
-20~+85℃ |
|
Storage Temp. |
℃ |
-40~+85℃ |
