SP13 FTTH Connector(FAOC) for Field Installation

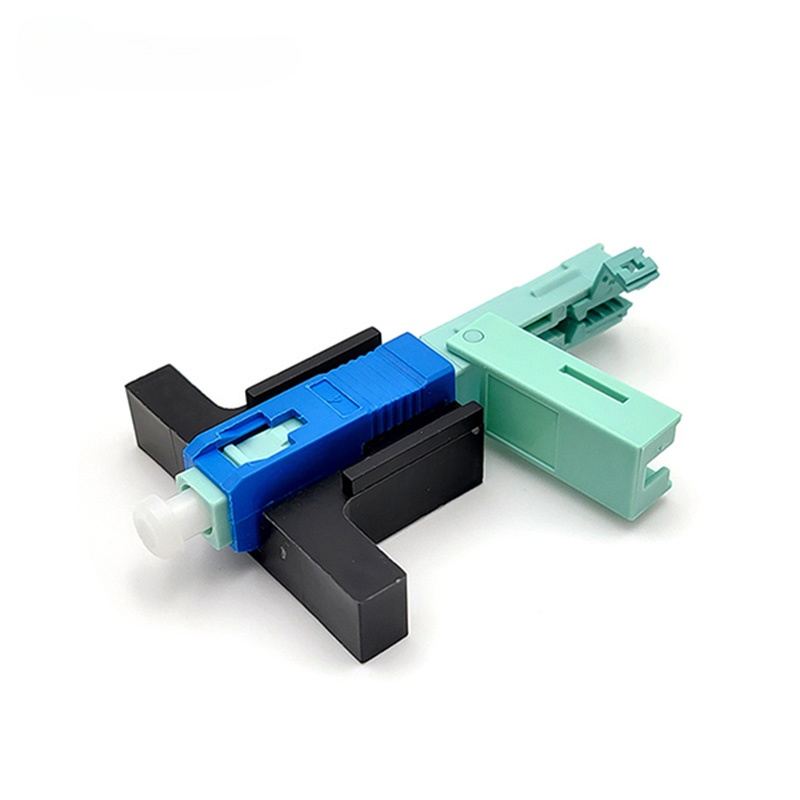

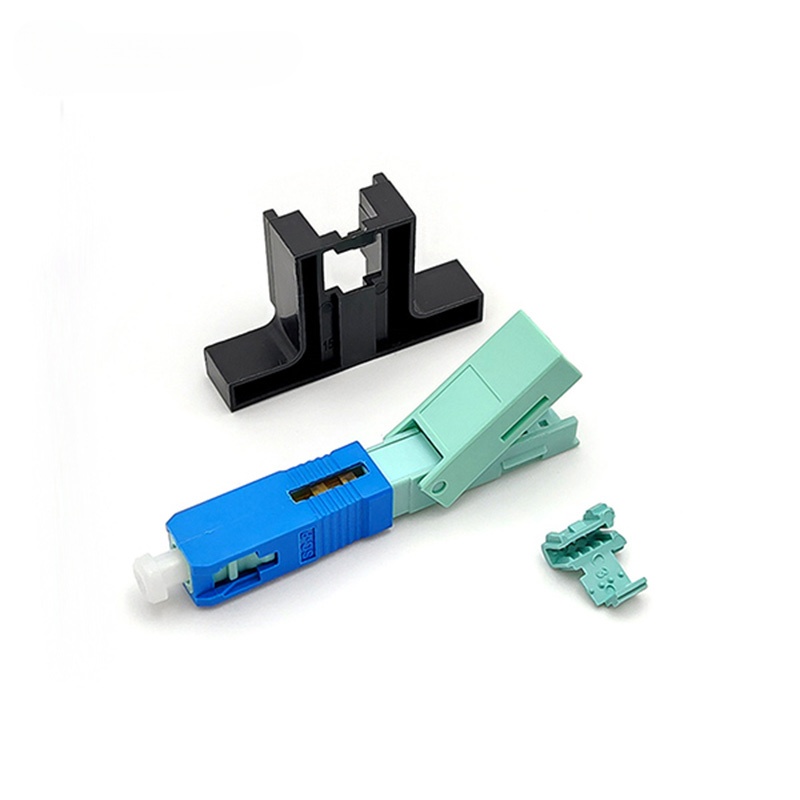

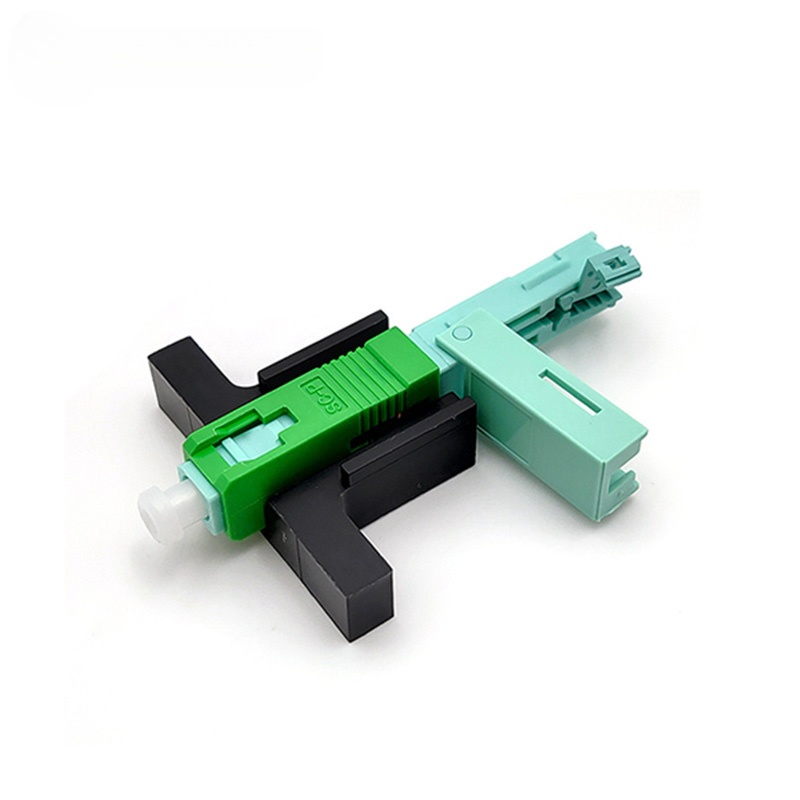

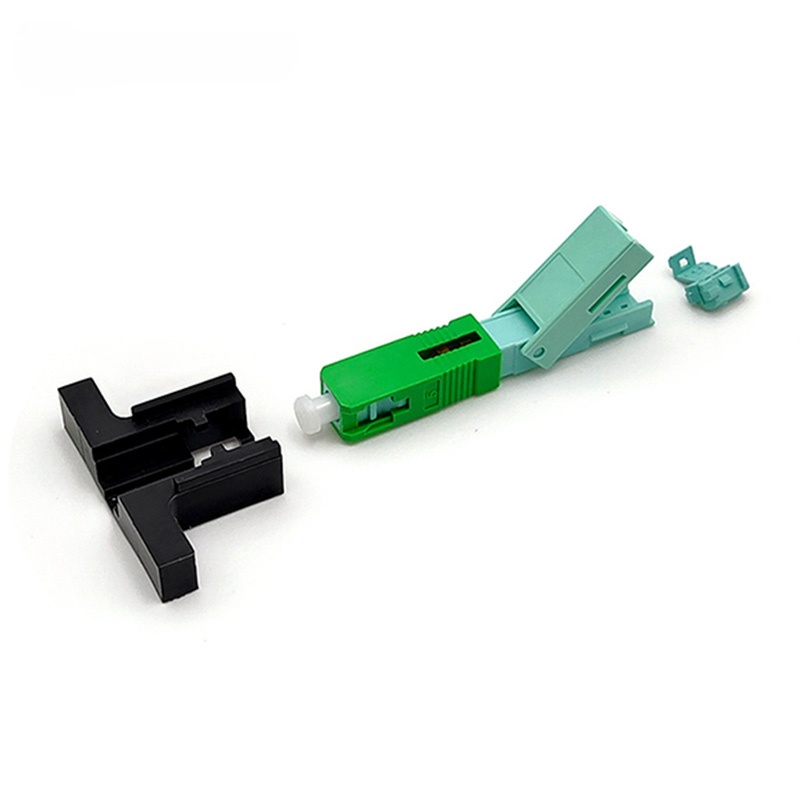

SC Fast Connector is uniquely designed for a quick, easy and reliable field installation. This pre-polished, pre-assembled connector eliminates the need for epoxy, hand polishing and crimping at site, thus minimize the chances of operator errors and maintains higher process yield. Featured with only 3 components, it can provides efficient field installation in less than 1 minutes.

Features & applications:

Durable, reliable and superior optical performance

No Epoxy, no special assembly tools

No polishing required

Termination can be repeated up to 5-10 times

Polished connector incorporating a mechanical splice

Superior optical performance

Streamlined component design, convenient operation

Pre-installed, on-site assembly without end face grinding and consideration

Fiber optic communication system and telecommunication networks

Fiber optic data transmission

CATV

Optical access







Specification:



Parameter

Unit

Value

Insertion Loss

dB

AVG≤0.3dB, MAX<0.5dB

Return Loss

dB

APC≥55, UPC≥50dB

Repeatable Assembly



5 times

Tensile Strength

N

F>70N for drop cable

Durability



500 times △ IL:0.2dB

Working Temp.

-20~+85℃

Storage Temp.

-40~+85℃
