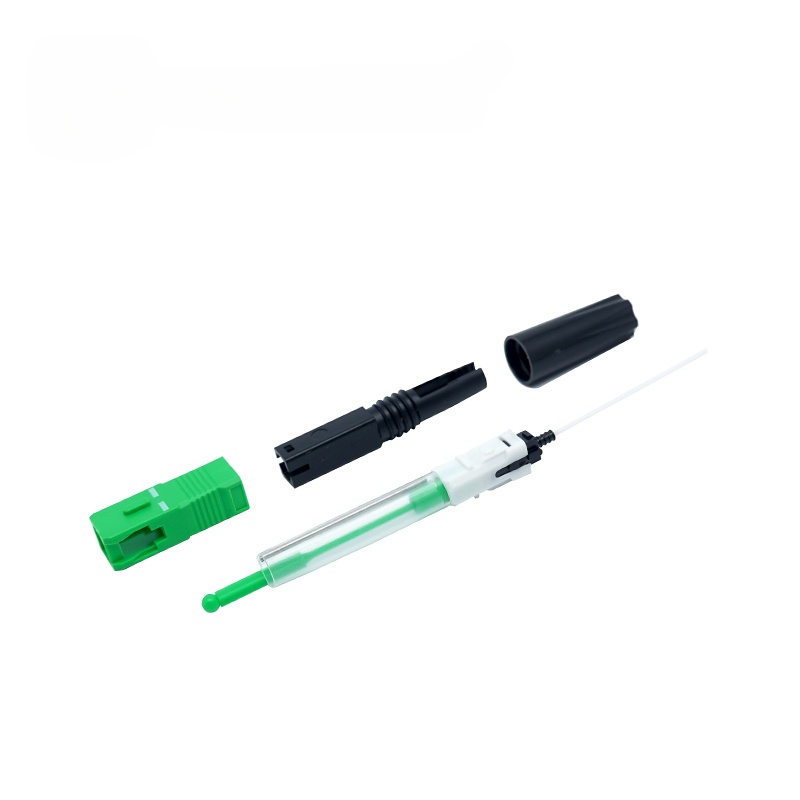

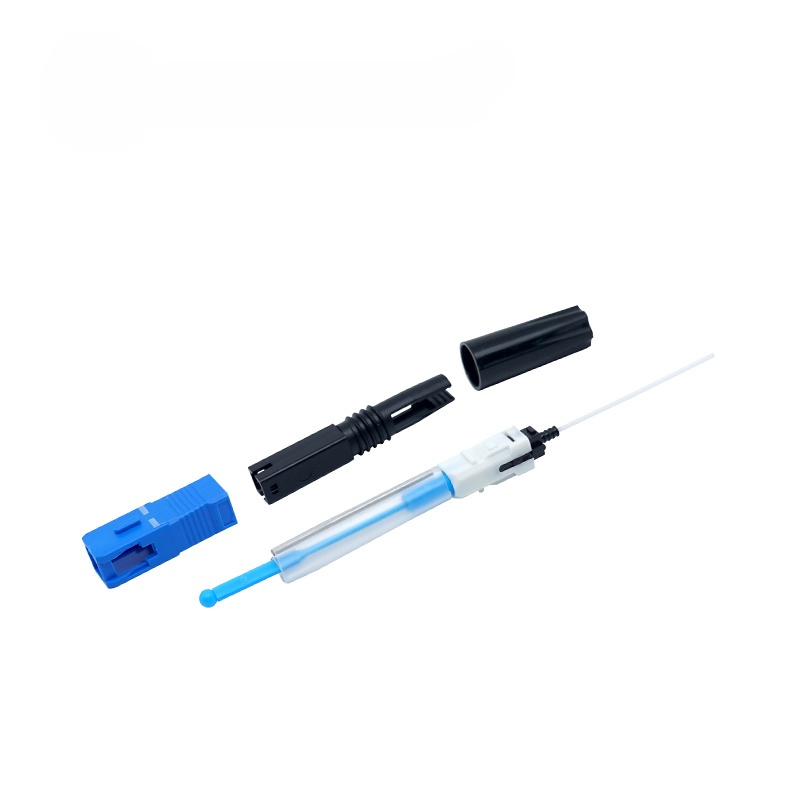

SC Hot Melt connectors provide a quick and easy termination of fibers in the field. Our field connectors are universal and applicable for 0.9mm Tight Buffer Fiber, 2.0mm fiber and 3.0mm fiber. This fast connector system removes any requirement for epoxy, adhesives or costly curing ovens, and offers a top installation quality with a high success rate and reliability., it can provides efficient field installation in less than 1 minutes.
Features & applications:
Low insertion loss
Durable, reliable and superior optical performance
No Epoxy, no special assembly tools
No polishing required
Can be installed and marked repeatedly avoiding loss.
Fiber optic communication system and telecommunication networks
Fiber optic data transmission
CATV
Optical access
Specification:
|
Parameter |
Unit |
Value |
|
Insertion Loss |
dB |
AVG≤0.2dB |
|
Return Loss |
dB |
APC≥55， UPC≥50dB |
|
Tensile Strength |
N |
F>70N for drop cable |
|
Durability |
|
500 times △ IL：0.1dB |
|
Working Temp. |
℃ |
-20~+85℃ |
|
Storage Temp. |
℃ |
-40~+85℃ |
