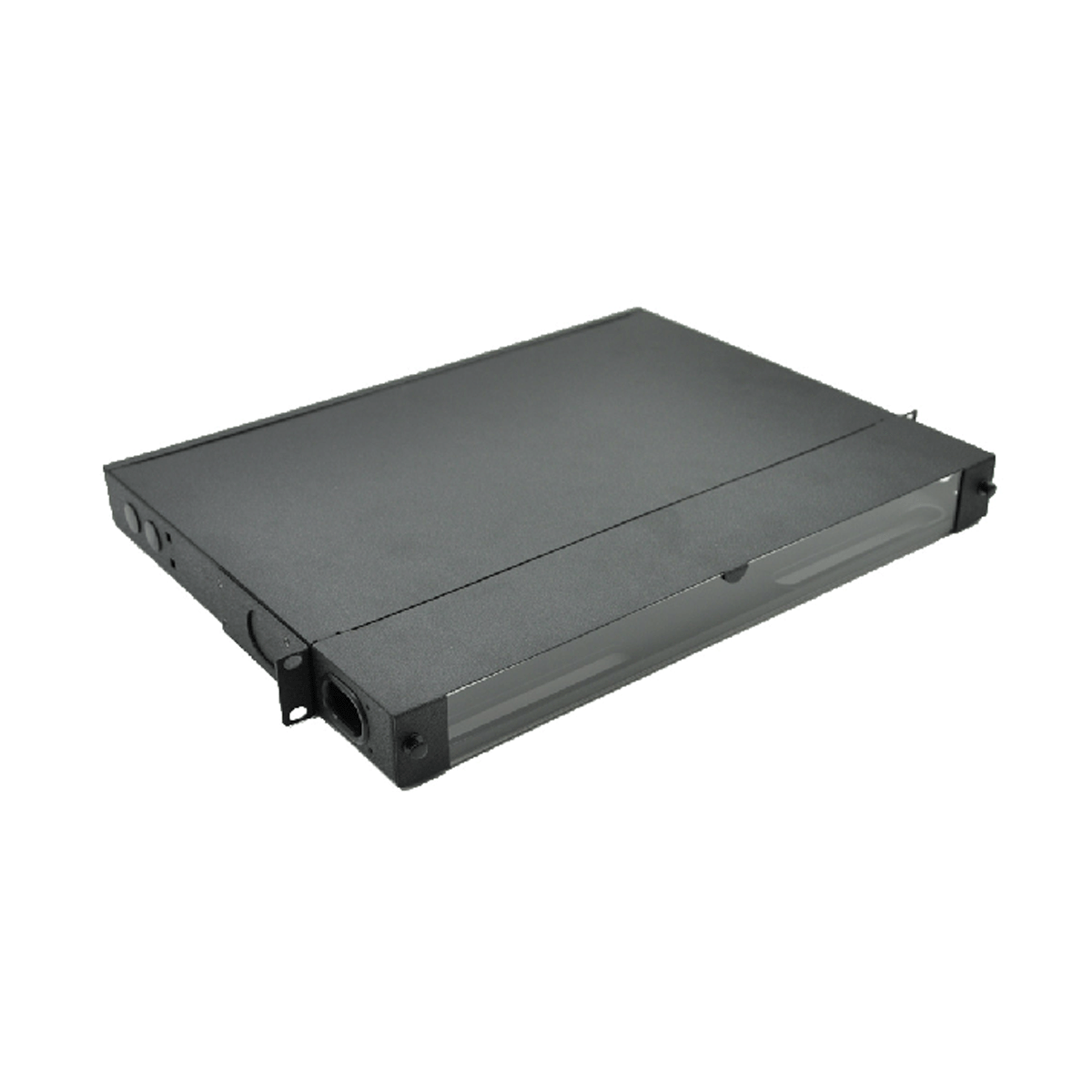

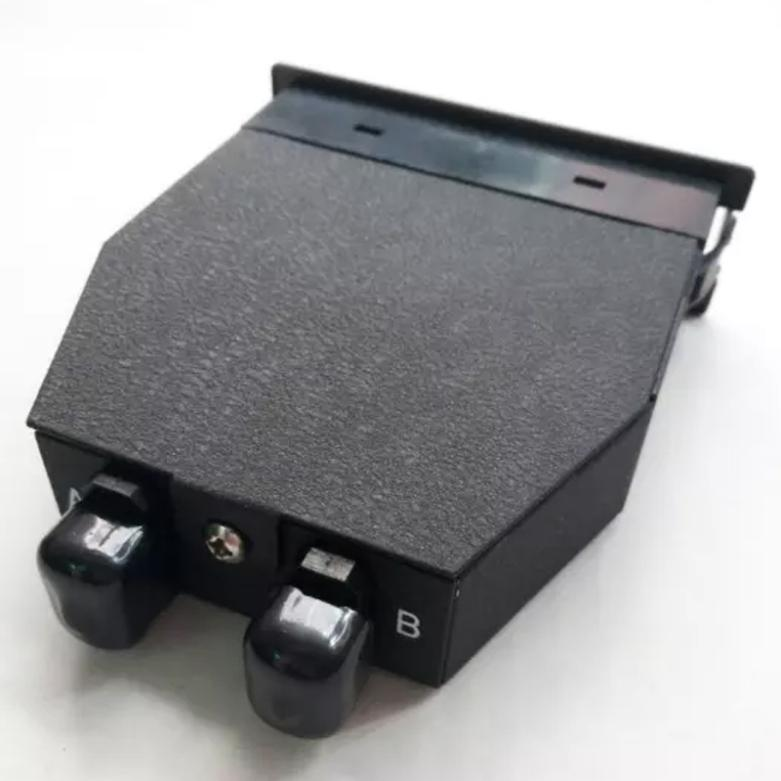

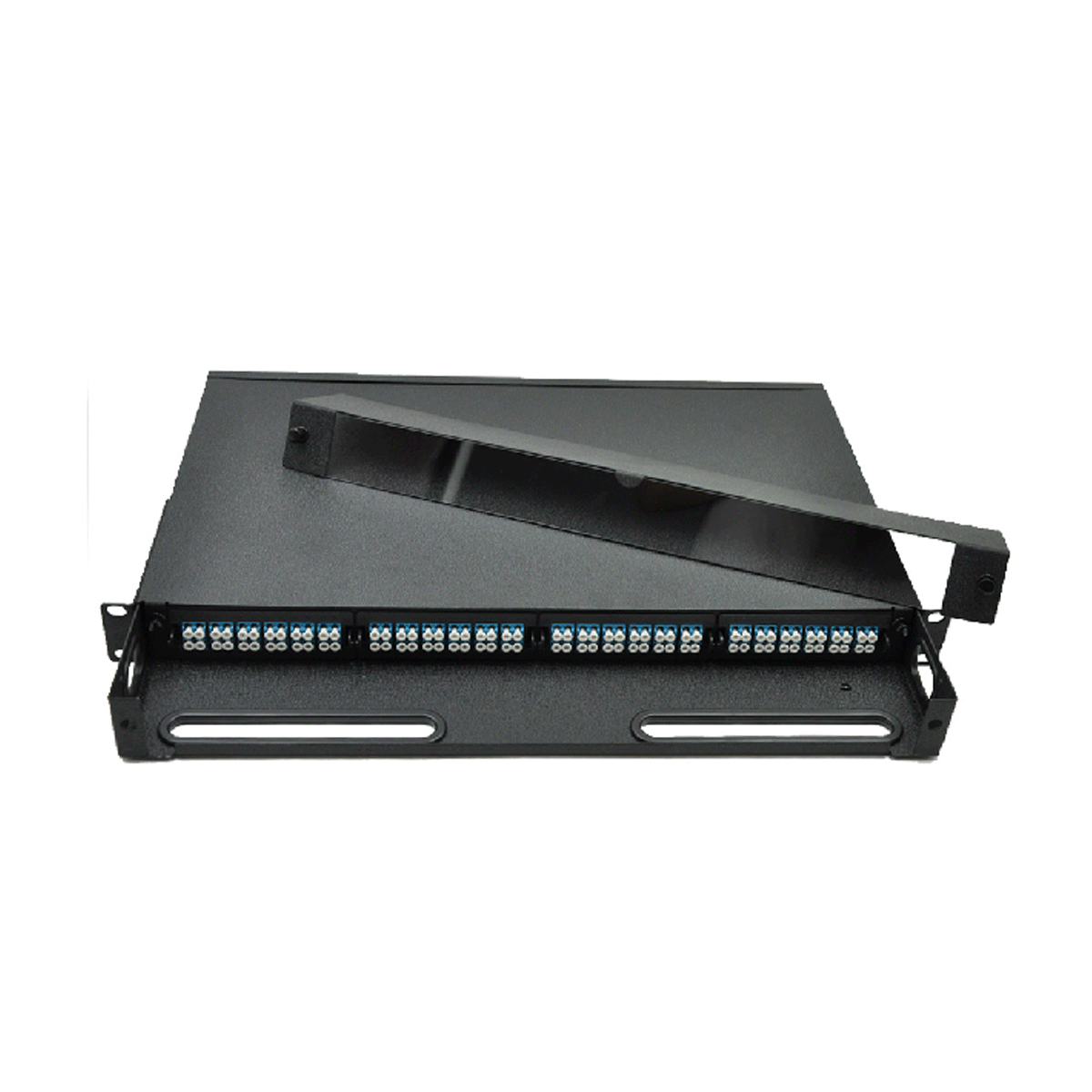

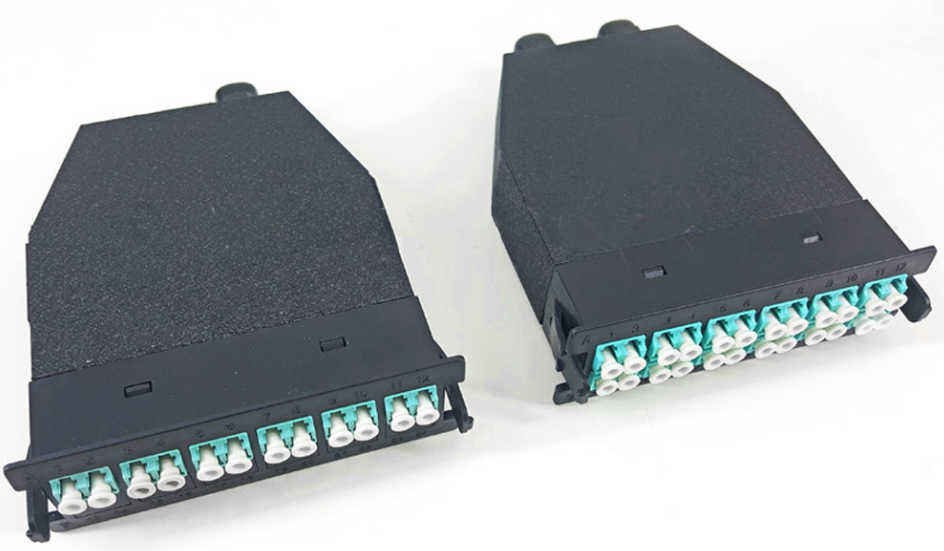

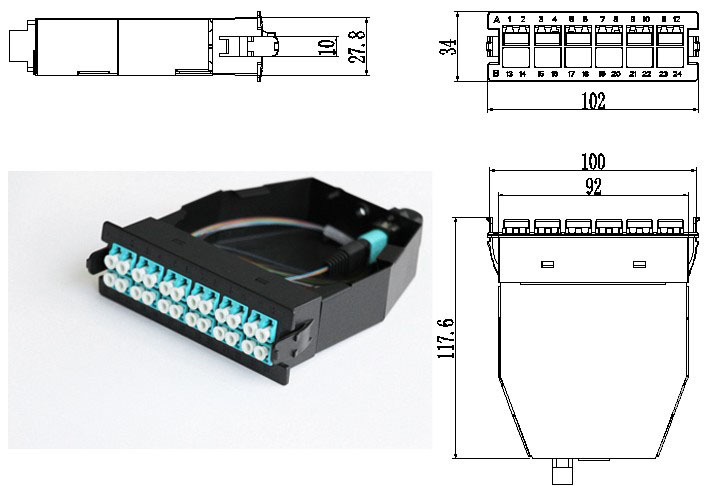

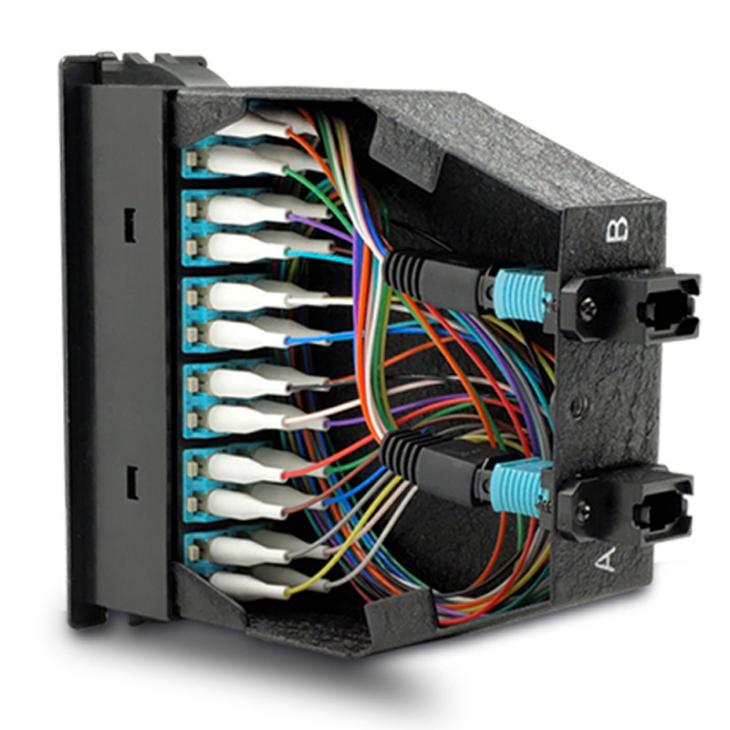

SOPO series rackmounted patch panel is designed to manage and house easy-plug MTP/MPO to LC fiber cassette modules,for connecting plug-and-play pre-terminated high density MTP/MPO Fiber cabling system.This solution contributes to greater network availability that especially suitable for SAN, LAN and Data Center applications. Each easy-plug MTP/MPO to LC cassette is accommodated with a 12/24-fiber MTP/MPO based fiber assemblies, and pre-loaded with LC adapters in different fiber modes for your choices
Features:
● Up to 4 Small MPO/MTP cassette in 1U rack
● Multiple adaptor options available
● Accepts loose tube, distribution and pre-terminated cables
● CE, ROHS, FCC and EACH rated
● Fits standard 19”
Applications:
● Data center
● Telecommunication networks
Specifications:
|

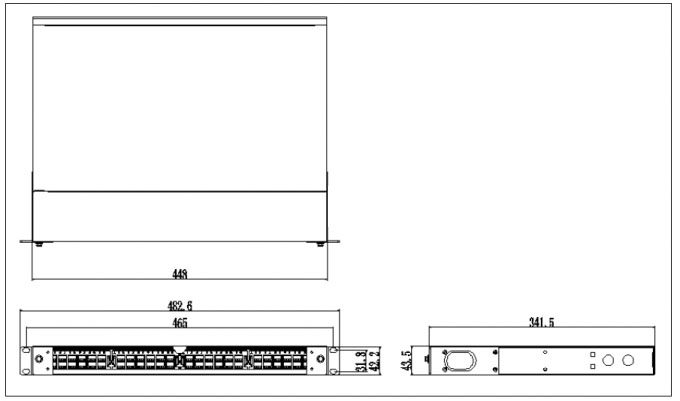

U Size |
1U (44mm) |
|
Width |
482mm |
|
Depth |
380mm |
|
Net Weight |
3kgs |
|
Packaged Weight |
3.3Kgs |
|
Material |
1.2mm Cold-rolled steel |
|
Material Coating |
Powder coating |
|
Color |
Black |
|
Designed in Accordance With |
TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754,EN297-1 |
|
Compliant to |
RoHS, Reach/SVHC |
