Description

Din Rail box is metal box special designed to be snapped on din rail ,DIN RAIL fiber box accepts one modular panel making it ideal for smaller fibre count application

Features

Ø Cold-roll steel, electrostatic painting

Ø Suitable for different adapters: FC, SC, ST, LC …

Ø 2pcs cable entry/exit ports; 12pcs pigtail entry/exit ports

Ø Max. 12pcs adapters can be loaded

Ø Integrated splice holders (fusion splices)

Ø IP20 protection

Ø Rear or aside DIN rail fixation

Ø 2x rear entries (PG 11 cable gland)

Ø Grey or black color

Application

Ø Suitable for Pigtail, ribbon and bunch cable connect distribution

Ø Used for wall-mounted applications

Ø Used in FTTH, Telecommunications, CATV etc.

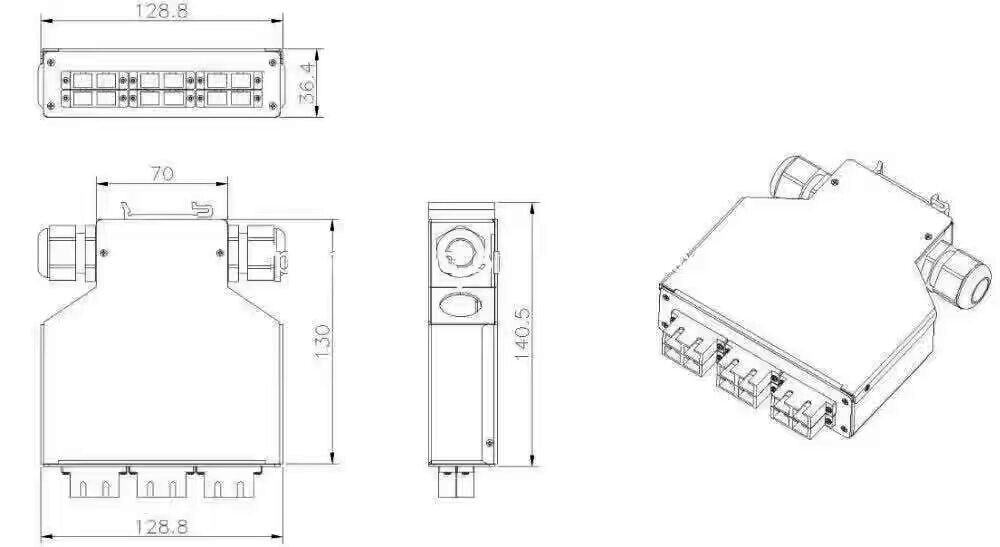

Specification
