Details：

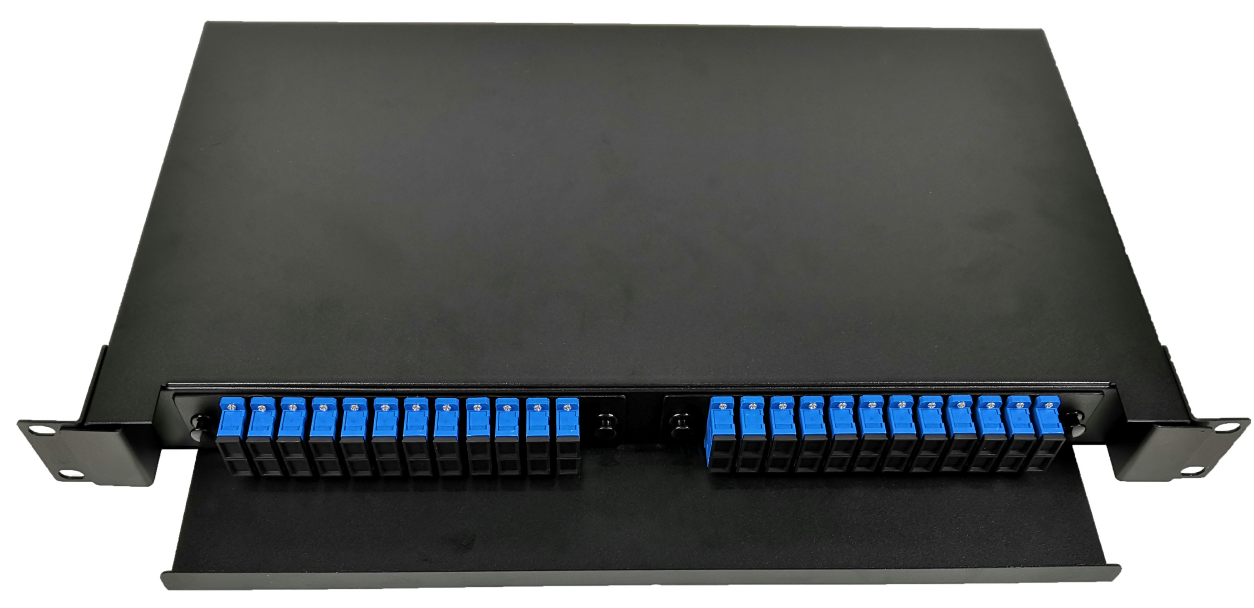

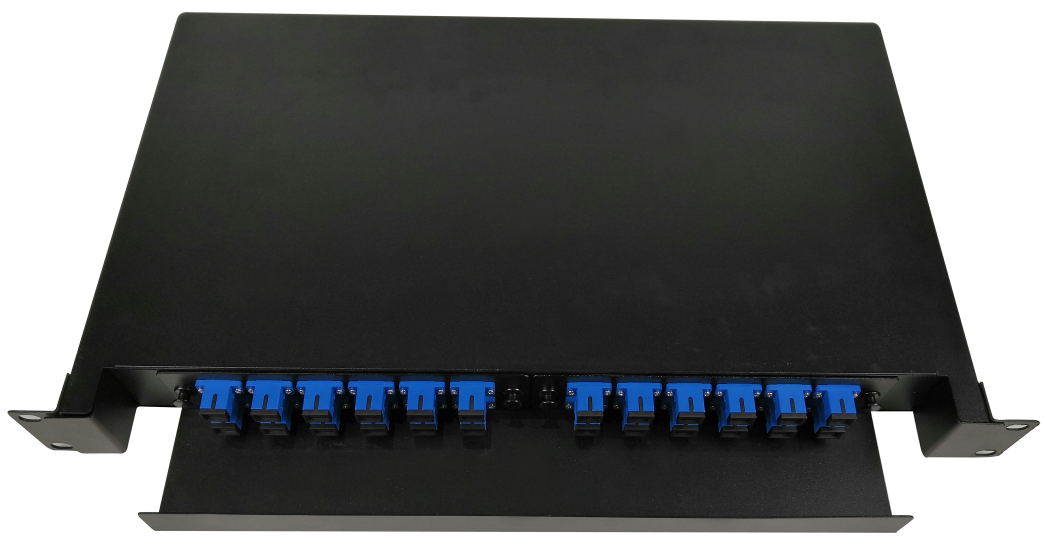

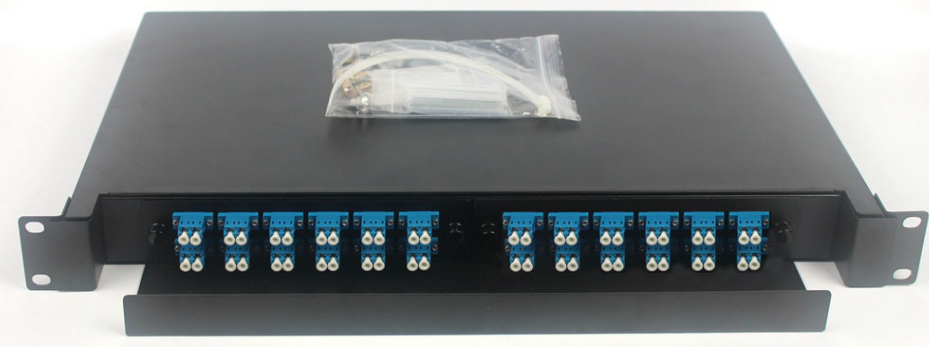

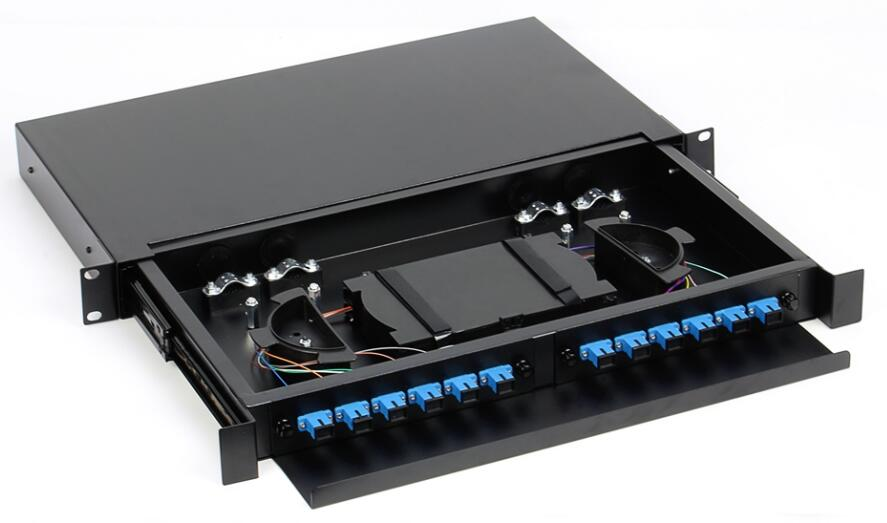

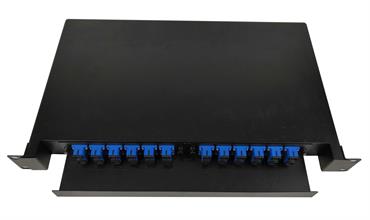

19inch Rack-mount Slidable Fiber Optic Distribution Frame has sliding fittings with self-locking functions prevent the drawer from falling when moved;

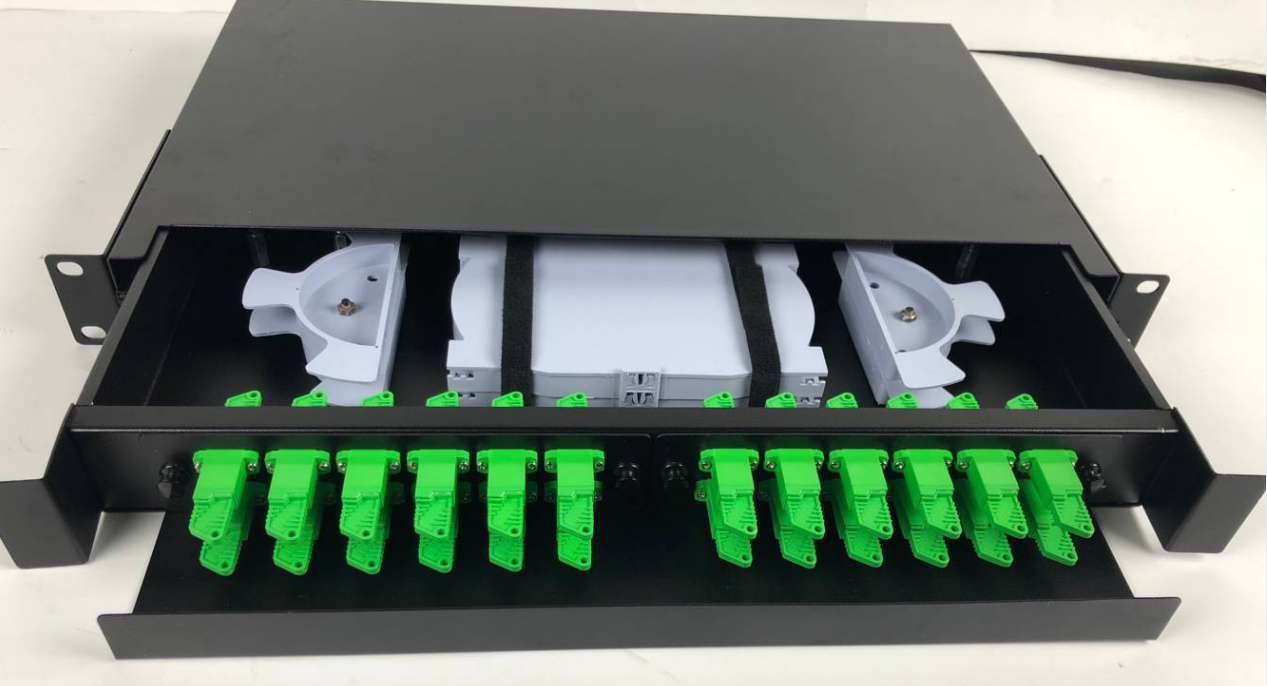

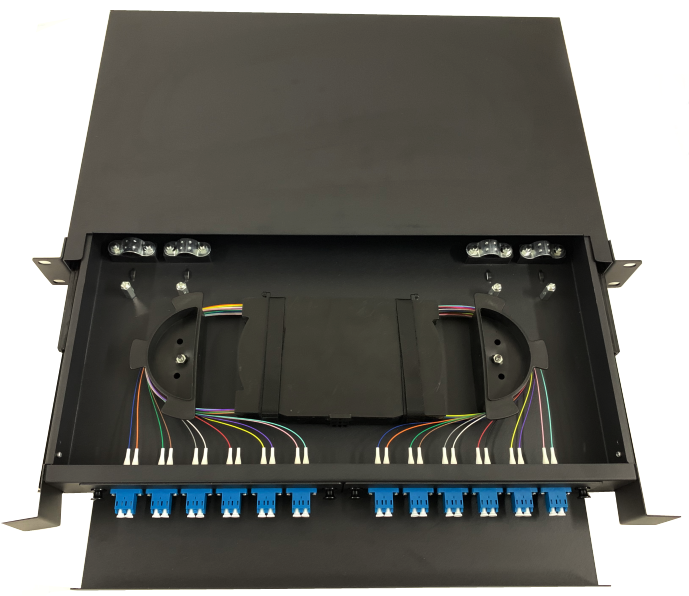

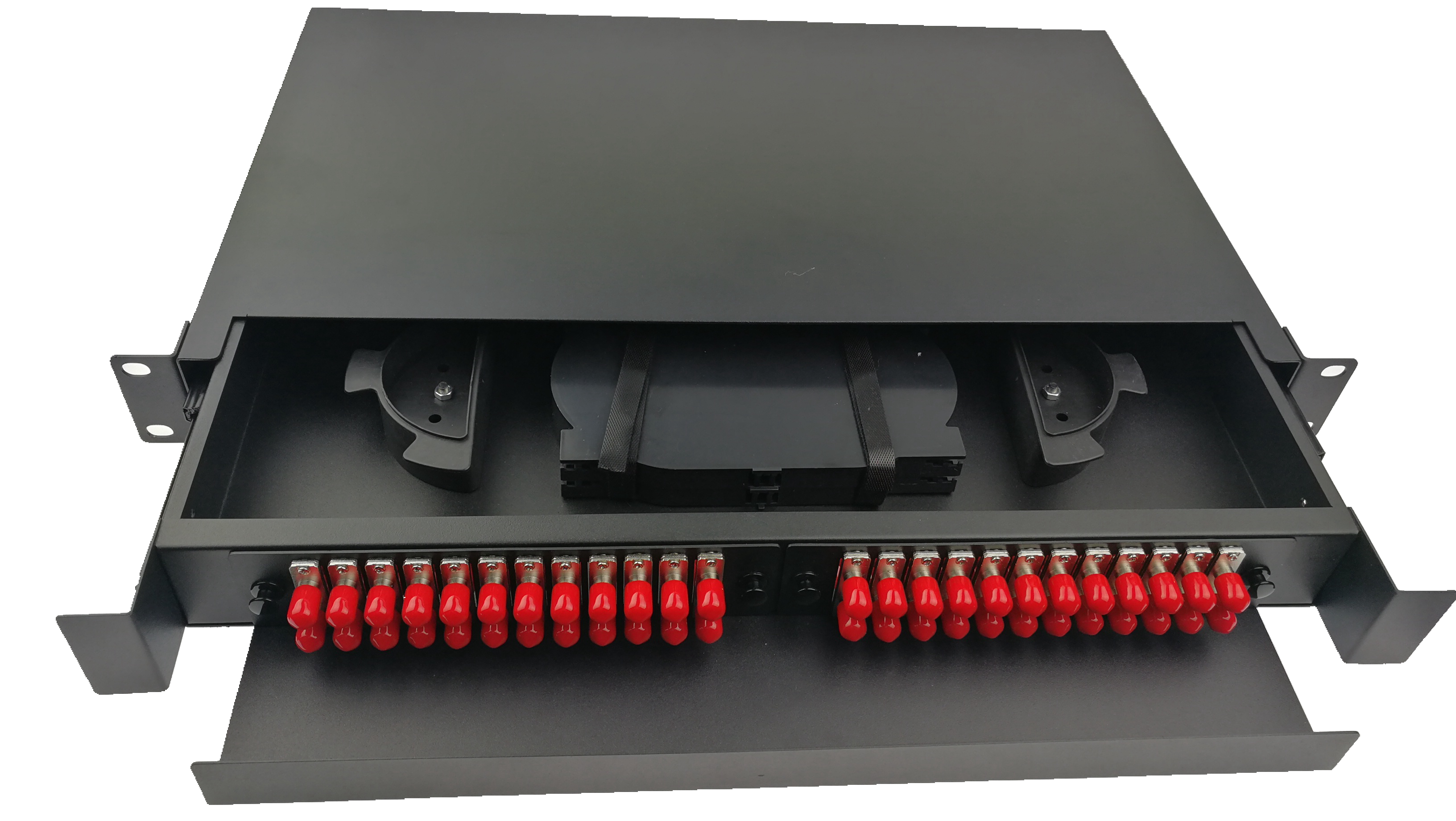

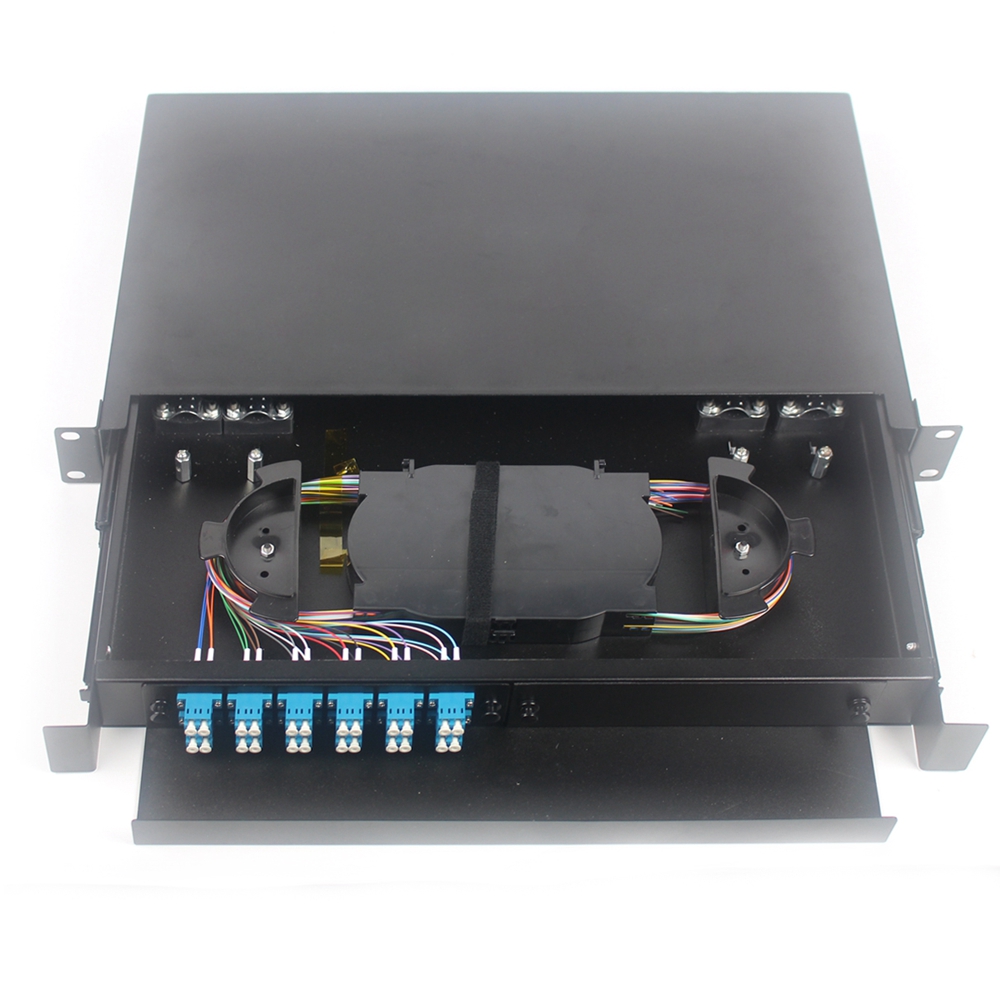

19-inch rack mount for ST, SC, LC, FC, E2000 adapters. The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.

Application:
For fiber to the cell, fiber to the building, the module office and small and medium-sized wireless base station wiring system.

Product name	sliding type fiber optic patch panel
color	Black or White
Feature	High density and cost effective
Use	FTTX,network,telecommunication

ODF Conditions of Use:
1.Operation Temperature: -20 ° C to +45 ° C
2.Storage temperature: -25 ° C to +55 ° C
3.Relative humidity: ≤ 85% (+30 ° C)
4. Atmospheric pressure: 70kPa ~ 106Kpa

ODF Optical and Electrical Properties:
1.Nominal operating wavelength: 850nm, 1310nm, 1550nm
2.Insertion loss: ≤ 0.3dB
3.Return Loss: PC ≥ 40dB, UPC ≥ 50dB APC ≥ 60dB
4.Dielectric strength: ≥ 3KV (DC) / 1min no breakdown, no arc
5.Insulation resistance: ≥ 1000MΩ/500V (DC)
6.Life: ≥ 1000 times
7.Hosting offer fiber bending radius: ≥ 40 mm

Specification:

Model	Pigtail	Adapter	Height	Dimension(cm)
ODF-1U-RS12	12 SC or 24 LC	12 SC SX or 12 LC DX	1U	436x250x1U
ODF-1U-RS24	24 SC or 48 LC	24 SC SX or 24 LC DX	1U	436x250x1U
ODF-1U-RS48	48 SC or 96 LC	24 SC DX or 24 LC QD	1U	436x250x1U

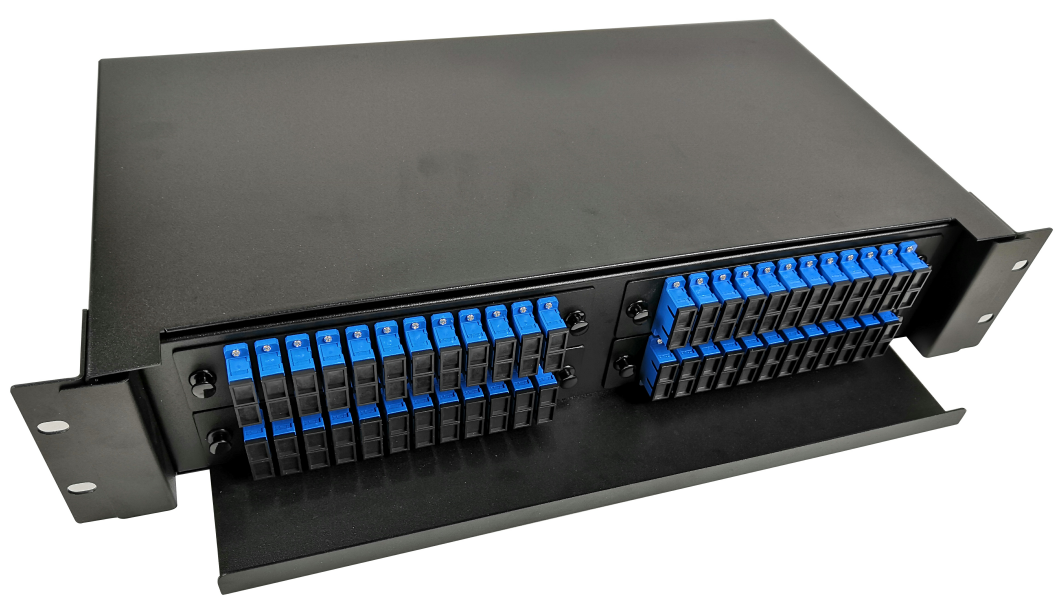

ODF-2U-RS48	48 SC or 96 LC	48 SC SX or 48 LC DX	2U	436x250x2U
ODF-2U-RS96	96 SC or 192 LC	48 SC DX or 48 LC QD	2U	436x250x2U
ODF-4U-RS96	96 SC or 192 LC	96 SC SX or 96 LC DX	4U	436x250x4U
ODF-4U-RS144	144 SC or 288 LC	144 SC SX or 144 LC DX	4U	436x250x4U
