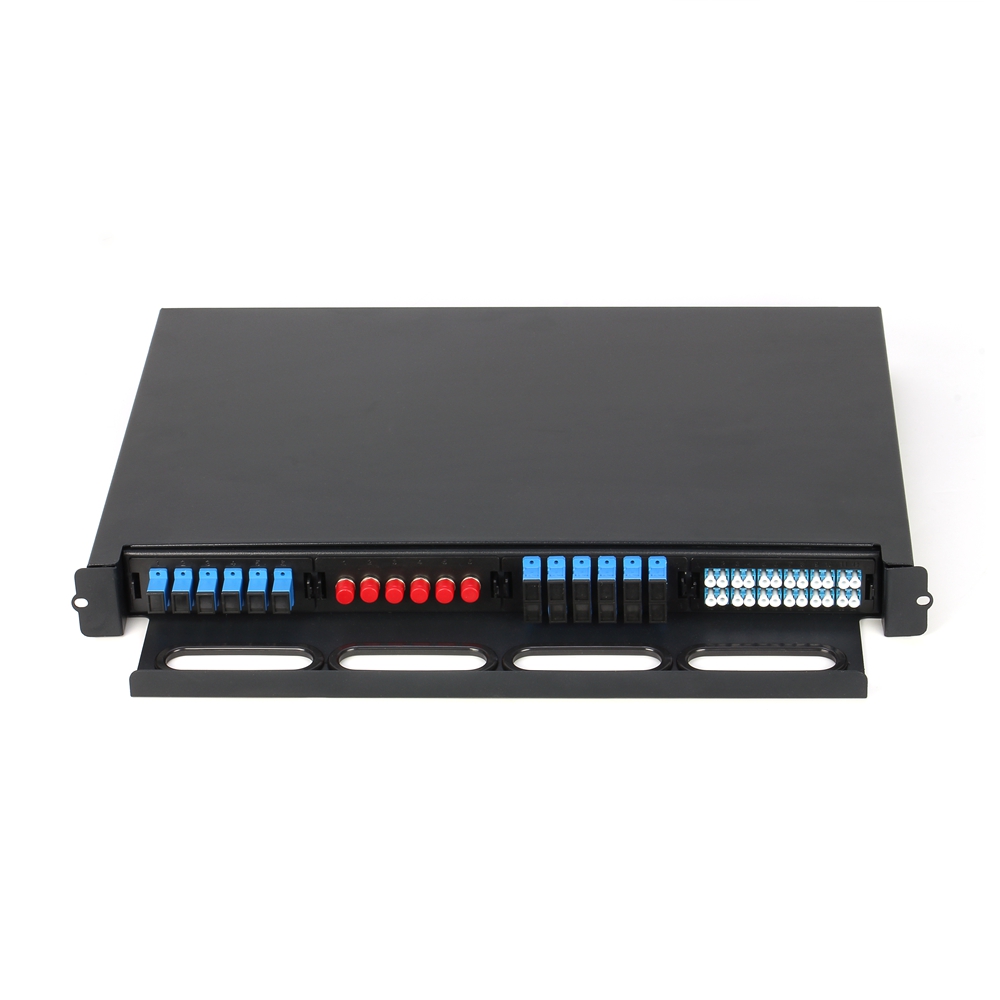

96C 1RU sliding type fiber optic patch panel

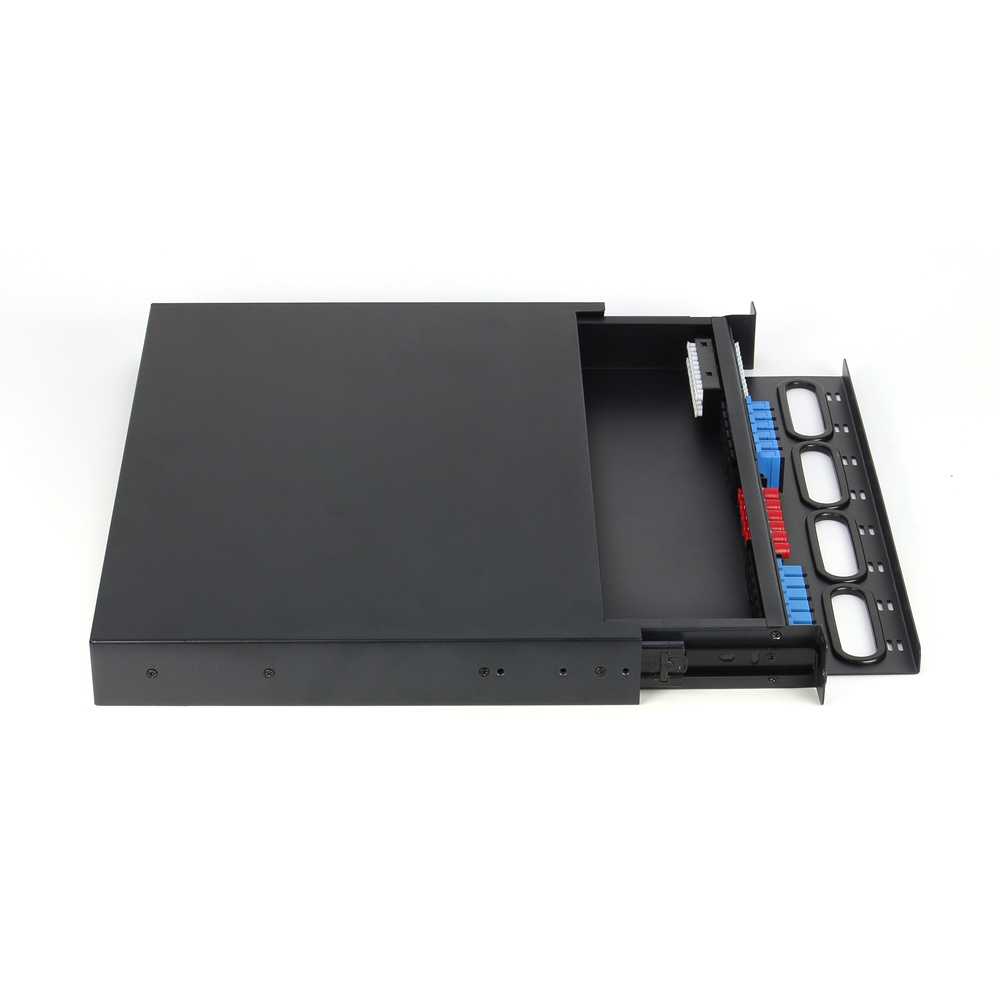

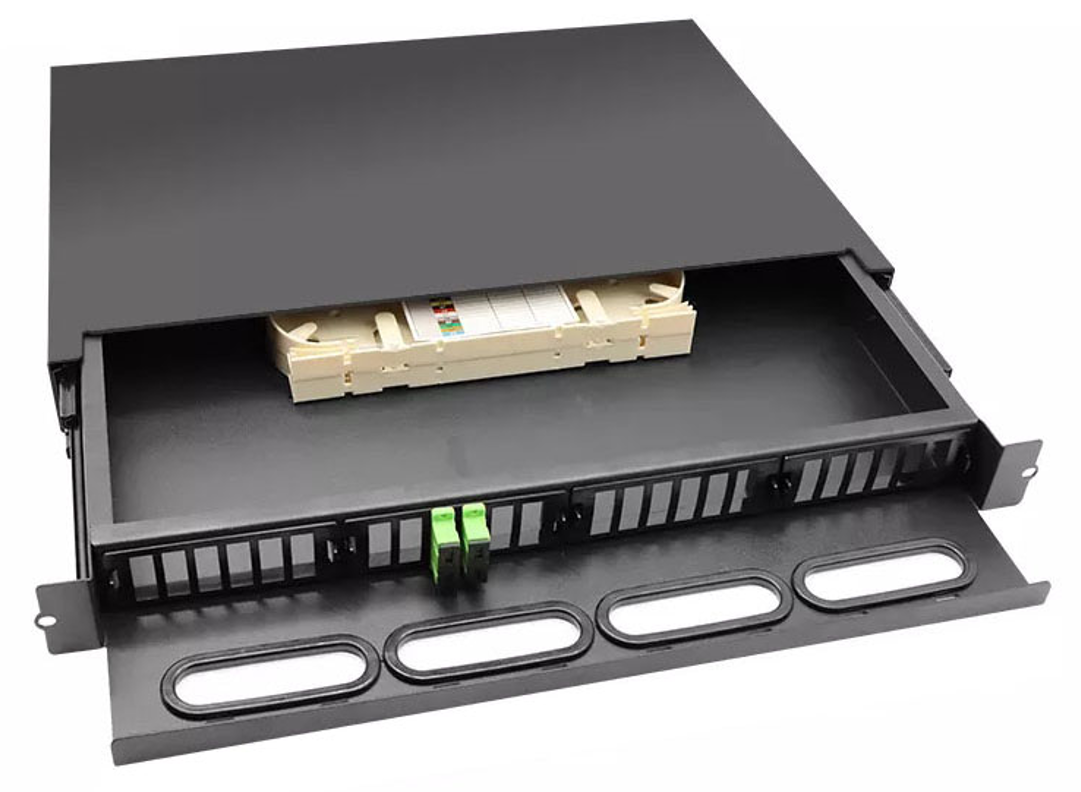

19inch Rack-mount Slidable Fiber Optic Distribution Frame has sliding fittings with self-locking functions prevent the drawer from falling when moved; 19-inch rack mount for ST, SC, LC, FC, E2000 adapters. The drawer is the holding board for splicing, easy to withdraw the fibers when testing and distributing.

ODF Optical and Electrical Properties:

1.Nominal operating wavelength: 850nm, 1310nm, 1550nm
2.Insertion loss: ≤ 0.3dB
3.Return Loss: PC ≥ 40dB, UPC ≥ 50dB APC ≥ 60dB
4.Dielectric strength: ≥ 3KV (DC) / 1min no breakdown, no arc
5.Insulation resistance: ≥ 1000MΩ/500V (DC)
6.Life: ≥ 1000 times
7.Hosting offer fiber bending radius: ≥ 40 mm

Specification:

Model	Pigtail	Adapter	Height	Dimension(cm)
ODF-1U-RS48	48 SC or 96 LC	48 SC SX or 48 LC DX	1U	430x302.4x1U

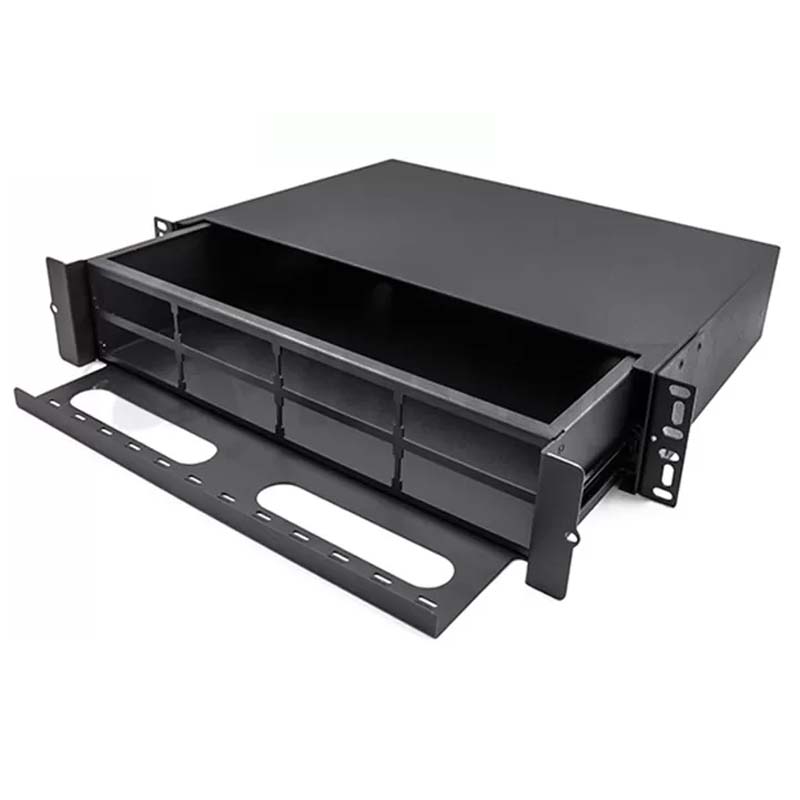

ODF-2U-RS96	96 SC or 192 LC	96 SC SX or 96 LC DX	2U	430x302.4x2U

ODF Conditions of Use:
1.Operation Temperature: -20 ° C to +45 ° C
2.Storage temperature: -25 ° C to +55 ° C
3.Relative humidity: ≤ 85% (+30 ° C)
4. Atmospheric pressure: 70kPa ~ 106Kpa

Application:

For fiber to the cell, fiber to the building, the module office and small and medium-sized wireless base station wiring system.
