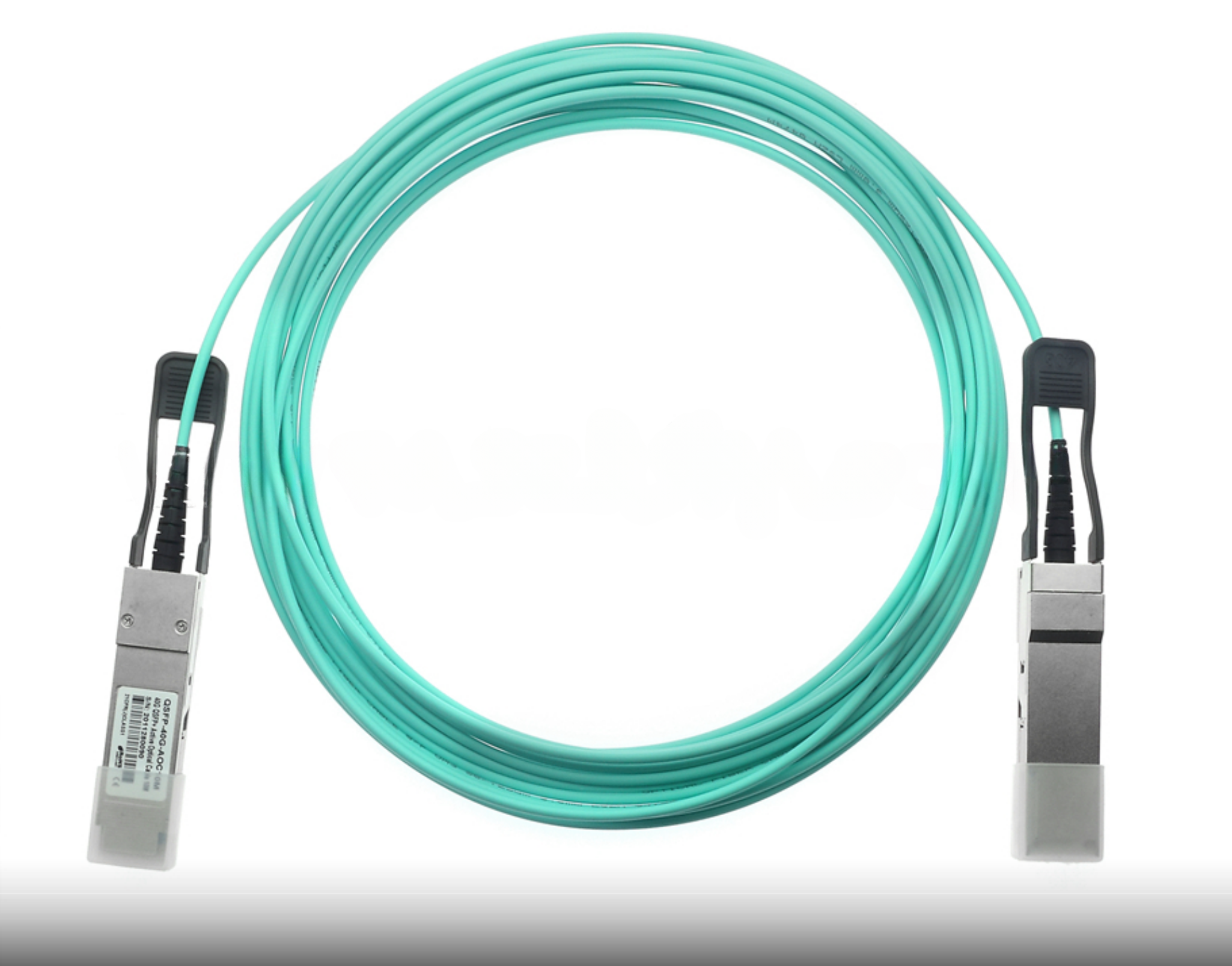

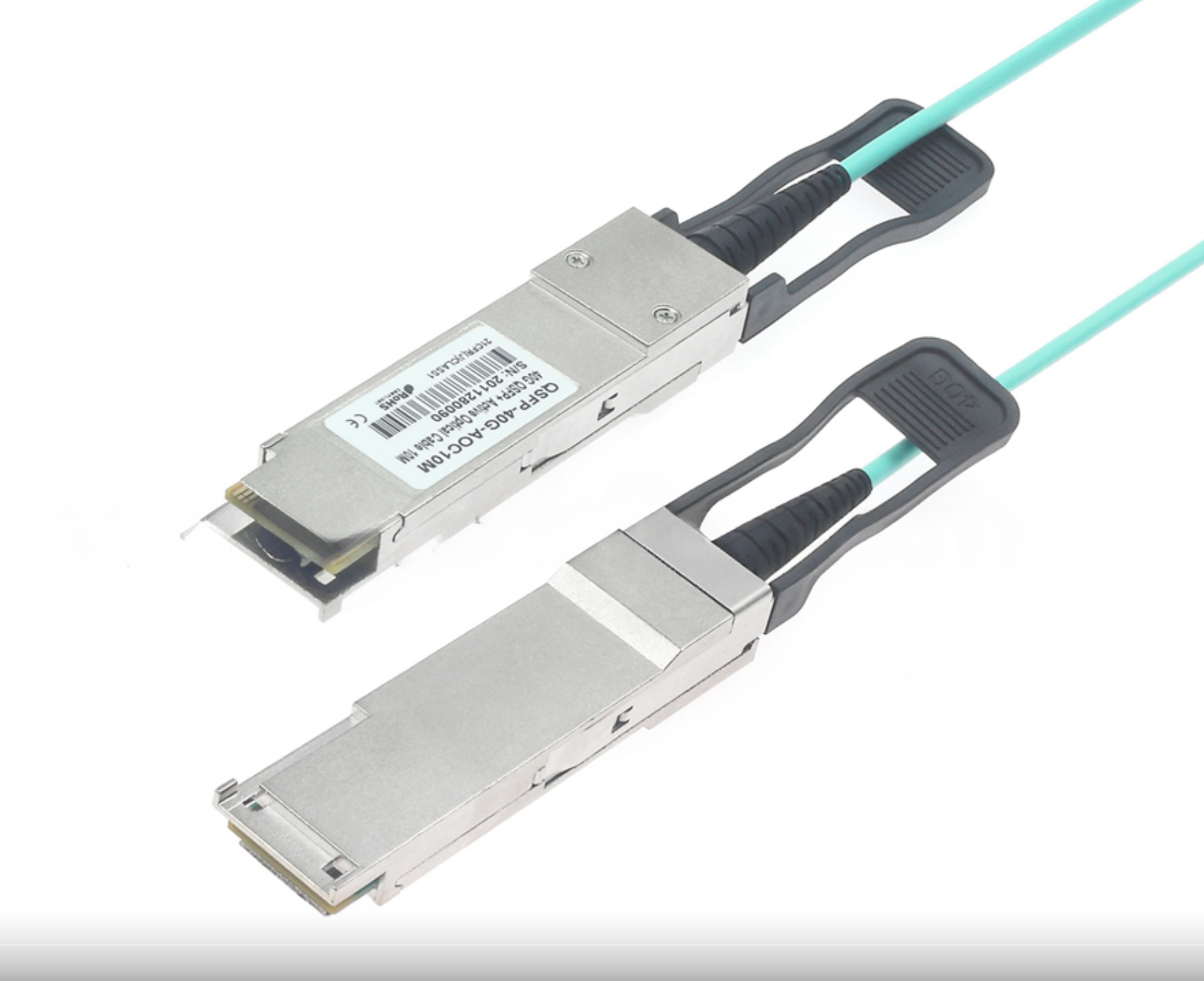

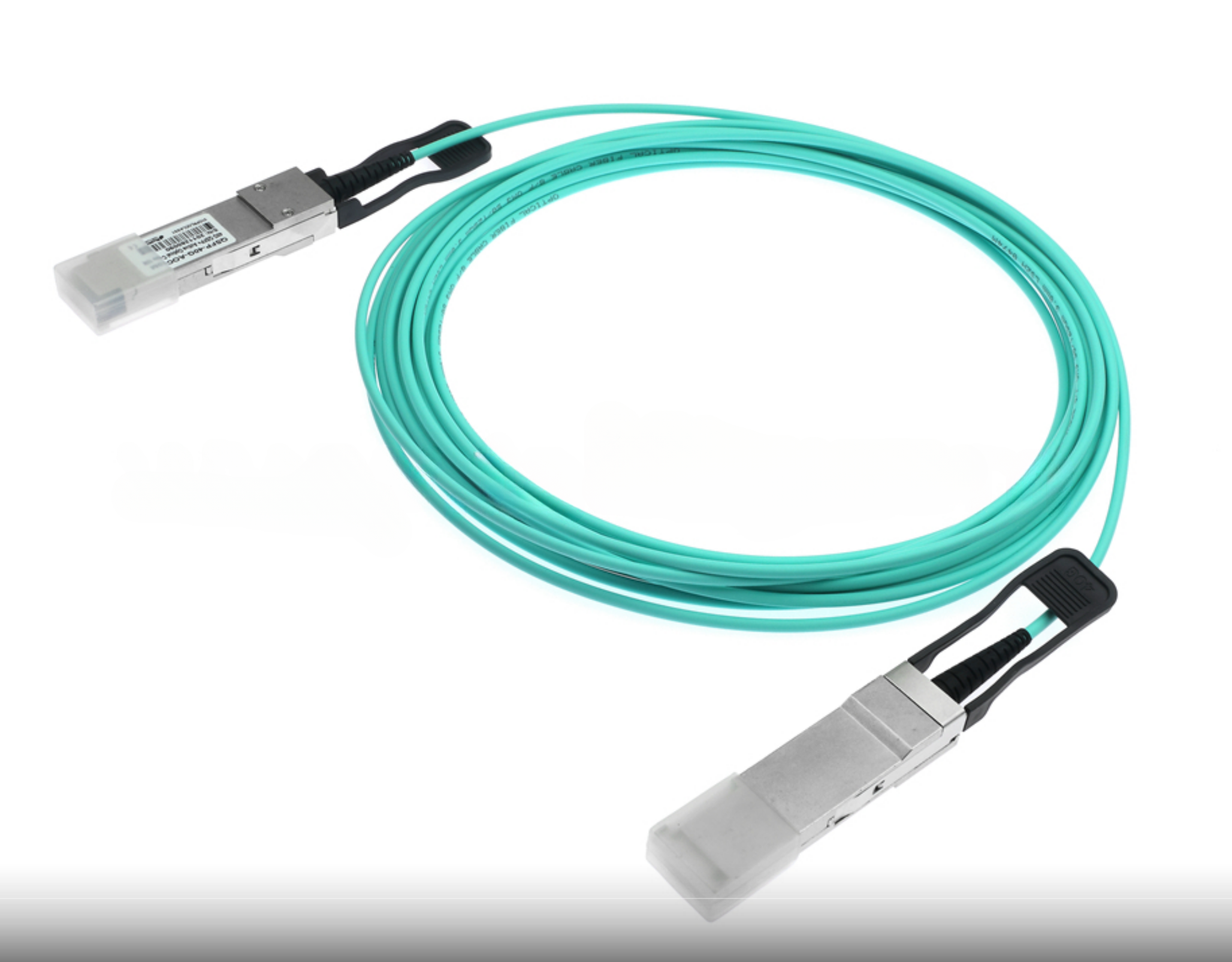

The QSFP+ active optic cables are a high performance, low power consumption, long reachinterconnect solution supporting InfiniBand QDR/DDR/SDR,12.5G/10G/8G/4G/2G fiber channel ,PCIe and SAS. It is compliant with the QSFP MSA and IEEE P802.3ba.The QSFP AOC is an assembly of 4 full-duplex lanes, where each lane iscapable of transmitting data at rates up to 11.3Gb/s, providing an aggregated rate of 45.2Gb/s.The QSFP+AOC is one kind of parallel transceiver which provides increased port density and total system cost savings.
Features
Four-channel full-duplex active optical cable
Transmission data rate up to 11.3Gbit/s per channel
Reliable VCSEL array technology using multimode fiber
Available in standard lengths of 3, 5, 10, 15, 20, 30, 50,100m
Low power consumption <1.5W
Operating case temperature 0°C to +70°C
3V power supply voltage
RoHS 6 compliant
Hot Pluggable QSFP form factor
Application:
Infiniband QDR/DDR/SDR
Datacenter
40G Ethernet
4G/8G/10G Fibre Channel
