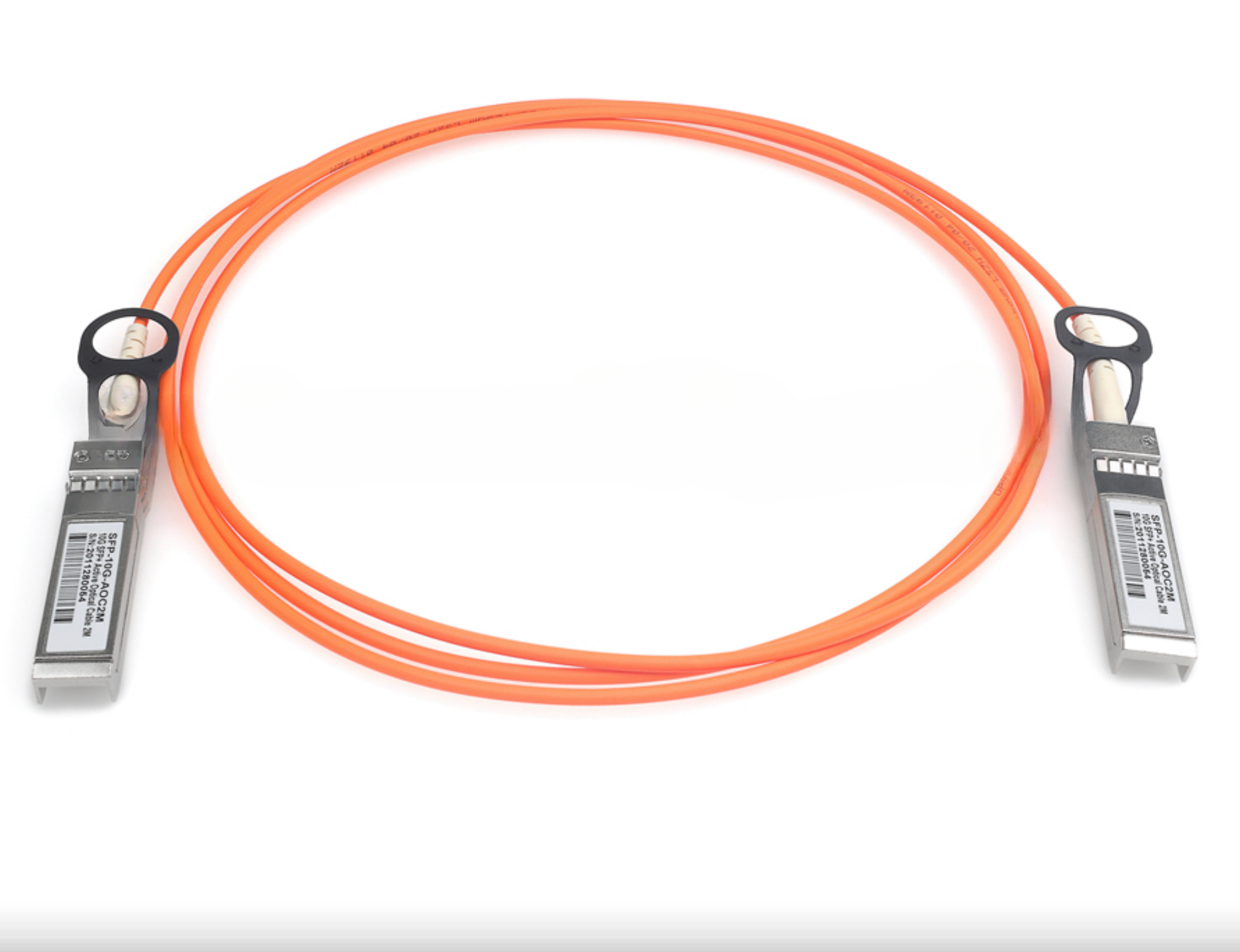

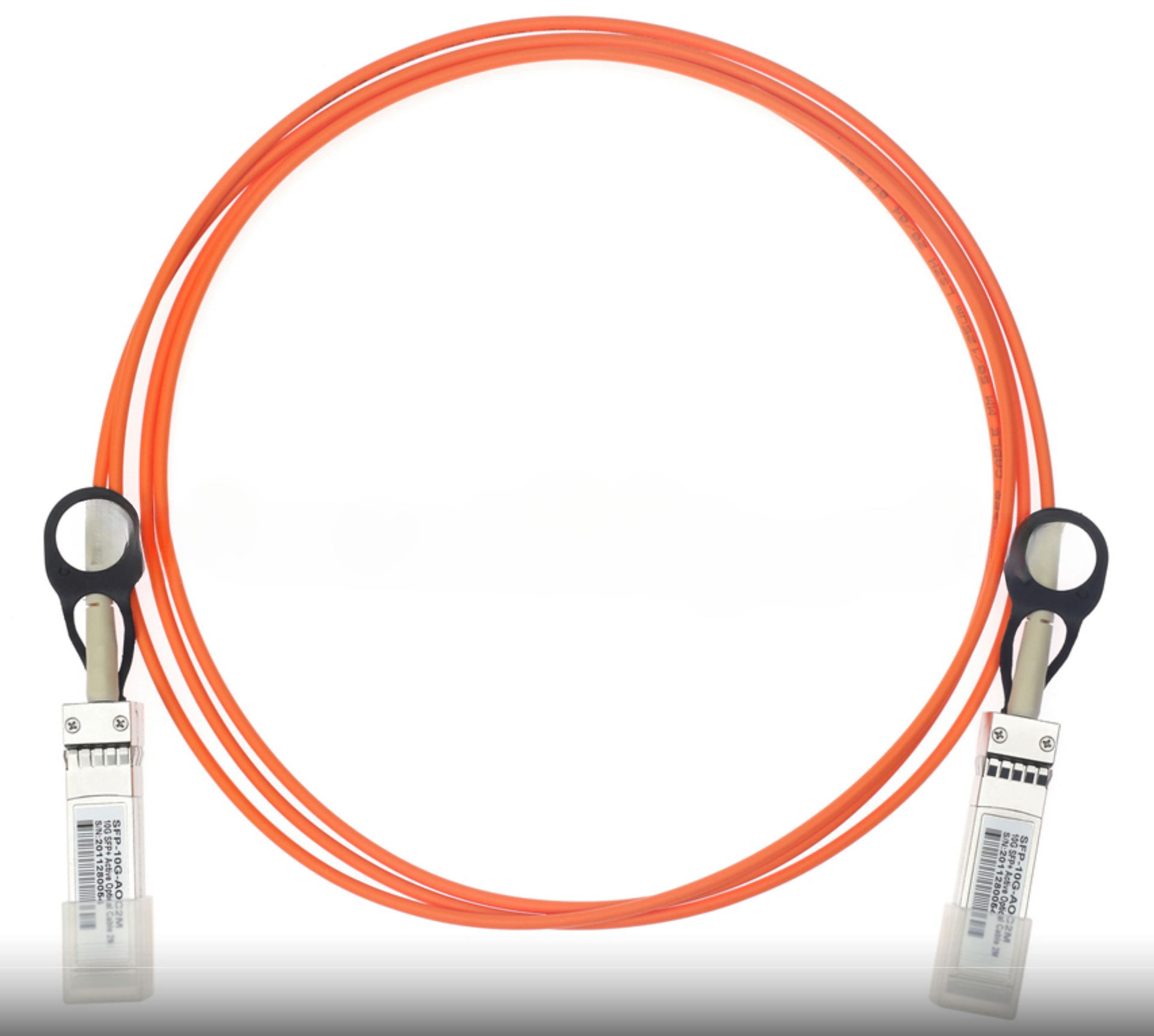

The SFP+ Active Optical Cables are direct-attach fiber assemblies with SFP+ connectors. They have very good power consumption performance .They are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks. The SFP+ Active Optical Cables’ length is up to 300 meters on OM3 MMF.
Features
Low power consumption <0.35W per end
Electrical interface compliant to SFF-8431
Up to 300m on OM3 MMF
850nm VCSEL transmitter, PIN photo-detector receiver
Operating case temperature 0 °C to +70°C
3V power supply voltage
RoHS 6 compliant
Hot Pluggable SFP+ form factor
good EMI performance
Application:
10 Gigabit Ethernet
1x InfiniBand QDR. DDR, SDR
High-performance computing clusters
4G and 8G Fiber Channel Applications
Servers, switches, storage，host card adapters and datacenter
Routers
