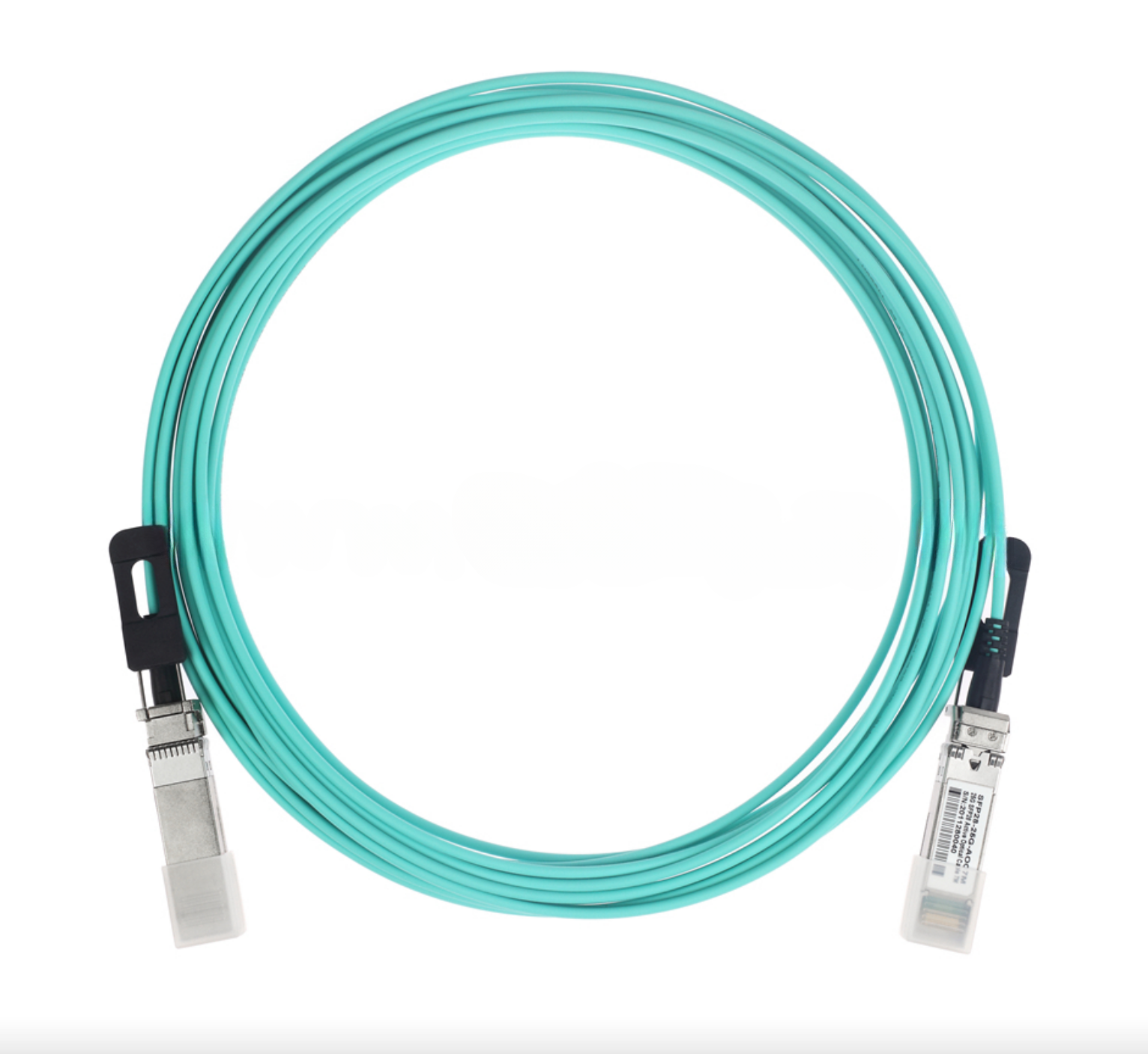

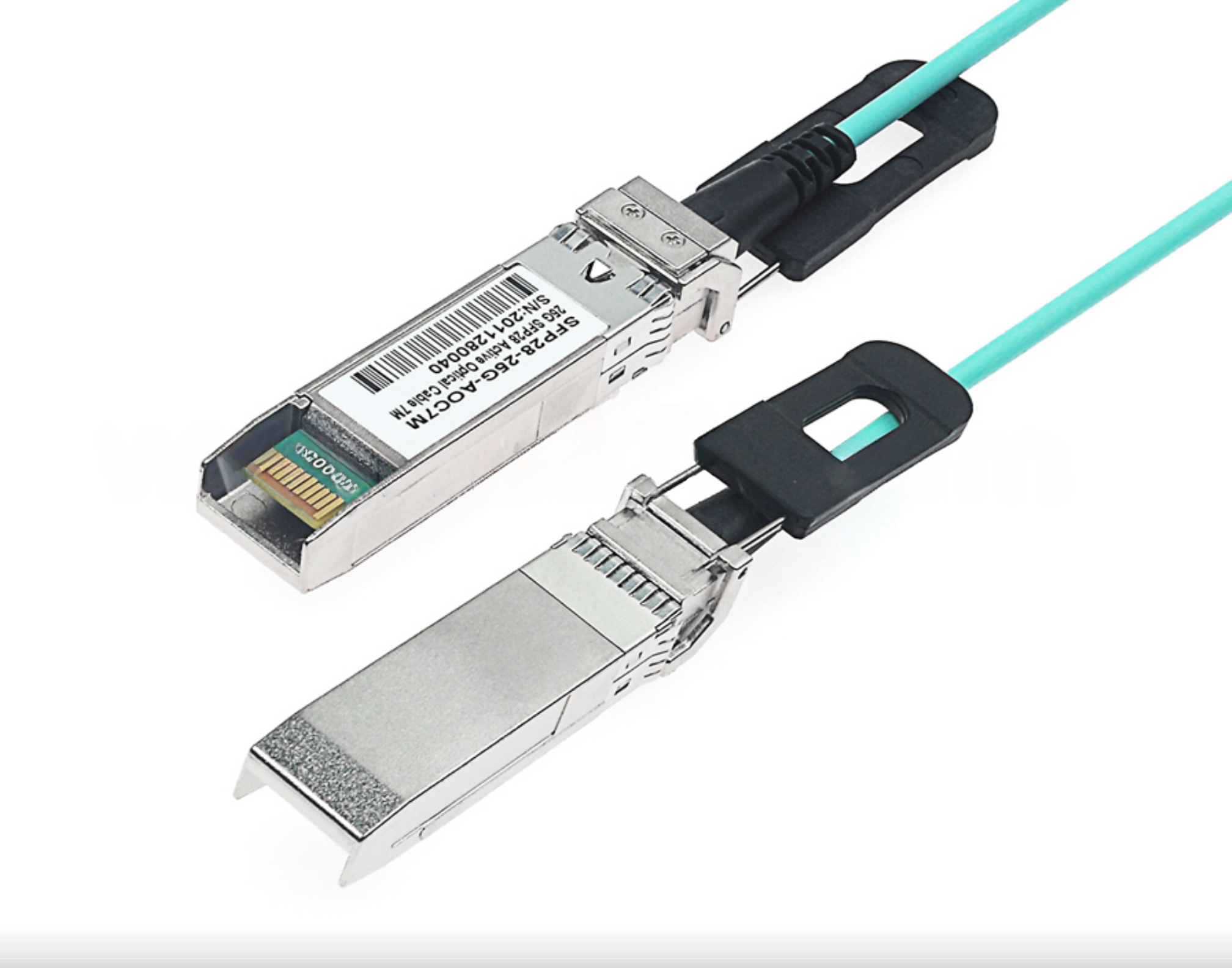

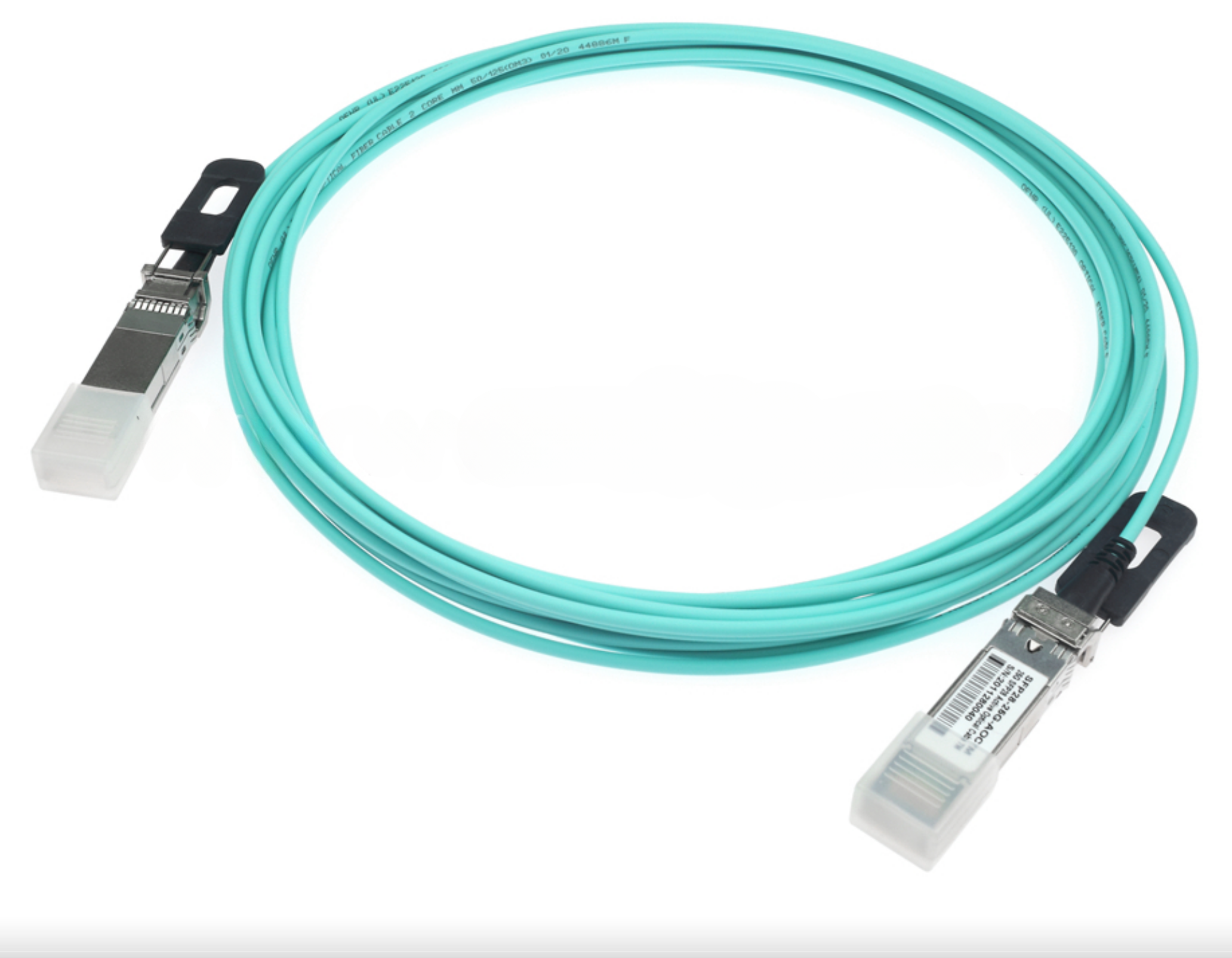

The SFP28 active optical cable is a direct-attach fiber with SFP28 connectors and operates over Multi-Mode Fiber (MMF). This AOC is compliant with the SFF-8431 SFP28 standards. It provides a cost-efficient solution as compared to using discrete optical transceivers and optical patch cables and is suitable for 25Gbps connections within racks and across adjacent racks.
Features:
Electrical interface compliant to SFF-8431
850nm VCSEL laser and PIN photo-detector
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
Digital diagnostics functions are available via the I2C interface
RoHS compliant
Hot Pluggable
Application:
25GBASE-SR Ethernet
InfiniBand QDR, SDR, DDR
Servers, switches, storage and host card adapters
