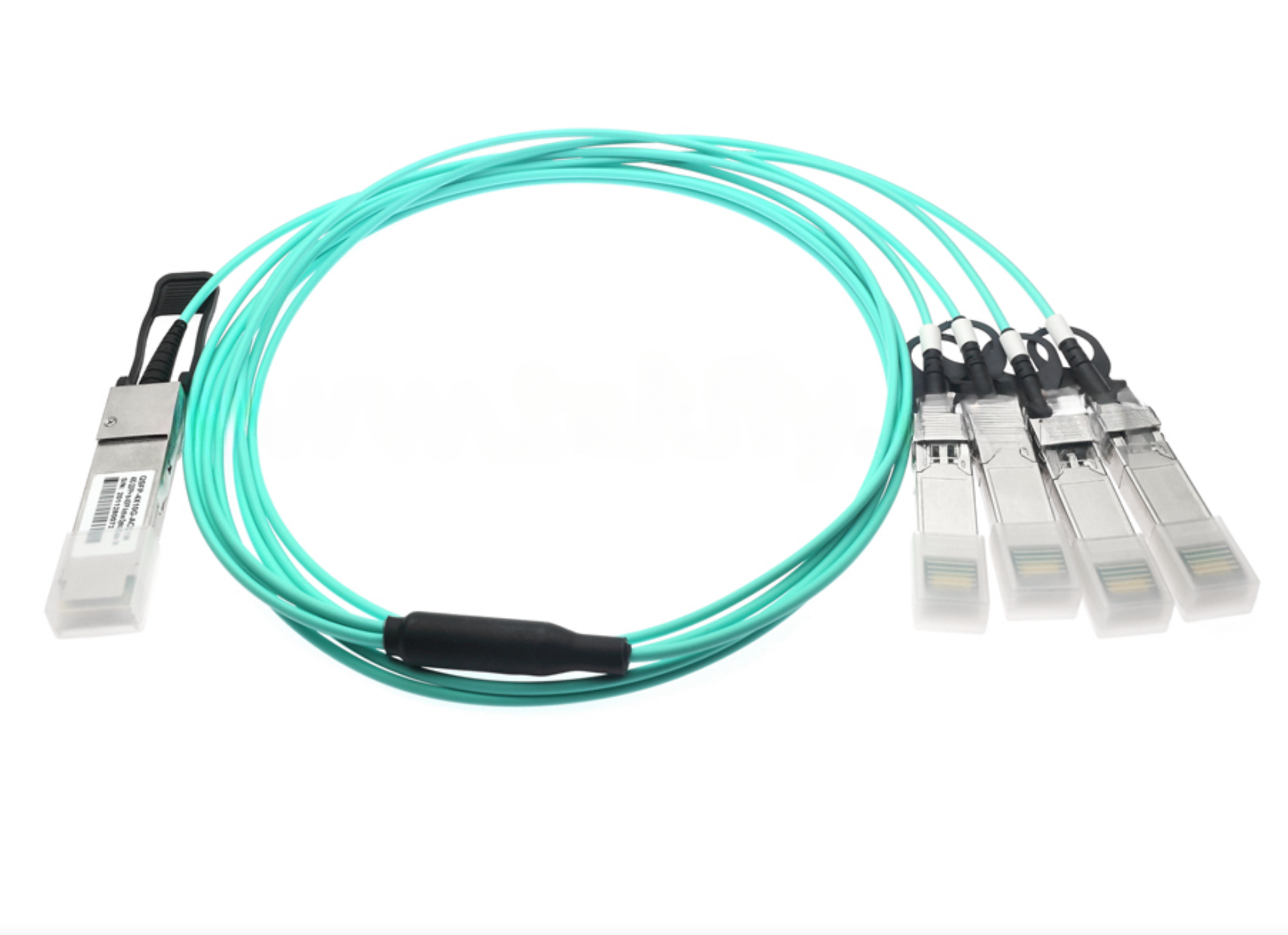

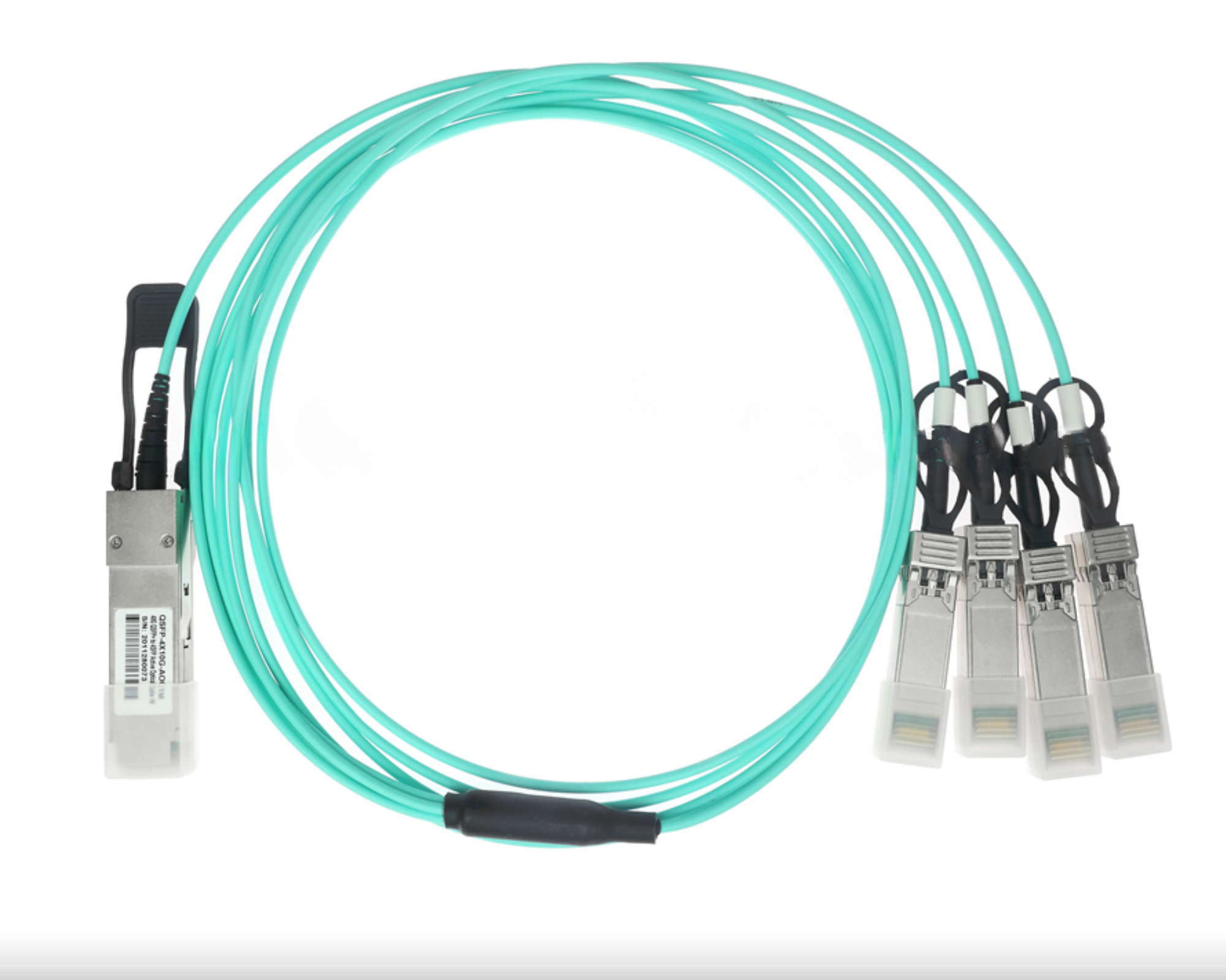

The SOPO Technologies SPQSP4A-492 AOCxx is a Four-Channel, Pluggable, Parallel, Fiber-Optic QSFP+ Active Optical Cable (AOC) to 4×SFP+ Active Optical Cable break-out solution. This Breakout cable is intended for 40G to 4×10G applications. This AOC is a high performance cable for short-range multi-lane data communication and interconnect applications. It integrates four data lanes in each direction with 40Gbps aggregate bandwidth. Each lane can operate at 10.3125 Gbps. These cables also support 4 x 10G Infini-Band QDR applications and are backwards compatible to the 4×5G IB DDR and 4×2.5G IB single IB SDR applications. This product is leveraged from SOPO Technologies QSFP+ to QSFP+ Active Optical Cable product and SFP+ Active Optical Cable product. Where applicable, consult these respective datasheets. This AOC incorporates SOPO Technologies’ proven integrated circuit and VCSEL technology to provide reliable long life, high performance, and consistent service.
Features:

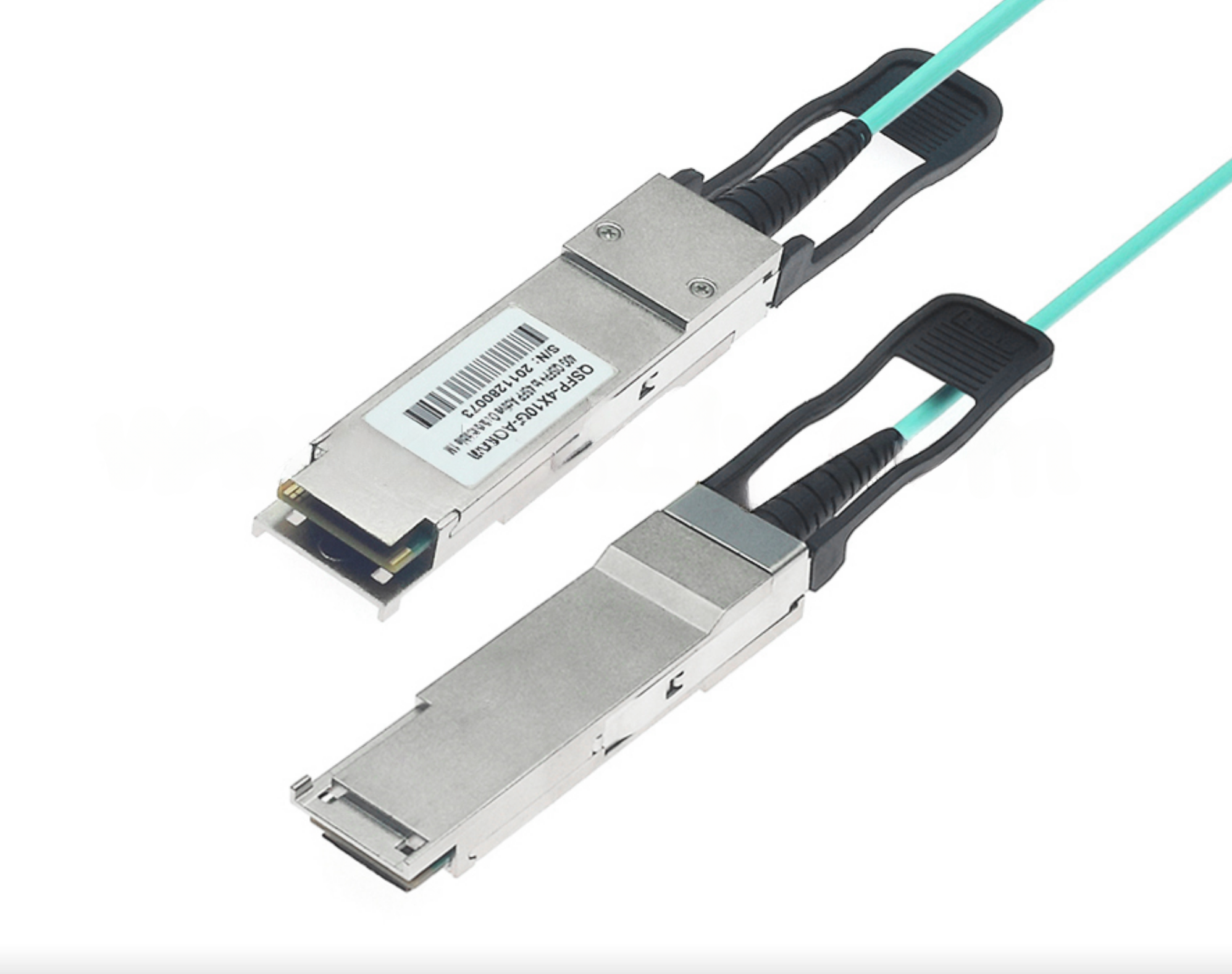

QSFP+ AOC end:
Compliant to the 40GBASE-SR4 and XLPPI
Specification per IEEE 802.3ba-2010 and supporting
40G-IB-QDR / 20G-IB-DDR / 10G-IB-SDR applications
Compliant to the industry standard SFF-8436
QSFP+ Specification
Power Level 1: Max Power < 1.5 W
Operate at 10.3125Gbps per channel with 64b/66b
Encoded data for 40GbE application and at 10Gbps
with 8b/10b compatible encoded data for 40G-IB-QDR applic

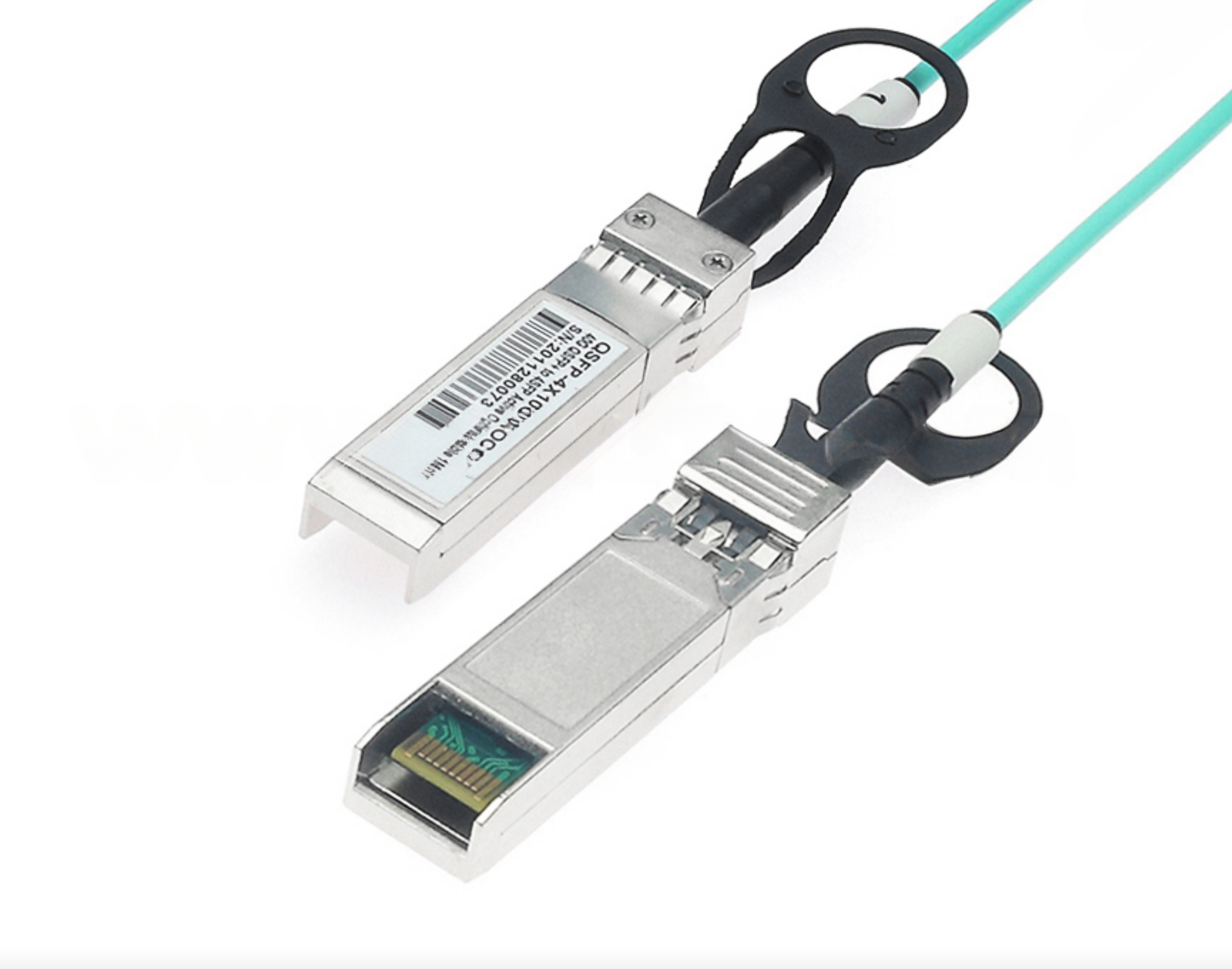

Each 4×SFP+ end:
Compliant to the electrical specifications per SFF-8431 Specifications for Enhanced Small Form Factor Pluggable Module
Mechanical specifications per SFF Committee SFF-8432 Improved Pluggable Form factor “IPF”
Maximum power dissipation 0.35W per end.
Active Optical Cable Assembly:
0 to 70 C degree case temperature operating range
Proven High Reliability 850 nm technology: VCSEL transmitter and PIN receiver
Hot pluggable for ease of servicing and installation
Two Wire Serial interface
Utilizes optical fiber for high density and thin, lightweight cable management
