Waterproof Fiber Optic Patch Cord is for CPRI application,that is widely used in 4G, 5G and WIMAX base station, Long term Evolution(LTE),and Remote Radio Units to the FTTA connectivities. SOPO's Waterproof Fiber Optic Patch Cord, with IP-67 rated compact RRH/RRU Helix cover connectors that have fast coupling. These patch cords are always sealed with rugged fiber terminal junction boxes that meet the requirements of more antennas on a wireless tower.

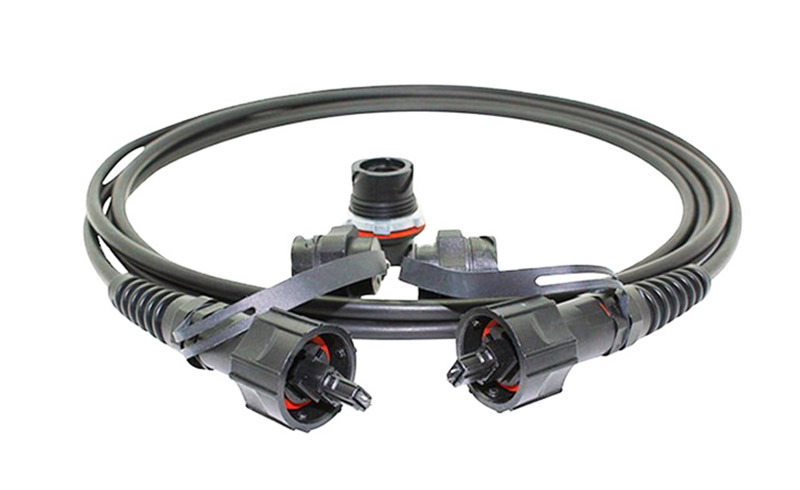

Waterproof Fiber Patch Cord
Features:
1). Low Insertion loss
2). High return loss
3). Good Repeatability
4). Good Interchange
5). Excellent Environmental Adaptability
Applications:
Telecommunication networks
CATV, LAN, MAN, WAN, Test &Measurement
Optical access network
Fiber optic communication networks
Specification:
|
Item |
Single mode |
||
|
Ferrule End-face |
PC |
UPC |
APC |
|
Insert attenuation |
≤0.3dB |
≤0.3dB |
≤0.3dB |
|
Return loss |
≥45dB |
≥50dB |
≥55dB |
|
repeatability |
≤0.1dB |
≤0.1dB |
≤0.1dB |
|
Operation temperature |
-20°C~+70°C(PVC)/-40°C~+90°C(LSZH/PU) |
||
|
Outer diameter |
1.6mm |
||
