MTP(Mechanical Transfer Pull Off) is USCONEC's trade name for their superior style of MPO connector. The MTP@ connector is a high-performance MPO connector with multiple engineered product enhancements to improve optical and mechanical performance compared to generic MPO connectors. The MTP@ connector is in complete compliance with all MPO connector standards, including the EIA/TIA-604-5 and the IEC-61754-7. MTP⑩ patch cord utilizes precision molded MT ferrules, with metal guide pins and precise housing dimensions to ensure fiber alignment when mating. The MTP@ can be mass terminated in 4, 8, 12, or 24 fibers.

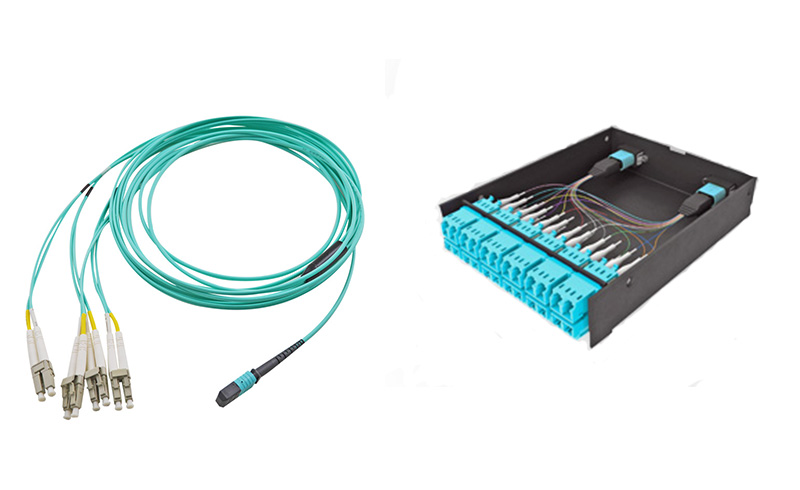

MTP/MPO Trunk Cables
Features：
Precision molded MT ferrule
High precision guide pins for exact alignmen
Compact design,up to 4,8,12,24 fibers
IEC61754-7 Compliant
EIA/TIA-604-5 Compliant
Application：
Asynchronous Transmission Mode(ATM)
Gigabit Ethernet
Active Deviced/Transceiver Interface
CATV,Video and Multimedia
Premise Installations
Telecommunication Networks
Parallel optical interconnect between PC Cards and patch panels
Interconnection for O/E modules
Industrial & Military
Optical Switch interframe connections
Specification:
|
Fiber |
SM |
MM |
||
|
Connector |
IL in dB at 1310 |
RL in dB at 1310 |
IL in dB at 850 |
RL in dB at 850 |
|
MTP/PC |
/ |
/ |
20.35 |
235 |
|
MTP/APC |
S0.35 |
250 |
/ |
/ |
Ordering Information:
|
Product Description |
MTP/F/PC-MTP/F/PC-OM3-12B-S- 1.5M-LSZH-Aqua-A 1 2 3 4 5 6 7 8 9 |
|
1 - Connector A |
MTP/F/PC: MTP Female.PC polish; MTP/F/APC: MTP Female,APC polish; MTP/M/PC: MTP Male,PC polish; MTP/M/APC: MTP Male,APC polish; |
|
2 - Connector B |
MTP/F/PC: MTP Female.PC polish; MTP/F/APC: MTP Female.APC polish; MTP/M/PC: MTP Male.PC polish： MTP/M/APC: MTP Male,APC polish; |
|
3 - Fiber Mode |
OM1, OM2, OM3, OM4, OS2, G657A1 |
|
4 - Fiber Count& Type |
12R: 12F Ribbon; 12BR: 12F Bare Ribbon; 12B: 12F Mini Round Cable |
|
5 - Fanout Type |
S: No fan-out; |
|
6 - Length |
1.5M: Cable total length1.5M, etc. |
|
7 - Cable Jacket Materials |
LSZH. |
|
8 - Cable Jacket Color |
Aqua (OM3.OM4) Orange (0M1.0M2), Yellow (SM). |
|
9 - Polarity |
A: Type A; B: Type B; C: Type C. |
Note:
1. MTP-MTP patch cord standard polarity is "Type A" unless specified otherwise.
2. MTP polishing according to industrial standard: SM-APC polishing, MM-PC polishing
3. MTP connector housing color: SM-Yellow, OM1/OM2-Beige, OM3/OM4-Aqua.
