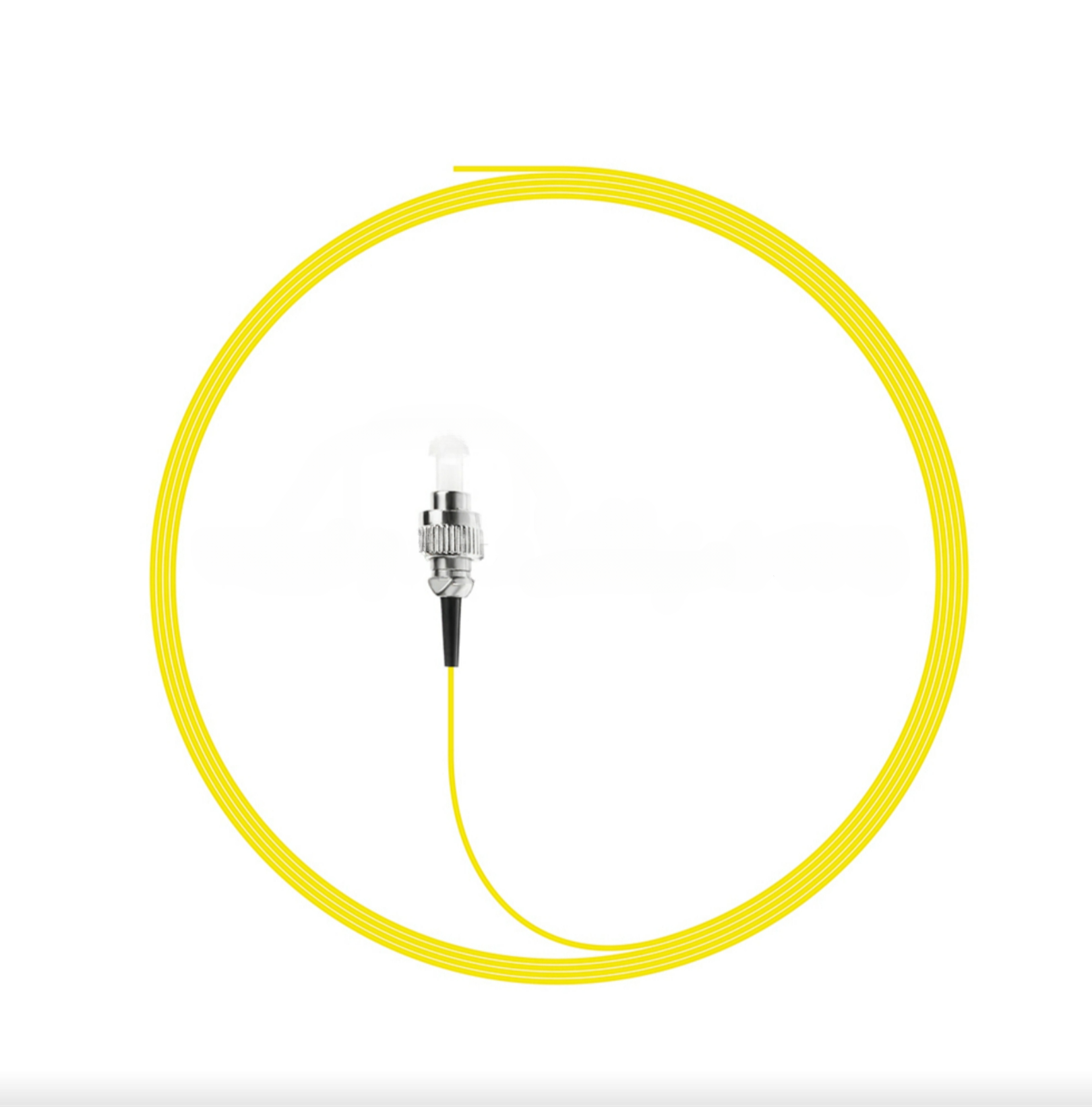

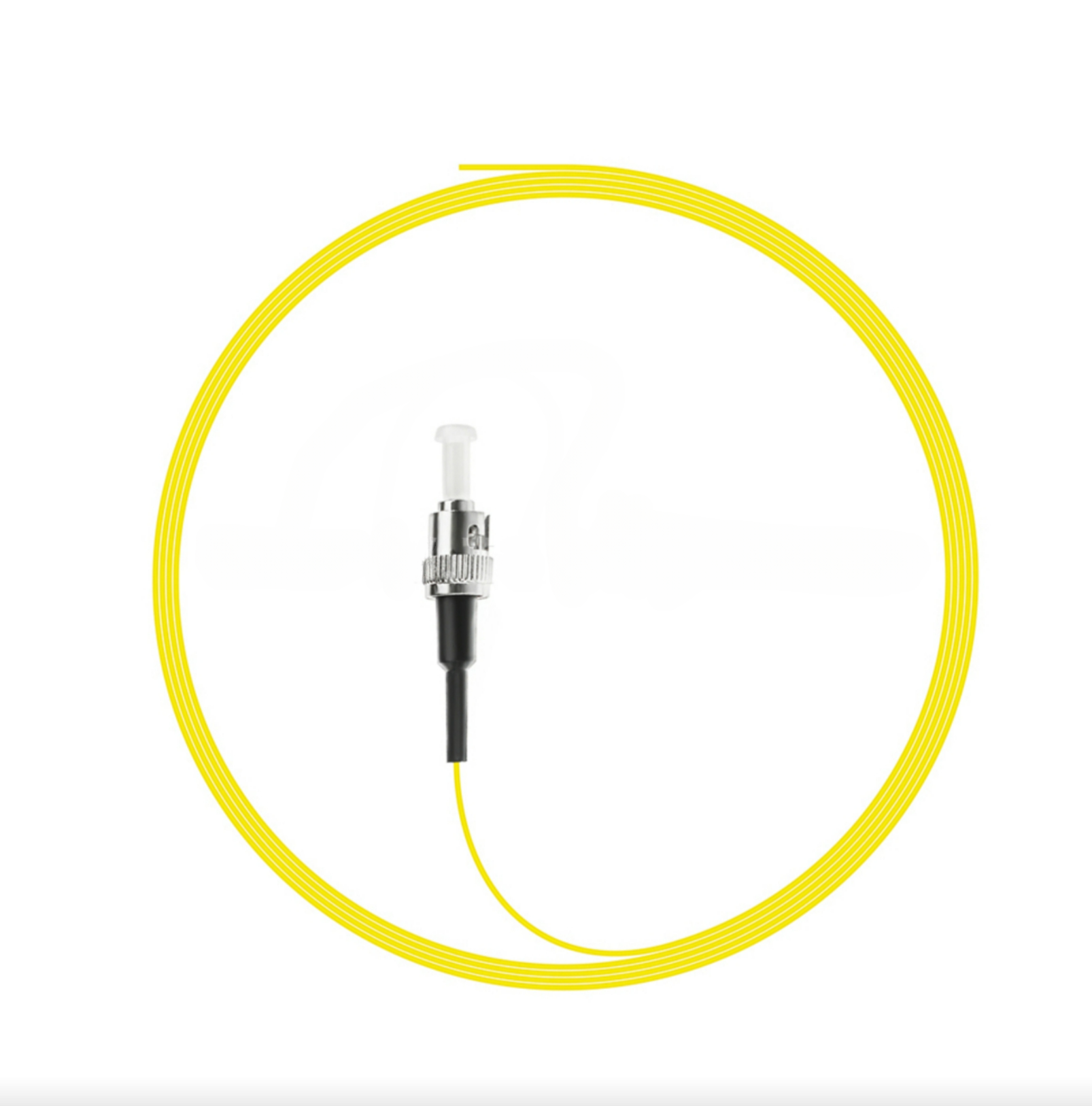

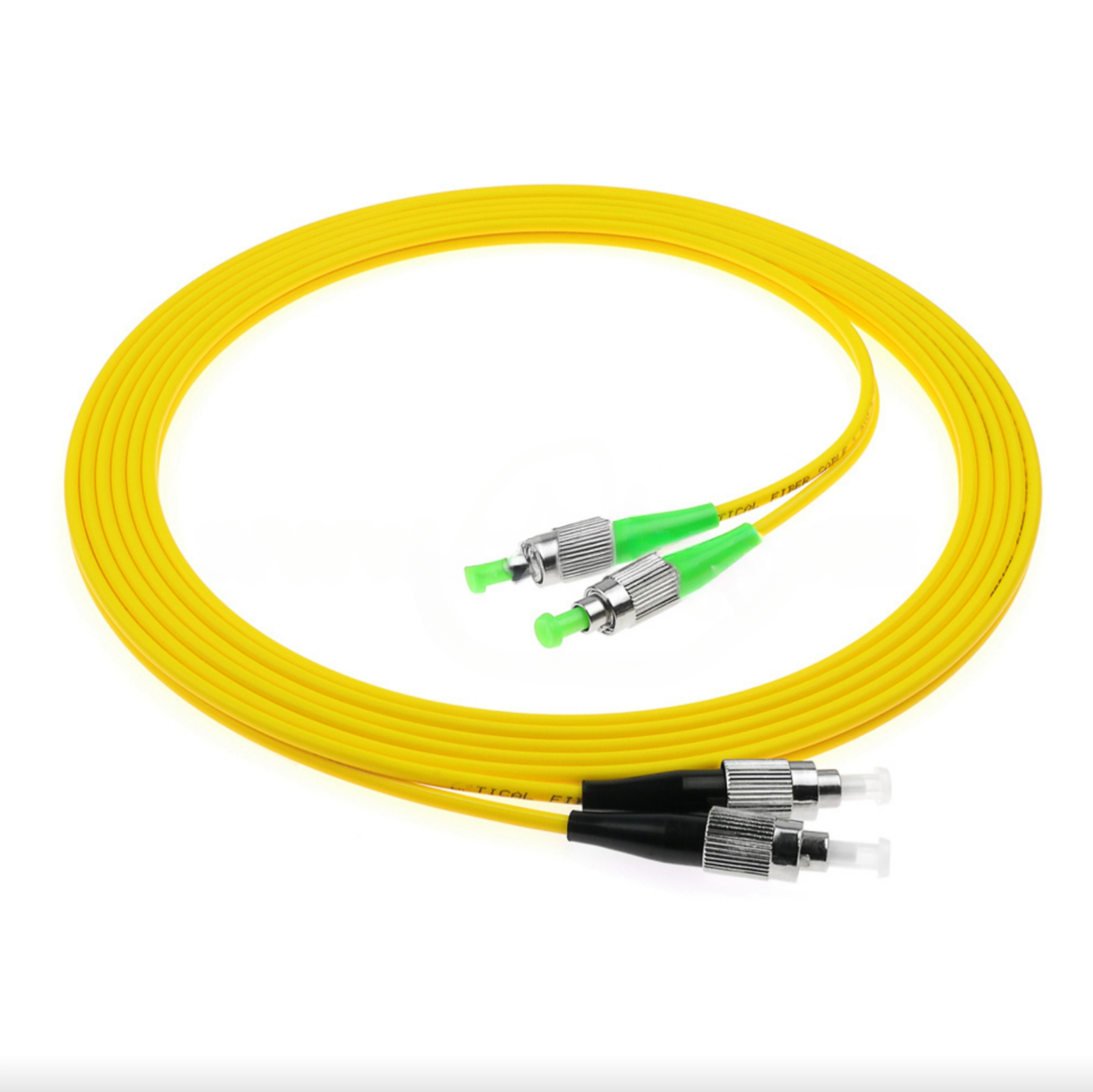

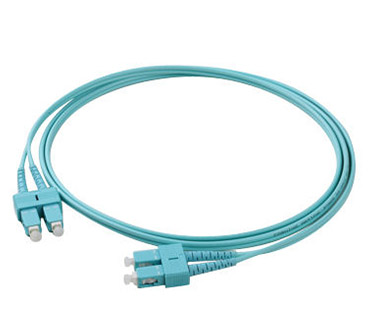

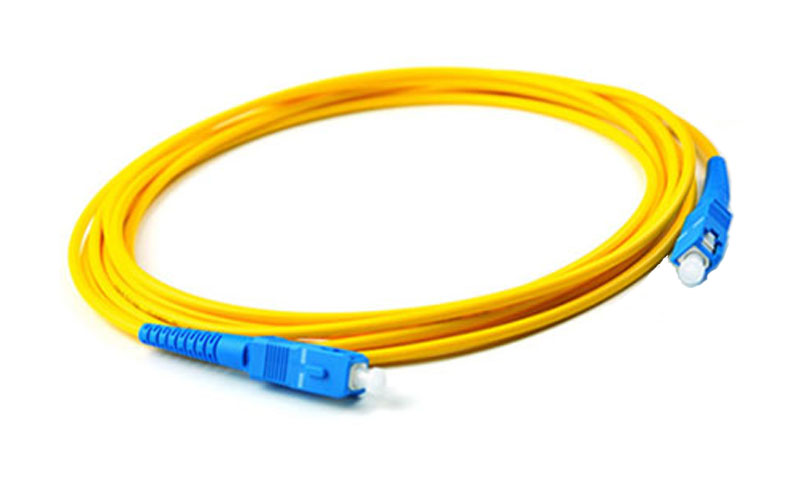

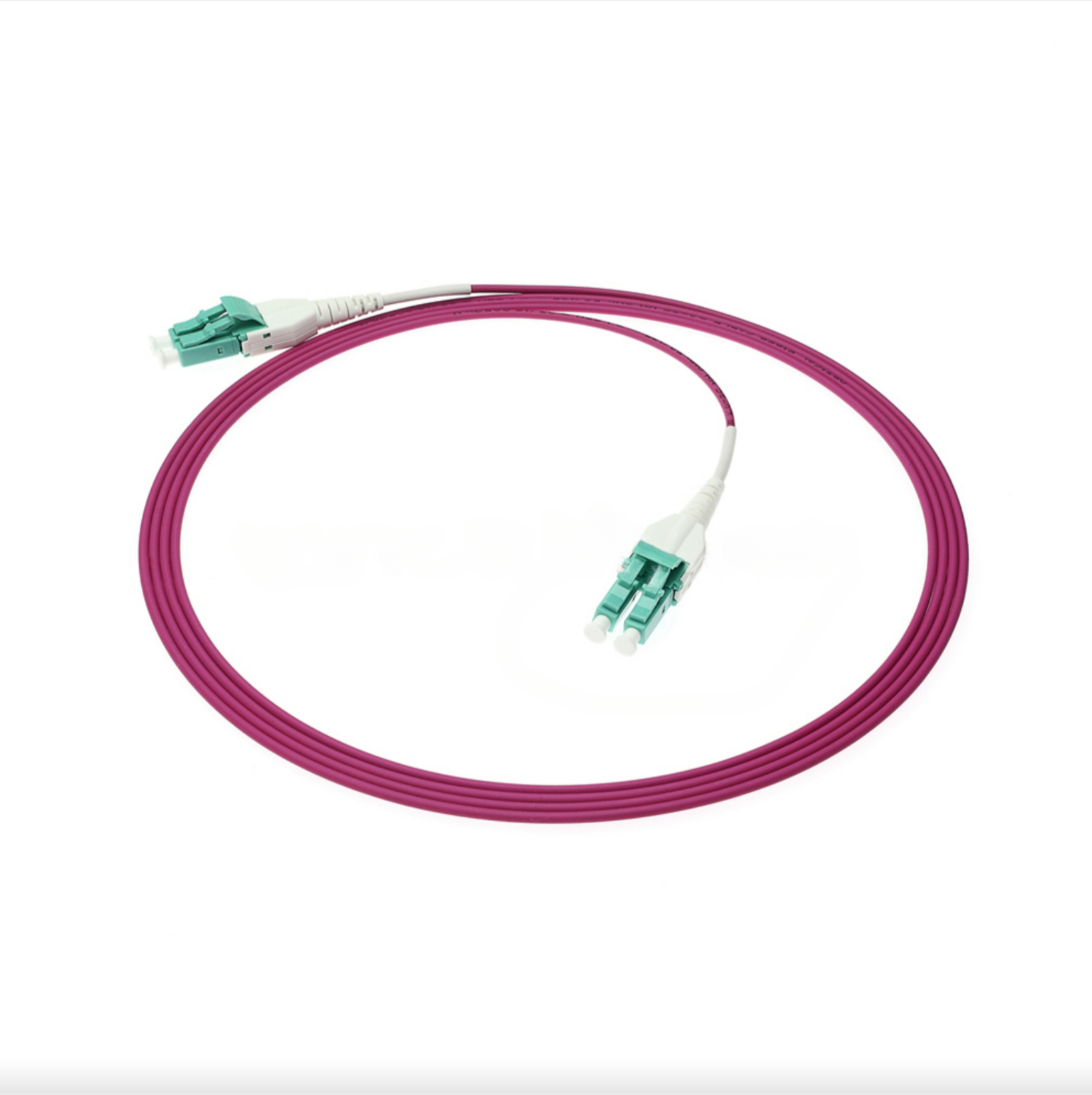

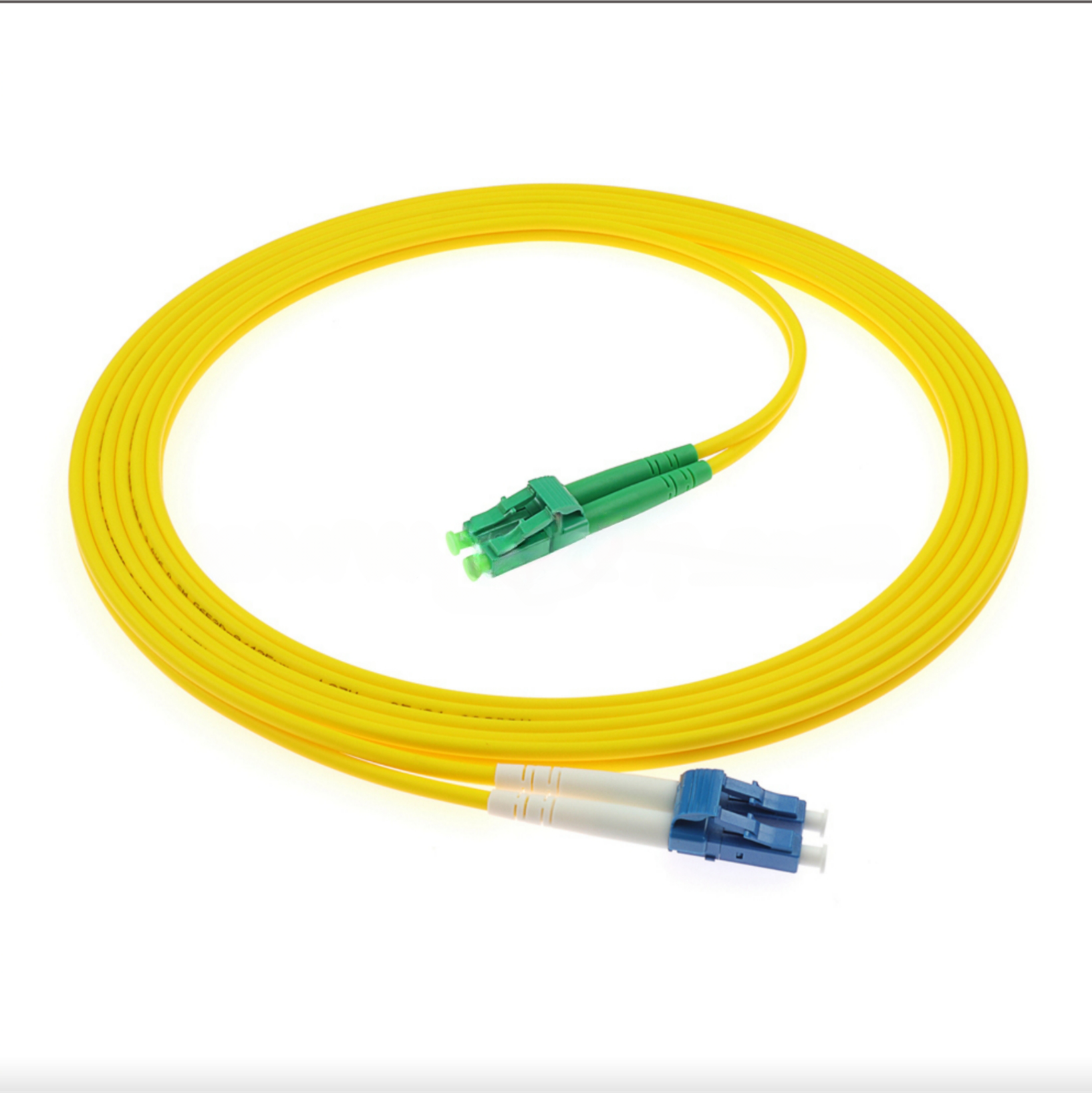

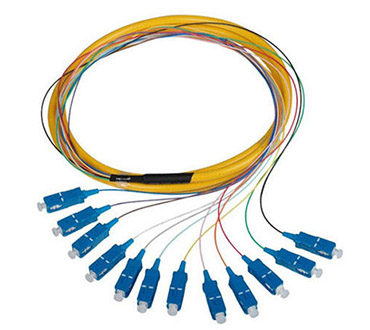

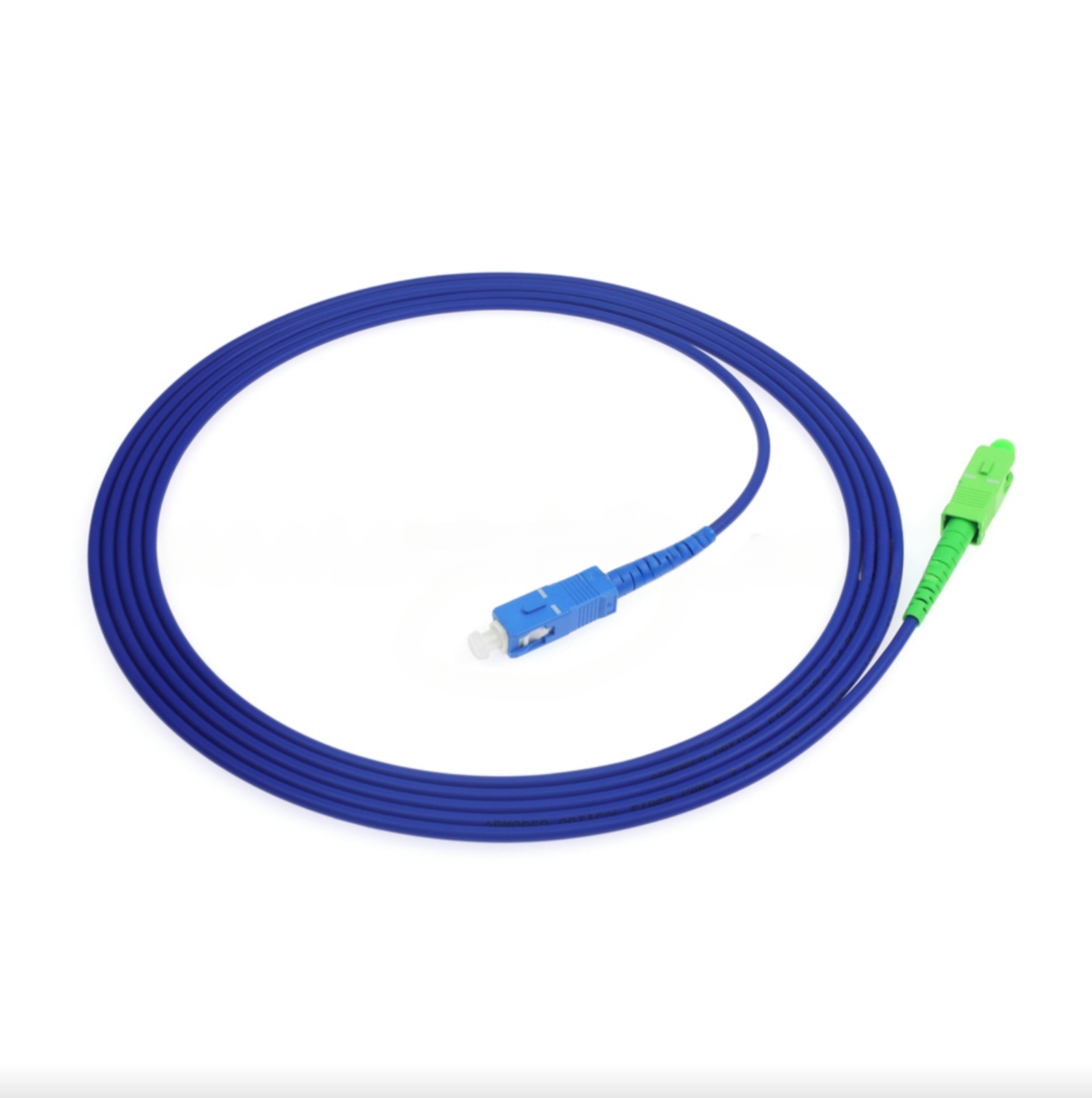

Fiber patch cables are terminated with state-of-the-art connectors available in any combination of ST, SC, and LC with PC, UPC, or APC polish types to meet your standard or custom configurations.
Features：
1). Low Insertion loss
2). High return loss
3). Good Repeatability
4). Good Interchange
5). Excellent Environmental Adaptability
APPLICATION:
1.FTTx Deployments(GPON/BPON/EPON)
2.CCTV/CATV Links
3.Access/Metro Networks
4.Long Haul Telecommunications
|
Product Name |
Fiber optic patch cable |
|
Connectors |
LC, SC, ST, FC, MU, DIN, D4, MPO, SC/APC, FC/APC, LC/APC, MU/APC |
|
Fiber |
Singlemode/Multimode 50/125, 62.5/125 (Multimode) OM2&OM1 50/125, 10G (Multimode) OM3 |
|
Cable |
Simplex, Duplex Φ3.0mm, Φ2.0mm, Φ0.9mm PVC or LSZH |
|
Polishing Manner |
UPC,SPC,APC (8°& 6°) |
|
Insertion Loss |
≤ 0.1dB (For Singlemode Master) ≤ 0.30dB (For Singlemode Standard) ≤ 0.30dB (For Multimode) Tested by JDS RM 3750 |
|
Return Loss (Singlemode) |
UPC ≥ 50dB SPC ≥ 55dB APC ≥ 60dB (typ.65dB) Tested by JDS RM3750 |
|
Repeatability |
±0.1dB |
|
Operating temperature |
-400C to 850C |
|
Geometry Requirement ( Singlemode) |
Ferrule Endface Radius 7mm ≤ R ≤ 12mm (For APC) 10mm ≤ R ≤ 25mm (For Standard) Apex Offset ≤ 30 μm (For Master) Apex Offset ≤ 50 μm (For Standard) Undercut -50nm ≤ U ≤ 50nm Tested by DORC ZX-1 |
Product list：
|
Boot |
Connector |
Fiber Type |
Cable number |
Ferrule |
Connector |
|
0.9mm 2.0mm 3.0mm |
LC FC SC ST MU D4 MTRJ MPO DIN
|
9/125um SM 50/125um MM 62.5/125um MM OM3 OM4 |
Simplex Duplex Multi-fiber Ribbon |
PC APC UPC |
1M 2M 3M4M 5M ......... Customized
|
