SOPO QSFP+ 100G optical transceiver is a compact, low profile, hot-pluggable transceiver used to connect switches, computers, and servers used for 100 Gigabit Ethernet (100GbE) data communications applications. Such as Data center, 40G Etherent, infiniband, and other communications standarsds. It’s designed according to QSFP+ Multi-source agreement and IEEE802.3ab.

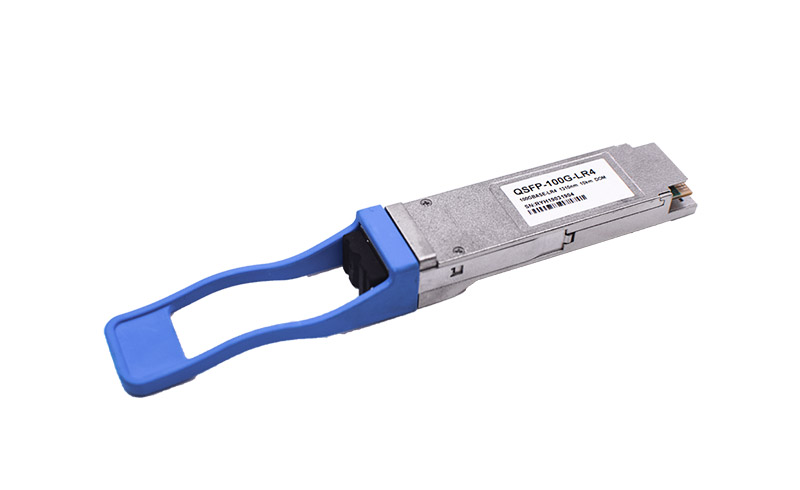

QSFP+ 100G Fiber Optical Transceiver
Features:
Hot-pluggable QSFP28 MSA form factor
Duplex LC receptacle optical interface
Single +3.3V power supply
AC coupling of CML signals
4x28G Electrical Serial Interface (CEI-28G-VSR)
Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
Receiver: 4x25Gb/s PIN ROSA
Low power dissipation (Max: 4W)
Built in digital diagnostic function
Operating case temperature range:0℃ to 70℃
Compliant with 100GBASE-LR4
I2C Communication Interface
Applications:
100GBASE-LR4
Infiniband QDR and DDR interconnects
100G Datacom connections
Specifications:
|
SOPO-QSFP-100G-SR4 |
|
|
Package |
QSFP28 |
|
PHY Type |
IEEE 802.3bm 100GBASE-SR4 |
|
Fiber Type |
Multi-mode |
|
Connector |
MPO/MTP |
|
Wavelength |
850nm |
|
Maximum Distance |
70m (OM3)/100m (OM4) |
|
Operating Temperature |
0~70 degrees C |
|
SOPO-QSFP-100G-LR4 |
|
|
Package |
QSFP28 |
|
PHY Type |
IEEE 802.3bm 100GBASE-LR4 |
|
Fiber Type |
Single-mode |
|
Connector |
LC |
|
Wavelength |
1310nm |
|
Maximum Distance |
10km |
|
Operating Temperature |
0~70 degrees C |
Product list:
|
ordering information |
|
|
Part Number |
Product Description |
|
SOPO-QSFP-40G-SR4 |
QSFP+, 40Gb/s, 40GBASE-SR4, MMF, 850nm, 100M |
|
SOPO-QSFP-40G-LR4 |
QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM |
|
SOPO-QSFP-100G-SR4 |
QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 100M |
|
SOPO-QSFP-100G-LR4 |
QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM |
|
SOPO-QSFP-40G-IR4 |
QSFP+, 40Gb/s, 100GBASE-IR4, SMF, 1310nm, 2KM |
|
SOPO-QSFP-40G-IR4 |
QSFP+, 40Gb/s, 100GBASE-IR4, SMF, 1310nm, 10KM |
