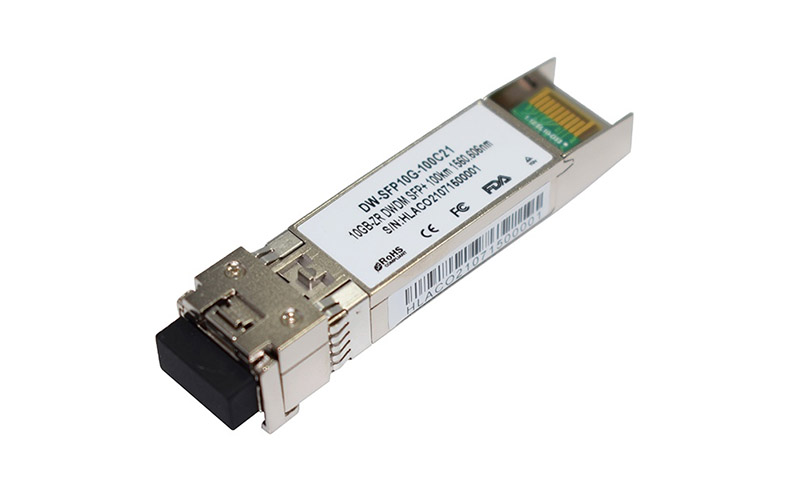

10G SFP+ Transceiver

CWDM SFP+ transceiver is small form factor pluggable module for bi-directional serial optical data communications such as IEEE 802.3ae 10GBASE-LR/LW/ER/ZR. It is with the SFP 20-pin connector to allow hot plug capability. Digital diagnostic functions are available via an I2C. This module is designed for single mode fiber and operates at a nominal wavelength of CWDM wavelength. There are 18 center wavelengths available from 1270 nm to 1610 nm, with each step 20 nm. A guaranteed minimum optical link budget of 14 dB is offered. The transmitter section uses a CWDM multiple quantum well DFB/EML laser and is a class 1 laser compliant according to International Safety Standard IEC-60825. The receiver section uses an integrated InGaAs detector preamplifier (IDP) mounted in an optical header and a limiting post-amplifier IC.

10G SFP+ Transceiver

Feature:

· Up to 10.5 Gb/s Bi-directional Data Links

· Can be used with single fiber CWDM system or dual fiber CWDM system

· 10Gb Ethernet

· 2G/4G/8G/10G Fibre Channel compliance

· Complaint to SFP+ MSA

· Compliant to IEEE 802.3ae 10GBASE

· Maximum Link Length of 80 km at 10.3125Gb/s

· Uncooled 18-λ CWDM DFB/cooled EML LD: from 1270 nm to 1610 nm

· Power Budget up to 10dB, 14dB, 16dB, 23 dB

· SFF-8472 Digital Diagnostic Function

· AC/AC Coupling according to MSA

· Single +3.3 V Power Supply

· RoHS 6/6 Compliant

· Class 1 Laser International Safety Standard IEC-60825 Compliant

Application:

· 10GBASE-SR, LR, ER, ZR, ZX at 10.31Gbps

· 10GBASE-LW at 9.95Gbps

· 1000 Base-LX Ethernet

· 8XFC at 8.5Gbps

· 4XFC at 4.25Gpbs

· 2XFC at 2.125Gpbs

· 1xFC at 1.0625Gbps

· Other optical links

Order Information:

Part No.	Data Rate	distance	wavelength	LD	PD	Connector	DDM
PPC-XX96-10BD	10G	40km	CWDM(1270-1330nm)	DFB	PIN	LC	Y
PPC-XX96-80BD	10G	80km	CWDM(1470-1610nm)	EML	APD	LC	Y

Part No.	Data Rate	distance	wavelength	LD	PD	Connector	DDM
FYPPD-XX96-80BD	10G	80km	DWDM(ITU Grid 17~61)	EML	APD	LC	Y
FYPPD-XX96-40BD	10G	40km	DWDM(ITU Grid 17~61)	EML	PIN	LC	Y

Part No.	Data Rate	distance	wavelength	LD	PD	Connector	DDM
PPB-273396-20BD	10G	20km	T1330/R1270	DFB	PIN	LC	Y
PPB-273396-40BD	10G	40km	T1330/R1270	DFB	PIN	LC	Y
PPB-273396-60BD	10G	60km	T1330/R1270	DFB	PIN	LC	Y

Part No.	Data Rate	distance	wavelength	LD	PD	Connector	DDM
PP-1596-40BD	10G	40km	1550nm	EML	PIN	LC	Y
PP-1396-10BD	10G	10km	1310nm	DFB	PIN	LC	Y
PP-8596-80BD	10G	80km	855nm	VCSEL	PIN	LC	Y
PP-1596-80BD	10G	80km	1550nm	EML	APD	LC	Y
