SOPO QSFP+ 40G optical transceiver is a compact, low profile, hot-pluggable transceiver used to connect switches, computers, and servers used for 40 Gigabit Ethernet (40GbE) data communications applications. Such as Data center, 40G Etherent, infiniband, and other communications standarsds. It’s designed according to QSFP+ Multi-source agreement and IEEE802.3ab.

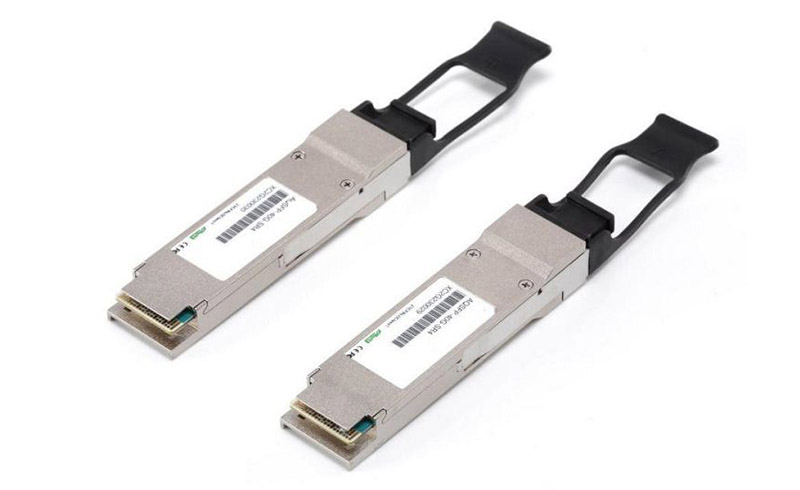

QSFP+ 40G Fiber Optical Transceiver
Features:
Hot-pluggable QSFP+ form factor
Supports 41.2 Gb/s aggregate bit rates
Power dissipation < 2.5W
RoHS-6 compliant
Commercial case temperature range: 0°C to 70°C
Single 3.3V power supply
Maximum link length of 2km on Single Mode Fiber (SMF)
Uncooled 4x10Gb/s CWDM transmitter
XLPPI electrical interface
Duplex LC receptacles
Built-in digital diagnostic functions, including Tx/Rx power monitoring
Specification:
SOPO-QSFP-40G-SR4
Package
QSFP+
PHY Type
IEEE 802.3ba 40 Gigabit Ethernet Standard
Fiber Type
Multi-mode
Connector
MPO/MTP
Wavelength
850nm
Maximum Distance
100m(OM3)/150m (OM4)
Operating Temperature
0~60 degrees C
SOPO-QSFP-40G-LR4
Package
QSFP+
PHY Type
IEEE 802.3ba 40 Gigabit Ethernet Standard
Fiber Type
Single-mode
Connector
LC
Wavelength
1310nm
Maximum Distance
10km
Operating Temperature
0~60 degrees C
Product list:
|
ordering information |
|
|
Part Number |
Product Description |
|
SOPO-QSFP-40G-SR4 |
QSFP+, 40Gb/s, 40GBASE-SR4, MMF, 850nm, 100M |
|
SOPO-QSFP-40G-LR4 |
QSFP+, 40Gb/s, 40GBASE-LR4, SMF, 1310nm, 10KM |
|
SOPO-QSFP-100G-SR4 |
QSFP+, 100Gb/s, 100GBASE-SR4, MMF, 850nm, 100M |
|
SOPO-QSFP-100G-LR4 |
QSFP+, 100Gb/s, 100GBASE-LR4, SMF, 1310nm, 10KM |
|
SOPO-QSFP-40G-IR4 |
QSFP+, 40Gb/s, 100GBASE-IR4, SMF, 1310nm, 2KM |
|
SOPO-QSFP-40G-IR4 |
QSFP+, 40Gb/s, 100GBASE-IR4, SMF, 1310nm, 10KM |
