Multi-application distribution optic fiber cable- Micro cluster armored optical cable uses multiple optical fibers to coat and extrude flame-retardant micro-cluster optical fibers as the optical transmission medium, bundling in stainless steel spiral armored tubes, and covered with full-dielectric strength member yarn as the strength unit, the outer jacket layer of OFNR/OFNP or CPR-DCA/CCA/BCA material. Fiber optic cables are designed for use in plenum, riser, and general-purpose enviroments for intrabuilding backbone and horizontal installations. These multifiber cables use individually jacketed TBII Buffered fiber enabling easy, consistent stripping and facilitating termination. The fiber is grouped into jacketed subunits and surrounded by a dielectric central member. The core is protected by a flexible, spirally wrapped, armor that offers easy, one-step installation and over seven times the crush protection of unarmored cable. With a flame-retardant outer jacket, this cable is particularly useful for heavy traffic or more challenging mechanical exposure conditions and applications requiring extra rugged cables.

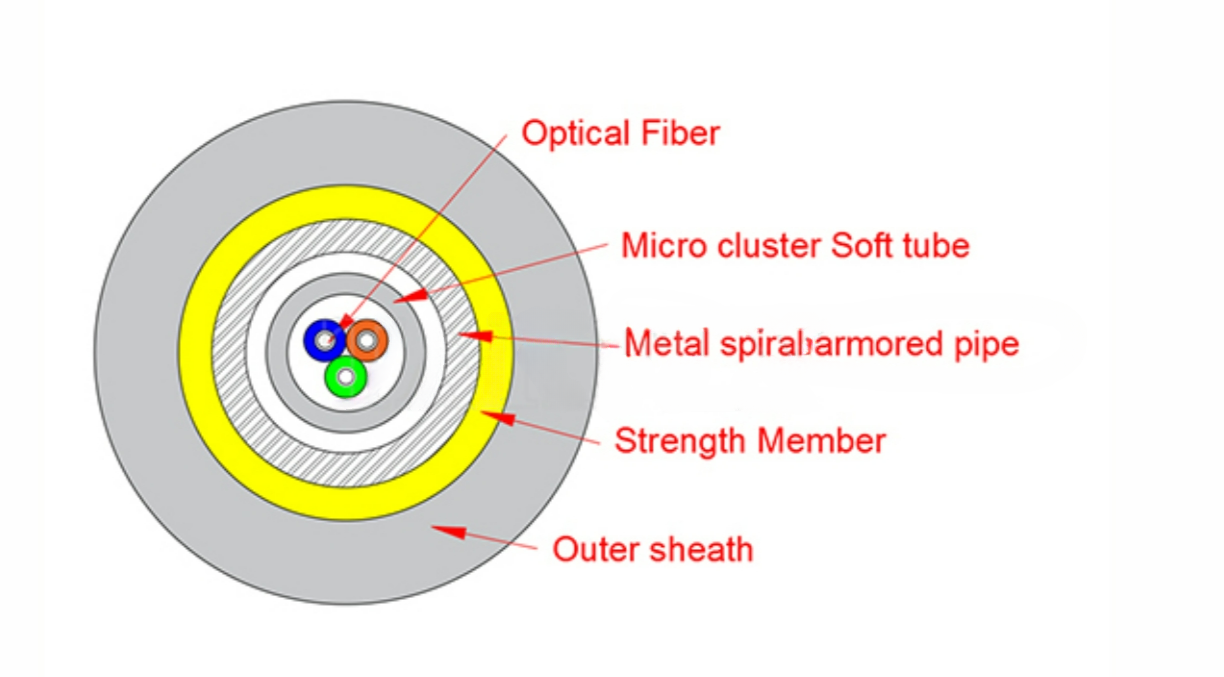

Structure Diagram

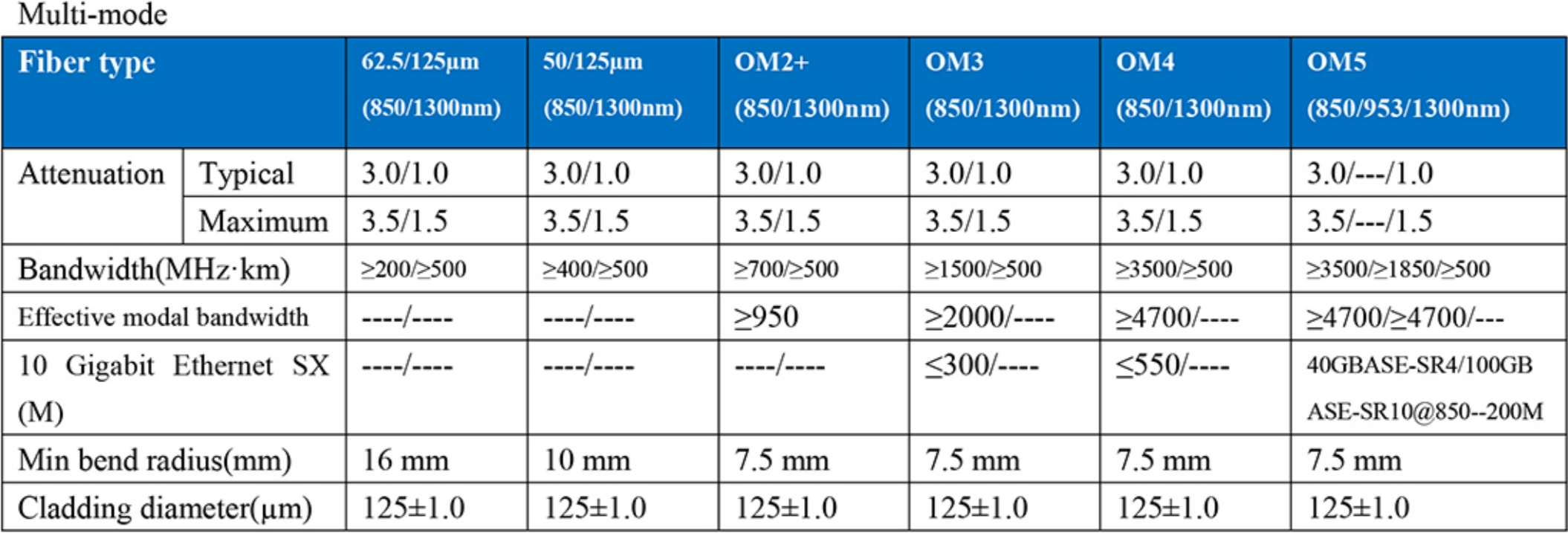

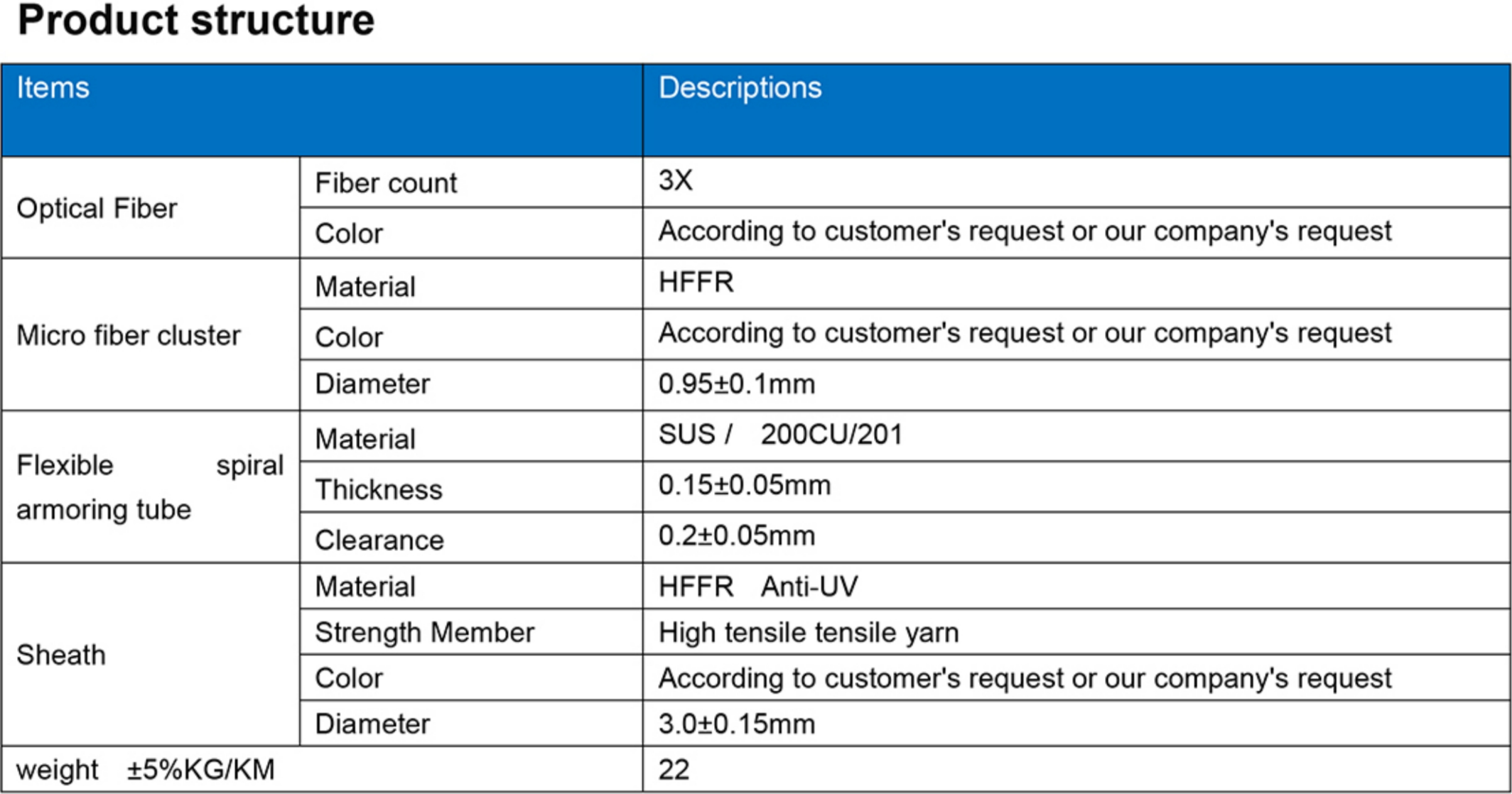

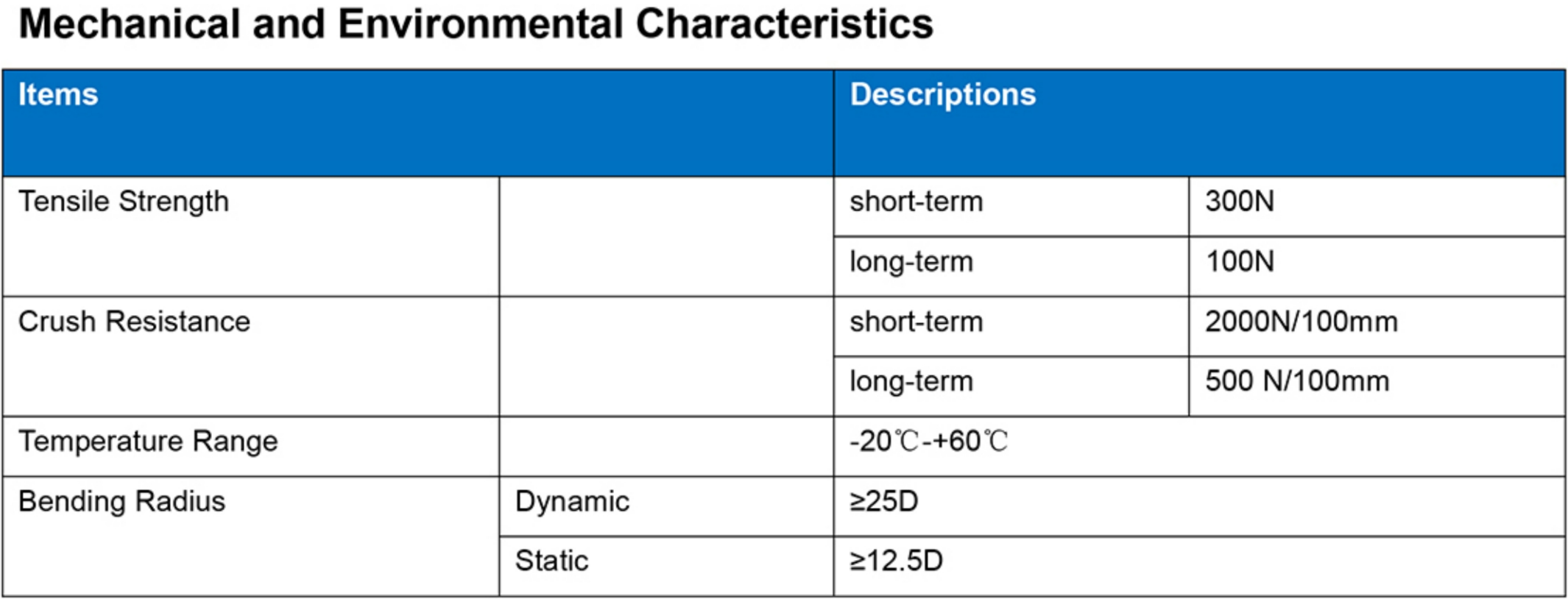

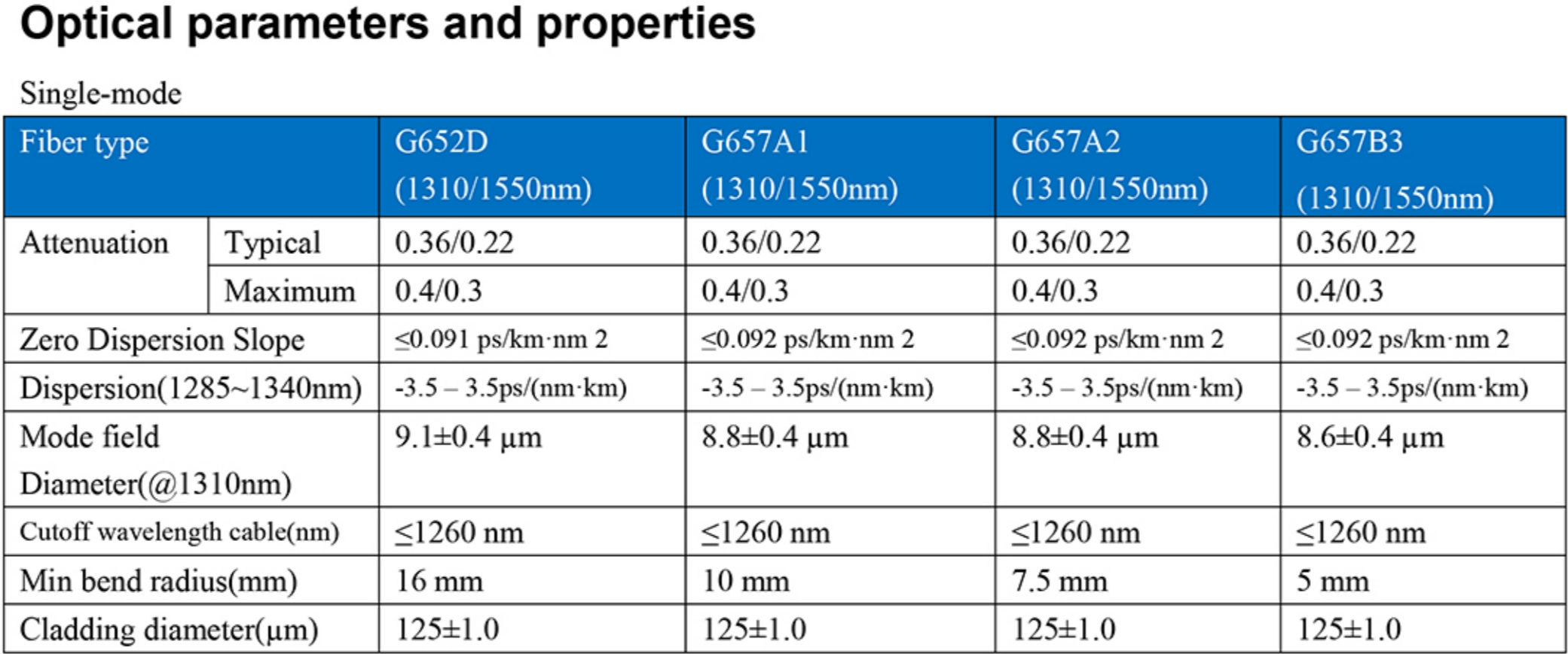

Parameter:
