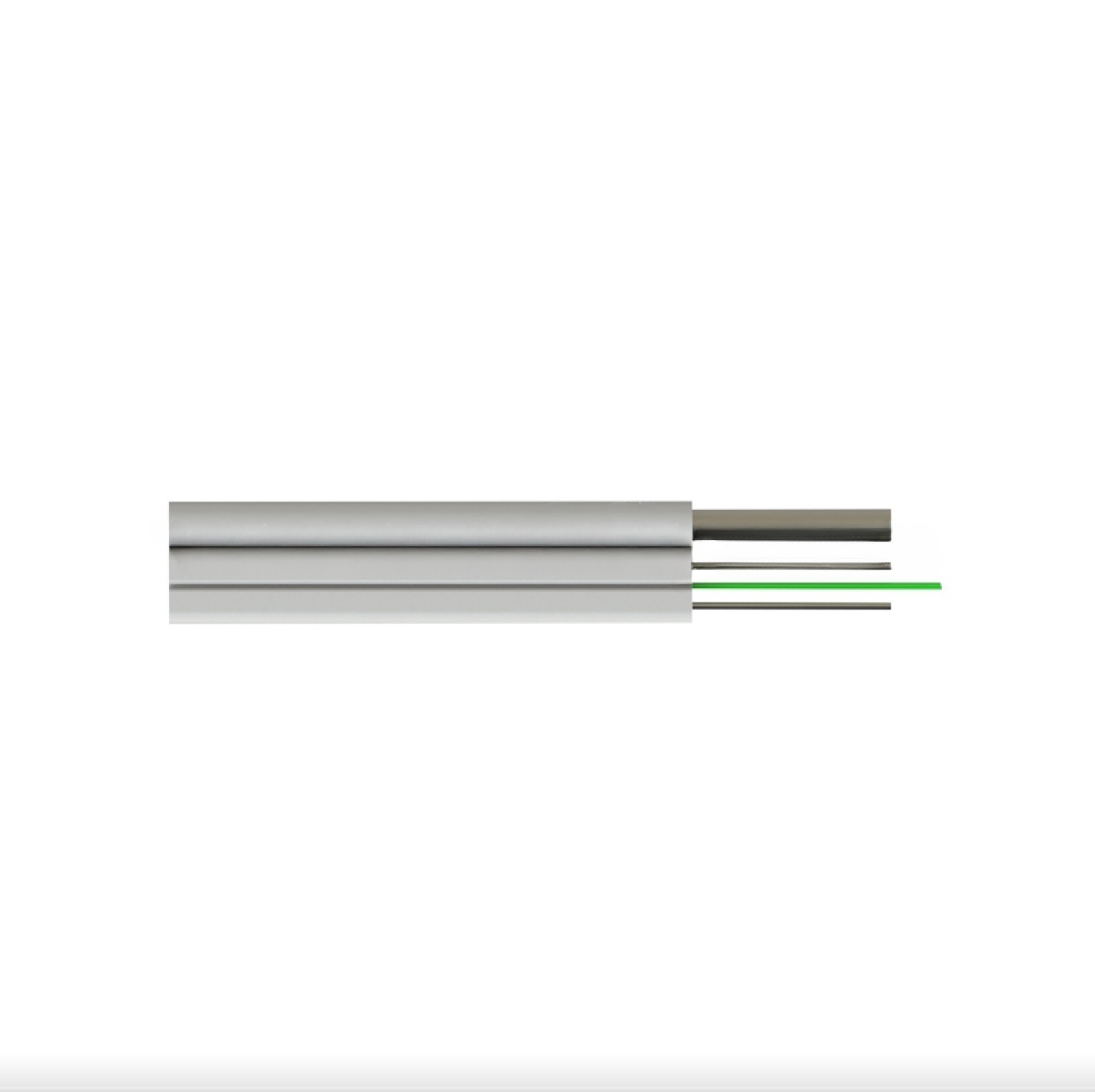

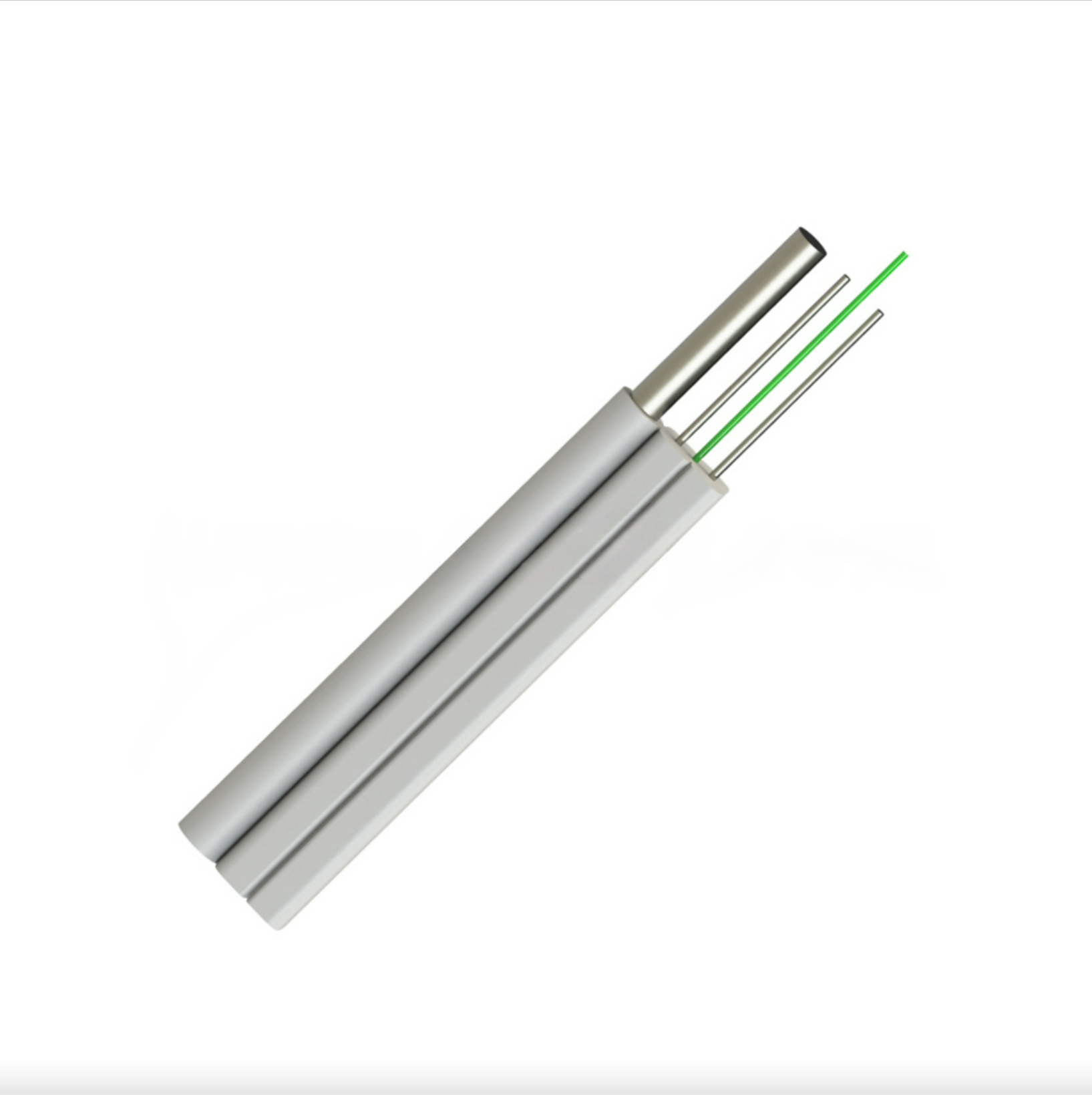

The self-supporting bow-type drop cable is to place optical fiber unit in the center, and place two parallel non-metallic or metal reinforcing elements on both sides, then add a large metal reinforcing element on the outside, finally extrude the flame retardant material sheath.

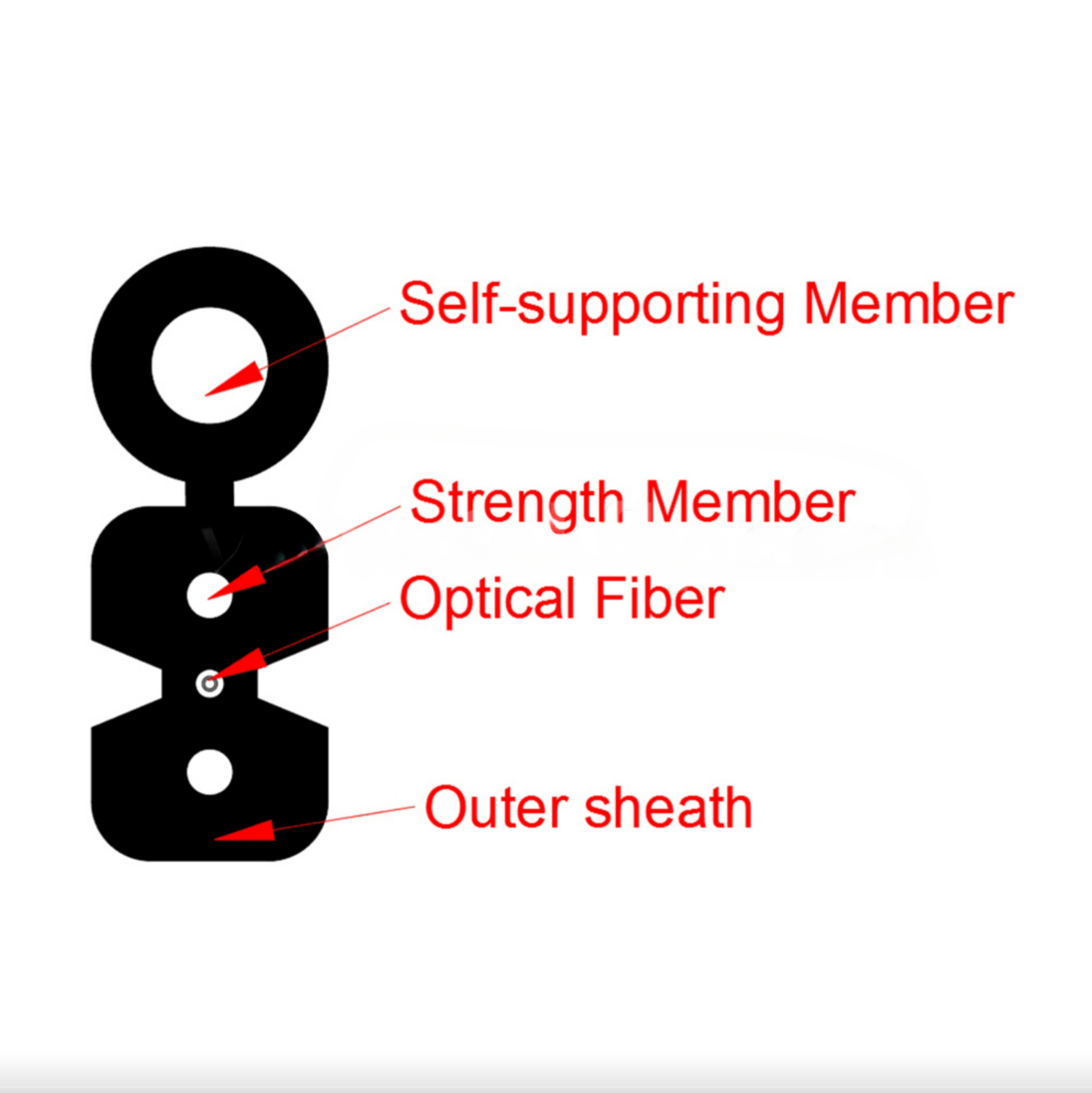

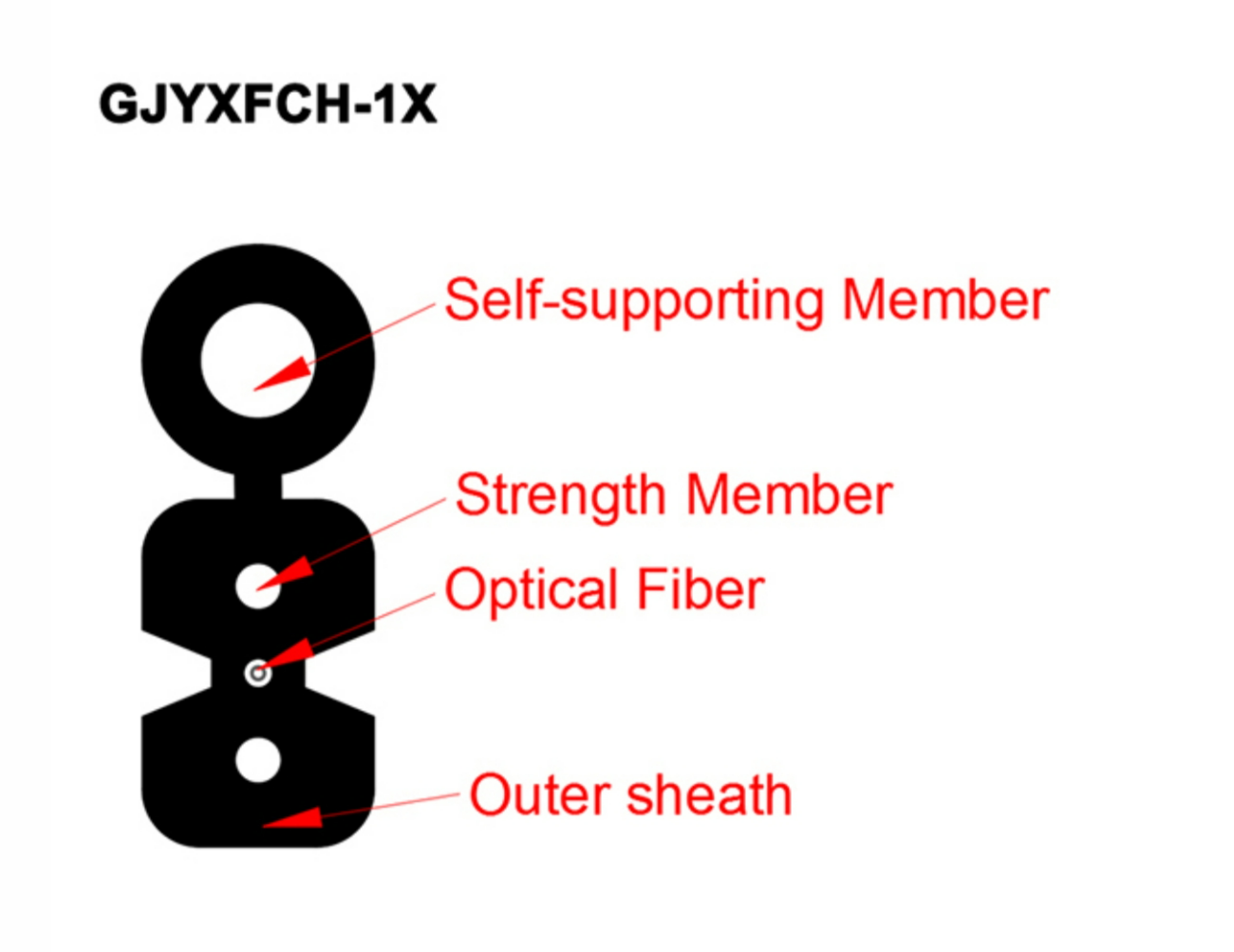

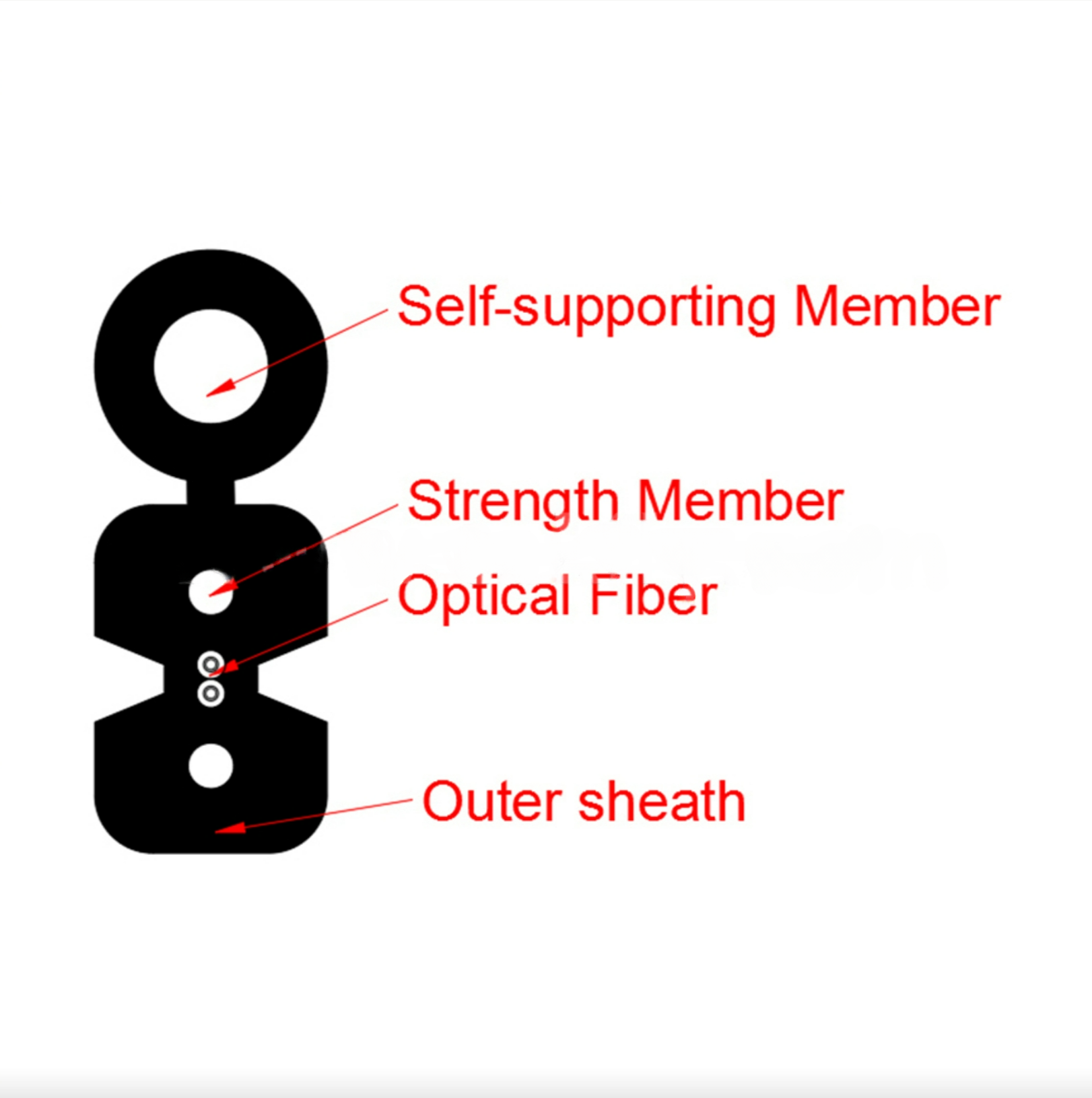

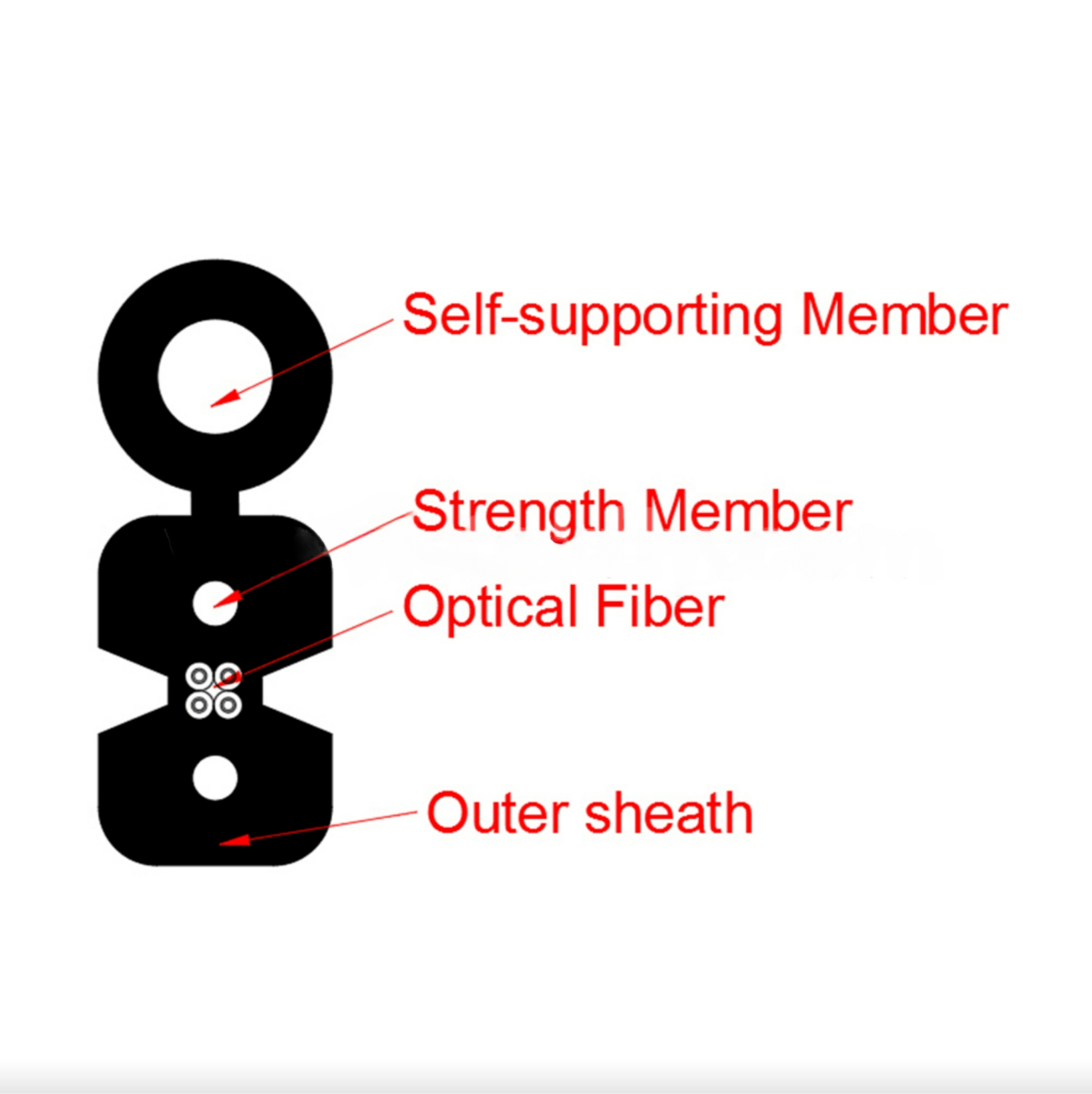

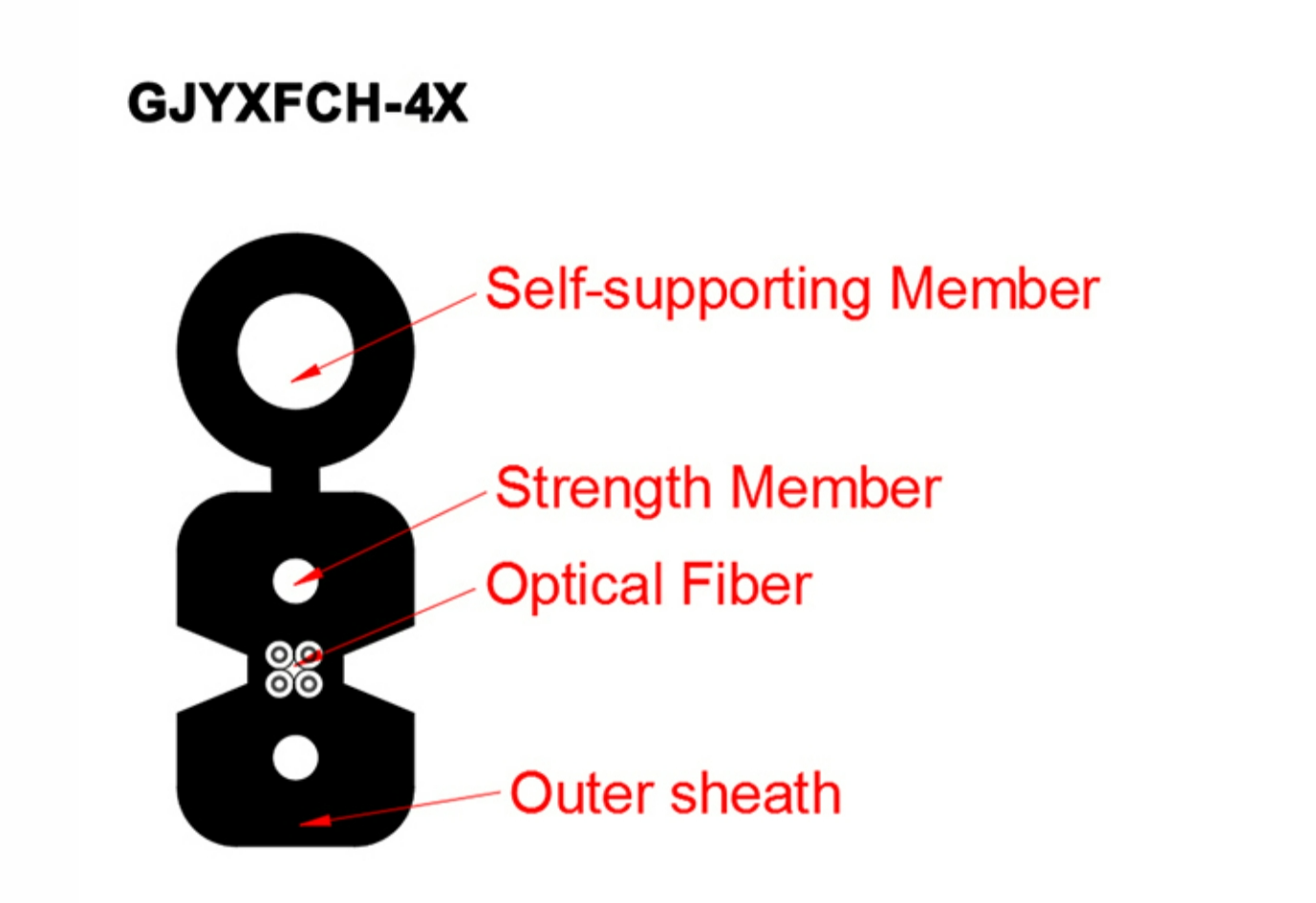

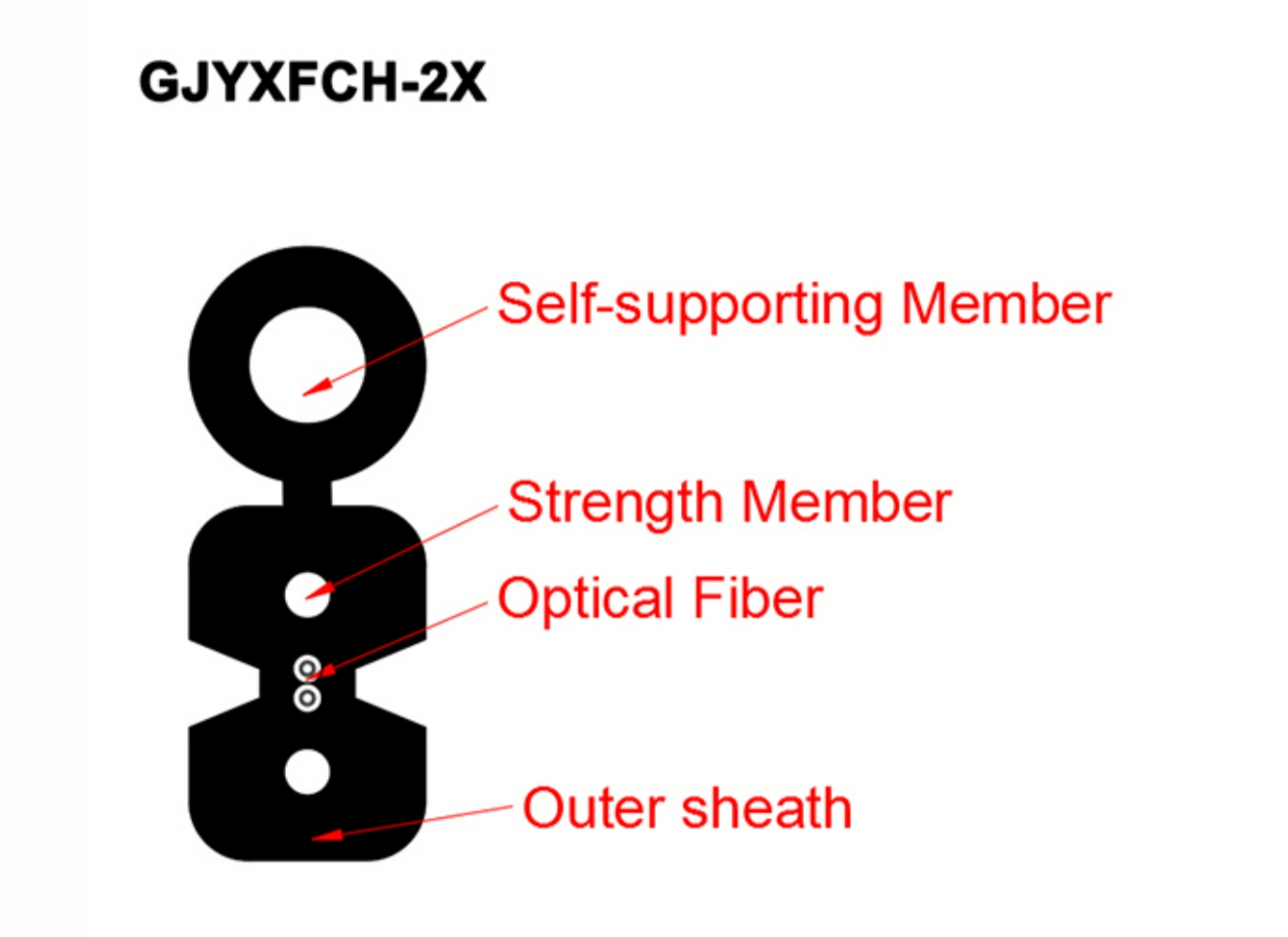

Structure Diagram

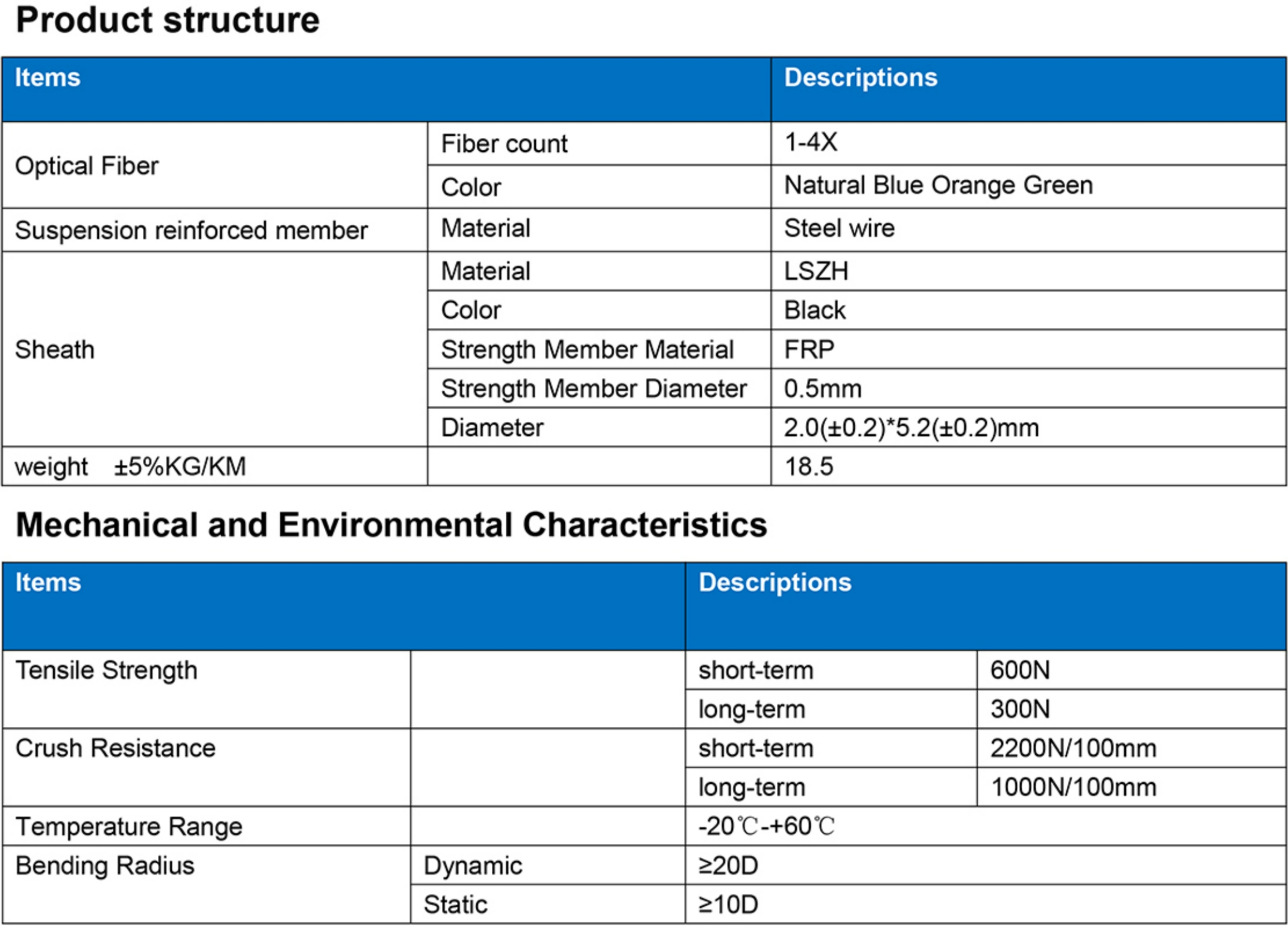

Parameter

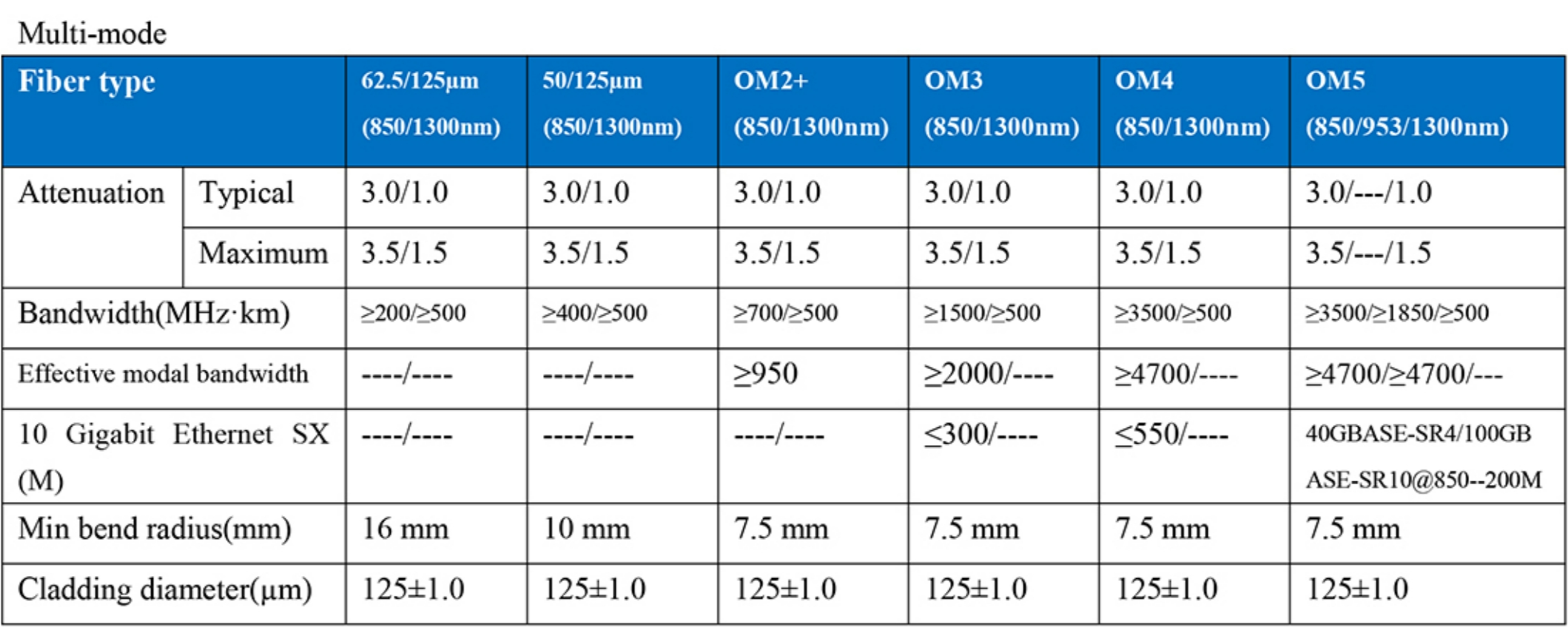

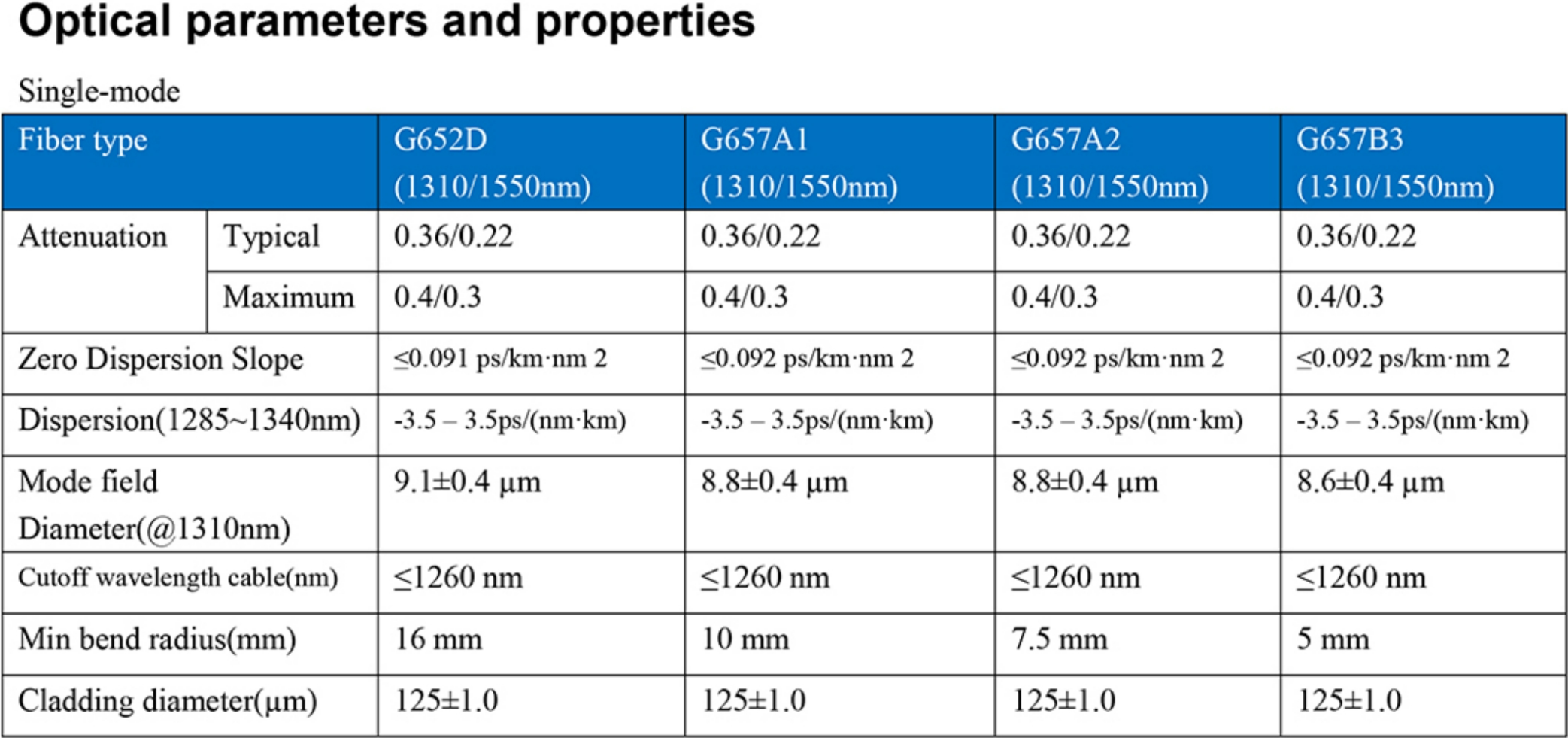

Optical parameters and properties
Application:
This fiber optic cable is used for multi-directional signal transmission between instruments or communication equipment.
It is mainly used to solve the cabling problem about the last 1km of the FTTH home segment, access network, fiber-to-the-home,
and support the integration of broadband, cable TV and telephone, high broadband, easily up to 100 megabytes, the grid structure is flexible.
