The access network flat indoor and outdoor optical drop cable structure is to put optical fiber into a loose tube made of high-modulus plastic and filled with a waterproof compound, and place two GFRPs in parallel in the loose tube, then the polyethylene outer sheath is extruded to add an independent electrical unit.

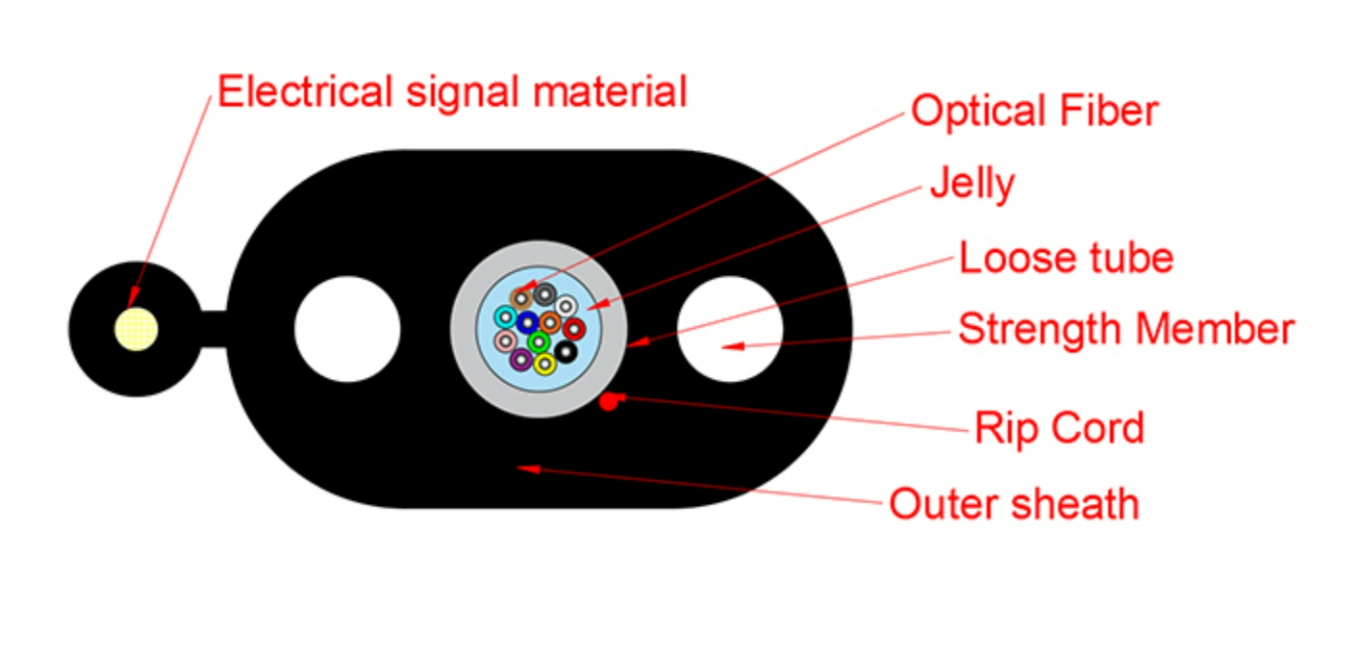

Structure Diagram

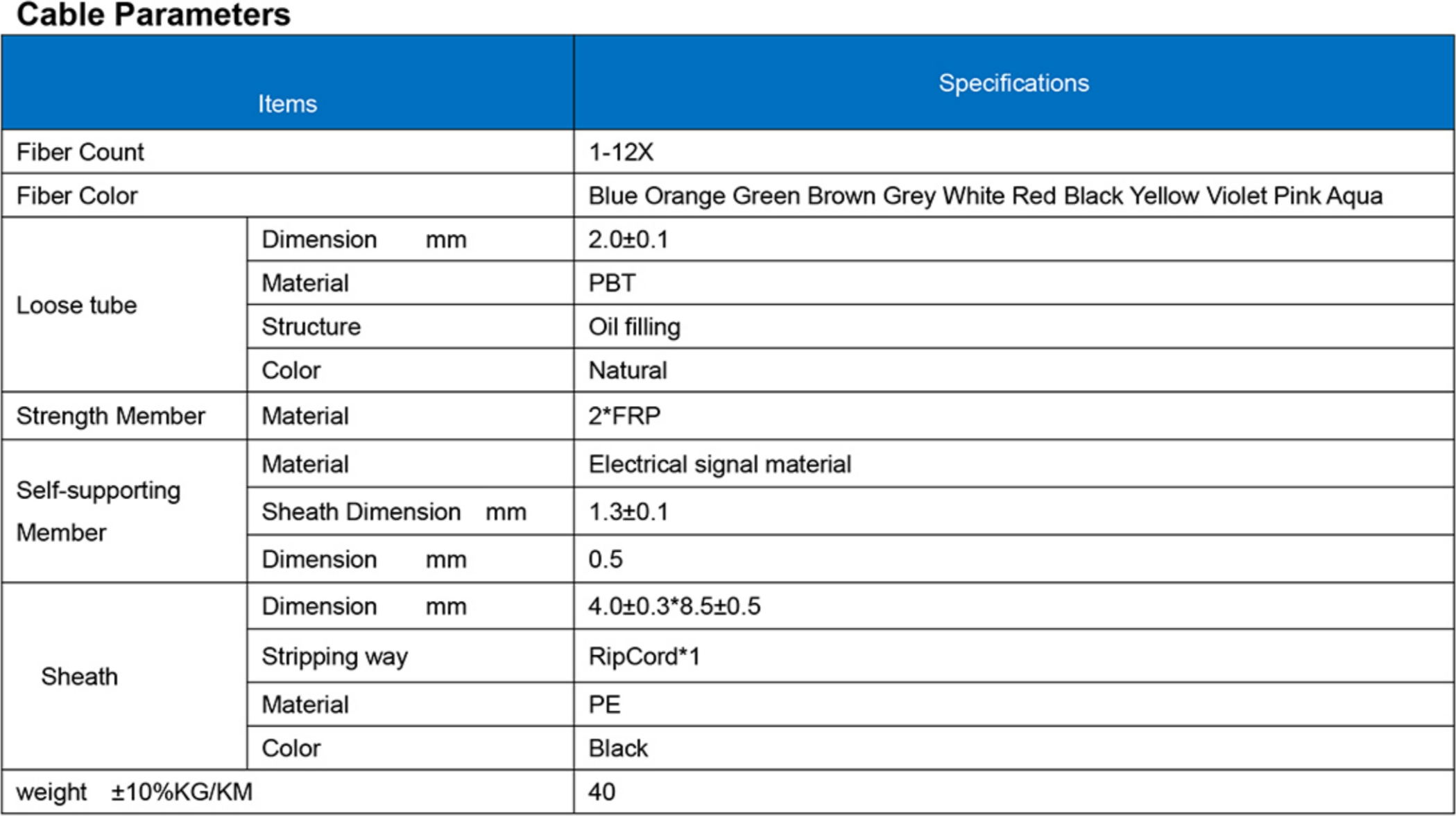

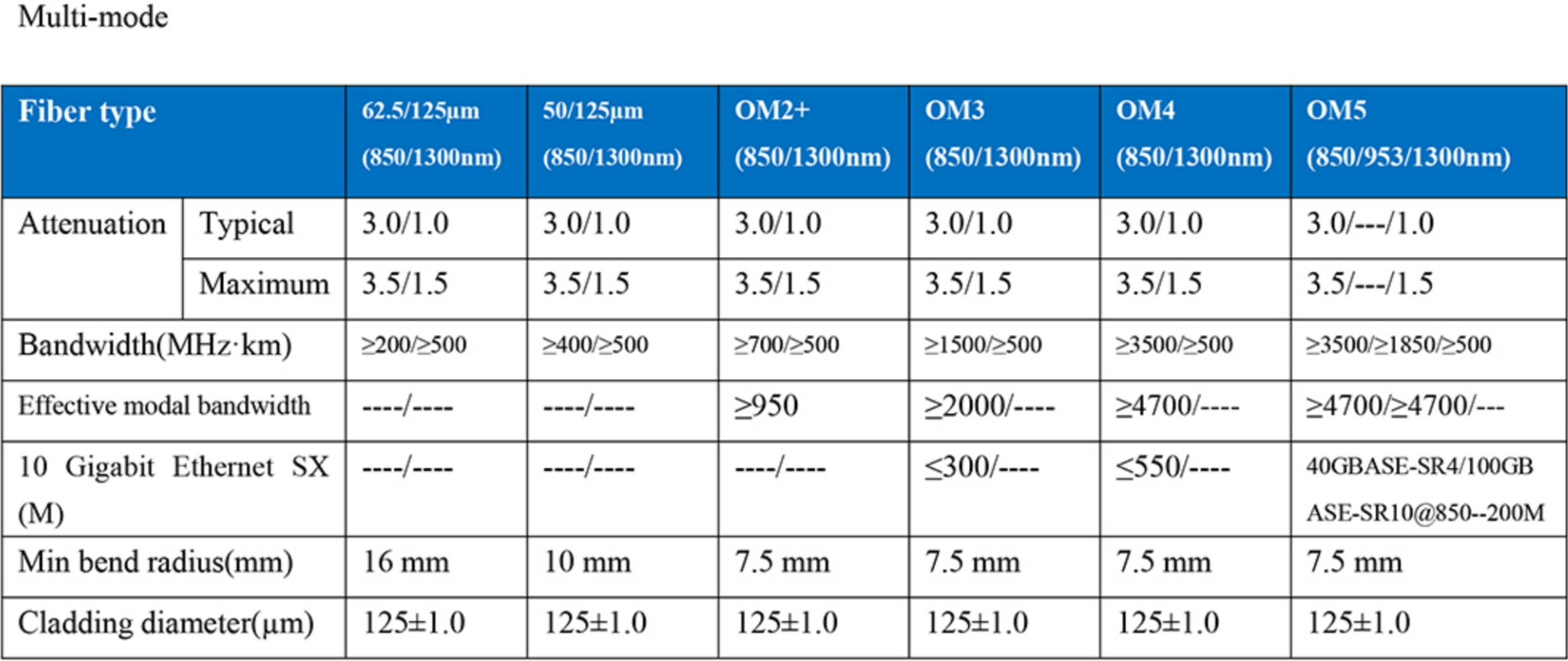

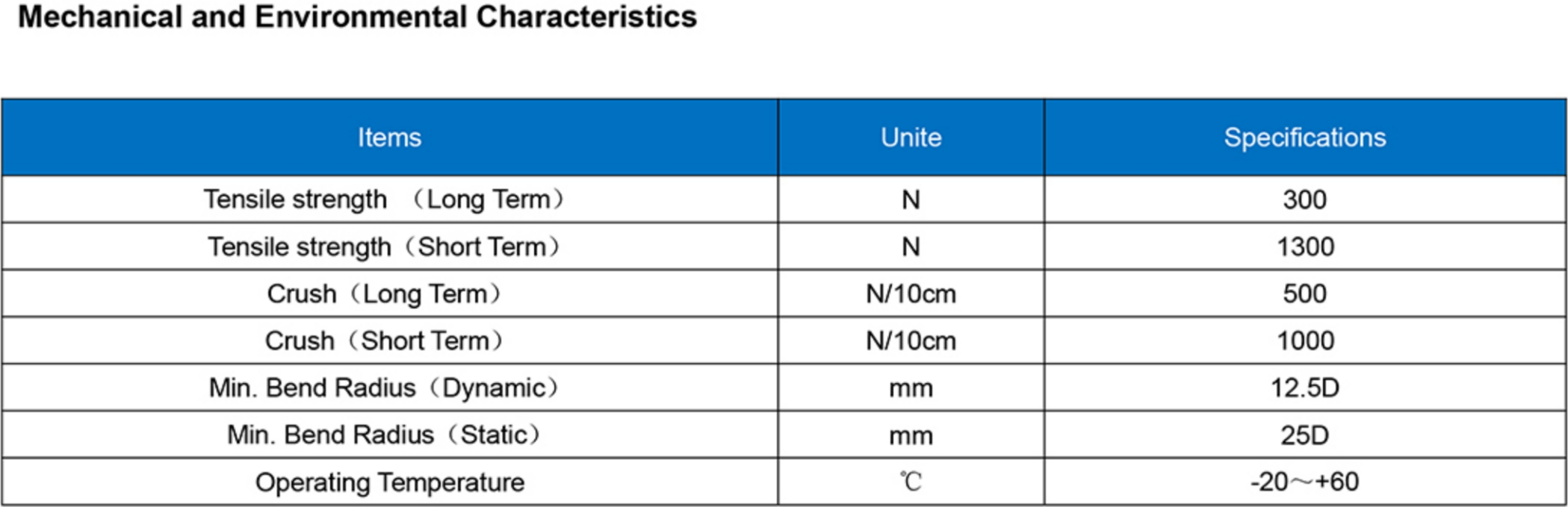

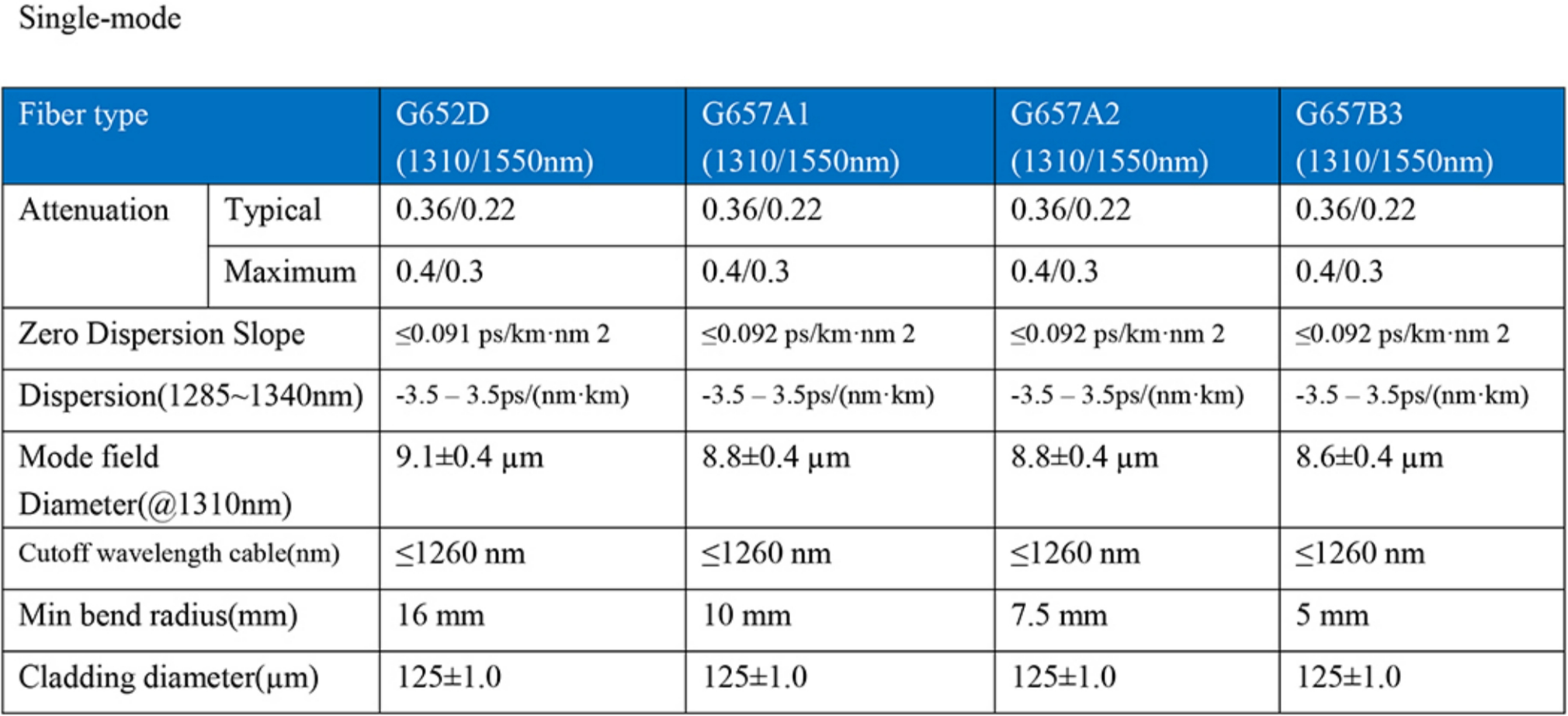

Parameter:
Application:
This optical cable is suitable for small-span self-supporting overhead, mainly used to solve the cabling problem about the last 1km of the FTTH entry section.
The solution is Drop FTTP, SST-Drop, Flat-Drop, Track the cables, suitable for base station introduction.
