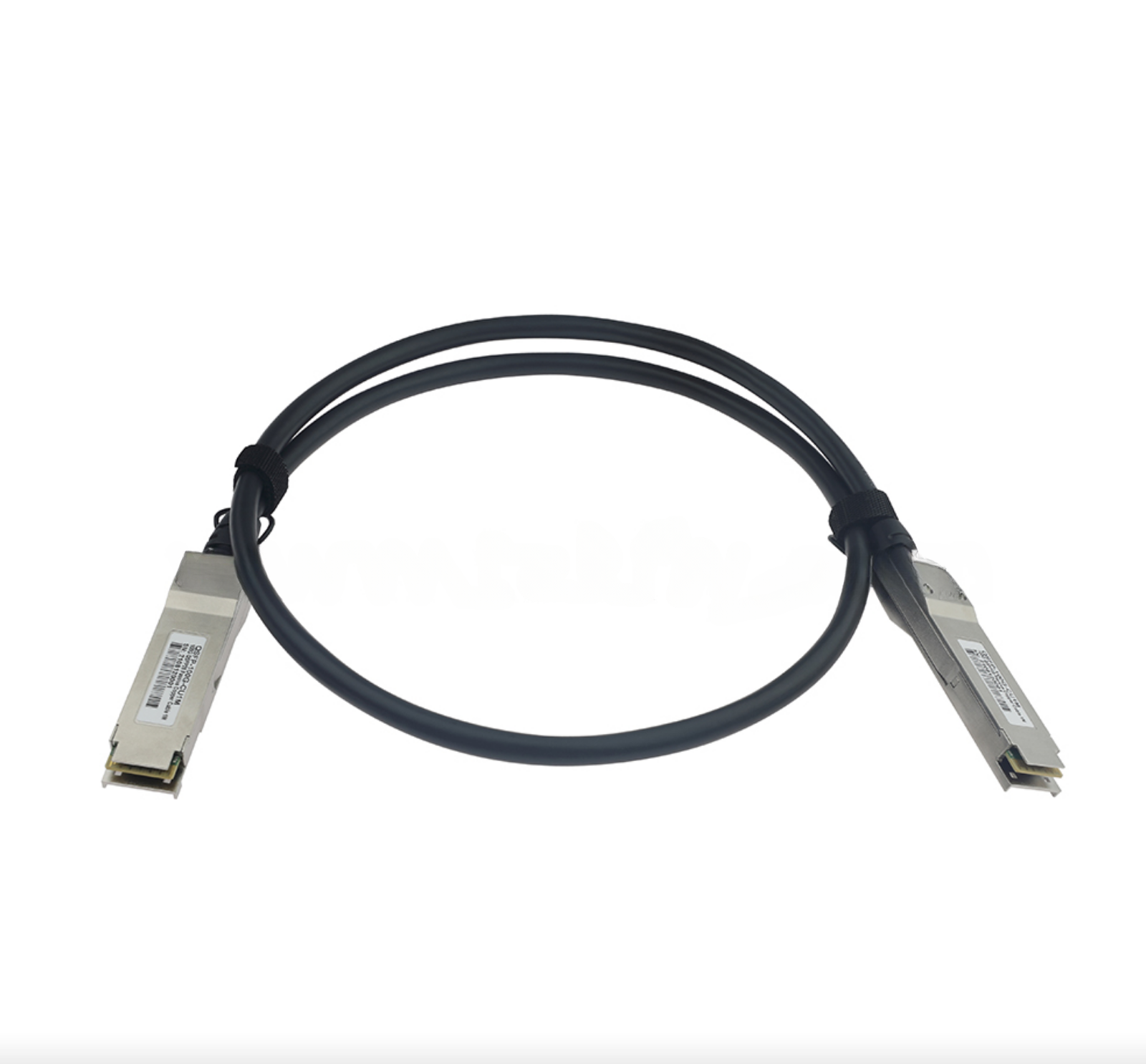

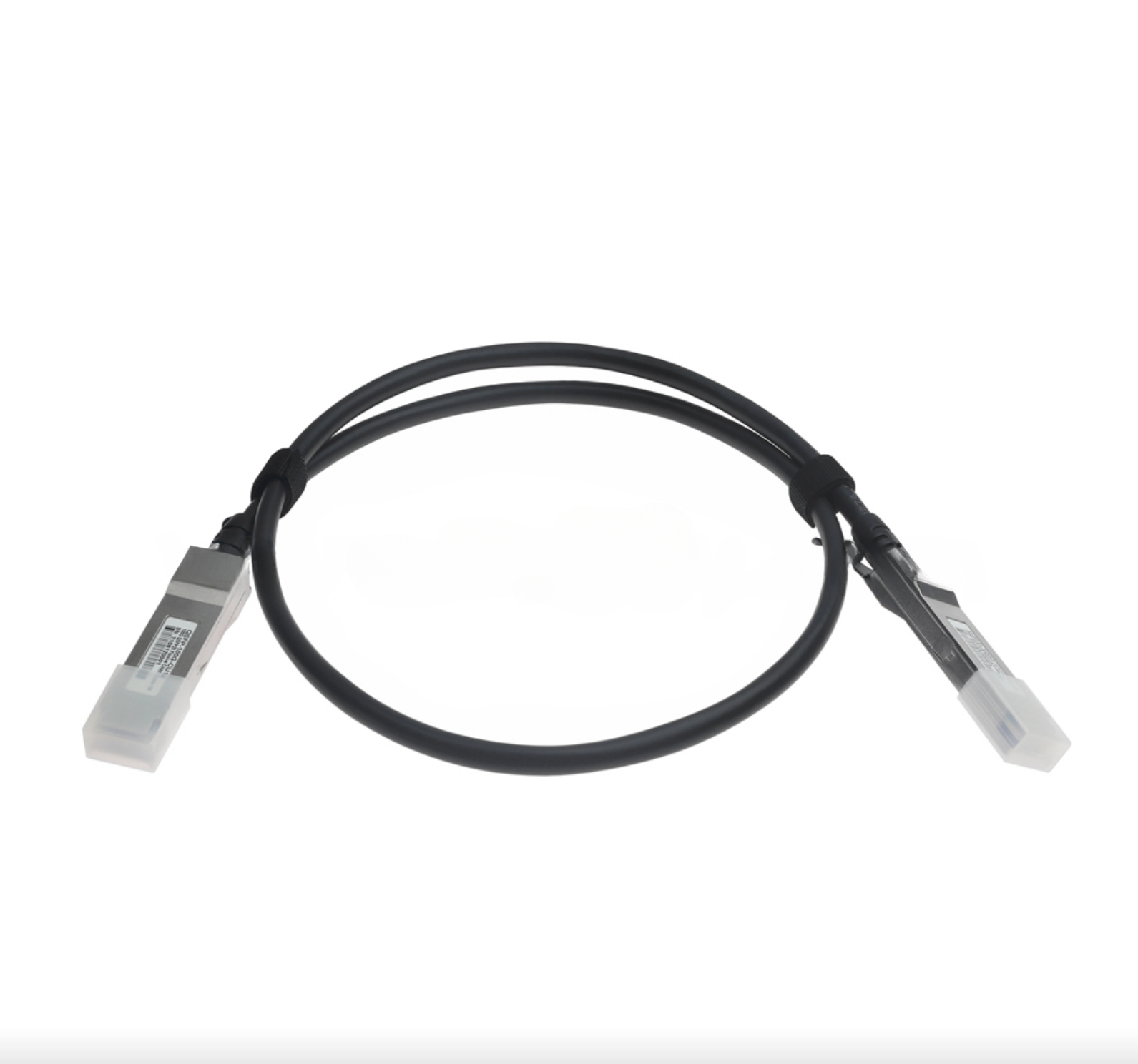

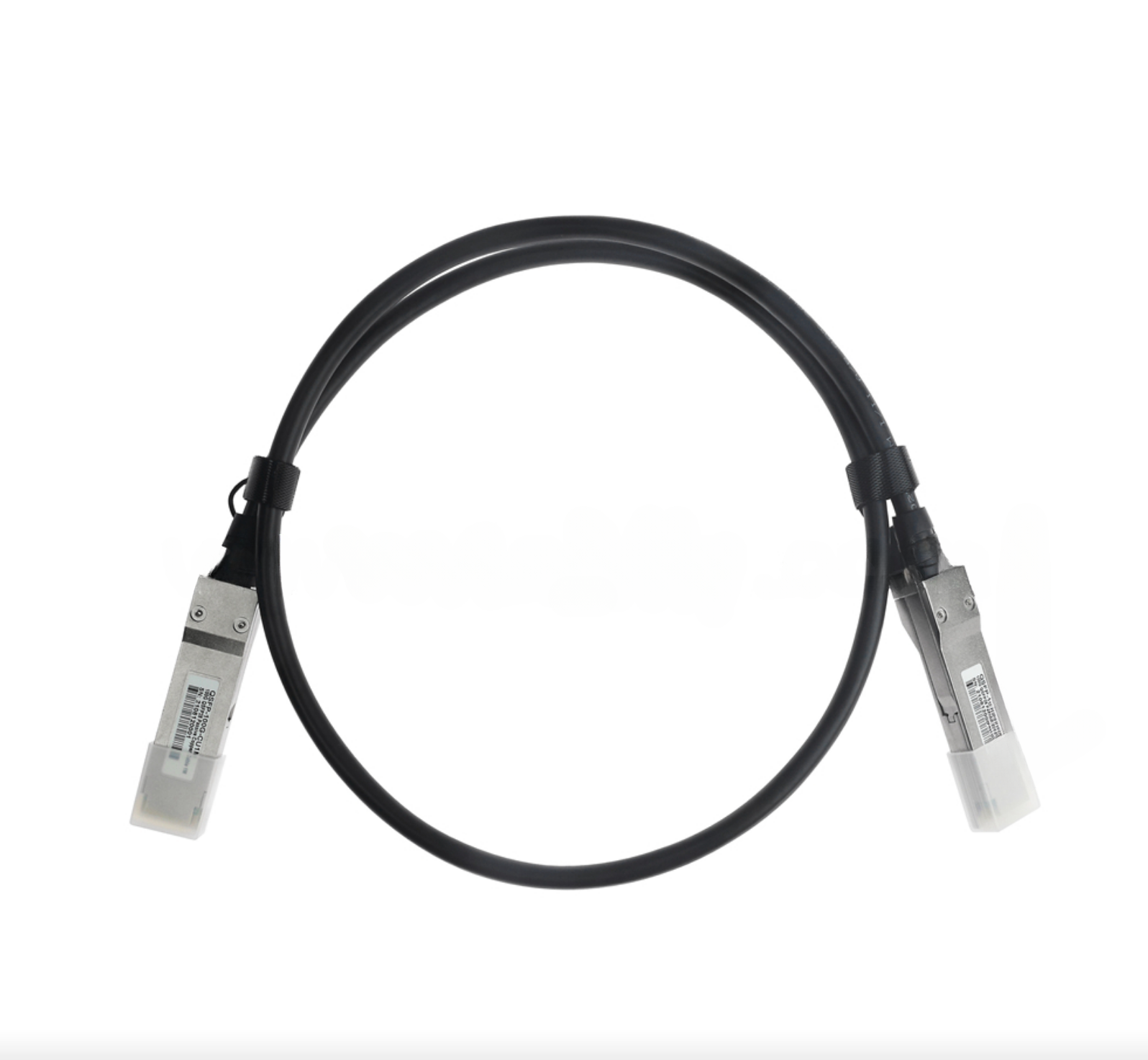

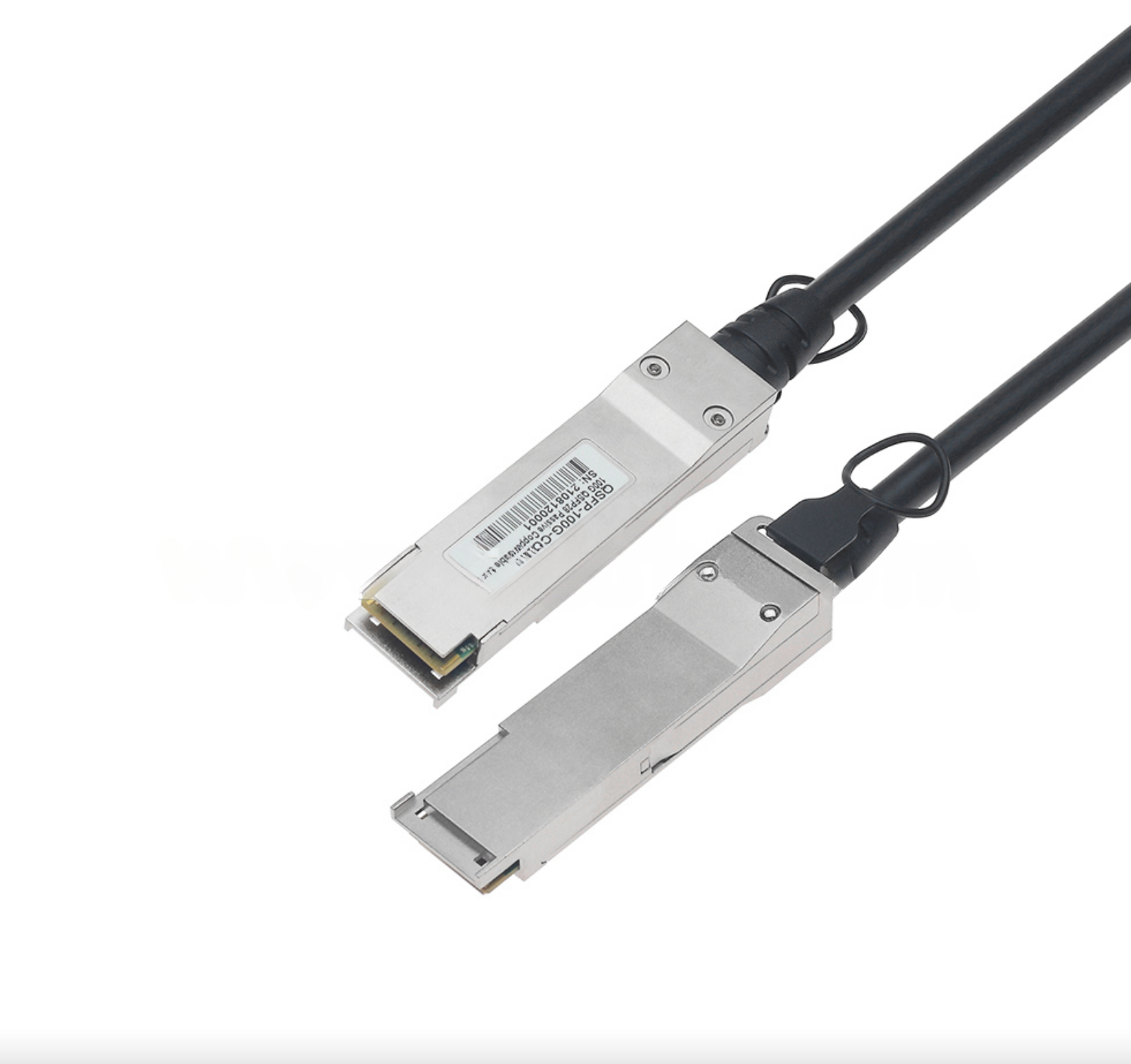

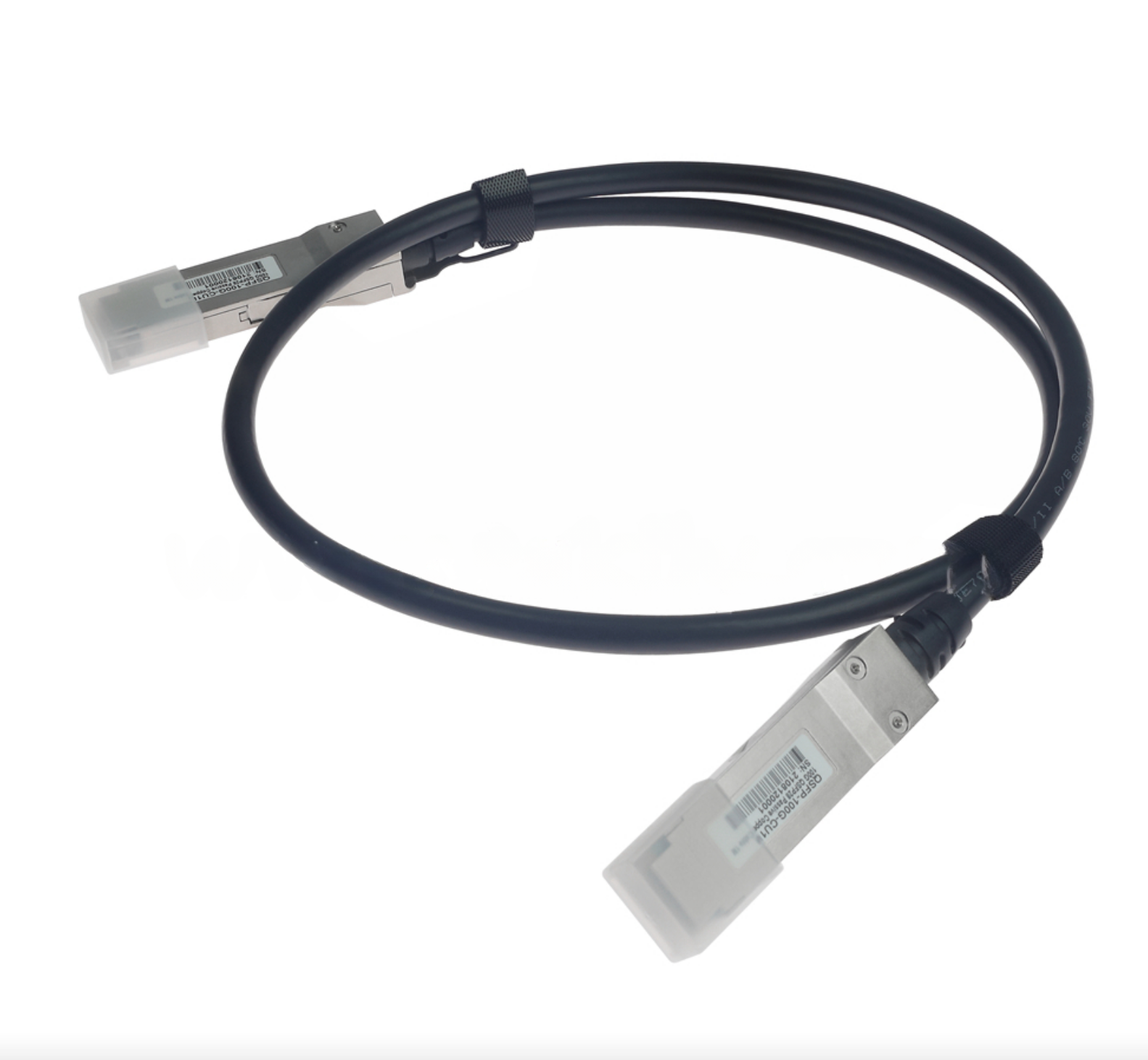

100G QSFP28 Direct Attach Passive Copper Cables


The 100G QSFP28 passive cable assembly products, based on 4 x25G or 4 x28G structure, the product can well satisfy the next generation 100G switches, servers, routers and other products of application requirements.QSFP28 cable adopts optimized design to reduce crosstalk and insertion loss, excellent signal integrity, fully conforms to the next generation 100G Ethernet and Infiniband EDR standards.

Features:

4-channel full-duplex passive copper cable



Data rate up to 100Gbps (4x 25Gbps)



SFF-8665 compliant QSFP28 connectors



SFF-8636 compliant I2C management interface



IEEE 802.3bj 100GBASE-CR4 compliant



Copper link length up to 5m (passive limiting)



Hot Pluggable



Low power consumption



Excellent signal integrity, low insertion loss and low crosstalk



Operating case temperature range: 0°C to +70°C



Single 3.3V supply voltage



RoHS compliant





Application:

100G Ethernet 100GBASE-CR4

InfiniBand 4x EDR

SAS, servers, hubs, switches and routers

Data Center
