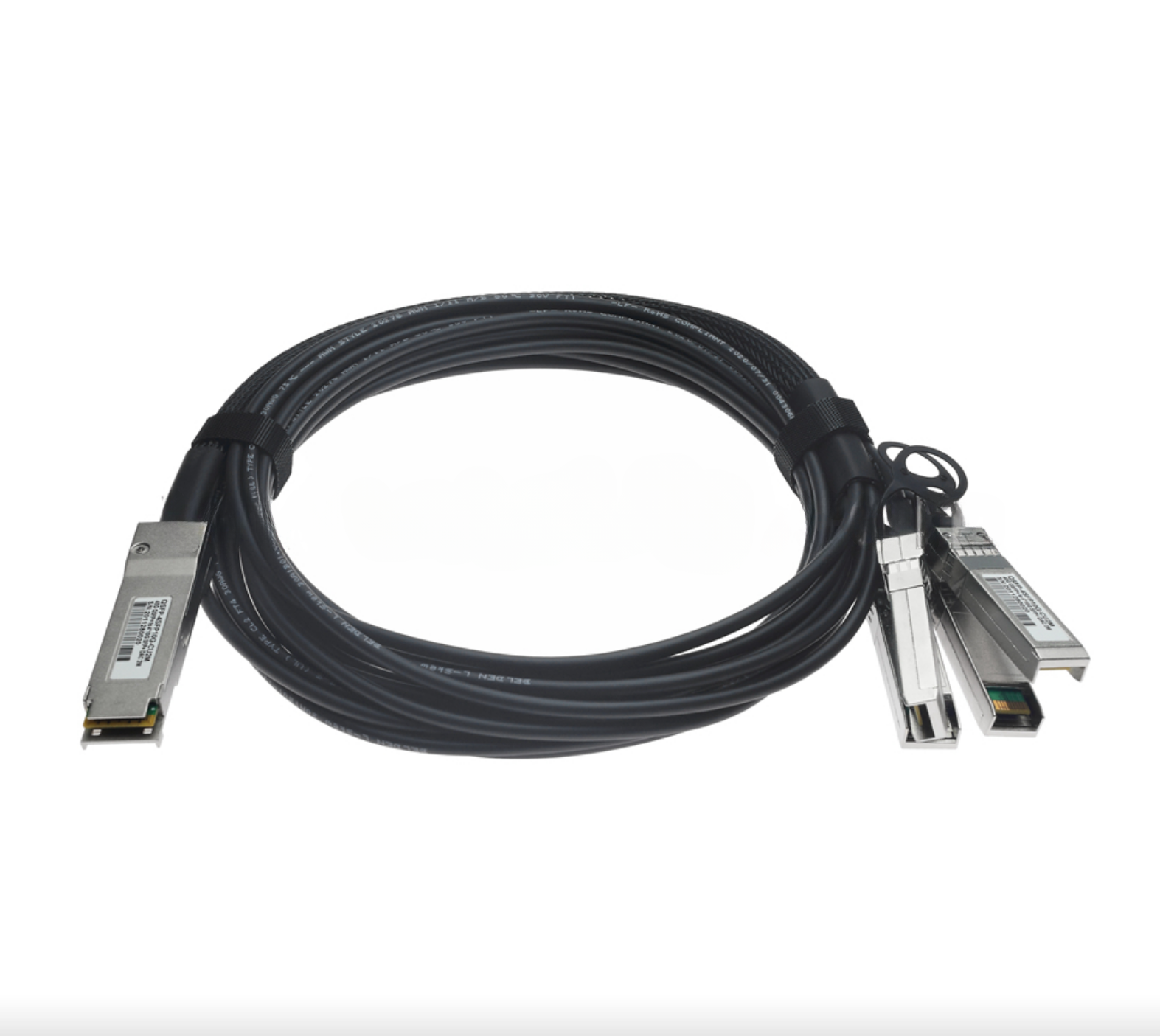

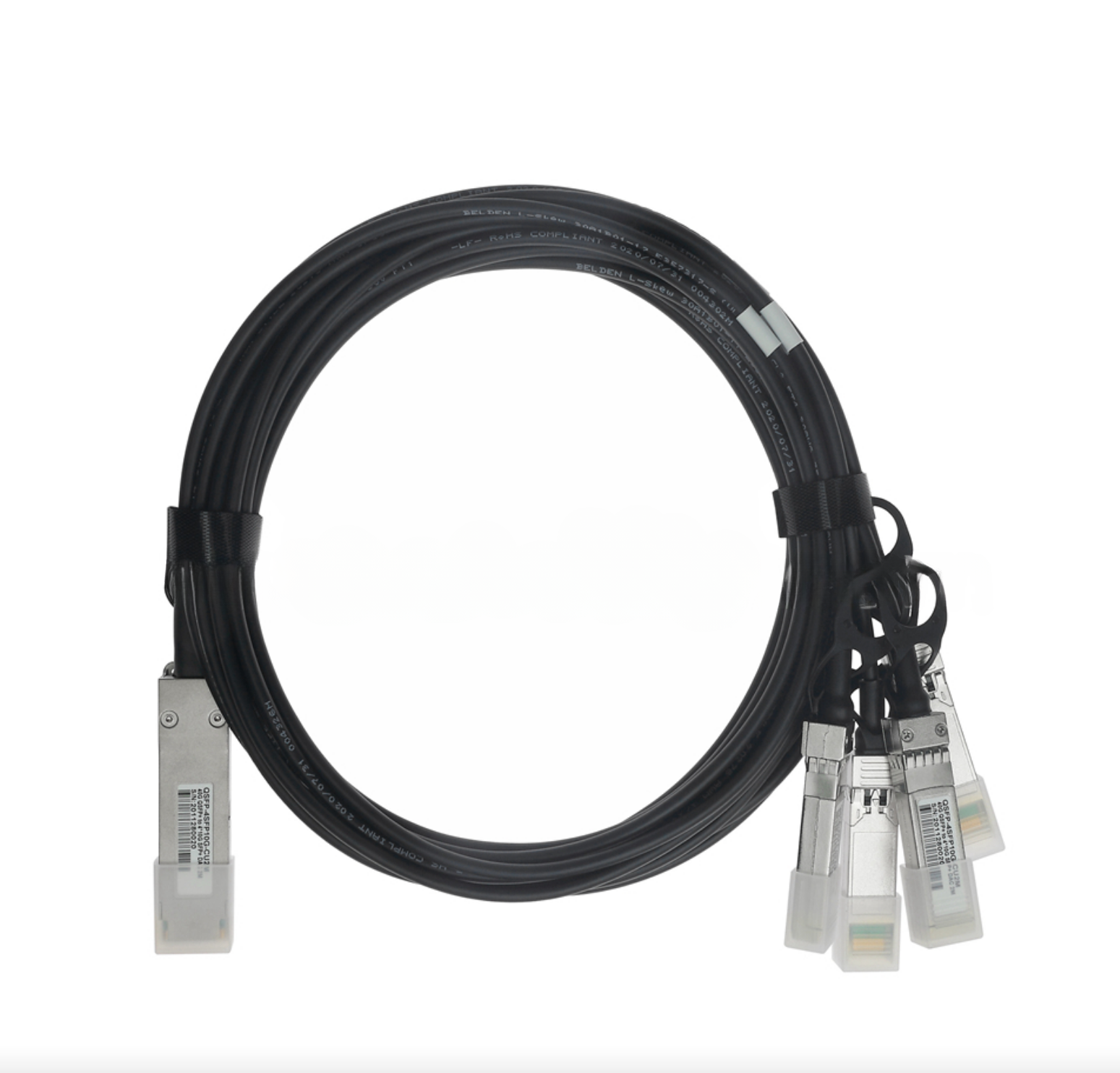

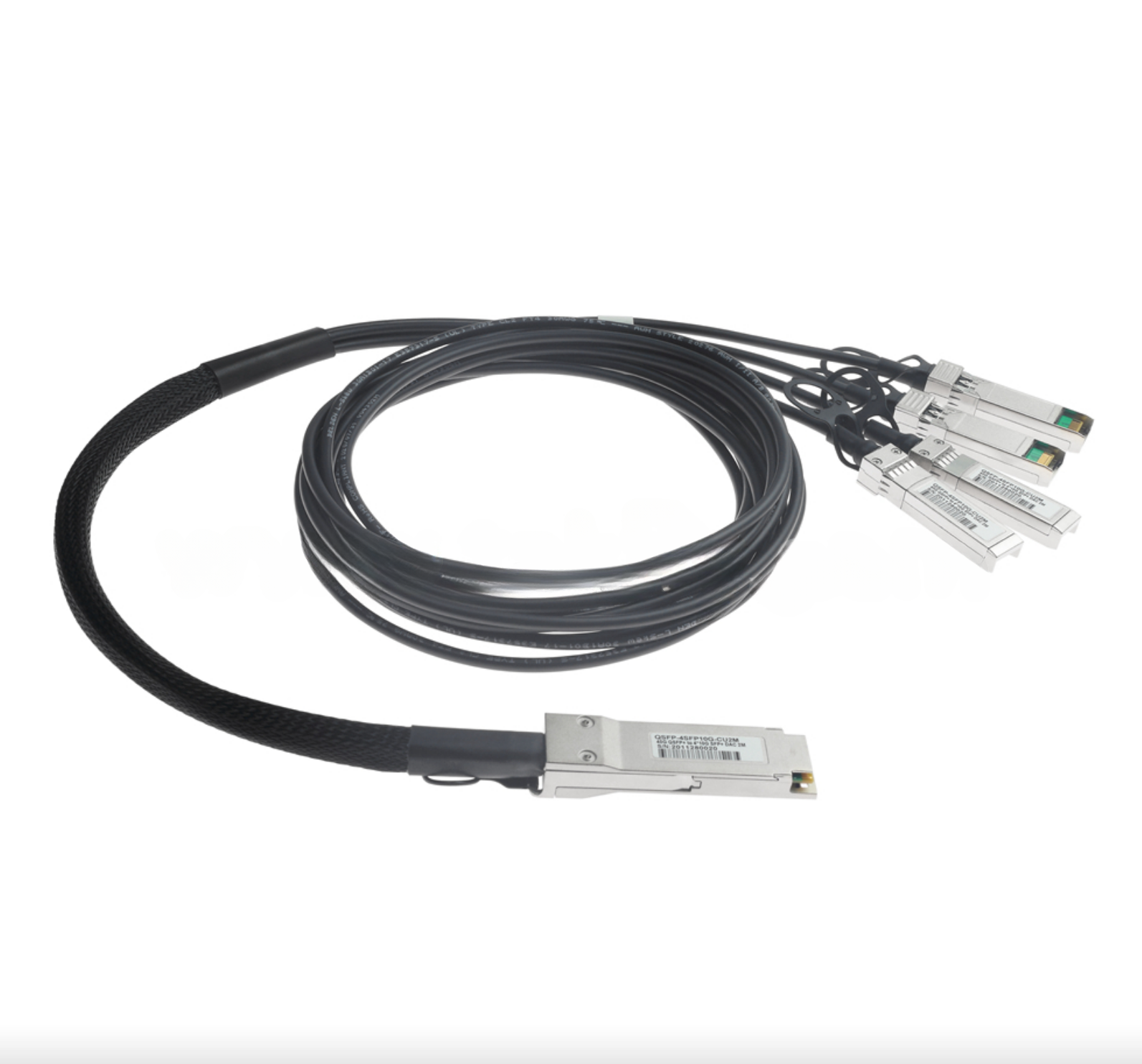

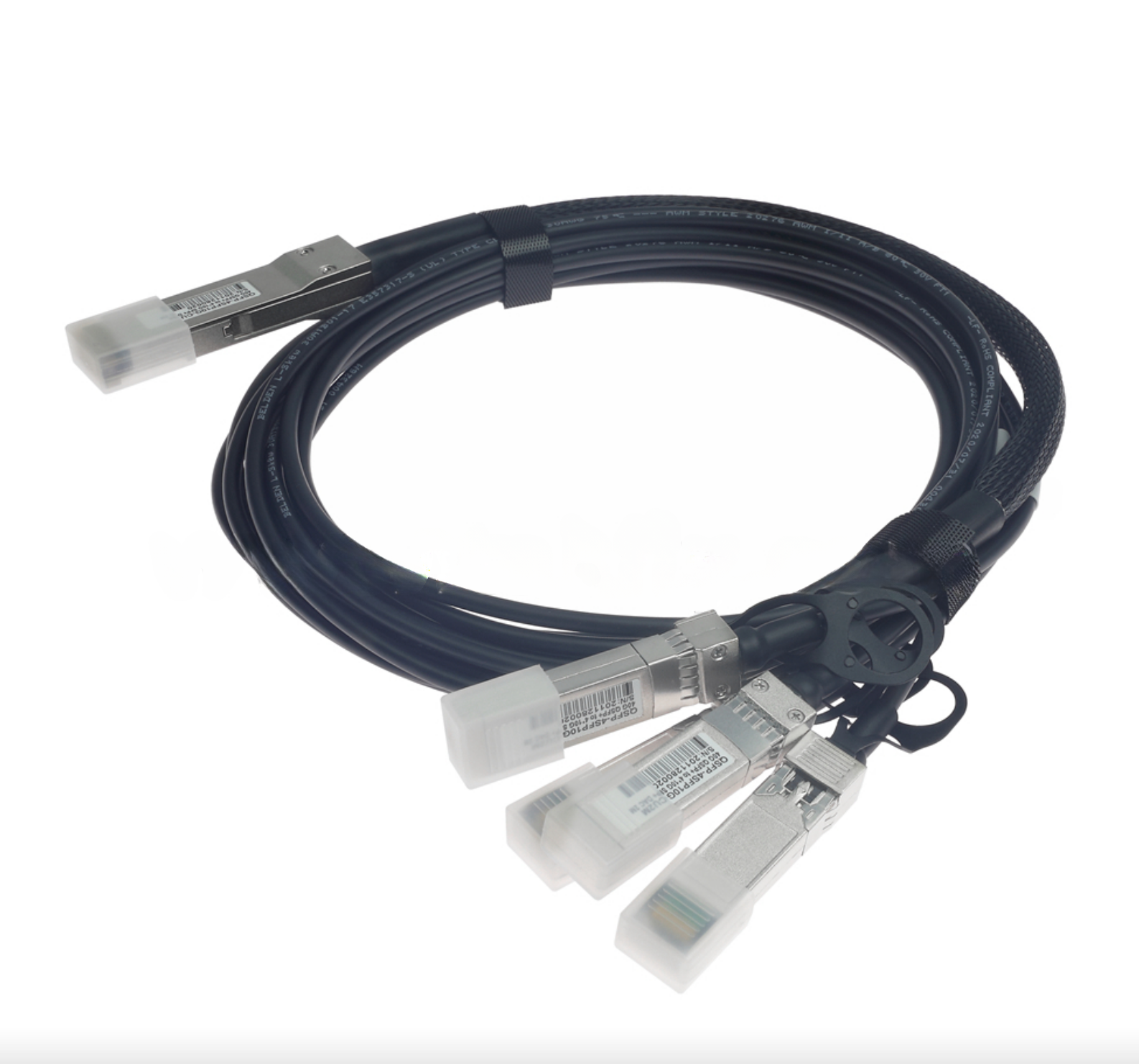

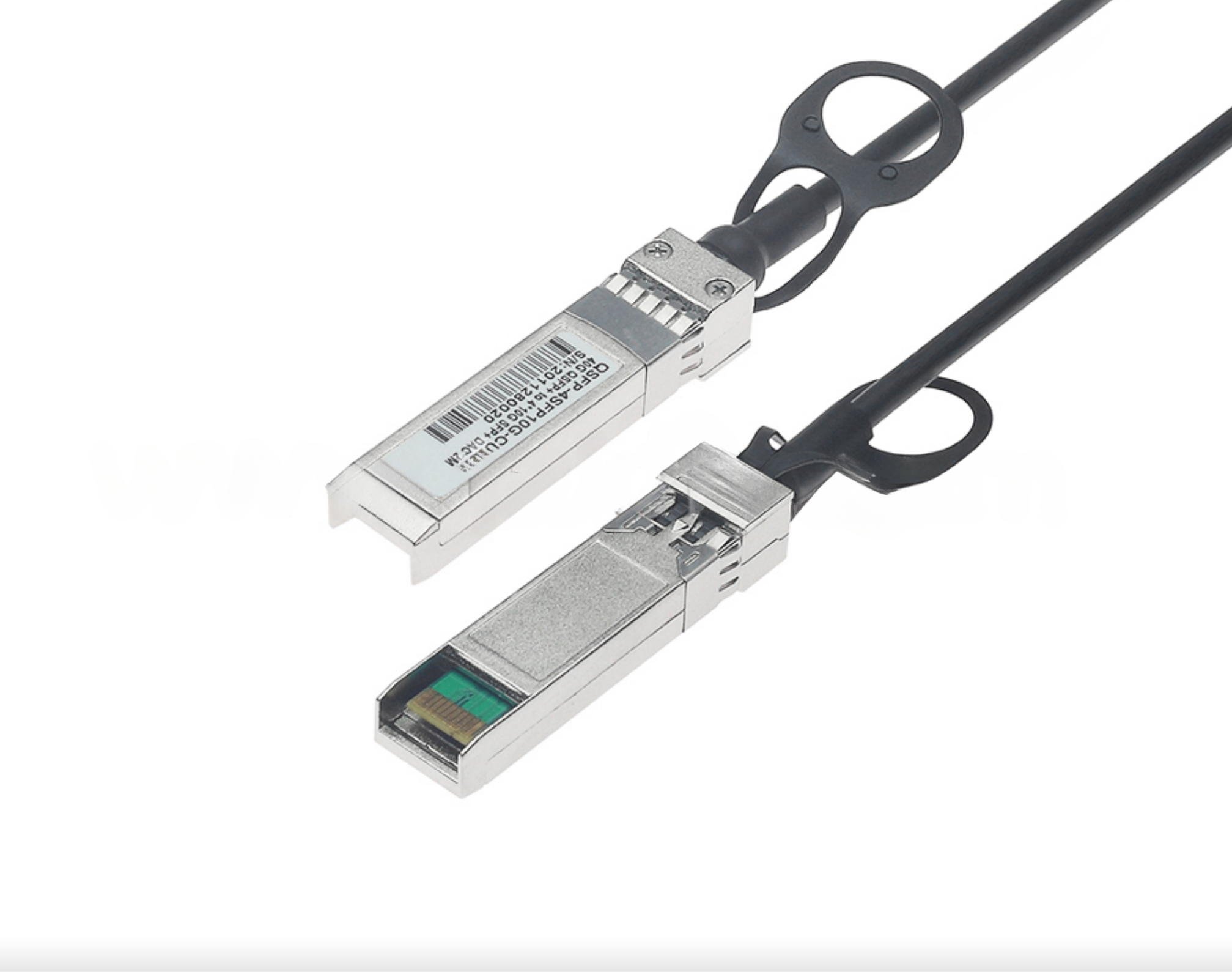

40G QSFP+ to 4x 10G SFP+ Direct Attach Passive Copper Cables


The QSFP+ to 4x SFP+ Passive cable assemblies are high performance,cost effective for SFP+ and QSFP+ equipment interconnects . The Hybrid cables are compliant with SFF-8436 and SFF-8431 specifications. It is offer a low power consumption,short reach interconnect applications. The cable each lane is capable of transmitting data at rates up to 10Gb/s ,providing an aggregated rate of 40Gb/s.

Features:

Hybrid cable conforms to the Small Form Factor SFF-8436 and SFF-8431

Power Supply :+3.3V

Low power consumption: 0.02 W (typ.)

Hybrid cable link length up to 5m (passive limiting)

Maximum aggregate data rate: 41.25 Gbps (4 x 10.3125Gbit/s)

Support for multi-gigabit data rates :1.0 Gbps10.3125 Gbps (per channel)

Temperature Range: 0~ 70



Application:

40G QSFP+ to 4×10SFP+

10G/40Gigabit Ethernet

InfiniBand SDR, DDR, QDR

Switches, Routers, and HBAs

Data Centers

Fibre Channel



STANDARDS COMPLIANCE

QSFP+

SFF-8436

QDR InfiniBand

QSFP+ MSA

RoHS Compliant



SFP+

SFF-8436

QDR InfiniBand

QSFP+ MSA

RoHS Compliant
