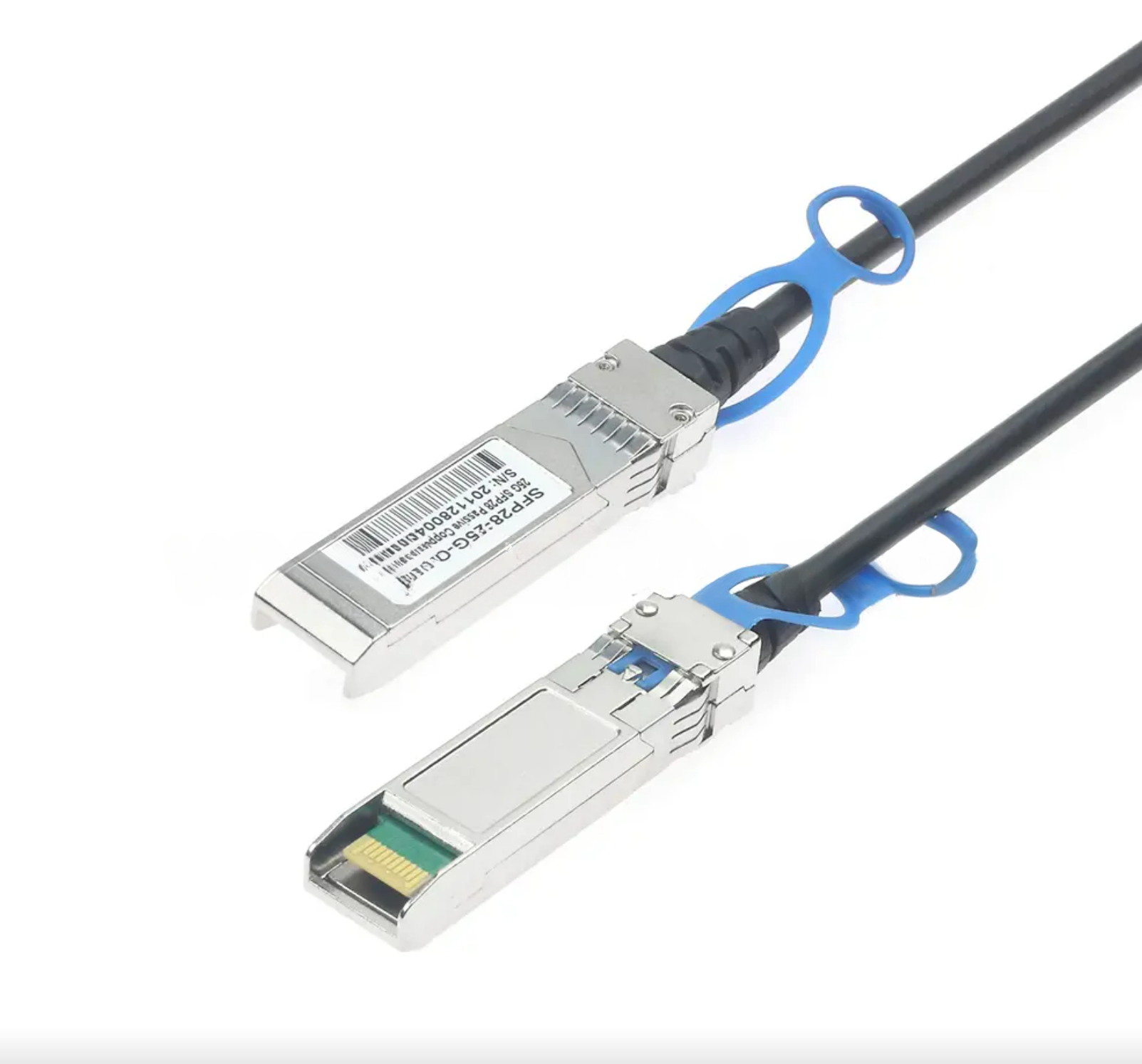

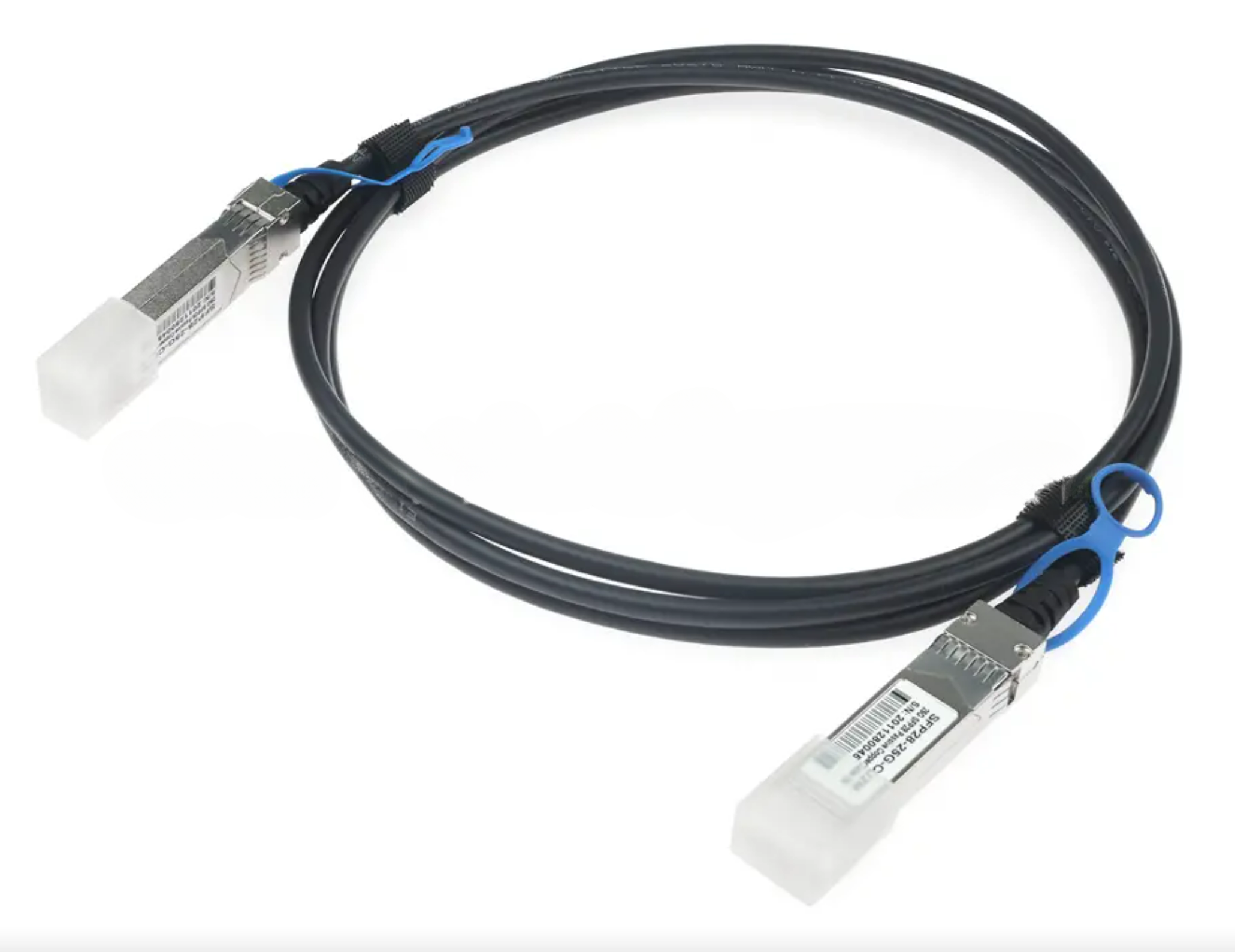

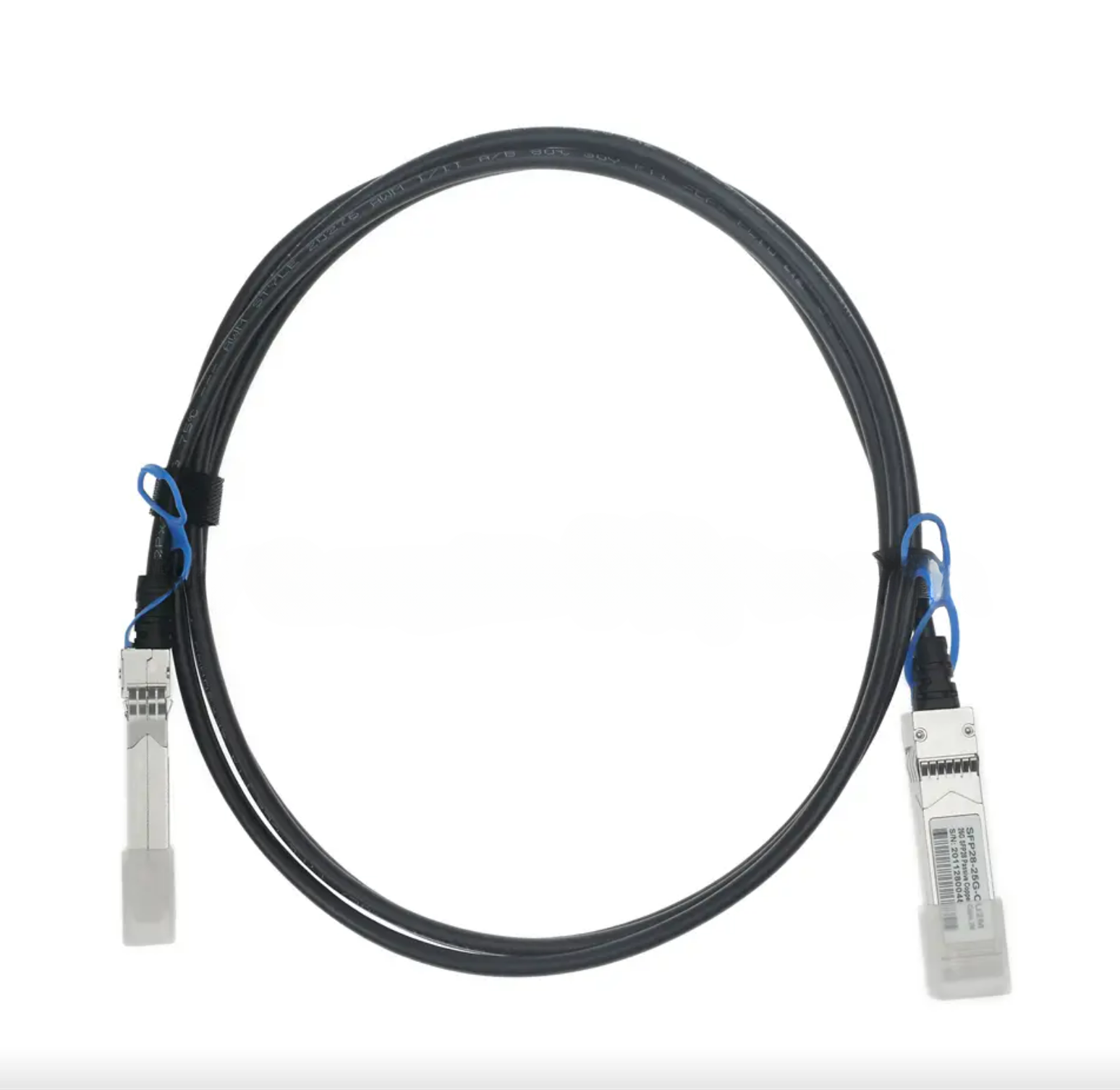

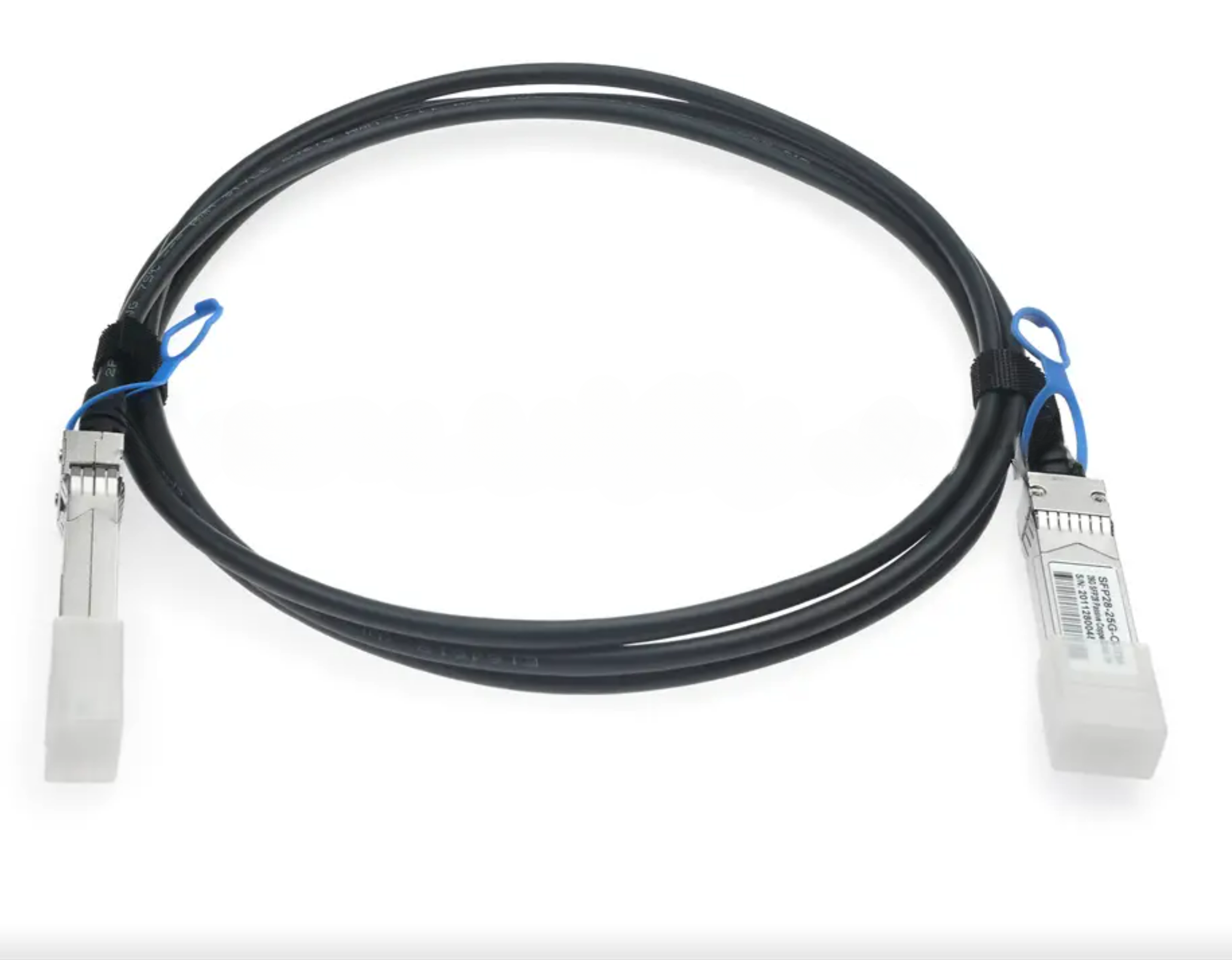

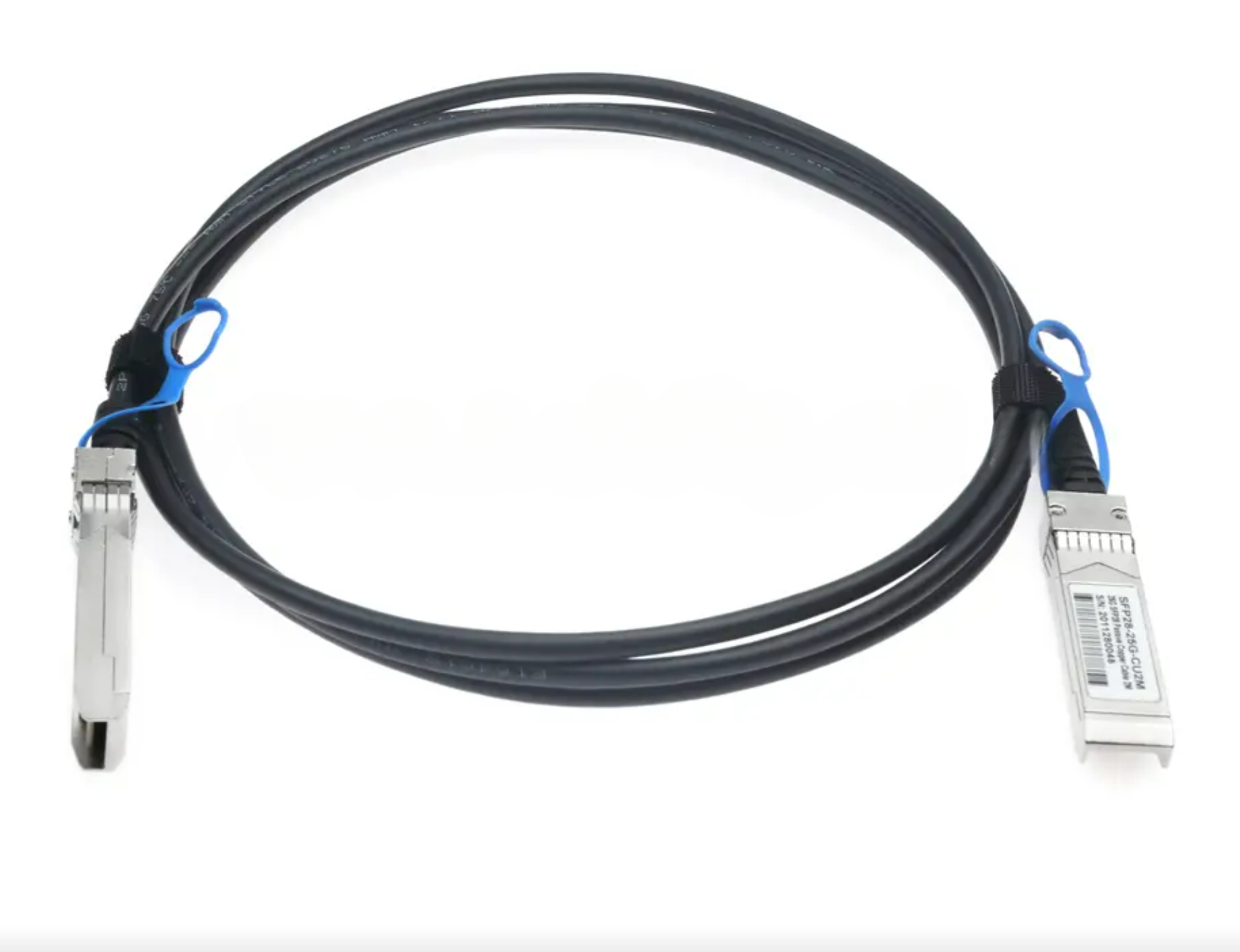

The SFP28 direct attach passive copper cable assemblies are a high-performance and cost-effective I/O solution for 25G Ethernet applications. The SFP28 copper cables allow hardware manufactures to achieve high port density, configurability and utilization at a very low cost and reduced power budget. The high speed cable assemblies meet and exceed 25G Ethernet industry standard requirements for performance and reliability.
Features
Data rate up to 25.78125Gbps
Length up to 5m
Hot-pluggable SFP+ 20PIN footprint
Improved Pluggable Form-factor (IPF) compliant for
enhanced EMI/EMC performance
Compatible to SFP28 MSA
Compatible to SFF-8402 and SFF-8432
Power consumption <0.1 W
Operating case temperature range 0°C to +70°C
RoHS-6 compliant (lead free)
Application:
High capacity I/O in Storage Area Networks, Network Attached Storage, and Storage Servers
Switched fabric I/O such as ultra high bandwidth switches and routers
Data center cabling infrastructure
High density connections between networking equipment
