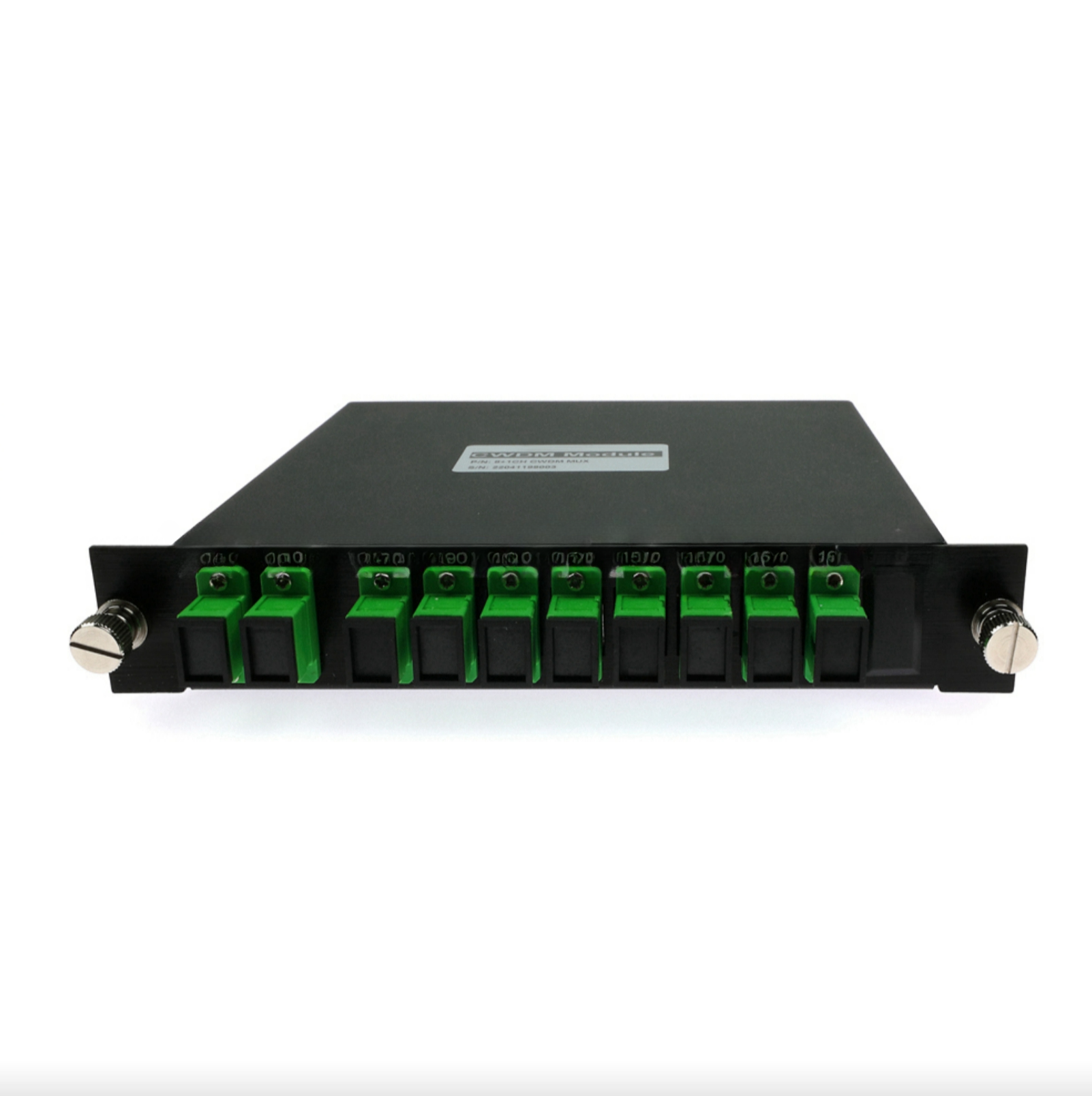

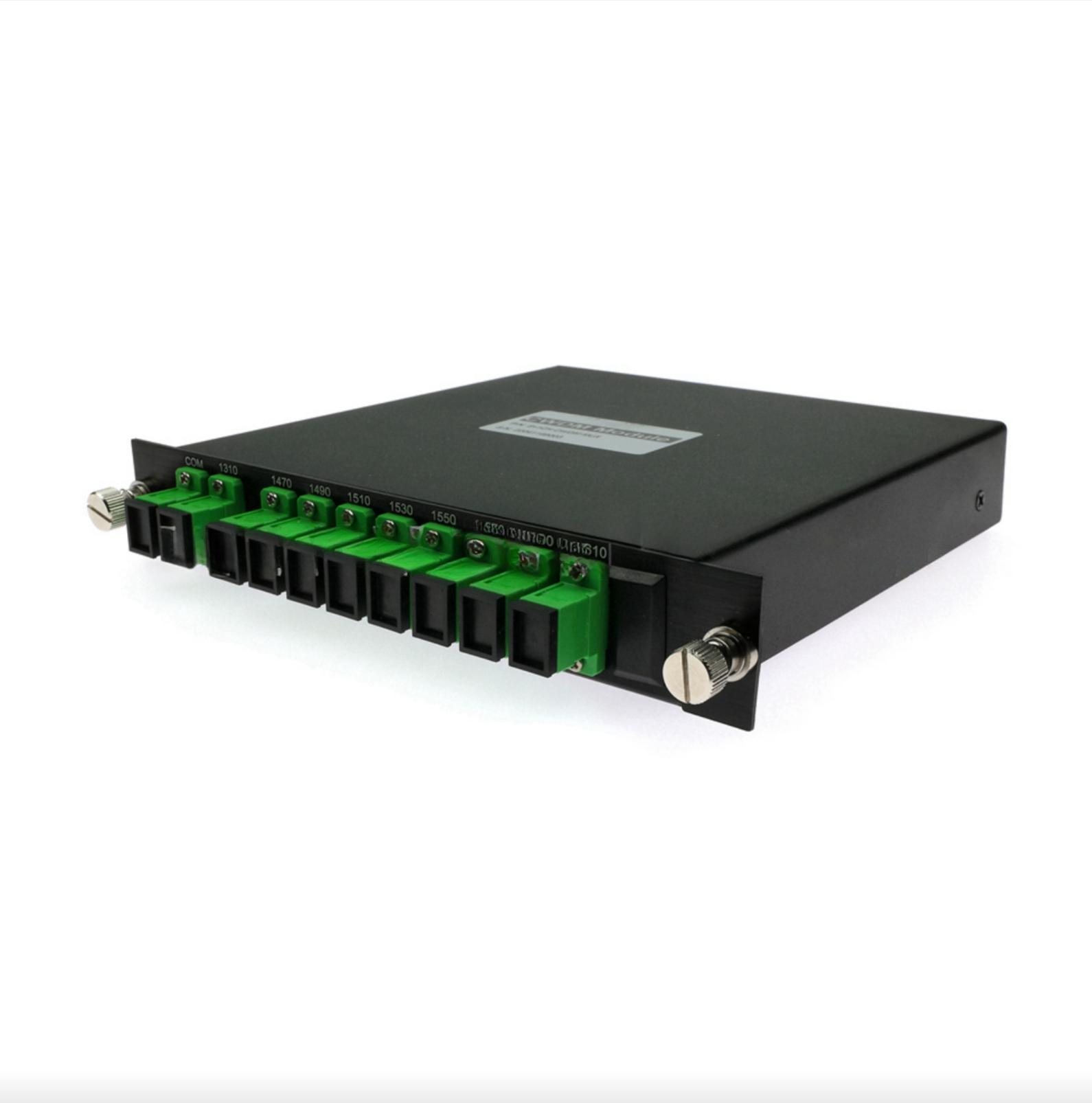

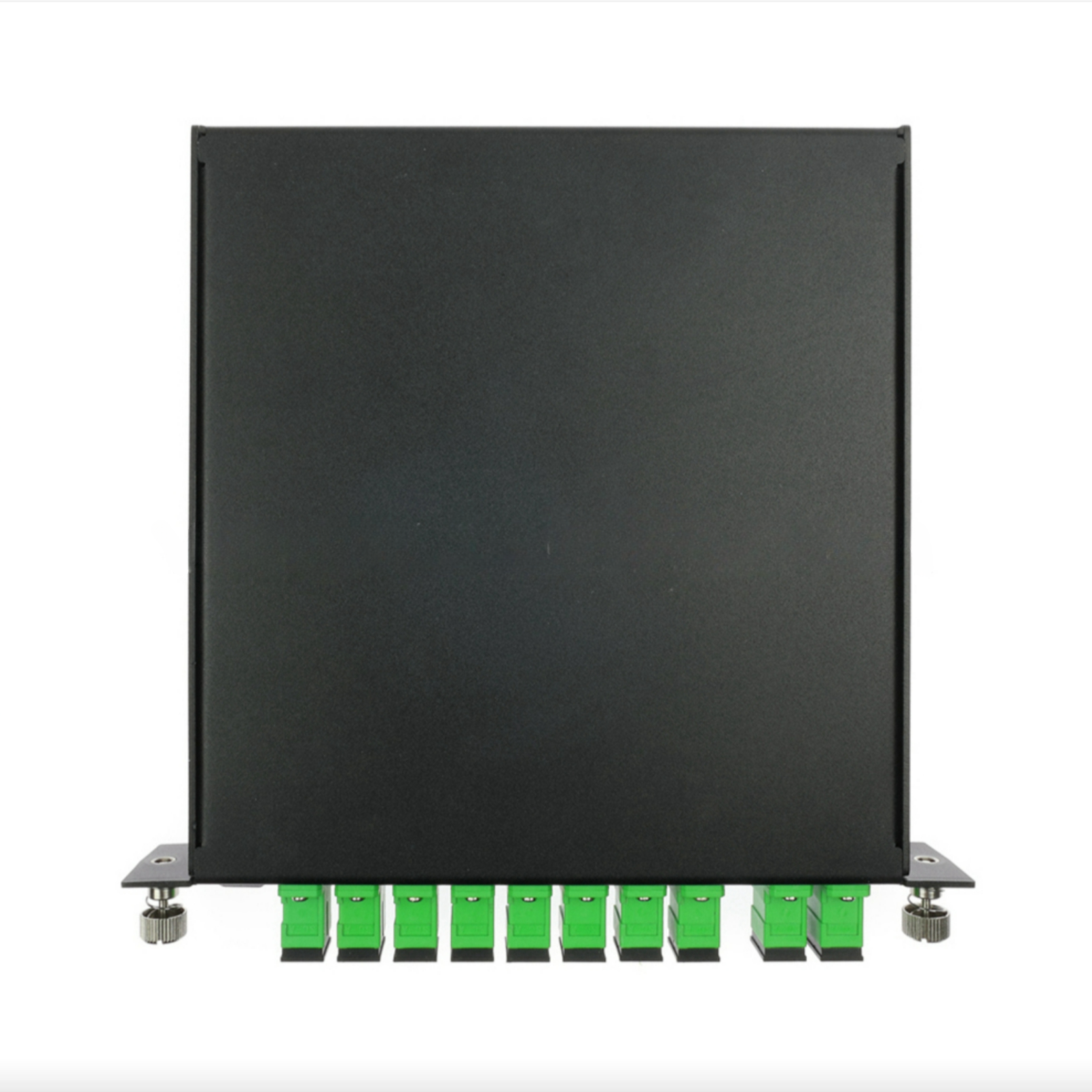

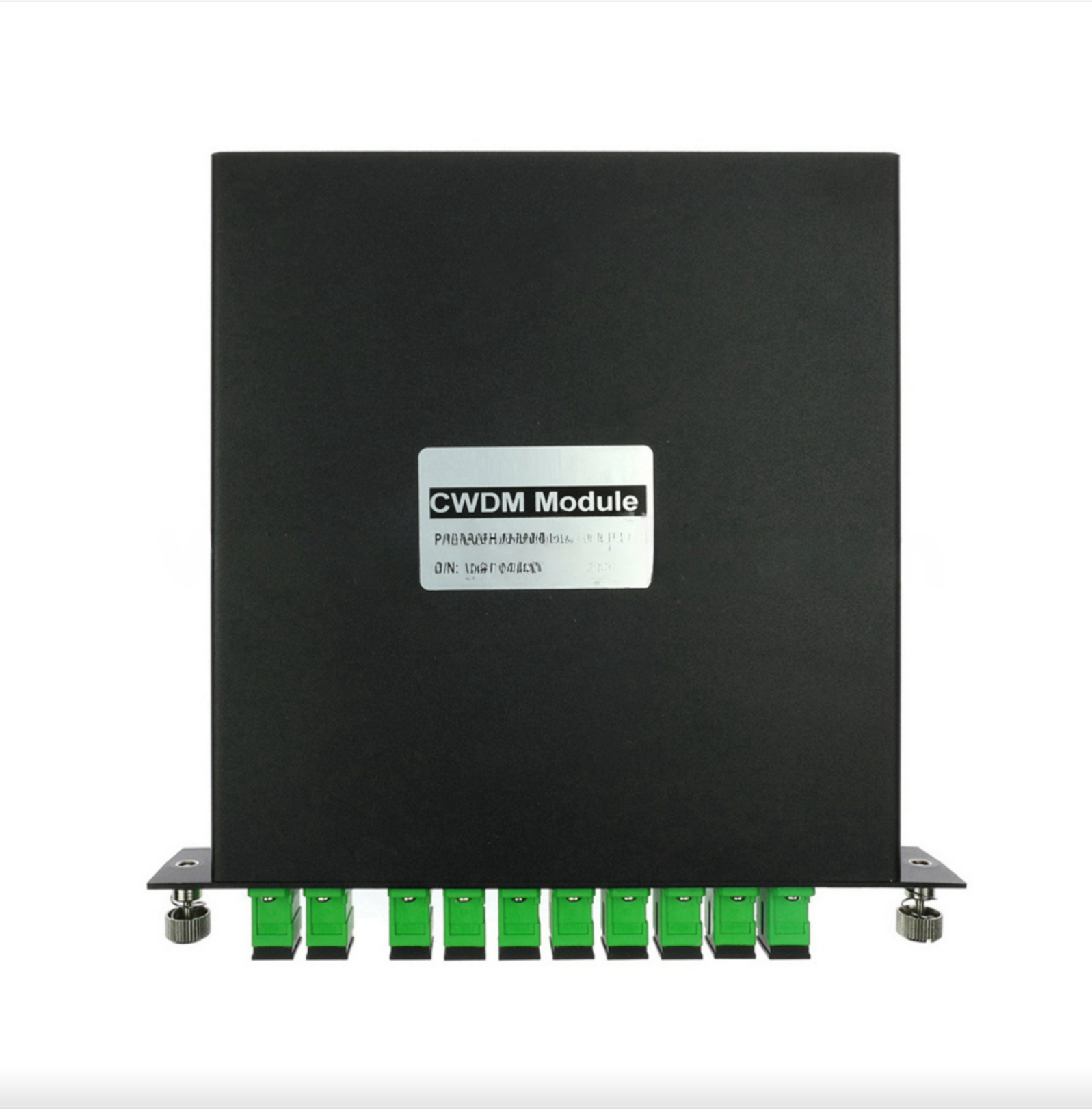

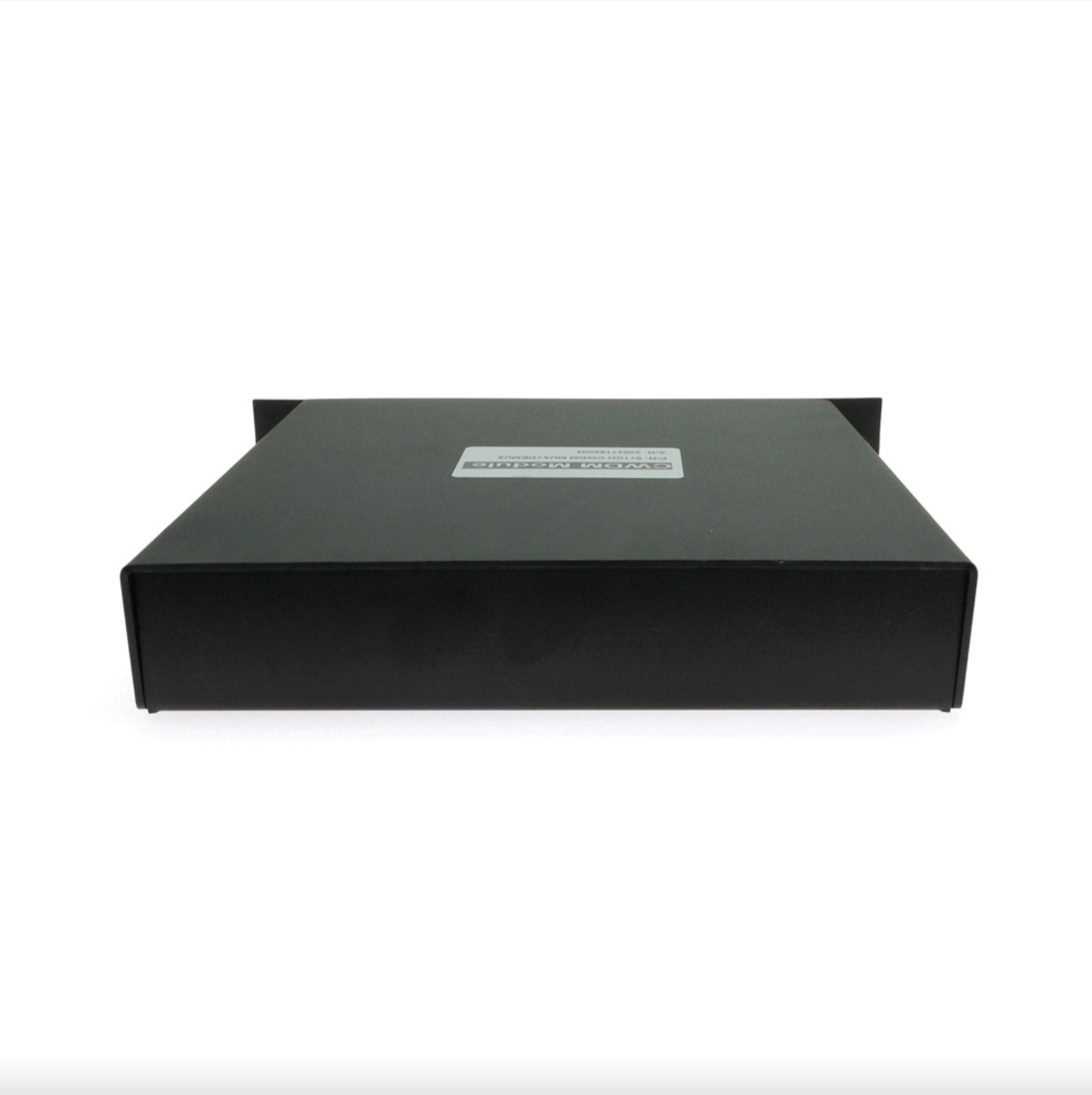

SOPO's CWDM Mux & Demux LGX module is a wavelength division multiplexing technology based on TFF(thin film filter), with a variety of wavelength optional. It multiplexes optical signals of different wavelengths into a single fiber for transmission, and demultiplexes the optical signals into signals of different wavelengths at the receiver end. CWDM has occupied an important position in the access layer of MAN because of its wide band and low requirements for system equipment.
Features
Low Insertion Loss
Wide pass band
High Channel Isolation
High Stability and reliability
Epoxy-free on Optical Path

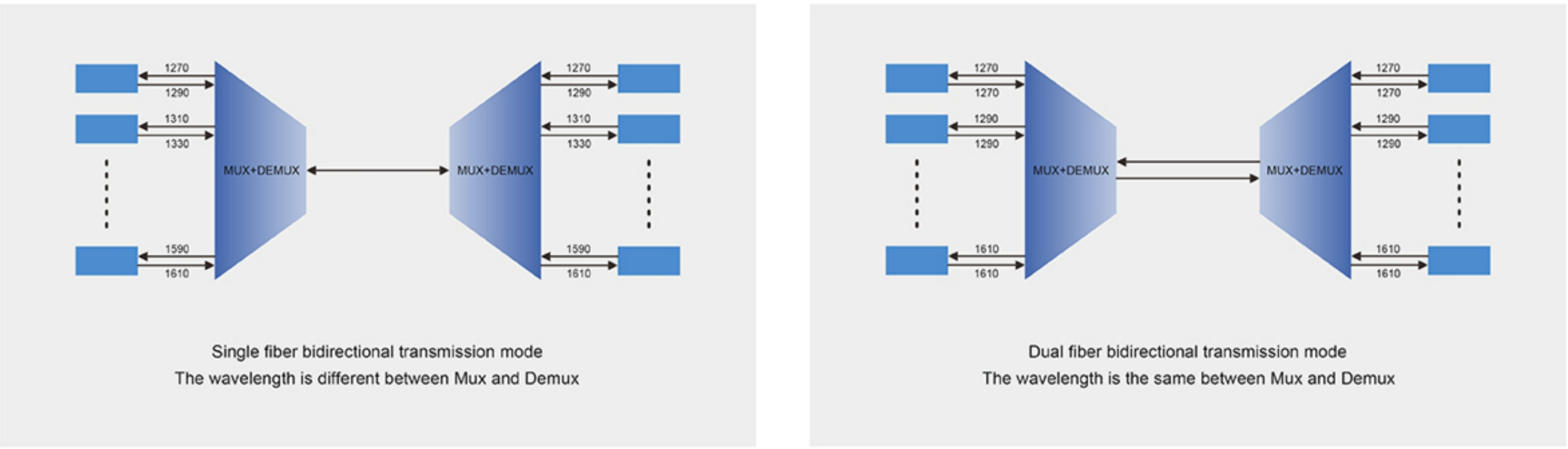

SOPO provides multiple wavelengths and single or dual fiber transmission CWDM MUX+DEMUX that is optional and customized.

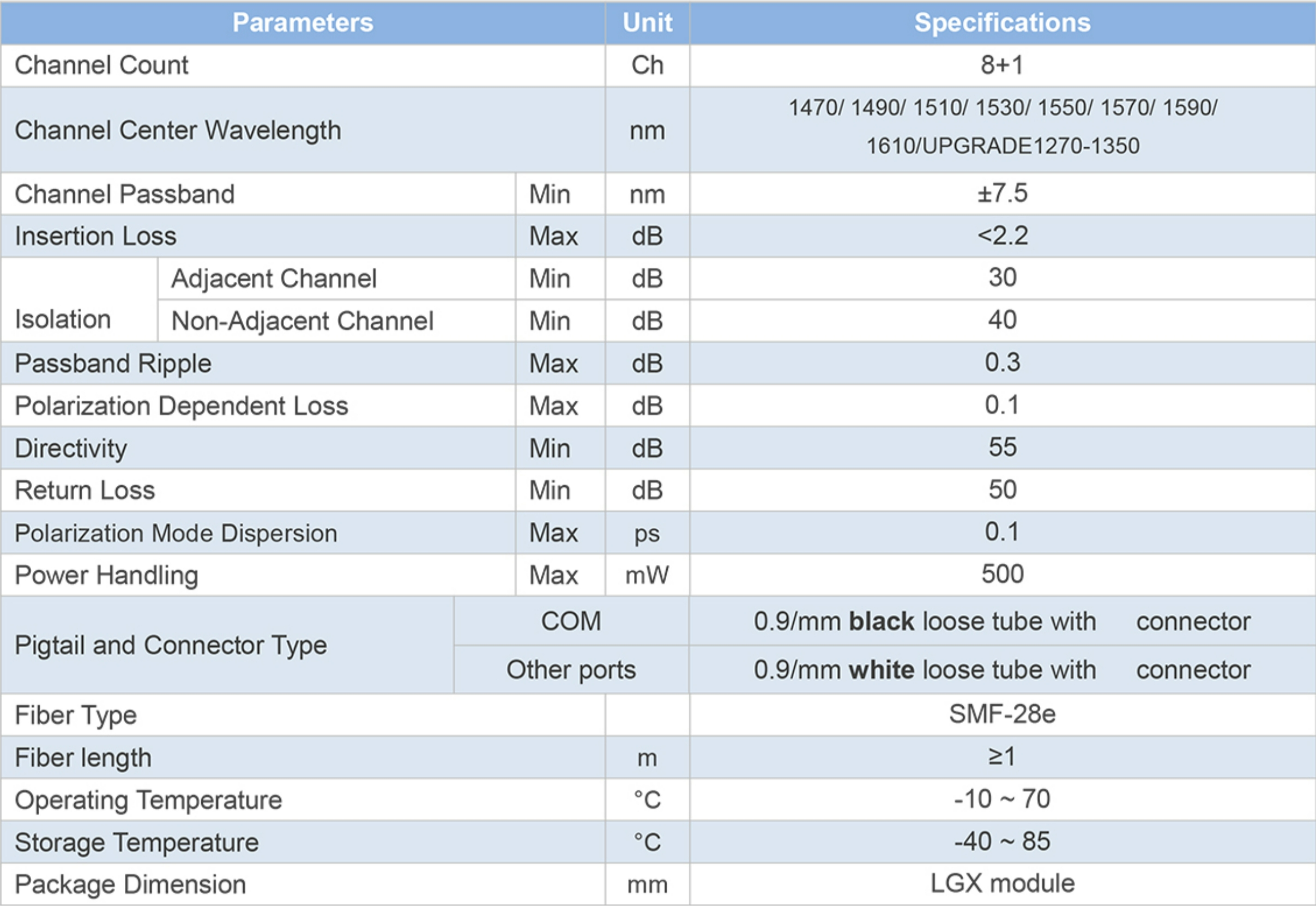

Parameter:
Application:
Used widely in fields of telecommunications, enterprise network, campus network etc.
