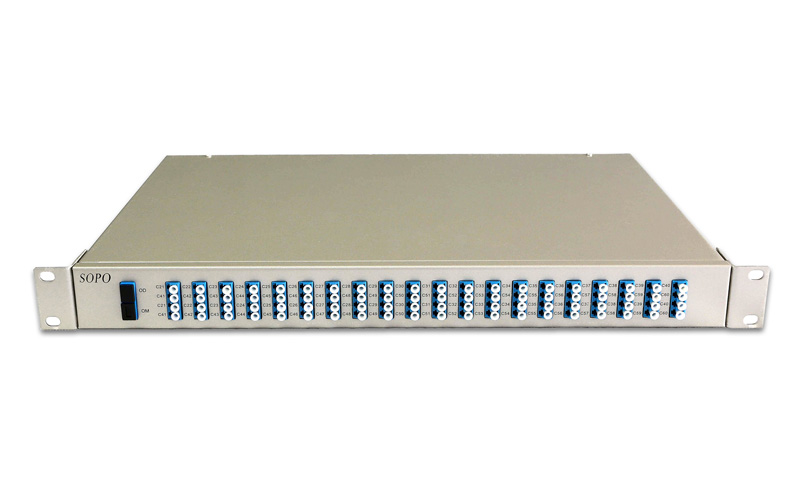

SOPO offers a full range of Thermal/Athermal AWG products, including 50GHz, 100GHz and 200GHz Thermal/Athermal AWG.Here we present the generic specification for the 40-channel 100GHz Flat Top Thermal AWG (40 channel TAWG) MUX/DEMUX component supplied for use in DWDM system.
40-CH 100G Thermal AWG
Features:
Low Insertion Loss
Established silica-on-silicon
Low PDL
Low chromatic dispersion
Telcordia GR-1221-CORE qualified
|
Parameter |
Specification |
|||
|
MIN |
Typ |
Max |
||
|
Number of Channels |
40 |
|||
|
Number Channel Spacing（GHz） |
100 |
|||
|
Cha. Center Wavelength（nm） |
C-Band |
|||
|
Clear Channel Passband(nm) |
±0.1 |
|||
|
Wavelength Stability（nm） |
±0.005 |
|||
|
-1 dB Channel Bandwidth（nm） |
0.4 |
|
|
|
|
-3 dB Channel Bandwidth（nm） |
0.6 |
|
|
|
|
Optical Insertion Loss at ITU grid（dB） |
|
4.5 |
6.0 |
|
|
Isolation（dB） |
Adjacent |
25 |
|
|
|
Non-Adjacent |
30 |
|
|
|
|
Total Channel Isolation |
22 |
|
|
|
|
Insertion Loss Uniformity（dB） |
|
1.0 |
1.5 |
|
|
Directivity (Mux Only)（dB） |
40 |
|
|
|
|
Insertion Loss Ripple（dB） |
|
|
0.5 |
|
|
Optical Return loss（dB） |
40 |
|
|
|
|
PDL/Polarization Dependent Loss in Clear Channel Band（dB） |
|
0.3 |
0.5 |
|
|
Polarization Mode Dispersion（ps） |
|
|
0.5 |
|
|
Maximum Optical Power（mW） |
|
|
23 |
|
|
MUX/DEMUX input/ output Monitoring range(dB/℃) |
-35 |
|
+23 |
|
|
Operating Temperature(℃) |
-5 |
+25 |
+65 |
|
|
Operating Humidity(%RH) |
5 |
|
95 |
|
|
Storage Temperature(℃) |
-40 |
|
+85 |
|
|
Storage Humidity(%RH) |
5 |
|
95 |
|
|
Package Size(mm) |
L150×W65×H16 |
|||
|
Size between screws(mm) |
140 x 58 |
|||
1、IL Represents the worst case over a +/-0.01nm window around the ITU wavelength;
2、PDL was measured on average polarization over a +/- 0.01nm window around the ITU wavelength.
